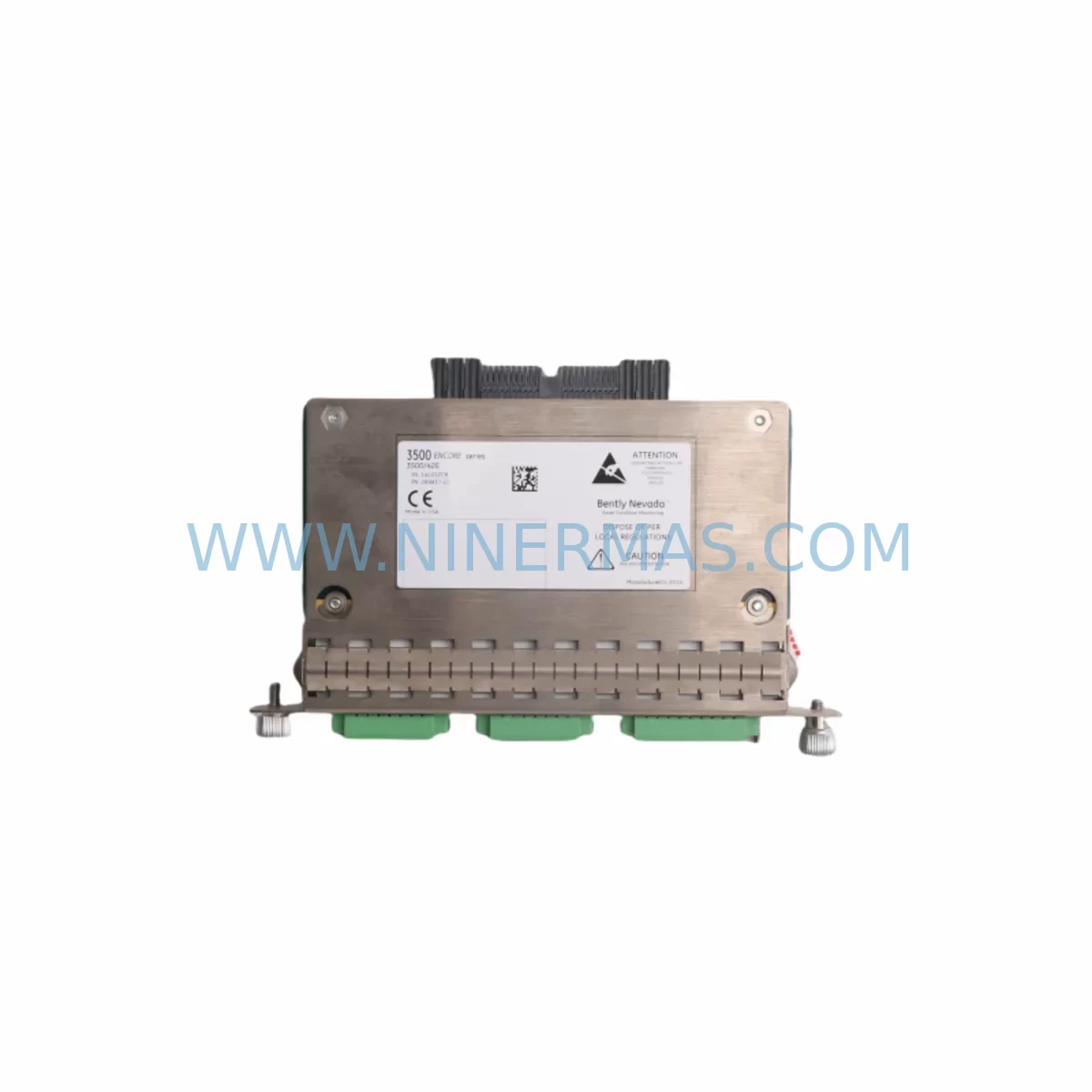

Bently Nevada 3500/42E 289837-01 Retrofit Proximitor Module

Bently Nevada 3500/42E 289837-01 Retrofit Proximitor/Seismic Module: Legacy-Compatible Upgrade for Industrial Vibration Monitoring Systems

The Bently Nevada 3500/42E 289837-01 is a Proximitor/Seismic Monitor Module designed for continuous vibration and position monitoring in rotating machinery protection systems. As a core component of the Bently Nevada 3500 Series machinery protection platform, this module provides radial vibration, thrust position, and seismic monitoring functions critical to turbine, compressor, pump, and motor protection applications across oil & gas, power generation, and heavy process industries.

With the 3500/42E now approaching end-of-life status in many installed base configurations, plant maintenance teams and reliability engineers are actively seeking verified retrofit-compatible replacements that preserve existing rack architecture, wiring terminations, and system logic without requiring a full platform migration. The 289837-01 variant is a direct form-fit-function replacement for earlier 3500/42 and 3500/42M modules, making it the preferred choice for brownfield upgrade projects where minimizing downtime and protecting capital investment in existing 3500 Series racks is the primary objective.

NINERMAS maintains verified stock of the 3500/42E 289837-01 sourced from original manufacturer channels, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty from date of delivery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3500/42E 289837-01 in an operating plant environment requires a structured approach that accounts for the interdependencies between the monitor module and the surrounding rack infrastructure. The 3500 Series rack is a tightly integrated platform: the 3500/42E shares the backplane with the 3500/01 Rack Interface Module, draws regulated power from the 3500/15 Power Supply Module, and communicates alarm and trip status through the 3500/32 4-Channel Relay Module. Any retrofit plan must confirm that these adjacent modules are in serviceable condition before the replacement monitor is commissioned.

Field wiring to the 3500/42E is routed through a dedicated I/O module — typically the 140471-01 I/O module — which mounts to the rear of the rack and accepts the Proximitor sensor cables from the field junction box. Because the I/O module remains in place during a monitor swap, the field wiring terminations, cable shields, and sensor loop resistances do not need to be disturbed. This significantly reduces the risk of introducing wiring errors during the replacement procedure and allows the field team to focus on the module-level swap and subsequent configuration verification.

Before removing the existing 3500/42E, the maintenance team should export the current channel configuration from Bently Nevada Rack Configuration Software (RCS) or System 1. This configuration file captures transducer type, full-scale range, alert and danger setpoints, time delays, and OK relay logic. When the replacement 289837-01 is installed, this configuration file is reloaded directly — eliminating the need to re-enter setpoints manually and reducing the risk of parameter transcription errors. If the plant is also upgrading the communication gateway from an older 3500/92 to a current-generation Ethernet-capable interface, the configuration migration should be planned as a parallel activity to avoid extending the maintenance window.

For plants operating mixed-generation 3500 racks — where some slots contain older 3500/40M Proximitor Monitor modules alongside newer 3500/42E units — the retrofit sequence should prioritize the highest-criticality machine trains first. Compressor and turbine protection loops typically carry the greatest consequence of failure, and replacement modules for these positions should be pre-staged and bench-tested before the maintenance window opens. Auxiliary machinery such as cooling water pumps and lube oil systems, which may be monitored by 3500/45 Position Monitor or 3500/50 Tachometer modules in adjacent slots, can be addressed in subsequent maintenance cycles without compromising the primary protection architecture.

Where the retrofit scope extends beyond a single module replacement to include a full rack modernization, the project team should also evaluate the condition of the 3500/20 Rack Interface Module I/O, the integrity of the backplane ribbon connectors, and the calibration status of any 3500/60 Temperature Monitor modules sharing the same rack. Signal isolators installed between the field junction box and the rack I/O — particularly where long cable runs or high electrical noise environments are present — should be verified for correct input impedance matching with the replacement 3500/42E to avoid introducing measurement offset errors after commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/42E replacement requires pre-staging the replacement module, verifying the configuration backup, and coordinating the swap with the plant’s safety instrumented system (SIS) bypass procedure. The 3500 Series supports a module-level bypass function that allows the rack to remain energized and the remaining channels to continue monitoring while the target slot is taken out of service. This bypass must be formally authorized through the plant’s management of change (MOC) process and time-limited to the duration of the physical swap.

The physical replacement of the 3500/42E 289837-01 is a tool-free operation: the module is secured by a front-panel locking lever and slides out of the rack slot on the backplane connector. With the I/O module field wiring undisturbed, the replacement module can be inserted, locked, and powered within minutes. The configuration reload via RCS typically completes in under two minutes for a standard four-channel Proximitor configuration. Following reload, the maintenance team should verify OK relay status, confirm that all channel gap voltages are within the transducer’s linear range, and check that alert and danger setpoints match the pre-swap configuration export before releasing the bypass and returning the machine train to protected status.

For plants where the 3500 rack communicates vibration data to a distributed control system (DCS) or historian via the 3500/92 Communication Gateway using Modbus TCP or OPC, the communication link should be verified after the module swap by confirming that the DCS tag values for the replaced channels are updating correctly and that no communication fault alarms are present on the gateway. If the plant is simultaneously migrating from a legacy serial Modbus link to an Ethernet-based protocol, this communication cutover should be scheduled as a separate activity after the monitor replacement has been verified stable, to isolate any post-commissioning issues to a single change at a time.

Retrofit Support FAQ

Q1: Is the 3500/42E 289837-01 a direct drop-in replacement for the earlier 3500/42 and 3500/42M modules?
Yes. The 3500/42E 289837-01 is slot-compatible with earlier 3500/42 and 3500/42M monitor modules in the same rack position. The backplane connector, I/O module interface, and field wiring terminations are unchanged. A configuration reload via Rack Configuration Software is required after installation to restore channel setpoints and transducer parameters. No mechanical modification to the rack or field wiring is necessary.

Q2: What pre-shipment testing is performed on each 3500/42E 289837-01 unit?
Each unit dispatched by NINERMAS undergoes a functional test prior to shipment. This test verifies power-up self-diagnostics, channel OK relay operation, and communication with the rack interface module. Units that do not pass functional verification are not dispatched. All units are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the existing channel configuration be reused after installing the replacement module?
Yes. Bently Nevada Rack Configuration Software (RCS) allows the existing configuration to be exported from the rack before the swap and reloaded to the replacement 3500/42E 289837-01 after installation. This preserves all transducer type settings, full-scale ranges, alert and danger setpoints, time delays, and relay logic without manual re-entry. NINERMAS recommends exporting and archiving the configuration file as part of the pre-maintenance preparation checklist.

Q4: What is the typical lead time and stock availability for the 3500/42E 289837-01?
NINERMAS maintains inventory of the 3500/42E 289837-01 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For time-critical plant shutdowns or emergency maintenance windows, expedited dispatch options are available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock status and arrange priority shipment.
