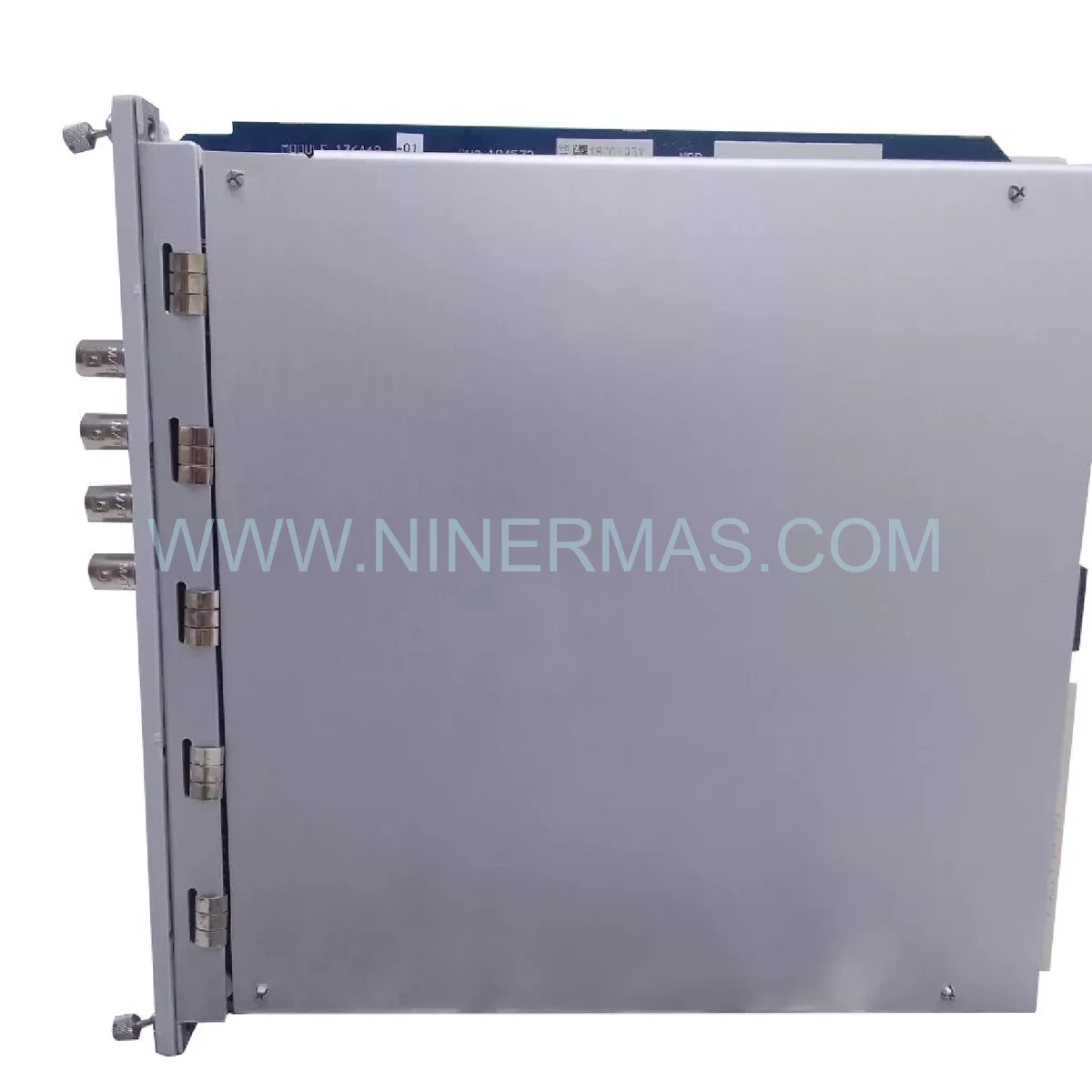

Bently Nevada 3500/40M 176449-01 Proximitor Monitor

Bently Nevada 3500/40M 176449-01 Proximitor Monitor

The Bently Nevada 3500/40M 176449-01 is a four-channel Proximitor monitor engineered for continuous machinery protection and condition monitoring in critical rotating equipment. This module accepts input from proximity transducers (proximitors) to measure radial shaft vibration, thrust position, differential expansion, and eccentricity with exceptional accuracy and reliability.

Technical Specifications

• Part Number: 176449-01
• Series: 3500 Machinery Protection System
• Input Channels: 4 independent channels
• Input Type: Proximitor transducer (eddy current proximity sensor)
• Input Impedance: 10 kΩ nominal
• Input Voltage Range: -2V to -24V DC (gap voltage)
• Measurement Range: 0-500 mils pk-pk (configurable per channel)
• Frequency Response: 0-10 kHz (-3 dB)
• Accuracy: ±1% of full scale ±0.5 mils
• Resolution: 0.01 mils (0.25 μm)
• Update Rate: 1 ms per channel
• Alarm Setpoints: 2 per channel (Alert and Danger)
• Power Consumption: 7.5W typical from 3500 rack backplane
• Operating Temperature: -30°C to +65°C (-22°F to +149°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 5% to 95% non-condensing
• Dimensions: 241.8 mm H × 24.4 mm W × 241.3 mm D (single-slot module)
• Weight: 0.91 kg (2.0 lbs)
• Mounting: 3500 rack (requires 3500/05 system rack)

Advanced Monitoring Capabilities

The 3500/40M delivers comprehensive machinery diagnostics through multiple measurement modes:

• Radial Vibration Monitoring: Measures shaft displacement in X-Y planes to detect unbalance, misalignment, bearing wear, and rotor rubs with 0.01 mil resolution
• Thrust Position Measurement: Tracks axial shaft movement to prevent thrust bearing failure in compressors, turbines, and pumps
• Differential Expansion: Monitors relative thermal growth between rotor and casing to prevent rubs during startup and shutdown transients
• Eccentricity Detection: Identifies shaft bow, cracks, and permanent rotor deformation through slow-roll vector analysis
• Gap Voltage Monitoring: Validates proximitor sensor health and detects wiring faults, open circuits, and short circuits

Application Scenarios

The 3500/40M Proximitor monitor is essential for protecting critical rotating machinery:

• Steam Turbines: Monitor journal bearing vibration and thrust position in power generation turbines from 50 MW to 1000+ MW capacity
• Gas Turbines: Protect aero-derivative and industrial gas turbines with continuous vibration surveillance and automatic shutdown on excessive displacement
• Centrifugal Compressors: Measure radial vibration at each bearing and thrust position to prevent catastrophic failures in petrochemical and LNG facilities
• Large Motors & Generators: Monitor shaft vibration in motors exceeding 500 HP and generators in hydroelectric, nuclear, and fossil fuel plants
• Pumps: Detect cavitation, impeller imbalance, and bearing degradation in critical process pumps and boiler feed pumps
• Fans & Blowers: Protect high-speed induced draft fans, forced draft fans, and process blowers from destructive vibration levels

System Architecture & Integration

The 3500/40M operates within the comprehensive 3500 machinery protection ecosystem:

• Rack Compatibility: Installs in 3500/05 system rack (7-slot mini, 14-slot full-height, or 21-slot extended configurations)
• Communication Protocols: Interfaces with 3500/20 rack interface module for Modbus, Ethernet/IP, or proprietary protocols
• Data Management: Integrates with System 1 condition monitoring software for trending, diagnostics, and predictive maintenance
• Redundancy Options: Supports dual-redundant configuration with automatic failover for critical machinery protection
• Relay Outputs: Configurable alarm relays (via 3500/32 or 3500/33 relay modules) for PLC/DCS integration and emergency shutdown systems

Configuration & Programming

The 3500/40M offers flexible configuration through 3500 Rack Configuration Software:

• Channel Assignment: Configure each channel for radial vibration (X-Y pairs), thrust position, differential expansion, or eccentricity measurement
• Alarm Setpoints: Program Alert and Danger thresholds with hysteresis and time delays to prevent nuisance trips
• Scaling Factors: Enter proximitor sensitivity (mV/mil) and gap voltage for accurate displacement calculation
• Filtering: Apply low-pass, high-pass, or band-pass filters to isolate specific vibration frequencies (1X, 2X, subsynchronous)
• Slow Roll Compensation: Automatically subtract mechanical runout during startup to display true dynamic vibration
• OK Logic: Define voting logic (1oo1, 1oo2, 2oo2) for alarm activation to balance sensitivity and false trip prevention

Installation Best Practices

Proper installation ensures accurate measurements and reliable protection:

• Rack Positioning: Install in 3500/05 rack with adequate ventilation; maintain 10°C to 50°C ambient temperature for optimal performance
• Proximitor Wiring: Use shielded twisted-pair cable (Belden 8723 or equivalent); maximum cable length 300 meters (1000 feet)
• Grounding: Connect cable shields to rack ground at monitor end only; float shield at proximitor end to prevent ground loops
• Sensor Verification: Measure gap voltage at each proximitor before connecting to monitor; verify -8V to -12V DC for proper air gap
• Baseline Establishment: Record vibration signatures during commissioning for future trending and anomaly detection
• Alarm Testing: Perform functional test of all alarm setpoints and relay outputs before placing machinery in service

Diagnostic Features & Troubleshooting

The 3500/40M provides extensive diagnostic capabilities:

• Front Panel LEDs: OK (green), Alert (yellow), Danger (red) indicators for each channel plus module status LED
• Gap Voltage Display: Real-time gap voltage monitoring detects sensor faults, cable damage, and installation errors
• Channel Bypassing: Temporarily disable individual channels for maintenance without affecting other channels or system operation
• Event Logging: Timestamp and store alarm events with peak values for post-trip analysis
• Common Issues: High gap voltage (proximitor too far from shaft or open circuit), low gap voltage (proximitor too close or short circuit), erratic readings (loose connections or EMI interference), no output (module not configured or communication failure)

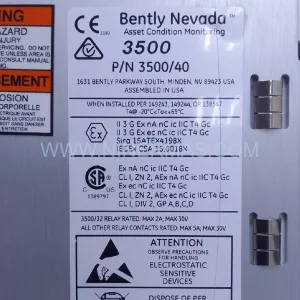

Compliance & Certifications

The 3500/40M meets rigorous international standards:

• Safety: UL 508 Listed, CSA C22.2 No. 142, CE marked per Machinery Directive 2006/42/EC
• EMC: EN 61326-1 (industrial electromagnetic environment), IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions)
• Functional Safety: Suitable for SIL 2 applications per IEC 61508 when properly configured and maintained
• Hazardous Locations: Suitable for Class I Division 2 Groups A, B, C, D when installed per NEC Article 501
• Environmental: RoHS compliant, REACH registered

Maintenance & Lifecycle Management

Recommended practices for sustained reliability:

• Inspection Schedule: Annual verification of alarm setpoints, relay operation, and communication integrity
• Calibration: Factory calibration valid for 5 years; field verification recommended every 2 years using precision displacement simulator
• Firmware Updates: Check for firmware updates annually; updates may improve diagnostics or add features
• Spare Parts Strategy: Maintain 10% spare inventory for critical machinery; typical MTBF exceeds 150,000 hours
• Obsolescence Planning: 3500/40M remains current product; migration path to 3500/42M available for enhanced features
