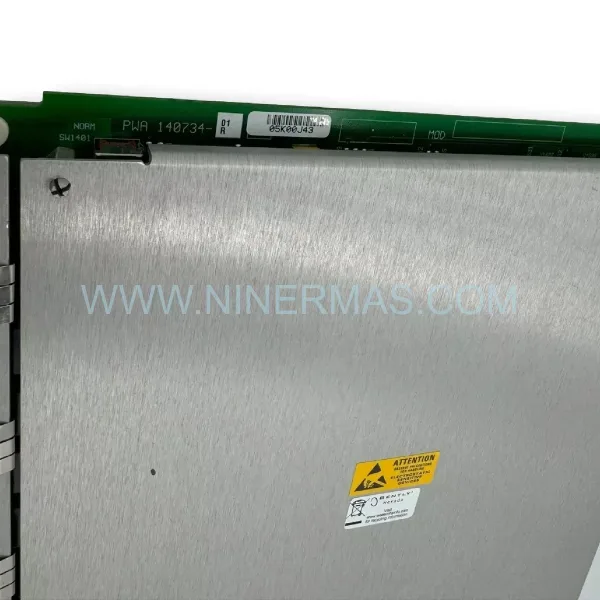

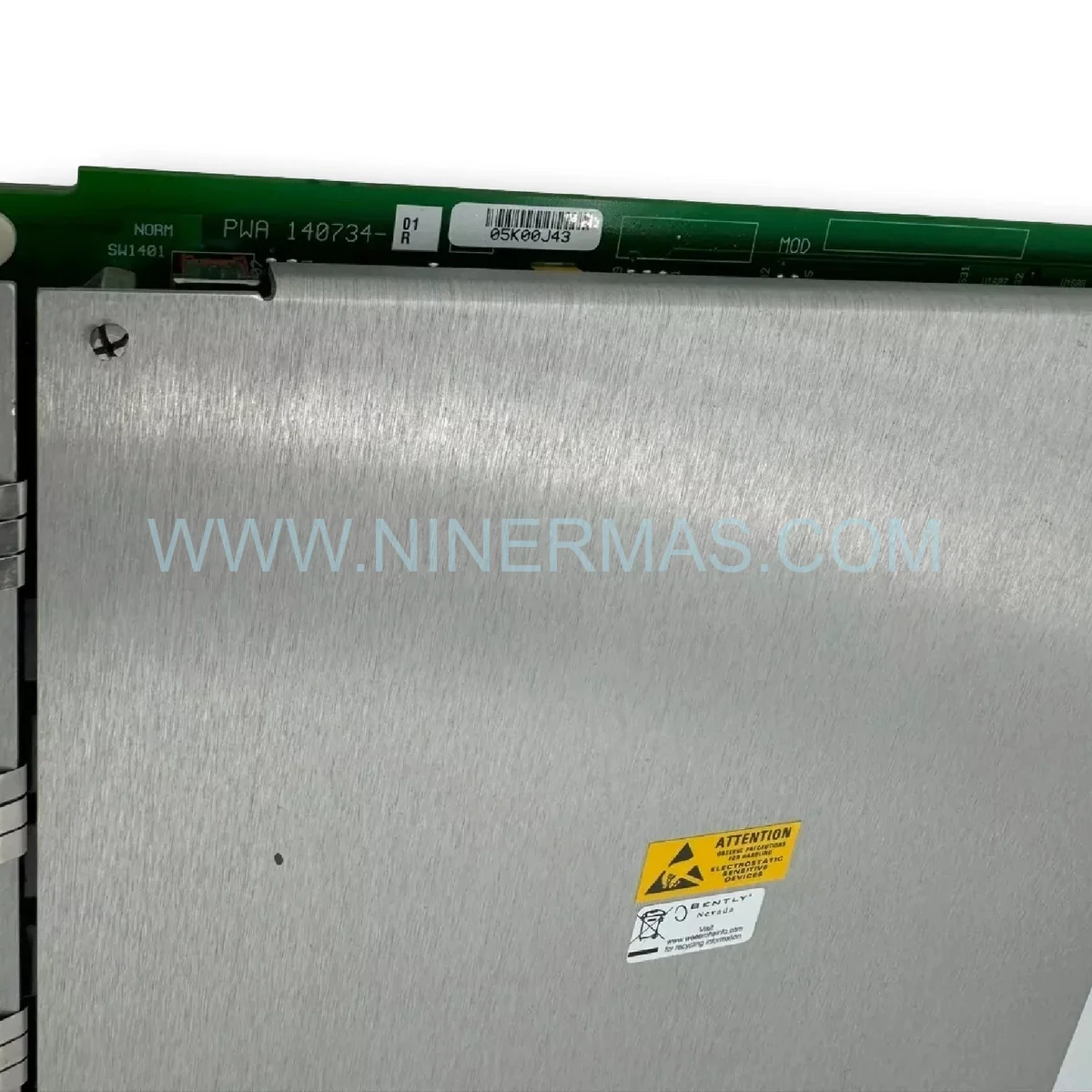

Bently Nevada 3500/40M 140734-01 Four-Channel Proximitor Monitor — New & Original

Bently Nevada 3500/40M 140734-01 | Reliable Automation Component for Rotating Machinery

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability rotating equipment, the Bently Nevada 3500/40M 140734-01 stands as a cornerstone of system uptime assurance. This four-channel Proximitor Monitor continuously acquires shaft displacement and axial position data, feeding real-time signals into the 3500 rack’s protection logic to trigger alarms or shutdowns before mechanical degradation escalates into catastrophic failure. In power generation and oil & gas facilities where unplanned downtime can cost tens of thousands of dollars per hour, the 3500/40M 140734-01 delivers the measurement precision and response speed that mission-critical asset protection demands.

Engineered for operational excellence in harsh industrial environments, this module exhibits robust EMI/RFI immunity and is rated for ambient temperatures from -30°C to +65°C — conditions routinely encountered in compressor halls, turbine decks, and petrochemical process areas. During installation, engineers should verify Proximitor sensor gap voltage within the manufacturer’s specified window and confirm backplane seating torque to maintain signal integrity. Shielded cabling routed away from high-voltage conductors further reduces noise ingress on each of the four independent I/O channels.

As a mission-critical spare, maintaining at least one 3500/40M 140734-01 in your on-site inventory eliminates the lead-time risk associated with end-of-life or legacy module procurement. Process optimization strategies increasingly recognize that pre-positioned automation components reduce mean-time-to-repair (MTTR) and sustain operational excellence across multi-train machinery fleets.

Key Operational Features

Four Independent Monitoring Channels — simultaneous vibration displacement and axial position measurement with per-channel alarm logic, supporting high availability across complex machine trains.
Redundancy-Ready Architecture — seamless integration with 3500 rack redundant power supplies and communication gateways for uninterrupted system integration.
Dual-Level Alarm Setpoints — configurable Alert and Danger thresholds per channel enable graduated response protocols aligned with API 670 machinery protection standards.
4-20 mA Proportional Outputs — direct interface to DCS/SCADA platforms for centralized process optimization and trend analysis.
Hot-Swap Capability — module replacement without rack power interruption minimizes exposure during corrective maintenance windows.
Eddy-Current Proximity Compatibility — engineered exclusively for Bently Nevada Proximitor sensor ecosystems, ensuring calibrated, drift-free displacement readings.

Maintenance & Performance Benchmarks

The 3500/40M 140734-01 adapts to industrial network architectures ranging from standalone rack installations to fully networked plant-wide condition monitoring platforms. In small-scale deployments, the module operates as a self-contained protection device with local relay outputs driving machinery shutdown logic. In enterprise-scale facilities, it interfaces through 3500 communication gateway modules — supporting Modbus RTU/TCP — to feed historian databases and predictive maintenance analytics engines.

Benchmark data from field installations indicates that eddy-current-based proximity monitoring, as implemented by this module, achieves measurement repeatability within ±0.5% of full scale under steady thermal conditions. Periodic verification against a calibrated gap simulator every 12-18 months is recommended to confirm channel accuracy and relay contact integrity. Firmware compatibility should be validated against the installed rack’s system software revision prior to module swap to prevent configuration mismatches during system integration.

Comprehensive Data Sheet

| Attribute | Technical Data | |—|—| | Part Number / Full Model | 3500/40M 140734-01 | | Manufacturer | Bently Nevada (Baker Hughes) | | Module Type | Four-Channel Proximitor Monitor | | Input Compatibility | Bently Nevada Proximitor / Eddy-Current Proximity Sensors | | Measurement Parameters | Radial Vibration Displacement, Axial Position | | Number of Channels | 4 (independently configurable) | | Analog Output | 4-20 mA proportional per channel | | Relay Outputs | Alert & Danger relay contacts per channel | | Alarm Levels | Dual-level (Alert / Danger) with time delay | | Operating Temperature | -30°C to +65°C (-22°F to +149°F) | | Power Supply | 24 VDC via 3500 Series rack backplane | | Rack Compatibility | Bently Nevada 3500 Series Rack | | Communication | Modbus RTU/TCP (via gateway module) | | Hot-Swap Support | Yes (with redundant rack configuration) | | Approvals / Standards | API 670, CE, FM, CSA | | Condition | New & Original Factory Sealed | | Warranty | 1 Year |

Professional Logistics & Sourcing Excellence

Every 3500/40M 140734-01 unit dispatched from our facility is supplied in original factory packaging with full traceability documentation, ensuring authenticity and eliminating counterfeit risk in your spare parts inventory. For in-stock units, same-day dispatch is available upon order confirmation before the daily cut-off, with worldwide express logistics options (DHL, FedEx, UPS) delivering to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific within 3-7 business days.

We specialize in global supply of EOL (End-of-Life) and legacy automation components, maintaining strategic buffer stock of discontinued Bently Nevada modules to support facilities operating long-lifecycle machinery fleets. Our sourcing network spans certified distributors and authorized channels, guaranteeing that each unit meets OEM performance specifications before shipment.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 3500/40M 140734-01 in an existing 3500 rack?
A: Power down the rack slot (or utilize hot-swap if rack is redundantly powered), remove the existing module, insert the 3500/40M 140734-01 until the ejector clips engage, then restore power. Use Bently Nevada System 1 or rack configuration software to verify channel assignments, gap voltage readings, and alarm setpoints before returning the machine to service.

Q2: Which firmware versions are compatible with this module?
A: The 3500/40M 140734-01 is compatible with 3500 rack firmware revisions as documented in Bently Nevada’s System Release Notes. Always cross-reference the rack’s installed firmware version with the module’s hardware revision label prior to installation. Contact our engineering team for compatibility matrix documentation specific to your rack serial number.

Q3: Can this module monitor both radial vibration and axial position simultaneously across all four channels?
A: Yes. Each of the four channels is independently configurable for either radial vibration displacement or axial position measurement, enabling flexible deployment across different monitoring points on the same machine train without requiring additional modules.

Q4: What is the warranty claim process for this unit?
A: Units are covered by a 12-month warranty from the date of shipment. To initiate a warranty claim, contact our support team at sale@ninermas.com with your order reference, a description of the observed fault, and photographic evidence. Replacement or repair will be processed within 5-10 business days upon receipt and inspection of the returned unit.

Q5: Is the 3500/40M 140734-01 compatible with third-party proximity probes?
A: This module is optimized for Bently Nevada Proximitor sensor systems. Use with third-party probes may result in calibration offsets or alarm inaccuracies. For non-standard sensor integration, consult our engineering support team to assess compatibility and any required scaling adjustments.

Q6: How does this module contribute to overall process optimization in a multi-train facility?
A: By delivering continuous, high-resolution displacement data across four channels, the 3500/40M 140734-01 enables predictive maintenance scheduling, reduces unplanned outages, and supports system integration with plant historians and analytics platforms — directly contributing to measurable improvements in overall equipment effectiveness (OEE).
