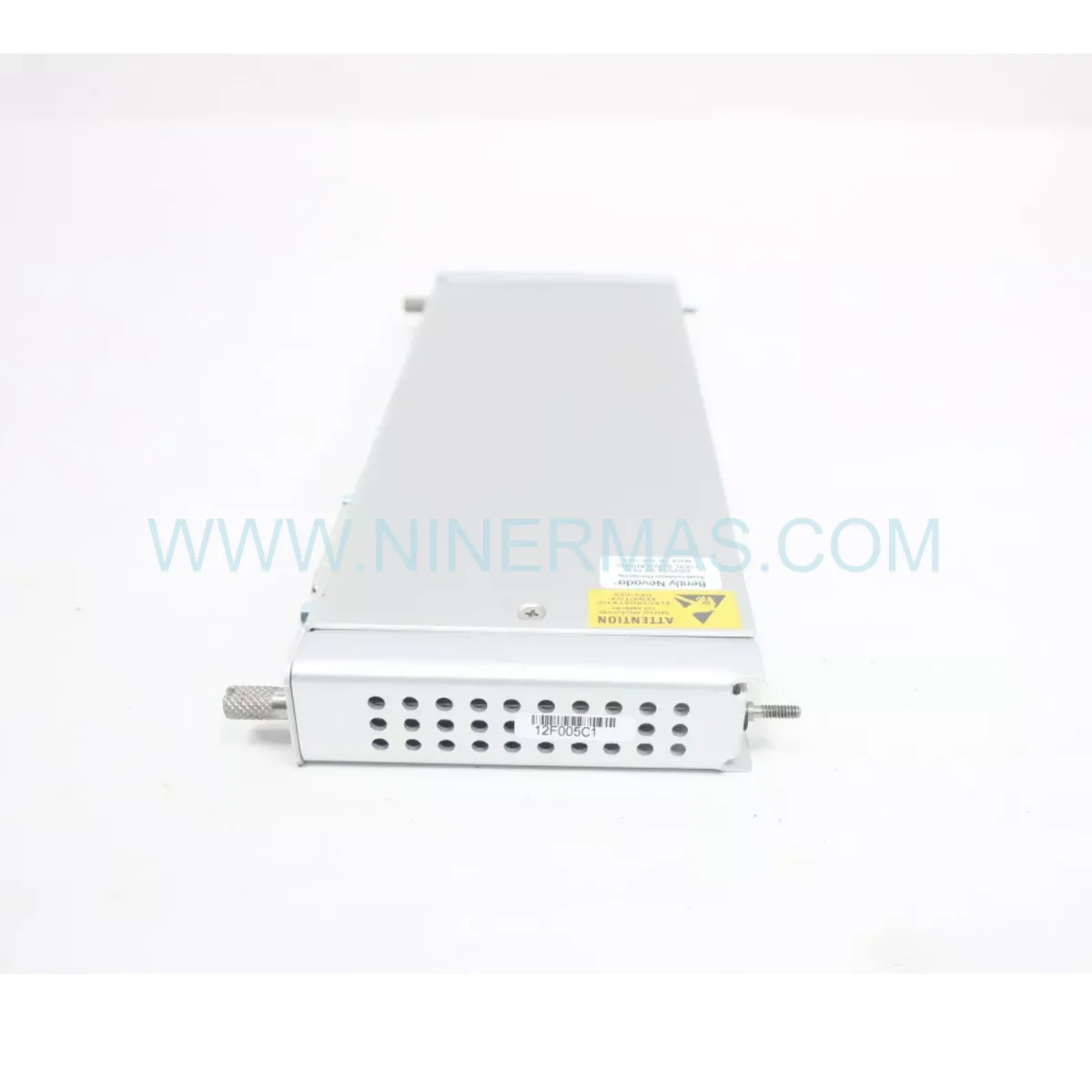

Bently Nevada 3500/40M 126615-01 Proximity I/O Module — Advanced 4-Channel Vibration Monitoring Solution

The Bently Nevada 3500/40M 126615-01 Proximity I/O Module delivers precision vibration monitoring for critical rotating machinery in power generation, oil & gas, petrochemical, and heavy industrial applications. Engineered with 4-channel capability and 10kΩ input impedance, this API 670 certified module integrates seamlessly into the Bently Nevada 3500 Series rack-based monitoring platform for comprehensive machine protection.

Technical Specifications

Key Features & Benefits

• Multi-Channel Monitoring: Simultaneously monitors radial vibration on four measurement points, reducing hardware costs and rack space requirements
• High-Precision Measurement: 10kΩ input impedance ensures accurate signal conditioning for proximity probes and eddy current sensors
• API 670 Compliance: Meets stringent machinery protection system standards for critical turbomachinery applications
• Flexible Configuration: Programmable alarm setpoints, measurement scales, and filtering options via 3500 Rack Configuration Software
• Hot-Swappable Design: Field-replaceable module enables maintenance without system shutdown
• Integrated Diagnostics: Built-in transducer health monitoring detects open circuits, shorts, and sensor degradation

Industrial Applications

The 3500/40M Proximity I/O Module excels in demanding environments requiring continuous vibration surveillance:

• Steam & Gas Turbines: Monitor journal bearing vibration, thrust position, and differential expansion in power generation units
• Centrifugal Compressors: Track radial shaft displacement in multi-stage compression systems for process industries
• Pumps & Motors: Detect bearing wear, misalignment, and rotor imbalance in critical fluid handling equipment
• Generators: Protect high-value assets with real-time vibration analysis and predictive maintenance capabilities
• Fans & Blowers: Ensure operational reliability in HVAC, ventilation, and combustion air systems

System Integration & Compatibility

This proximity module integrates with the complete Bently Nevada 3500 ecosystem. Pair with the 3500/15 AC/DC Power Supply for reliable rack power distribution, and connect to the 3500/92 Communication Gateway for Modbus TCP/IP, Ethernet, and serial data integration with DCS, SCADA, and plant information systems.

For comprehensive monitoring solutions, combine with complementary modules including the 3500/65 16-Channel Temperature Monitor, 3500/50M Tachometer Module, and 3500/25 Enhanced Keyphasor Module for complete machinery health assessment.

Installation & Configuration

The 126615-01 module installs in any available slot within a 3500/05 System Rack or 3500/05 14-Slot Monitoring Frame. Front-panel LED indicators provide at-a-glance status for each channel, while rear terminal blocks accept standard proximity probe connections. Configuration is performed using 3500 Rack Configuration Software via the 3500/22M TDI Module interface.

Common Solutions & Use Cases

Problem: Unexpected bearing failures causing unplanned downtime
Solution: The 3500/40M continuously monitors radial vibration signatures, detecting early-stage bearing defects through amplitude and frequency analysis, enabling condition-based maintenance scheduling.

Problem: Compliance with API 670 machinery protection standards
Solution: Factory-certified module meets all API 670 requirements for vibration monitoring systems, ensuring regulatory compliance for critical machinery installations.

Problem: Limited rack space in existing monitoring systems
Solution: Four-channel architecture consolidates monitoring points, reducing module count by 75% compared to single-channel alternatives while maintaining measurement integrity.

Frequently Asked Questions

Q: What proximity probe types are compatible with the 3500/40M?
A: The module accepts standard 8mm and 11mm Bently Nevada proximity probes with -24V DC power supply, including NSv, XL, and standard proximity transducer systems.

Q: Can I monitor both radial vibration and axial position simultaneously?
A: Yes, the four channels can be configured independently for radial vibration (X-Y pairs) and thrust position monitoring on the same module.

Q: How do I access historical vibration data?
A: Connect the 3500 rack to System 1 software via the 3500/92 gateway, or integrate with third-party historians using Modbus TCP/IP protocol for trending and analysis.

Q: What’s the difference between 3500/40M and 3500/42M modules?
A: The 3500/40M is optimized for proximity probes, while the 3500/42M supports both proximity and seismic (accelerometer/velocity) transducers with enhanced filtering capabilities.

Q: Is field calibration required after installation?
A: No, the module ships factory-calibrated. Only transducer-specific scaling parameters need configuration through the rack software interface.

Warranty & Support

All Bently Nevada 3500/40M modules include a comprehensive 12-month warranty covering manufacturing defects and component failures. Technical support, application engineering assistance, and replacement parts are available through our global service network.

Related Products for Complete Monitoring Solutions

Enhance your machinery protection system with these compatible components:

• 3500/94M VGA Display Monitor — Real-time visualization interface
• 3500/93 System Display Interface — Operator interface module
• 3500/55 Relay Output Module — Alarm relay interface for shutdown systems

For sensor connectivity, explore our selection of Bently Nevada proximity probes and extension cables designed for harsh industrial environments.
