Bently Nevada 330902-00-10-10-01-05 Retrofit-Compatible NSv Transducer

Bently Nevada 330902-00-10-10-01-05 Retrofit-Compatible NSv Transducer: Legacy System Compatibility & Smooth Upgrade

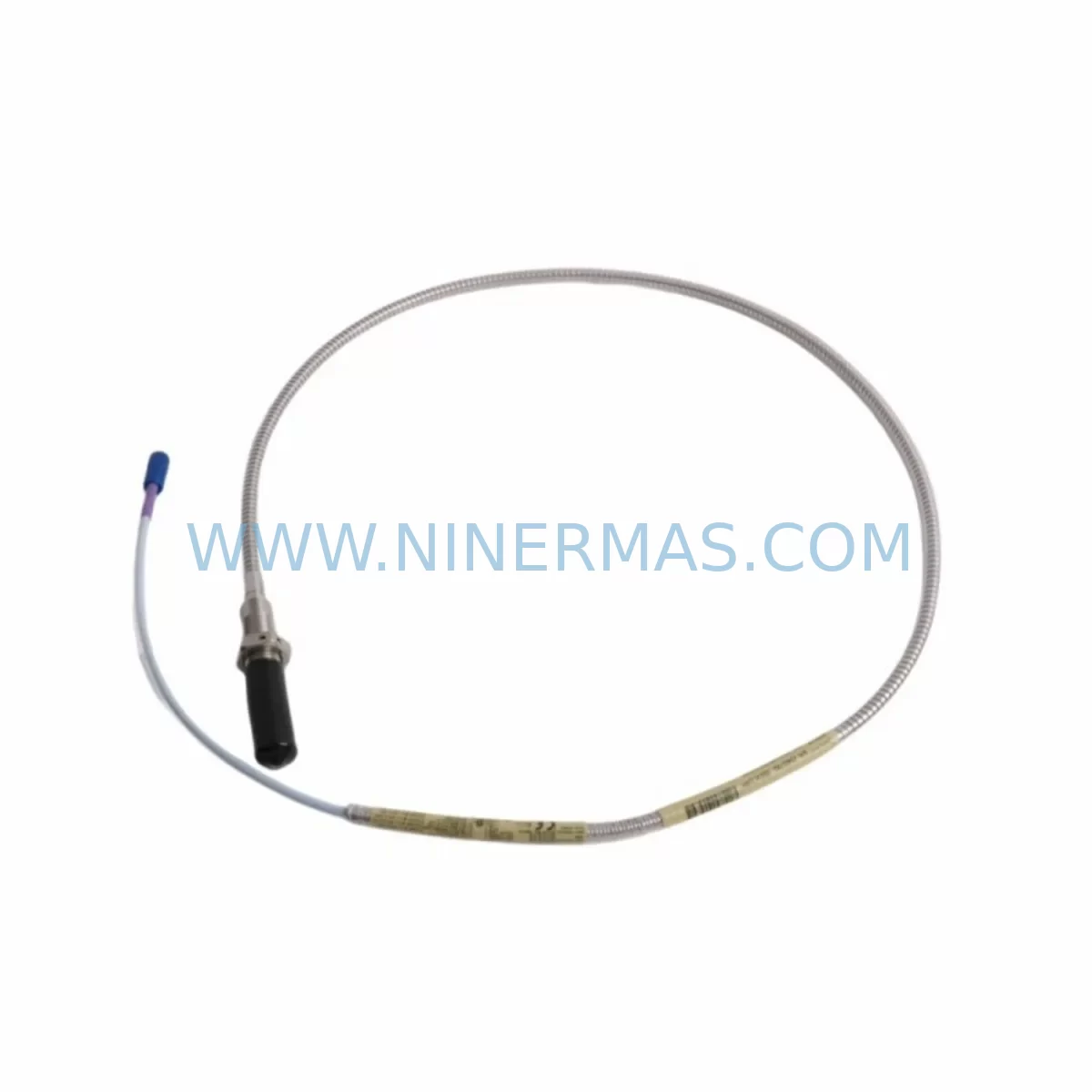

The Bently Nevada 330902-00-10-10-01-05 is a proximity transducer from the 3300 NSv Series, engineered for non-contacting vibration and position measurement in rotating machinery. As legacy 3300 Series installations age and original components reach end-of-life, this unit serves as a critical retrofit-compatible replacement, enabling facilities to extend the operational life of their existing monitoring infrastructure without committing to a full platform migration.

Whether you are managing a turbine control panel, a compressor monitoring rack, or a multi-channel vibration monitoring cabinet, the 330902-00-10-10-01-05 integrates directly into existing 3300 Series monitor slots. Its compatibility with the standard Bently Nevada coaxial cable and extension cable assemblies — including the 330130 and 330180 series extension cables — means field technicians can complete the swap with minimal rewiring. The transducer operates on the standard 3300 NSv driver interface, making it interchangeable with other NSv-series probes already installed in the same rack.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a legacy Bently Nevada 3300 Series monitoring system requires careful coordination across multiple hardware layers. Before replacing the 330902-00-10-10-01-05 transducer, engineers should audit the full signal chain: from the probe tip through the extension cable, into the 3300 NSv Driver, and finally to the monitor card seated in the 3300 Series rack. Common rack configurations include the 3300/05 Rack and 3300/10 Rack, both of which accept standard NSv driver and monitor card combinations.

In many retrofit scenarios, the transducer replacement is triggered by a broader initiative — such as migrating from a standalone 3300 Series rack to a System 1 condition monitoring platform, or integrating vibration data into a DCS via a 3500/92 Communication Gateway. In these cases, the 330902-00-10-10-01-05 may be retained as the field sensing element while the signal processing and communication layers are upgraded. This approach preserves the existing probe installation, minimizes intrusion into rotating machinery, and avoids the cost and downtime associated with re-drilling probe holders.

For facilities upgrading from older 7200 Series or 3000 Series probes, the 330902-00-10-10-01-05 provides a modern NSv-compatible sensing element that pairs with updated driver electronics. Technicians should verify terminal block wiring at the 3300 Series I/O module, confirm shield grounding practices, and check that the 3300/20 Radial Vibration Monitor or 3300/25 Thrust Position Monitor is configured for the correct transducer sensitivity (typically 7.87 V/mm or 200 mV/mil). Where Keyphasor® signals are involved, the 3300/50 Keyphasor Module should also be inspected for compatibility with the new probe’s output characteristics.

Power supply integrity is another critical checkpoint. The 3300 Series rack relies on a dedicated 3300/05 Power Supply or equivalent redundant power module. Before hot-swapping any transducer or driver card, confirm that the power supply output is within specification and that the rack’s backplane connectors are free of corrosion or mechanical damage. Inadequate power delivery is a common root cause of false OK/Not OK alarms following a component replacement.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a proximity transducer in an operating plant. For the 330902-00-10-10-01-05, the recommended approach is to pre-configure and bench-test the replacement assembly — transducer, extension cable, and driver — before the scheduled maintenance window. This includes verifying the static gap voltage output at the driver output connector and confirming the OK relay status under simulated gap conditions.

During the actual swap, the existing program logic in the connected PLC or DCS should be placed in manual override or bypass mode for the affected channel to prevent spurious trips. If the monitoring system is connected to a System 1 software platform, the corresponding channel should be suppressed in the software before the physical replacement begins. After reinstallation, the gap should be set mechanically using a feeler gauge or dial indicator, and the driver output voltage should be confirmed within the monitor’s configured OK range before releasing the bypass.

For multi-channel racks where several probes are being replaced simultaneously, a phased approach — replacing one channel at a time while keeping adjacent channels in service — is strongly recommended. This preserves the overall machinery protection function throughout the retrofit and allows the maintenance team to validate each channel independently before proceeding to the next. Detailed as-found and as-left records, including gap voltage readings and OK relay status, should be documented for each channel to support future audits and warranty claims.

Retrofit Support FAQ

Q1: Is the 330902-00-10-10-01-05 a direct replacement for other 330902 variants?
Yes. The 330902-00-10-10-01-05 is part of the 3300 NSv transducer family and is dimensionally and electrically compatible with other 330902 series variants. However, always verify the probe length, cable length, and sensitivity specification against your existing installation drawings before ordering.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the manufacturer’s recommended value (typically 1.0–2.0 mm for standard targets). Measure the driver output voltage and confirm it falls within the monitor’s configured OK window. Check the OK/Not OK relay output at the monitor card, and if a Keyphasor® channel is present, verify the Keyphasor® signal is correctly detected by the 3300/50 Keyphasor Module.

Q3: Can this transducer be used with non-Bently Nevada monitors or DCS input cards?
The 330902-00-10-10-01-05 outputs a standard analog voltage signal via the NSv driver. In principle, this signal can be read by any analog input card configured for the appropriate voltage range. However, full OK/Not OK relay functionality and System 1 integration require a compatible Bently Nevada monitor card. Consult your system integrator before connecting to third-party input modules.

Q4: What does the 12-month warranty cover, and how is stock availability managed?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Stock is maintained for rapid dispatch; contact our team to confirm current availability and lead times for your specific configuration.
