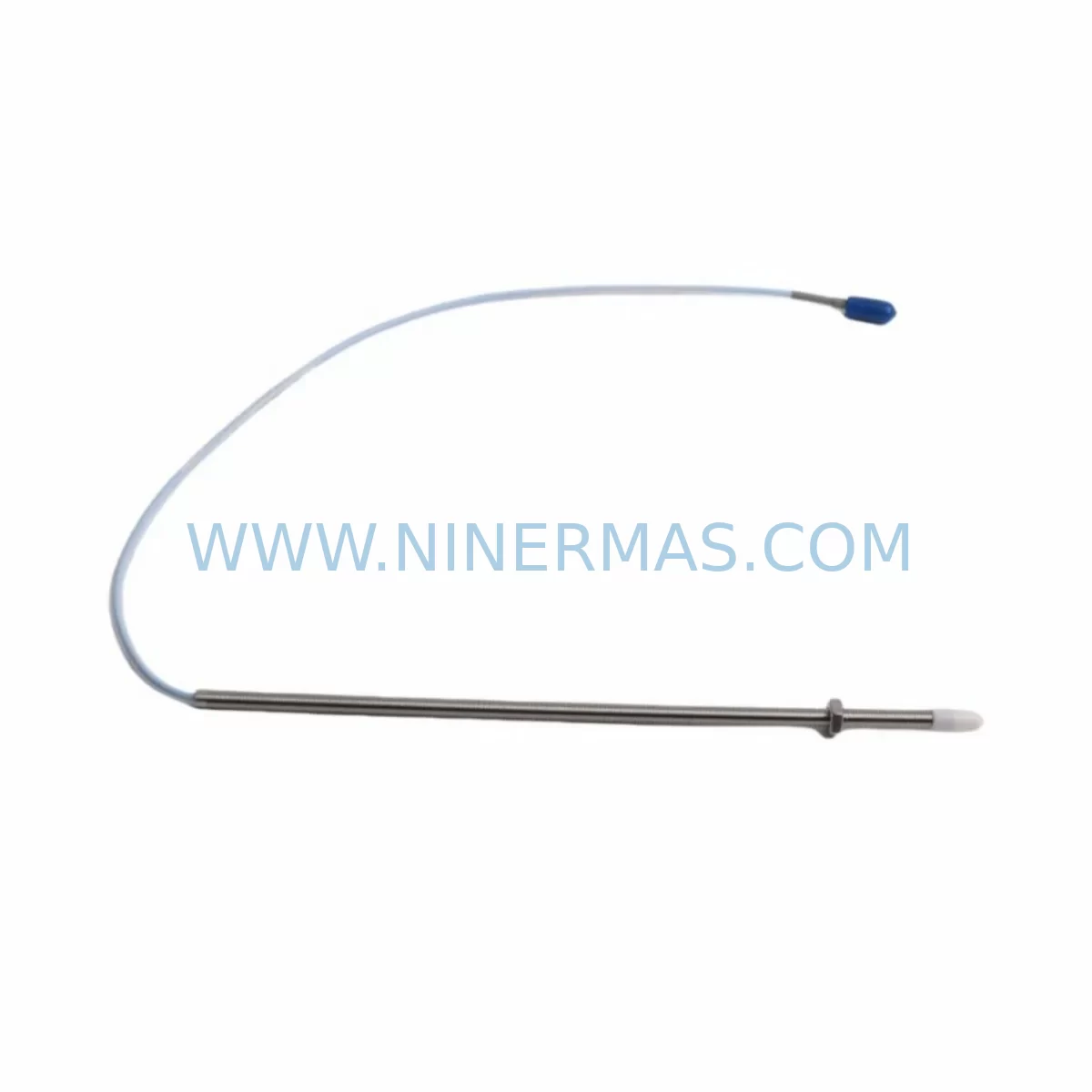

Bently Nevada 330901-51-82-10-02-00 Retrofit Proximity Transducer

Bently Nevada 330901-51-82-10-02-00 Retrofit-Compatible Proximity Transducer for Legacy System Modernization

The Bently Nevada 330901-51-82-10-02-00 is a ruggedized proximity transducer module engineered for demanding industrial environments and designed to serve as a direct retrofit replacement within existing Bently Nevada 3300 Series vibration monitoring systems. Whether you are managing a planned upgrade of an aging control architecture or responding to an unplanned failure of a discontinued component, this module provides the electrical and mechanical compatibility required to restore system integrity with minimal disruption to ongoing operations.

As legacy Bently Nevada 3300 XL and earlier 3300 Series monitor racks approach end-of-life, maintenance engineers and reliability teams face increasing pressure to source verified replacement transducers that maintain signal chain continuity without requiring full system redesign. The 330901-51-82-10-02-00 addresses this challenge directly, offering a ruggedized housing rated for harsh environments including high vibration, wide temperature ranges, and exposure to industrial fluids — conditions common in rotating machinery applications such as steam turbines, gas compressors, centrifugal pumps, and large induction motors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330901-51-82-10-02-00 into an existing vibration monitoring loop requires a structured approach that accounts for every component in the signal chain. The proximity transducer system consists of three interdependent elements: the probe itself, the extension cable, and the Proximitor driver (such as the 330180 or 330191 series). All three must be matched in sensitivity — typically 7.87 mV/µm (200 mV/mil) — and total cable length must fall within the driver’s specified range. Before removing the failed or aging unit, technicians should document the existing gap voltage at the Proximitor output, which typically reads between -10 VDC and -18 VDC for a properly gapped probe. This baseline reading is essential for verifying correct installation of the replacement module.

When the 330901-51-82-10-02-00 is being installed as part of a broader control cabinet upgrade, it is common to simultaneously address adjacent components that have reached end-of-life. The 3300/16-02-01-01-00-00 monitor card, for example, may require reconfiguration if alarm setpoints were stored locally rather than in a connected System 1 software database. Similarly, if the rack includes a 3500/22M transient data interface or a 3500/42M proximitor monitor, firmware compatibility should be confirmed before the new probe is commissioned. In systems where the Bently Nevada rack communicates with a DCS or safety system via a 3500/92 communication gateway, the signal mapping and I/O address assignments should be verified to ensure the replacement transducer’s channel data is correctly routed to the control room historian and alarm management system.

For installations where the existing rack backplane or I/O termination module (such as the 3500/20 rack interface module) shows signs of connector wear or corrosion, it is advisable to inspect and clean all backplane connectors before reinstalling the transducer channel card. Corroded backplane contacts are a common source of intermittent signal faults that can be misdiagnosed as transducer failure. If the rack is a 3300 Series unit being migrated toward a 3500 Series platform, the 330901-51-82-10-02-00 can serve as an interim solution while the full rack migration is planned, allowing the machine to remain in monitored service without an unplanned shutdown.

In applications involving turbine control panels where the proximity transducer feeds both the vibration monitor and a redundant overspeed protection system, the replacement procedure must be coordinated with the control system engineer to ensure that the overspeed trip logic is bypassed or inhibited during the probe swap. Failure to do so may result in a spurious trip that causes unplanned downtime. The use of a portable Bently Nevada field calibrator or equivalent signal simulator is strongly recommended to verify the new probe’s output before the bypass is removed and the machine is returned to normal monitored operation.

Downtime Control During System Migration

Minimizing downtime during a proximity transducer replacement begins with pre-staging all required components before the maintenance window opens. This includes the 330901-51-82-10-02-00 replacement probe, the matched extension cable, any required bracket hardware, and a calibrated gap-setting tool. If the machine cannot be taken offline for an extended period, a hot-swap procedure may be possible on some 3500 Series racks equipped with the 3500/20 rack interface module, which supports channel inhibit functions that allow individual transducer channels to be taken out of service without triggering a system-wide alarm or trip.

Preserving the original program logic and alarm configuration is critical. Before beginning work, export the full rack configuration from System 1 software or the rack’s internal memory using the appropriate Bently Nevada configuration tool. This backup ensures that gap alarm setpoints, danger setpoints, transducer scale factors, and I/O channel assignments can be restored exactly as configured if any settings are inadvertently lost during the replacement procedure. In facilities where the vibration monitoring system is integrated with a Rockwell Automation ControlLogix or Siemens S7-400 safety PLC via hardwired relay outputs, the relay logic should be verified after the replacement to confirm that the new transducer’s signal is correctly driving the relay outputs within the expected voltage and current thresholds.

Post-installation commissioning should include a full gap voltage check at the Proximitor output, a slow-roll vibration reading to confirm baseline noise floor, and a comparison of the new reading against the historical trend data stored in the plant’s condition monitoring database. If the readings fall within the expected range and alarm setpoints are confirmed active, the channel inhibit can be removed and the machine returned to normal monitored service. Total downtime for a well-prepared single-channel transducer replacement on an accessible machine is typically two to four hours, including documentation and sign-off.

Retrofit Support FAQ

Q: Is the 330901-51-82-10-02-00 a direct drop-in replacement for other 330901 suffix variants?
A: The 330901 base part number is consistent across the series, but the suffix encodes sensitivity, gap range, cable length, and housing options. The -51-82-10-02-00 suffix specifies a particular configuration. Before ordering, confirm that the sensitivity (mV/µm), the extension cable length (02 = 2 meters in this case), and the Proximitor driver model in your system match the specifications of this unit. Substituting an incorrect suffix variant can result in incorrect gap voltage readings and false alarms.

Q: What pre-shipment testing is performed on this unit?
A: Every 330901-51-82-10-02-00 unit supplied by NINERMAS is functionally tested prior to shipment. Testing includes output voltage verification at a calibrated gap distance, insulation resistance check on the coaxial cable assembly, and connector integrity inspection. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can this transducer be used with a 3500 Series monitor rack as well as the 3300 Series?
A: Yes, provided the 3500 Series monitor card is configured for the correct transducer sensitivity and the total probe-plus-extension cable length falls within the driver’s specified range. The 3500/42M proximitor monitor, for example, supports field-configurable transducer input parameters. Consult the 3500 Series rack configuration guide and confirm channel settings before installation.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the 330901-51-82-10-02-00 and common 330901 series variants to support urgent replacement requirements. Standard orders ship within 3–5 business days. For urgent plant breakdown situations, expedited shipping is available. Contact our team directly to confirm current stock levels and delivery options for your location.
