Bently Nevada 330881-28-10-100-03-02 Retrofit-Compatible Proximity Transducer

Bently Nevada 330881-28-10-100-03-02 Retrofit-Compatible Proximity Transducer for Legacy Systems

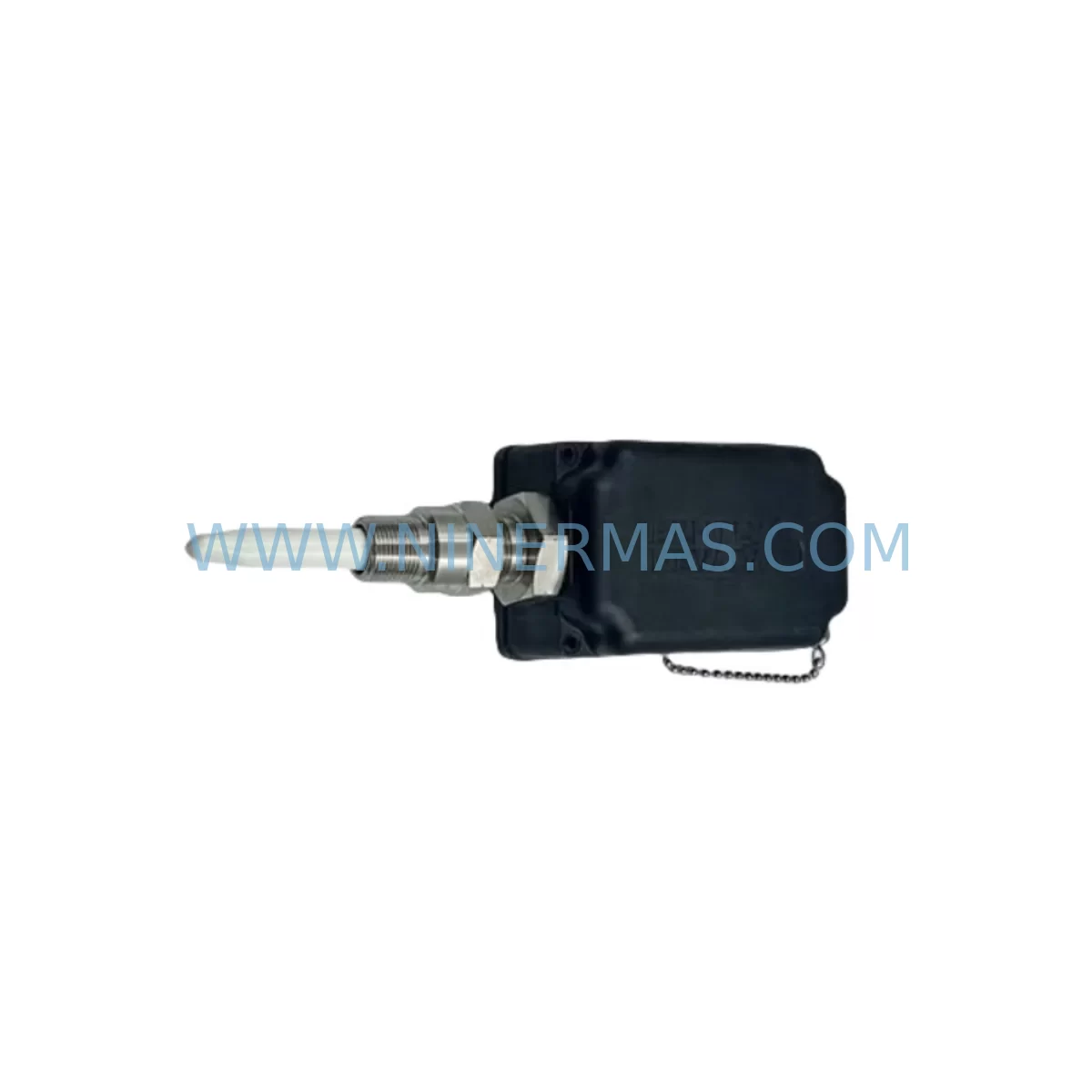

The Bently Nevada 330881-28-10-100-03-02 is a PROXPAC XL proximity transducer engineered for seamless integration into existing Bently Nevada 3300 Series vibration monitoring systems. As original equipment reaches end-of-life and spare parts become increasingly scarce, this unit serves as a direct retrofit solution for facilities managing aging turbomachinery protection infrastructure. Whether you are replacing a failed sensor on a critical compressor train, upgrading a legacy control cabinet, or executing a planned migration away from discontinued monitoring hardware, the 330881-28-10-100-03-02 delivers the dimensional and electrical compatibility required to minimize engineering rework and reduce total downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330881-28-10-100-03-02 into a brownfield plant environment, the retrofit process typically begins with a thorough audit of the existing monitoring rack. In most 3300 Series installations, the proximity probe interfaces directly with a Bently Nevada 3300 XL 8mm Proximitor® sensor driver, which conditions the raw eddy-current signal before passing it to the monitor module. Engineers should confirm that the installed Proximitor driver — often a 330180 or 330130 series unit — is compatible with the PROXPAC XL cable assembly length and tip geometry specified in this SKU before ordering.

Rack-level planning is equally important. The 3300 Series monitor chassis typically houses a combination of vibration monitor cards, a keyphasor module, and a system power supply such as the Bently Nevada 3300/20 Power Supply. Before pulling the old probe, maintenance teams should document the existing gap voltage (typically between -10 VDC and -18 VDC) using a calibrated voltmeter at the driver terminal strip. This baseline reading will be used to re-establish the correct air gap after the new 330881-28-10-100-03-02 is installed.

Terminal wiring on the Proximitor driver uses a standard three-conductor arrangement: power, common, and output. When replacing the probe assembly, technicians should label and photograph all existing terminations before disconnection. If the installation involves armoured extension cable routed through conduit, confirm that the replacement cable jacket diameter matches the existing conduit fittings to avoid rework on the cable tray or junction box. In facilities where the original wiring was routed to a Bently Nevada 3500/42M Proximitor Monitor, the signal scaling and alert/danger setpoints stored in the monitor’s non-volatile memory will remain valid as long as the transducer sensitivity (mV/mil) is unchanged — a key advantage of using an OEM-equivalent replacement.

For plants that are simultaneously upgrading from the 3300 Series to the Bently Nevada 3500 Series platform, the 330881-28-10-100-03-02 can serve as an interim sensor while the new 3500/22M Transient Data Interface or 3500/40M Proximitor Monitor cards are being commissioned. This staged approach allows the control room to maintain continuous shaft vibration monitoring on the 3300 system while the new rack is being configured and loop-checked. During this window, the existing System 1 Evolution software connection via the 3500 gateway should be verified to ensure that historical trend data is preserved across the platform transition.

I/O mapping is another critical checkpoint. If the plant DCS — whether a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — is receiving the vibration OK relay contact from the 3300 monitor, the relay wiring to the DCS digital input card must be re-verified after the probe swap. Any change in the OK relay state during the replacement window should be communicated to the control room operator to prevent spurious shutdowns. Where the facility uses a Bently Nevada 3300/55 Dual Voting Logic module for redundant trip logic, both channels should be checked independently after the new probe is gapped and energized.

Finally, for sites managing spare parts lifecycle across multiple machine trains, it is advisable to maintain a small buffer stock of the 330881-28-10-100-03-02 alongside compatible Proximitor drivers and extension cables. Pairing this probe with a 330130-080-01-00 extension cable and a 330180-X1-05 Proximitor sensor creates a complete, pre-tested transducer system that can be swapped in during a planned outage with minimal field calibration time.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing proximity probes on running machinery protection systems. For the 330881-28-10-100-03-02, the recommended approach is to pre-stage the replacement assembly — including the matched Proximitor driver and extension cable — and perform a bench-level continuity and gap simulation check before the maintenance window opens. This allows the field technician to confirm that the new transducer system produces the correct output voltage at the target gap distance, eliminating the most common source of commissioning delays.

During the actual swap, the 3300 Series monitor should be placed in bypass mode (where the system architecture permits) to prevent a spurious machine trip while the probe is being re-gapped. The bypass state should be logged in the plant’s permit-to-work system and communicated to the shift supervisor. Once the new probe is installed and gapped, the bypass should be released only after the OK LED on the Proximitor driver has been confirmed and the monitor channel output has been verified against the pre-recorded baseline gap voltage.

For facilities running continuous processes where even a brief monitoring gap is unacceptable, a temporary portable vibration analyzer — such as a CSI 2140 or equivalent — can be connected to the machine bearing housing to provide independent vibration trending during the probe replacement window. This approach preserves the plant’s ability to detect developing faults even while the permanent monitoring channel is offline, and satisfies most machinery protection audit requirements without requiring a full machine shutdown.

Original program logic in the DCS or safety instrumented system (SIS) does not need to be modified when replacing a like-for-like proximity transducer. However, if the migration also involves upgrading the monitor card — for example, moving from a 3300/16 to a 3500/40M — the function block configuration in the SIS should be reviewed to confirm that the new monitor’s relay output timing and latching behavior matches the original design intent. Retaining the original HMI faceplate graphics and alarm tag assignments during this transition reduces operator retraining time and helps maintain situational awareness during the commissioning period.

Retrofit Support FAQ

Q1: Is the 330881-28-10-100-03-02 a direct replacement for discontinued Bently Nevada 3300 Series probes?
A: Yes. The 330881-28-10-100-03-02 is designed as a retrofit-compatible replacement for legacy 3300 Series proximity probes including the 330780 and 330730 families. It maintains the same 8 mm tip geometry, sensitivity specification, and cable connector interface, allowing installation without modification to existing Proximitor drivers or monitor wiring.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, the technician must set the air gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8 mm probes) and verify the Proximitor output voltage falls within the linear range. The monitor channel OK/NOT OK relay thresholds should then be confirmed against the original setpoint documentation. A full loop check from probe tip to DCS input is recommended before releasing the bypass.

Q3: Can this transducer be used with both 3300 and 3500 Series monitor platforms?
A: The 330881-28-10-100-03-02 is optimized for use with 3300 Series Proximitor drivers. Compatibility with 3500 Series monitors depends on the specific driver and monitor card combination. Consult the Bently Nevada transducer selection guide or contact our technical team to confirm compatibility before ordering for a 3500 Series application.

Q4: What are the warranty and supply terms?
A: All units are supplied with a 12-month warranty covering manufacturing defects. Each unit undergoes pre-shipment functional testing to verify output linearity and connector integrity. We maintain in-stock inventory to support urgent replacement requirements, with same-day dispatch available for confirmed orders placed before the daily cut-off time. Contact sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.

—
