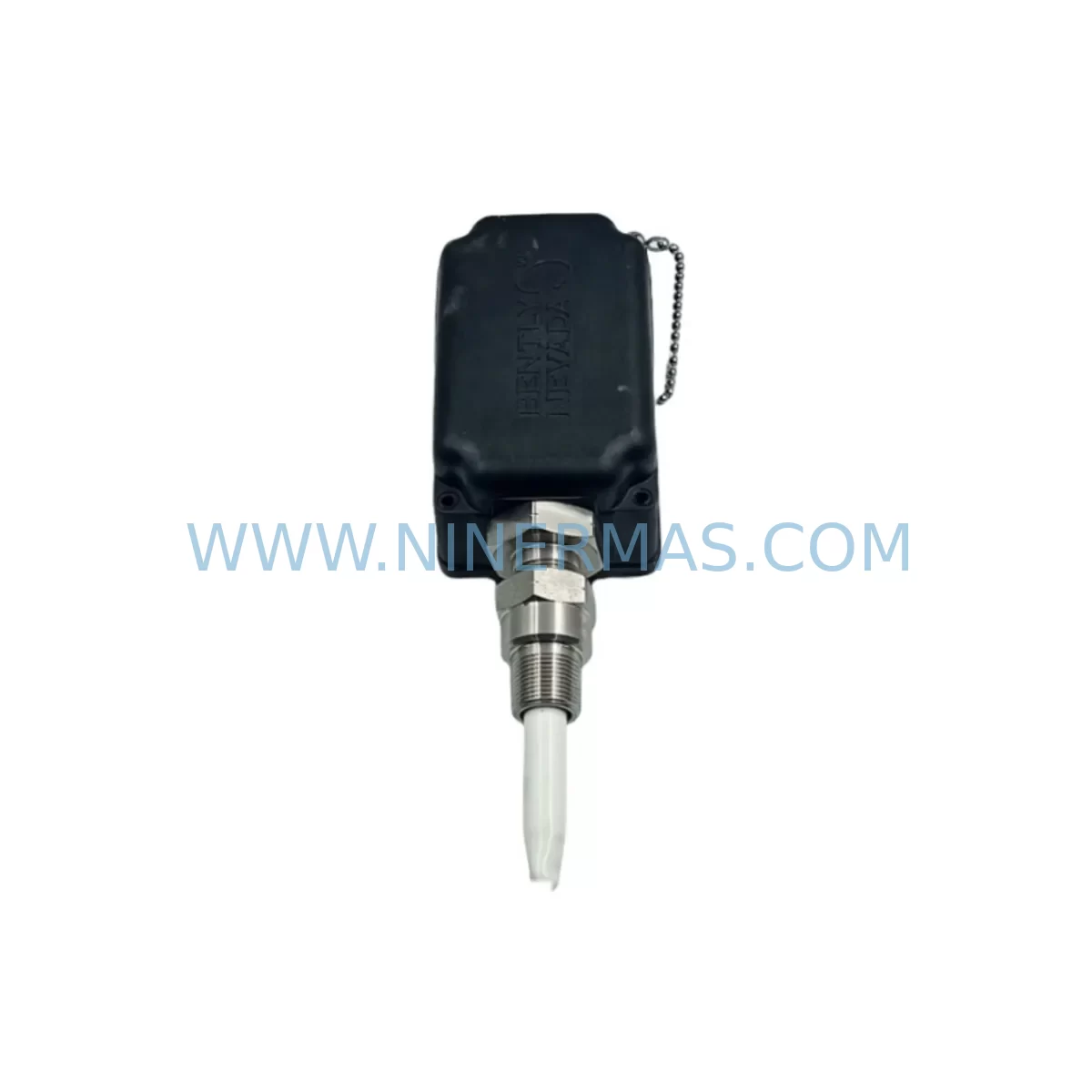

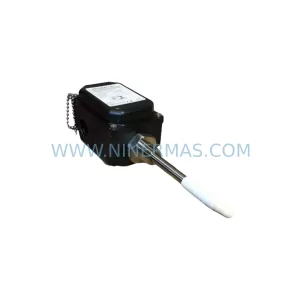

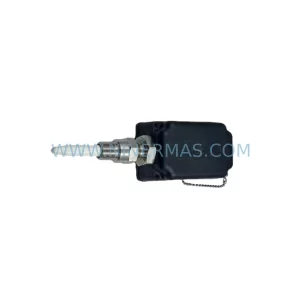

Bently Nevada 330881-28-06-155-00-02 Proximity Module

Bently Nevada 330881-28-06-155-00-02 Retrofit-Compatible Proximity Module for Legacy Vibration Monitoring Systems

The Bently Nevada 330881-28-06-155-00-02 is a ruggedized proximity transducer module engineered for the 3300 Series vibration monitoring platform. As legacy Bently Nevada systems approach end-of-life and OEM support windows close, this module remains one of the most critical components for engineers tasked with maintaining continuous machinery protection on rotating equipment — including turbines, compressors, pumps, and gearboxes. Whether you are executing a like-for-like spare parts replacement, a partial panel upgrade, or a full control cabinet modernization, the 330881-28-06-155-00-02 provides a verified retrofit path that minimizes engineering risk and reduces unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330881-28-06-155-00-02 into an aging control architecture requires a structured pre-installation review. Before removing the failed module, document the existing terminal wiring layout — including shield grounding points and cable routing — to ensure the replacement module is wired identically. In 3300 Series racks, the proximity module interfaces directly with the signal conditioner card (such as the 3300/16 or 3300/20 series conditioners), and any mismatch in connector pinout or cable length can introduce measurement error or false trip conditions.

Power budget verification is equally important. The rack power supply — often a Bently Nevada 3300/15 or equivalent redundant power module — must have sufficient capacity to support the replacement module without causing voltage sag on adjacent I/O cards. If the existing power supply is already operating near its rated output, this retrofit may be the right trigger to upgrade to a higher-capacity supply module at the same time.

For sites running a Bently Nevada 3500 Series rack in parallel with legacy 3300 hardware, the 330881-28-06-155-00-02 can serve as a bridging component during phased migration. The 3500 rack’s I/O modules accept the same analog proximity signals, allowing engineers to migrate monitoring channels one at a time without taking the entire machinery protection system offline. During this transition, the 3500/42M or 3500/44M position monitor cards are commonly used alongside the proximity module to maintain continuous shaft position and vibration monitoring.

Backplane and rack slot assignments must be confirmed against the original system drawing. In multi-rack configurations, module address settings — whether via DIP switch or software configuration in System 1 or Rack Configuration Software — must match the original channel mapping to avoid alarm logic errors in the DCS or safety instrumented system. If the plant uses a Modbus RTU or FOUNDATION Fieldbus gateway to relay vibration data to a Yokogawa, Honeywell, or Emerson DeltaV DCS, the communication link should be tested end-to-end after module replacement before returning the machine to service.

HMI screen updates are often overlooked during proximity module replacements. If the original tag name or engineering unit scaling has changed, the operator interface — whether a legacy Wonderware InTouch panel or a modern FactoryTalk View SE station — must be updated to reflect the correct measurement range and alarm thresholds. Failure to do so can result in operators receiving misleading vibration trend data during the critical post-startup monitoring period.

For installations where physical space inside the control cabinet is constrained, confirm that the 330881-28-06-155-00-02 module dimensions are compatible with the existing rack enclosure. In some retrofit scenarios, a signal isolator or barrier — such as a Phoenix Contact or Pepperl+Fuchs DIN-rail isolator — may be required between the proximity module output and the DCS analog input card to meet intrinsic safety or galvanic isolation requirements.

Downtime Control During System Migration

Minimizing production downtime during a proximity module replacement begins with pre-staging. Before the maintenance window opens, verify that the 330881-28-06-155-00-02 has been bench-tested and confirmed functional. At NINERMAS, each unit undergoes outgoing inspection prior to shipment, reducing the risk of receiving a non-functional part that extends the outage.

Where the process permits, place the affected monitoring channel in bypass mode within the machinery protection system before removing the failed module. This prevents a spurious trip from shutting down the machine during the swap. Document the bypass activation time and ensure the shift supervisor and control room operator are informed. Restore the channel from bypass only after the replacement module has been installed, wired, powered, and gap-verified.

For sites with redundant proximity probe installations — common on large turbines and critical compressors — the redundant channel can remain active during the replacement, providing continuous shaft monitoring throughout the procedure. This approach is strongly recommended for machines that cannot tolerate even a brief loss of vibration protection coverage.

After installation, perform a full loop check: confirm the gap voltage at the proximitor output, verify the signal conditioner output scaling, check the DCS analog input reading against the expected engineering unit value, and confirm that all alarm and trip setpoints are active and correctly configured. Log the as-found and as-left gap voltage readings in the maintenance management system for future reference. Total planned downtime for a single-channel proximity module replacement, when properly pre-staged, typically ranges from 30 to 90 minutes.

Retrofit Support FAQ

Q: Is the 330881-28-06-155-00-02 a direct drop-in replacement for other 330881-series modules?
A: Yes, the 330881-28-06-155-00-02 is designed as a compatible replacement within the 330881 series. However, always verify the suffix codes against your original system documentation, as different suffixes may indicate variations in cable length, connector type, or temperature rating that affect direct interchangeability.

Q: Has this unit been tested before shipment?
A: Yes. All units supplied by NINERMAS undergo outgoing functional inspection prior to dispatch. Each module is verified for electrical continuity and basic signal output performance. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q: What should I check during wiring and commissioning?
A: Confirm terminal assignments match the original wiring diagram, verify shield grounding is intact, measure the gap voltage at the proximitor output (typically –10 VDC at the calibrated gap), and confirm the signal conditioner output reads correctly at the DCS or rack monitor. Update any HMI tag references if the channel address has changed.

Q: What is your lead time and stock availability?
A: NINERMAS maintains inventory of the 330881-28-06-155-00-02 to support urgent replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock and arrange expedited shipment if required.
