Bently Nevada 330703-000-100-10-02-00 Proximity Transducer

Bently Nevada 330703-000-100-10-02-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

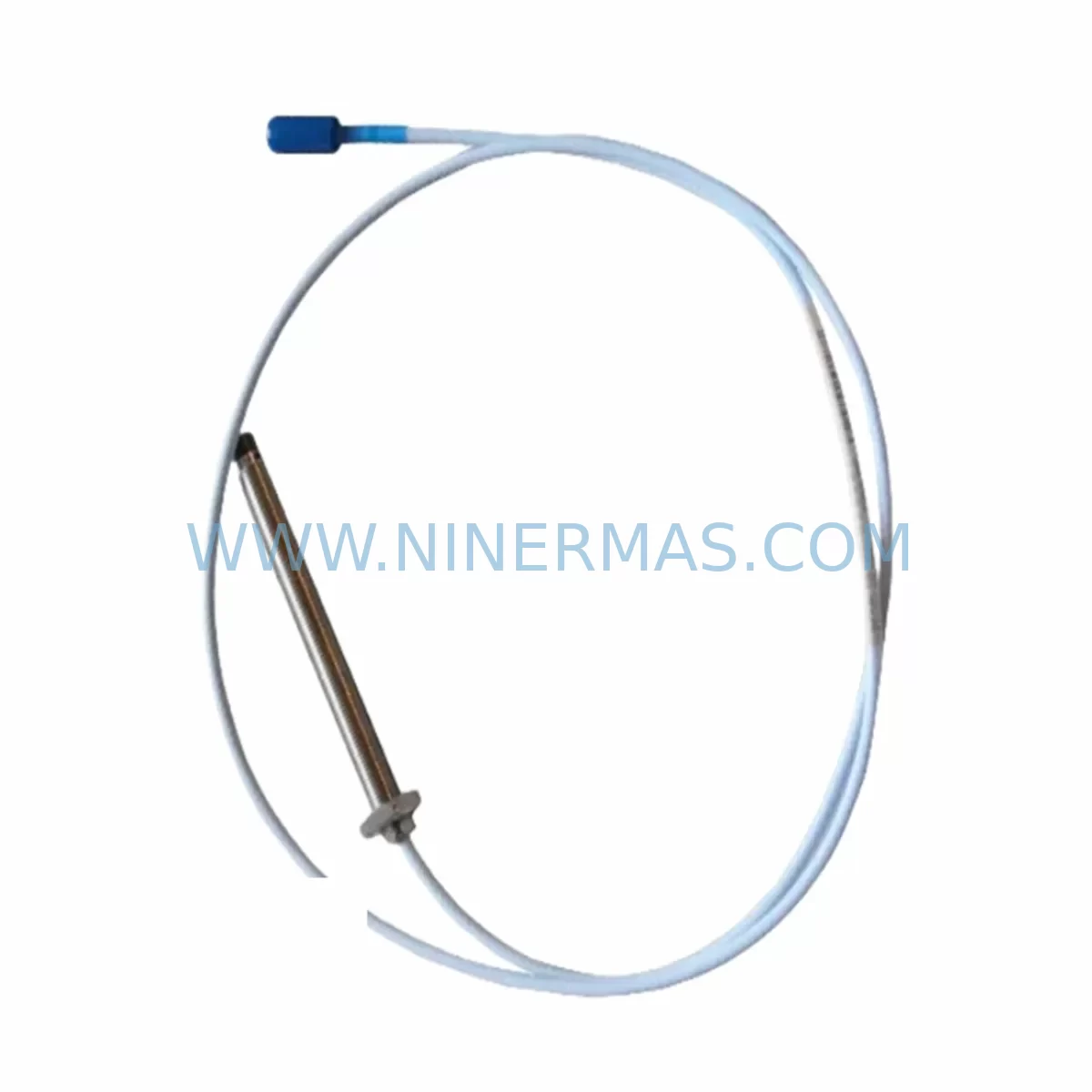

The Bently Nevada 330703-000-100-10-02-00 is a precision eddy-current proximity transducer engineered for the 3300 XL continuous vibration monitoring platform. Designed for radial vibration, axial position, and differential expansion measurement on rotating machinery, this transducer delivers the signal conditioning performance and mechanical compatibility required for seamless integration into existing 3300 XL monitor racks without hardware redesign or panel modification.

As original Bently Nevada 3300 XL transducers approach end-of-life or become increasingly difficult to source through standard distribution channels, the 330703-000-100-10-02-00 represents a verified retrofit-compatible solution for facilities committed to extending the operational life of their legacy vibration monitoring infrastructure. It is fully interchangeable with the original factory specification, preserving existing cable routing, terminal wiring, and monitor channel configuration.

NINERMAS maintains ready stock of the 330703-000-100-10-02-00 to support planned maintenance outages, emergency replacements, and long-term spare parts programs across petrochemical, power generation, oil and gas, and heavy industrial processing facilities. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty covering manufacturing defects and performance conformance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity transducer within an operating 3300 XL vibration monitoring system requires careful coordination across several interdependent components. The 330703-000-100-10-02-00 transducer operates as part of a three-component measurement chain: the transducer probe, the extension cable, and the Proximitor® sensor driver. When planning a retrofit, engineers should confirm that the existing 330180 or 330130 extension cable assembly is undamaged and within specification, as cable degradation is a common cause of false readings that are incorrectly attributed to transducer failure.

The Proximitor® sensor — typically a 3300 XL Proximitor® module such as the 330180-X1-05 — must be verified for compatibility with the replacement transducer’s gap voltage range. The standard operating gap for 330703-series transducers is typically 1.0 mm to 2.5 mm, producing a linear output range of approximately −4 VDC to −20 VDC. Technicians should confirm this range against the channel configuration stored in the associated 3300 XL monitor module, such as the 3300/16 or 3300/20 dual-channel monitor cards, before commissioning the replacement unit.

In control cabinets where multiple 3300 XL monitor cards are installed — including 3300/25 relay modules, 3300/46 temperature monitors, or 3300/55 position monitors — the replacement of a single transducer channel should not affect adjacent channels, provided the rack backplane and power supply module (such as the 3300/05 power supply) are functioning within rated capacity. Power supply loading should be recalculated if multiple transducers are being replaced simultaneously during a planned outage.

For facilities migrating from older Bently Nevada 7200 Series or 3000 Series monitoring platforms to the 3300 XL architecture, the 330703-000-100-10-02-00 provides a forward-compatible transducer solution that eliminates the need to replace field-installed probe hardware. The transducer’s mechanical dimensions and thread specification allow direct installation into existing probe holders and bearing housing bosses, significantly reducing installation time and the risk of machining errors during outage windows.

Where DCS or SCADA integration is involved, engineers should verify that the analog signal from the 3300 XL monitor rack is correctly mapped to the historian or control system input card. Systems using Modbus RTU or FOUNDATION Fieldbus communication modules within the same control cabinet should be isolated during transducer replacement to prevent spurious alarms from propagating to the control room during the gap-setting and commissioning phase.

Signal isolators installed between the 3300 XL monitor output and the DCS analog input card should be checked for drift, particularly in high-temperature environments. Replacing the transducer without verifying isolator performance can result in calibration offsets that are difficult to diagnose after the panel is closed and the machine is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity transducer replacement is a primary concern for maintenance teams operating continuous-process machinery such as compressors, turbines, pumps, and fans. The 330703-000-100-10-02-00 is designed to support rapid field replacement with no firmware updates, no channel reconfiguration, and no changes to the existing 3300 XL monitor rack programming.

Before initiating the replacement, the existing channel’s OK relay status, vibration amplitude, and gap voltage readings should be recorded from the 3300 XL monitor front panel or the connected condition monitoring software. These baseline values serve as the acceptance criteria for post-installation commissioning. If the facility uses System 1 Evolution or a third-party condition monitoring platform connected to the 3300 XL rack, the channel should be placed in bypass mode to suppress alarms during the replacement window.

The physical replacement procedure — removing the transducer probe from the bearing housing, disconnecting the extension cable, installing the 330703-000-100-10-02-00, and re-establishing the correct air gap — can typically be completed within 30 to 60 minutes by a qualified instrumentation technician, provided the machine is safely isolated and the replacement unit is on-site prior to the outage. NINERMAS recommends maintaining at least one spare 330703-000-100-10-02-00 per critical machine train to eliminate procurement lead time from the critical path of any unplanned outage.

After installation, gap voltage should be verified at the Proximitor® sensor terminals before the monitor channel is returned to active status. The OK relay should energize within the expected gap range, and the vibration reading should return to a value consistent with the pre-replacement baseline. Any deviation should be investigated before the machine is returned to service. The 12-month warranty provided with each NINERMAS-supplied unit covers both manufacturing defects and out-of-specification performance identified during commissioning.

Retrofit Support FAQ

Q1: Is the 330703-000-100-10-02-00 a direct replacement for the original Bently Nevada part?
Yes. The 330703-000-100-10-02-00 is manufactured to the original Bently Nevada specification and is a direct drop-in replacement for the same part number. It is mechanically, electrically, and functionally interchangeable with the factory-original unit, requiring no modifications to the existing extension cable, Proximitor® sensor, or 3300 XL monitor channel configuration.

Q2: What pre-shipment testing is performed on each unit?
Each 330703-000-100-10-02-00 supplied by NINERMAS undergoes functional output verification and gap voltage linearity testing prior to shipment. Test records are available upon request. Units are packaged in anti-static, impact-resistant packaging to protect the probe tip and cable connector during international transit.

Q3: Can this transducer be used with Bently Nevada 7200 Series or 3000 Series Proximitor® drivers?
The 330703-000-100-10-02-00 is optimized for use with 3300 XL Series Proximitor® sensors. Compatibility with 7200 Series or 3000 Series drivers depends on the specific driver model and gap voltage range. NINERMAS technical support can assist with cross-series compatibility verification prior to order placement. Contact sale@ninermas.com with your existing driver part number for confirmation.

Q4: What is the warranty coverage and what does it include?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, out-of-specification electrical performance, and mechanical integrity of the probe body and connector. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical impact after delivery. Warranty claims are processed directly through NINERMAS with replacement or repair at no additional cost.

—
