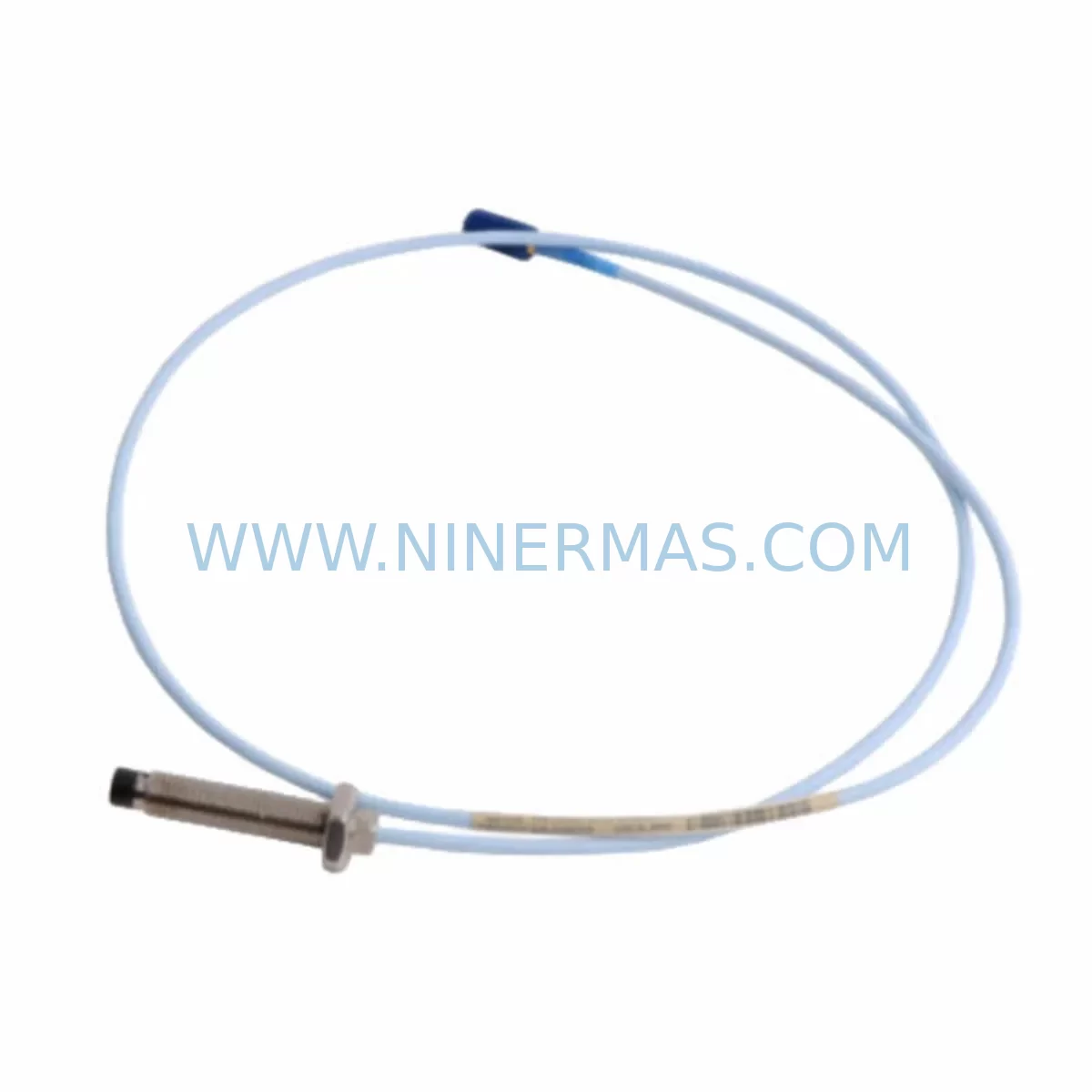

Bently Nevada 330703-000-060-10-02-CN Retrofit Proximitor

Bently Nevada 330703-000-060-10-02-CN Retrofit Proximitor: Legacy-Compatible Vibration Monitoring Upgrade

The Bently Nevada 330703-000-060-10-02-CN is a field-proven Proximitor module from the 3300 XL Series, designed for non-contact eddy-current vibration and position measurement in rotating machinery protection systems. As original Bently Nevada 3300 XL hardware reaches end-of-life and spare parts become increasingly scarce, this retrofit-compatible unit provides a direct, drop-in replacement path for facilities operating legacy turbine protection panels, compressor monitoring racks, and critical rotating equipment control cabinets.

NINERMAS supplies the 330703-000-060-10-02-CN with full pre-shipment functional testing, a 12-month warranty, and documented compatibility verification against the original 3300 XL system architecture. Whether you are executing a planned outage replacement, emergency spare procurement, or a phased control system modernization, this unit is stocked and ready for rapid dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330703-000-060-10-02-CN within an operating plant requires careful pre-outage planning to avoid unplanned downtime and signal interruption. The 3300 XL platform is commonly installed alongside a range of complementary Bently Nevada hardware, and a successful retrofit must account for the full signal chain from probe tip to control room.

Begin by auditing the existing 3300 XL rack configuration. In most installations, the Proximitor module shares a rack with the 3300/20 Dual Voting Logic module, 3300/25 Keyphasor module, and 3300/46 Dual Tachometer module. Confirm that the rack backplane is undamaged and that the 3300 XL rack power supply — typically a 3300/15 or 3300/16 unit — can sustain the additional load of a freshly installed module without voltage droop on the -24 VDC rail.

Field wiring from the proximity probe passes through the 3300 XL extension cable (the -CN suffix on this SKU denotes a 9-metre armoured extension) before terminating at the Proximitor input terminals. During replacement, label all field wires before disconnection and photograph the terminal block. Incorrect rewiring of the driver, coax centre conductor, and shield is the most common commissioning error in 3300 XL retrofits.

If the plant is simultaneously upgrading its condition monitoring platform — for example, migrating from a standalone 3300 XL rack to a System 1 Evolution software environment or integrating with a Bently Nevada 3500 Series rack — the 330703-000-060-10-02-CN can serve as a bridge solution, maintaining existing probe infrastructure while the higher-level monitoring architecture is modernised. The 3500/42M Proximitor I/O module and 3500/22M Transient Data Interface are typical targets in such migrations, and their input specifications must be cross-referenced against the probe and cable assembly already installed.

For facilities running GE Mark V or Mark VI turbine control systems in parallel with Bently Nevada vibration monitoring, confirm that the 4–20 mA or voltage outputs from the 330703-000-060-10-02-CN are correctly mapped to the Mark VI VCMI or PPRO I/O cards. Signal scaling mismatches between the Proximitor output and the DCS analogue input card are a frequent source of spurious trip events during post-replacement commissioning.

Where the control cabinet also houses Emerson DeltaV or ABB 800xA integration modules, verify that the vibration signal is correctly tagged in the historian and that alarm setpoints are re-entered after module swap — many DCS configurations store setpoints in the field device record rather than the controller logic, and these are lost when a module is replaced without a prior configuration export.

Finally, if the plant uses a Bently Nevada TK-3 calibration kit or equivalent proximity probe simulator, perform a full gap sweep (typically 0.25 mm to 2.5 mm) on the replacement Proximitor before closing the junction box. Document the output voltage at each gap increment and compare against the original calibration record. This step is essential for facilities subject to API 670 compliance audits.

Downtime Control During System Migration

Minimising production downtime during a 3300 XL Proximitor replacement is achievable with disciplined pre-outage preparation. The following approach is recommended for facilities where the monitored machine is on a critical process train:

Pre-outage: Obtain the replacement 330703-000-060-10-02-CN unit and verify its gap voltage output against a known-good probe before the outage window opens. Prepare a wiring diagram extracted from the as-built panel drawings. Export the current System 1 or DCS configuration for the affected channel. Confirm that the 3300 XL rack power supply is healthy and that no other modules in the rack are showing fault indicators.

During outage: Place the monitoring channel in bypass or inhibit mode at the DCS or TMR voting logic before removing the faulty Proximitor. This prevents a spurious machine trip during the swap. Remove the module, transfer field wiring to the replacement unit using the pre-prepared wiring diagram, and re-seat the module firmly into the backplane. Restore power and allow the Proximitor a 30-second warm-up period before re-enabling the channel.

Post-outage commissioning: Verify gap voltage is within the acceptable window (typically -10 VDC ± 1 VDC at the nominal air gap for standard 8 mm probes). Confirm the AC vibration signal is present and noise-free. Check the OK relay output is energised. Remove the bypass/inhibit at the DCS and confirm alarm and trip setpoints are active. Log the replacement in the plant maintenance management system with the new module serial number and warranty start date.

With a pre-tested, stocked replacement unit from NINERMAS, the active swap time for a 330703-000-060-10-02-CN is typically under 45 minutes, making it compatible with short planned maintenance windows on continuous process plants.

Retrofit Support FAQ

Q1: Is the 330703-000-060-10-02-CN a direct drop-in replacement for my existing 3300 XL Proximitor?
Yes. The 330703-000-060-10-02-CN is a form-fit-function compatible replacement for the original Bently Nevada 3300 XL Proximitor with the same probe interface, terminal block layout, backplane connector, and output signal specification. No panel modification or software reconfiguration is required for a like-for-like swap within an existing 3300 XL rack.

Q2: What pre-shipment testing does NINERMAS perform on this unit?
Every 330703-000-060-10-02-CN supplied by NINERMAS undergoes functional verification including power-up self-test, gap voltage output measurement across the full probe gap range, OK relay operation check, and AC signal path continuity. A test report is available on request. The unit ships with a 12-month warranty covering functional failure under normal operating conditions.

Q3: Can this Proximitor be used with probes from the Bently Nevada 3500 Series or other 3300 XL variants?
The 330703-000-060-10-02-CN is optimised for use with Bently Nevada 3300 XL Series proximity probes and extension cables. Cross-series use with 3500 Series probes is not recommended without consulting the Bently Nevada probe/driver compatibility matrix, as sensitivity coefficients and gap voltage ranges differ between series. Contact NINERMAS with your probe part number for a compatibility confirmation before ordering.

Q4: What is the lead time and do you hold stock?
NINERMAS maintains inventory of the 330703-000-060-10-02-CN to support emergency and planned maintenance requirements. Standard lead time for in-stock units is 3–7 business days to most international destinations. For urgent requirements, expedited shipping options are available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability and delivery timeline.
