Bently Nevada 330232-05-05-12-05 Retrofit for 3300 XL

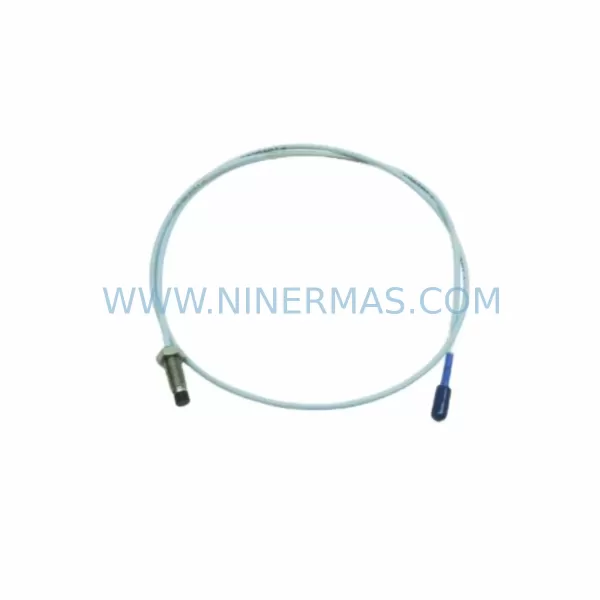

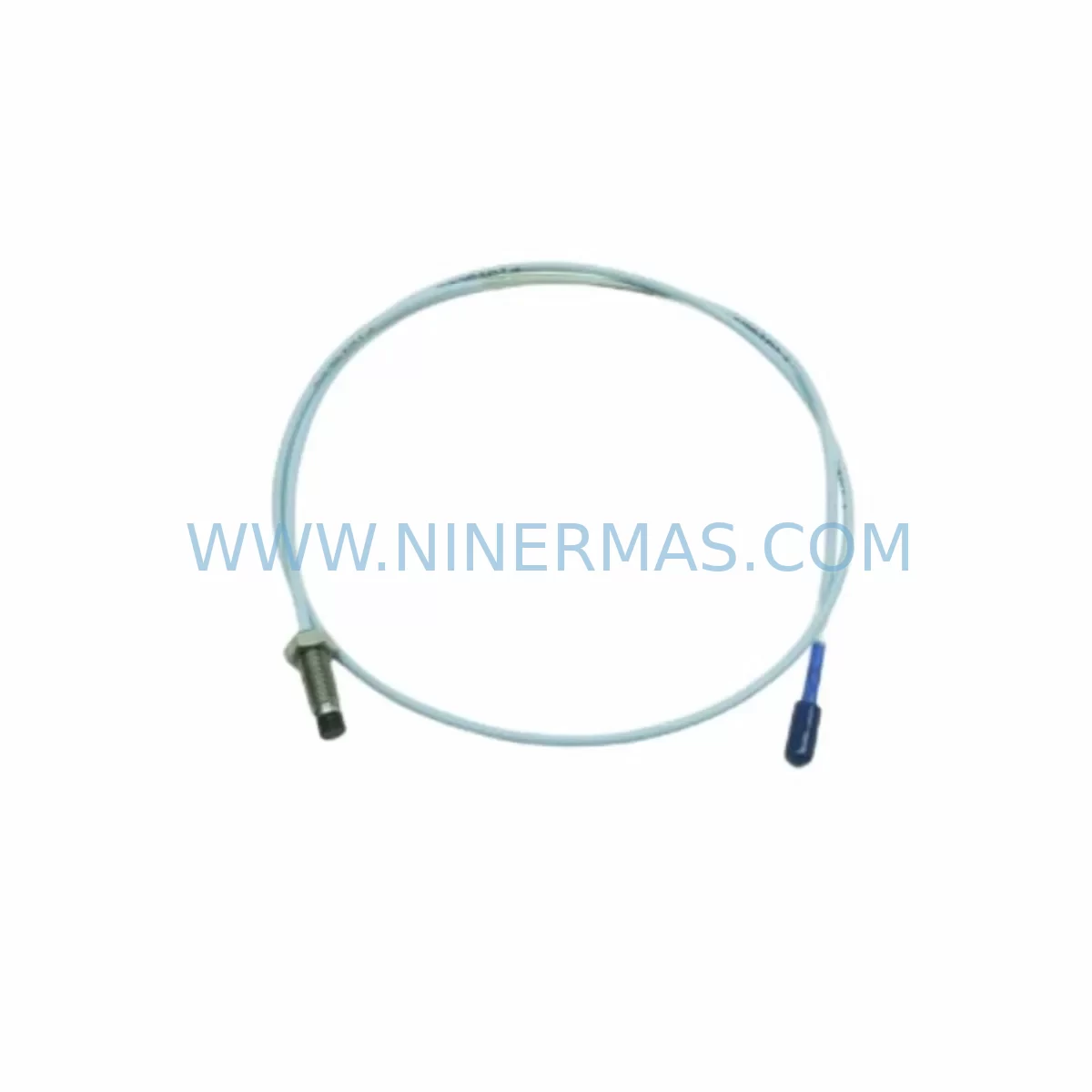

Bently Nevada 330232-05-05-12-05 Retrofit-Compatible Proximity Module for Legacy 3300 XL Systems

The Bently Nevada 330232-05-05-12-05 is a proximity transducer system component engineered for the 3300 XL Proximity System platform — one of the most widely deployed vibration and position monitoring architectures in rotating machinery protection across oil & gas, power generation, petrochemical, and heavy industrial facilities. As legacy 3300 XL installations age and original components reach end-of-life, the 330232-05-05-12-05 serves as a critical retrofit-compatible replacement that allows maintenance and reliability engineers to restore full system functionality without requiring a complete platform overhaul.

This module is designed to integrate directly into existing 3300 XL rack configurations, preserving original wiring terminations, signal conditioning parameters, and monitoring logic. For facilities operating aging turbomachinery protection panels, replacing the 330232-05-05-12-05 on a like-for-like basis eliminates the need for costly reprogramming, re-engineering of cable runs, or requalification of the entire monitoring loop. The result is a controlled, low-risk upgrade path that minimises unplanned downtime and protects capital investment in existing infrastructure.

At NINERMAS, each 330232-05-05-12-05 unit is sourced, inspected, and pre-shipment tested to confirm electrical performance within OEM specification tolerances. All units are supplied with a 12-month warranty and are available for immediate dispatch to support both emergency breakdown recovery and planned annual maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330232-05-05-12-05 in a live 3300 XL installation requires a structured approach to avoid introducing new faults during the changeover. Before removing the existing module, maintenance engineers should document the current gap voltage readings at each proximity probe channel — typically measured at the proximitor extension cable connector — to establish a baseline for post-installation verification. The 3300 XL rack power supply module should be checked to confirm it can sustain the full load of all installed cards, particularly if additional modules such as a 3300/16 I/O module or a 3300/55 tachometer input module are simultaneously active in the same chassis.

Field wiring connected to the 330232-05-05-12-05 typically runs from the 3300 XL proximitor (such as the 330180 or 330130 series extension cable assemblies) through to the rack terminal block. These cable assemblies should be inspected for insulation degradation, connector corrosion, and continuity before the new module is seated. If the facility is also planning to migrate monitoring data to a modern condition monitoring platform, the Bently Nevada System 1 Evolution software interface should be validated for compatibility with the existing rack I/O configuration prior to the retrofit window.

For installations where the 3300 XL rack is housed in a shared control cabinet alongside other protection and control equipment, the retrofit window should also include inspection of adjacent components. The 3300/46M position monitor module and 3300/25 dual voting module — if present — should be checked for alarm setpoint integrity and relay output continuity. Terminal blocks, particularly Phoenix Contact or Weidmüller DIN-rail terminal strips used for field signal distribution, should be torque-checked and inspected for oxidation. Any signal isolators or galvanic barriers in the proximity loop should be tested for correct output scaling before the new 330232-05-05-12-05 is commissioned.

Where the facility operates a Bently Nevada 3500 series rack in parallel with the 3300 XL system — a common configuration in phased upgrade programmes — the retrofit of the 330232-05-05-12-05 provides an opportunity to align monitoring parameters across both platforms and prepare for eventual full migration to the 3500 architecture. NINERMAS maintains stock of both 3300 XL and 3500 series components to support parallel-platform environments and phased decommissioning strategies.

Downtime Control During System Migration

Minimising production downtime during a 330232-05-05-12-05 replacement depends on preparation quality and the availability of a pre-tested spare unit on site. NINERMAS recommends that facilities operating critical rotating machinery — including steam turbines, gas compressors, and large pumps — maintain at least one verified spare 330232-05-05-12-05 in their on-site critical spares inventory. This eliminates the lead time risk associated with emergency procurement and allows the replacement to be executed within a planned short-duration outage window rather than an extended breakdown event.

Prior to the maintenance window, the replacement unit should be bench-tested using a Bently Nevada proximitor simulator or equivalent signal source to confirm output linearity and channel response. The original module’s configuration label — including any channel-specific sensitivity or gap settings — should be photographed and retained for reference. During installation, the module should be seated firmly into the 3300 XL backplane connector and the rack front-panel indicators observed for correct power-on status before field wiring is reconnected.

Post-installation, gap voltage should be re-measured at each channel and compared against the pre-removal baseline. Any deviation beyond OEM tolerance should be investigated before the machine is returned to service. If the facility uses a DCS historian or SCADA system to log vibration and position data from the 3300 XL rack, the data stream should be verified for continuity and correct engineering unit scaling following the module swap. Where HMI display screens present 3300 XL channel data, operators should confirm that all trend displays and alarm annunciations are functioning correctly before releasing the machine to production.

Retrofit Support FAQ

Q1: Is the 330232-05-05-12-05 a direct drop-in replacement for the existing module in my 3300 XL rack?
In standard 3300 XL configurations, the 330232-05-05-12-05 is designed as a direct slot-compatible replacement. However, customers should verify the rack slot assignment, backplane revision, and any site-specific wiring modifications against the original installation drawing before proceeding. NINERMAS technical support can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the 330232-05-05-12-05?
Each unit undergoes electrical continuity testing, power-on functional verification, and output signal validation prior to dispatch. Units are packaged in anti-static protective packaging and shipped with a test confirmation record. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: Can NINERMAS supply the 330232-05-05-12-05 for long-term spare parts programmes?
Yes. NINERMAS supports long-term supply agreements for facilities requiring scheduled replenishment of 3300 XL critical spares. Customers can arrange forward stock reservations or annual supply contracts to ensure availability for planned maintenance shutdowns and emergency breakdown scenarios. Contact sale@ninermas.com to discuss programme terms.

Q4: What should I check if the replacement 330232-05-05-12-05 does not restore correct channel readings after installation?
If channel readings are outside expected range after installation, first verify gap voltage at the proximitor connector against OEM specification. Check the extension cable assembly for continuity and correct polarity. Confirm that the rack power supply is within voltage tolerance and that no other modules in the rack are drawing excess current. If the issue persists, contact NINERMAS for warranty support and technical assistance.
