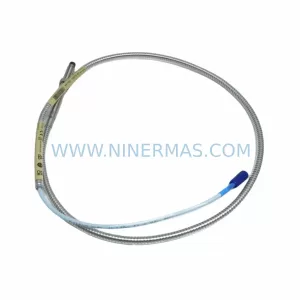

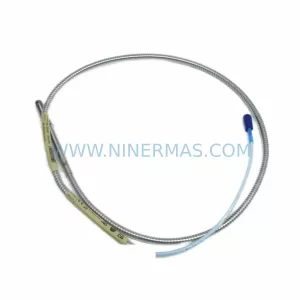

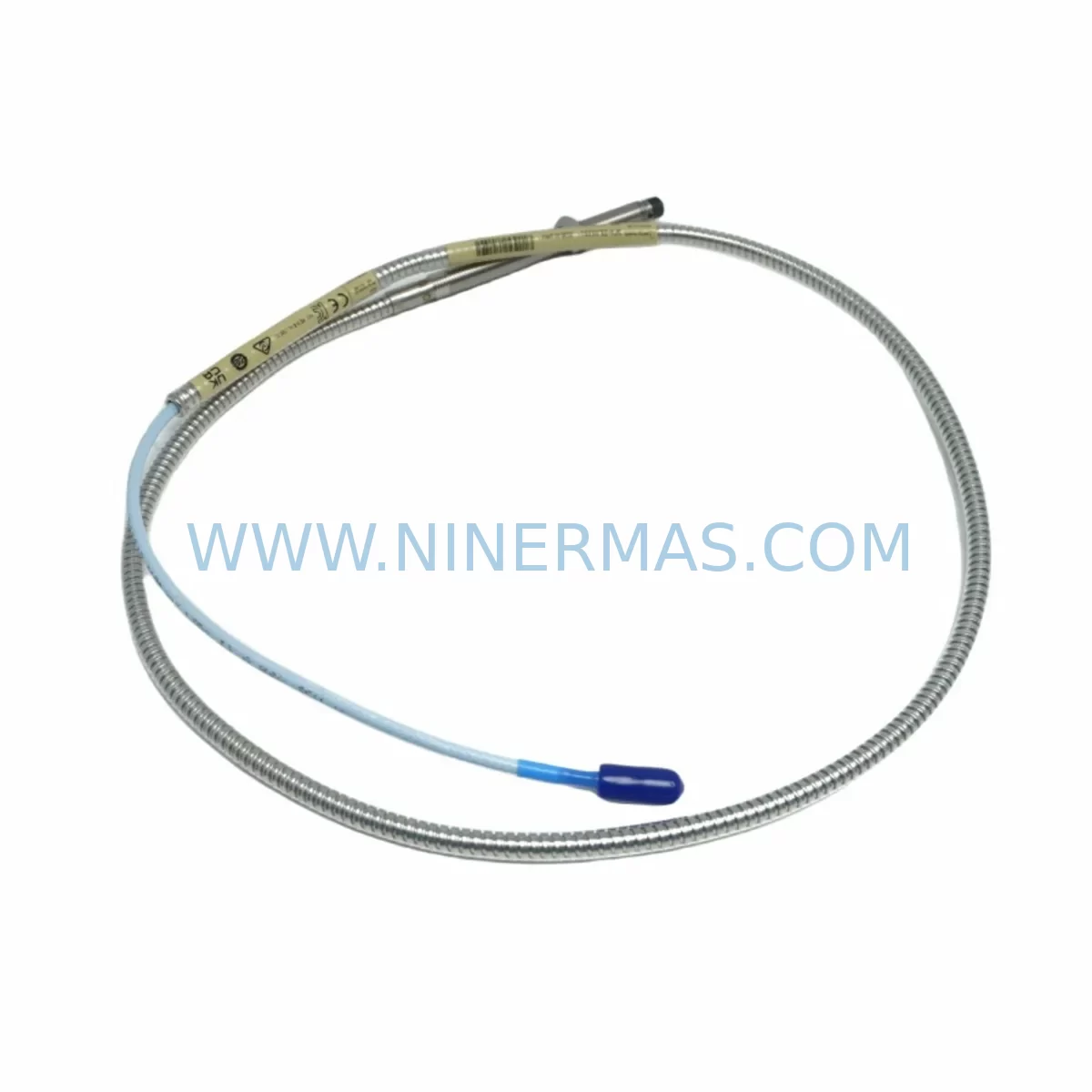

Bently Nevada 330103-00-06-10-12-05 Retrofit-Compatible Proximity Transducer

Bently Nevada 330103-00-06-10-12-05 Retrofit-Compatible Proximity Transducer for Legacy 3300 XL Systems

The Bently Nevada 330103-00-06-10-12-05 is a 3300 XL Series proximity transducer designed for direct retrofit into existing vibration monitoring installations. As legacy Bently Nevada 3300 XL systems age and original components approach end-of-life, plant engineers and reliability teams increasingly rely on verified replacement units to maintain continuous machinery protection without triggering a full system overhaul. This transducer delivers the same signal conditioning characteristics, gap voltage range, and sensitivity specifications as the original factory unit, making it a trusted choice for brownfield upgrades, spare parts replenishment, and planned maintenance shutdowns.

Whether you are replacing a failed transducer on a critical compressor train, restoring a dormant monitoring loop on a steam turbine, or building a strategic spare inventory ahead of a scheduled turnaround, the 330103-00-06-10-12-05 integrates directly with the 3300 XL monitor rack without requiring firmware changes or recalibration of the existing 3300 XL proximitor extension cable assembly. The unit is compatible with standard Bently Nevada coaxial cable systems and maintains the expected -18 VDC proximitor output range that downstream monitors and DCS input cards are already configured to receive.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-06-10-12-05 into a running plant begins well before the physical swap. Maintenance planners should first audit the existing 3300 XL proximitor — typically a 330180 or 330130 series extension cable driver — to confirm that the driver’s sensitivity setting matches the replacement probe. Mismatched sensitivity between the probe and the proximitor is the most common source of erroneous vibration readings after a transducer change, and it can trigger nuisance trips on the 3300 XL monitor card if not corrected before restart.

Terminal wiring at the junction box should be photographed and documented before disconnection. The 330103-00-06-10-12-05 uses the same colour-coded coaxial shield and centre conductor convention as earlier 3300 XL probes, so existing field wiring typically requires no modification. However, if the installation includes a 3300 XL 16-channel monitor or a 3500/42M proximity monitor, the channel configuration stored in the rack should be exported via the System 1 condition monitoring software or the 3500 Rack Configuration Software before any hardware is disturbed. This protects alarm setpoints, full-scale ranges, and transducer type assignments that would otherwise need to be re-entered manually.

For installations where the 3300 XL rack also houses a 3300 XL 01 power supply module, engineers should verify that the supply rail can support the additional inrush current during probe initialisation, particularly in high-channel-count racks where multiple transducers are powered from a single backplane slot. If the rack is approaching its rated load, a 3300 XL power supply upgrade or the addition of a secondary 3300 XL power supply module should be planned concurrently with the transducer replacement.

Where the monitoring system feeds a DCS or safety instrumented system via a 3300 XL I/O module or a dedicated 4–20 mA output card, the signal loop should be verified with a loop calibrator before the plant is returned to service. Any drift in the gap voltage caused by a slightly different probe-to-target distance will shift the DC bias on the output, which can cause the DCS historian to log a step change in the vibration baseline. Documenting the pre- and post-replacement gap voltage — typically measured at the proximitor BNC test point — provides a clear audit trail for reliability engineers and satisfies most plant change-management procedures.

In multi-machine trains where the 330103-00-06-10-12-05 is being installed alongside other 3300 XL components such as a 3300 XL velocity transducer, a 3300 XL temperature monitor module, or a 3300 XL keyphasor module, the commissioning sequence should follow the Bently Nevada rack power-up procedure to avoid false OK/Not-OK transitions that could be misinterpreted by the control room as a process upset. If the installation also involves a 3300 XL communication gateway for Modbus or FOUNDATION Fieldbus integration, the gateway’s tag mapping should be verified after the transducer swap to confirm that the channel address has not shifted due to rack reconfiguration.

Downtime Control During System Migration

Minimising unplanned downtime during a transducer replacement on a critical rotating machine requires a structured pre-outage checklist. Before the machine is taken offline, the existing vibration trend data from System 1 or the plant DCS should be exported and saved as a baseline. This allows post-commissioning readings to be compared directly against the historical signature, confirming that the replacement 330103-00-06-10-12-05 is producing a consistent output and that no mechanical change has occurred during the outage window.

The physical swap itself — removing the armour assembly, extracting the probe from the bracket, threading in the replacement unit, and re-gapping to the target specification — typically takes less than 30 minutes for an experienced instrumentation technician. The majority of outage time is usually consumed by permit-to-work procedures, scaffolding or access preparation, and post-installation loop checks. By pre-staging the replacement transducer, the extension cable, and any required coaxial adapters before the machine is shut down, teams can compress the active work window and reduce the risk of extended downtime caused by last-minute parts sourcing.

Where the 3300 XL monitor rack supports hot-swap or bypass functionality, the channel can be placed in bypass mode before the probe is disconnected, preventing a Not-OK condition from propagating to the safety system during the swap. After the replacement probe is installed and gapped, the channel should be taken out of bypass only after the OK LED on the monitor card has been confirmed and the output voltage has been verified within the acceptable window. This approach protects the original program logic in the safety system and maintains field control continuity throughout the replacement procedure.

Retrofit Support FAQ

Q1: Is the 330103-00-06-10-12-05 a direct replacement for the original Bently Nevada probe in my 3300 XL rack?
Yes. The 330103-00-06-10-12-05 is manufactured to the same dimensional and electrical specification as the original 3300 XL proximity probe. It is compatible with standard 3300 XL proximitor extension cables and monitor cards without requiring any hardware or software modification to the rack.

Q2: What commissioning steps are required after installation?
After threading the probe into the bracket and securing the locknut, set the probe-to-target gap to the manufacturer’s recommended value (typically 1.0 mm / 40 mil for standard steel targets) and verify the gap voltage at the proximitor BNC test point. Confirm the OK LED on the 3300 XL monitor card, then check the vibration reading against the pre-outage baseline in System 1 or the DCS historian before returning the machine to service.

Q3: Do you perform pre-shipment testing, and what does the warranty cover?
Every unit is bench-tested for output sensitivity, gap voltage linearity, and connector integrity before shipment. The 330103-00-06-10-12-05 carries a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. Units that fail within the warranty period are replaced or refunded at no additional cost.

Q4: What is your typical lead time and do you maintain stock?
We maintain ready inventory of the 330103-00-06-10-12-05 to support urgent maintenance requirements. Standard orders ship within 1–3 business days. For large-quantity orders or scheduled turnaround supply agreements, please contact our sales team to confirm availability and arrange priority allocation.
