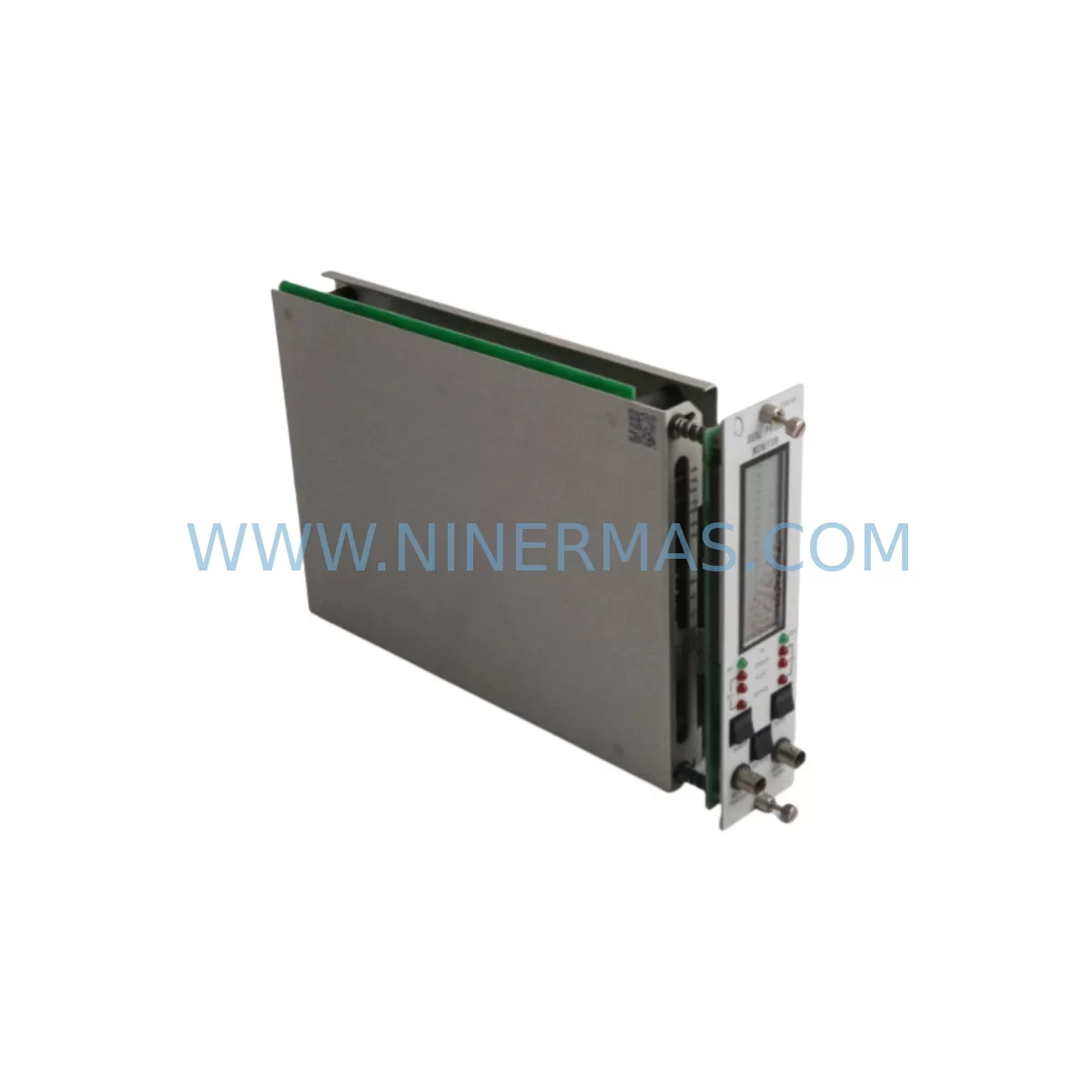

The Bently Nevada 3300/65 is a ruggedized dual probe monitor engineered for continuous vibration surveillance in demanding industrial environments. As a critical component within the Bently Nevada 3300 Series machinery protection system, the 3300/65 delivers reliable proximity probe signal conditioning and shaft vibration measurement across rotating equipment including turbines, compressors, pumps, and gearboxes. For maintenance engineers managing aging DCS or machinery protection infrastructure, sourcing a verified, service-ready 3300/65 spare is essential to minimizing unplanned downtime and sustaining plant availability.

At NINERMAS, every 3300/65 unit is sourced, inspected, and pre-shipment tested to confirm electrical integrity and signal output performance before dispatch. Our inventory supports rapid replacement cycles for both emergency breakdown recovery and scheduled annual overhaul programs. With a 12-month warranty and long-term supply commitment, the 3300/65 is available to procurement engineers who require confirmed stock, traceable documentation, and reliable lead times for critical spare parts programs.

Whether you are responding to a vibration trip alarm, executing a planned outage replacement, or building a strategic spare parts buffer for your rotating equipment fleet, the Bently Nevada 3300/65 from NINERMAS delivers the compatibility, quality assurance, and supply continuity your operation demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Bently Nevada 3300/65 dual probe monitor, a thorough inspection of the surrounding control cabinet and signal chain is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat the 3300/65 replacement as an opportunity to audit the full vibration monitoring loop.

Begin by verifying the 3300 Series rack power supply module — typically a 3300/20 or equivalent — to confirm stable 24 VDC output within tolerance. A degraded rack power supply is a common root cause of monitor signal drift and false trips. Simultaneously, inspect the 3300 XL proximity probe and its associated extension cable for insulation damage, connector corrosion, or mechanical wear at the probe tip, as probe degradation will cause erroneous readings even after a monitor replacement.

The Bently Nevada 3500/42M or 3500/45 position and velocity monitor modules — if present in the same rack — should be checked for firmware consistency and calibration status during the same outage window. Cross-channel signal correlation between the 3300/65 and adjacent 3500 Series I/O modules helps confirm that the vibration trip setpoints and OK relay outputs are functioning correctly across the full protection system.

For DCS integration, verify the 4–20 mA signal wiring from the 3300/65 output terminals to the marshalling cabinet terminal blocks. Loose terminations, corroded DIN rail terminal strips, or undersized signal cables can introduce noise and offset errors that mimic monitor faults. If the plant uses a Bently Nevada 3300/55 keyphasor module, confirm that the keyphasor signal is clean and properly phased, as the 3300/65 relies on this reference for phase-referenced vibration analysis.

Where the control system interfaces with a Honeywell, Emerson DeltaV, or ABB 800xA DCS, review the HART or analog input card configuration to ensure the replacement monitor’s output scaling matches the existing engineering unit range. Procurement engineers should also consider holding a spare 3300/65 unit alongside a 3300/20 rack power supply and a set of 3300 XL 8mm proximity probes with extension cables as a minimum viable spare kit for rotating equipment protection systems.

Additional components to include in your spare parts review: 3300/16 dual voting logic monitor, 3300/46 temperature monitor, 3300/50 tachometer module, signal isolators for 4–20 mA loops, DIN rail fuse holders, and rack backplane connectors. Addressing these items during a planned outage significantly reduces the risk of secondary failures during the next run cycle.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and isolate the 3300/65 monitor from the rack by powering down the relevant rack slot or the full 3300 Series chassis if hot-swap is not supported. Document the existing wiring configuration and terminal assignments before disconnection.

Step 2 — Probe and Cable Verification: Before installing the replacement 3300/65, test the proximity probe and extension cable continuity and gap voltage at the probe tip. A gap voltage outside the –10 VDC to –18 VDC nominal range indicates a probe or cable fault that must be resolved independently of the monitor replacement.

Step 3 — Module Installation: Insert the new 3300/65 into the correct rack slot, ensuring the backplane connector is fully seated. Reconnect all field wiring per the original terminal documentation. Confirm that the OK relay output is de-energized (faulted state) before power-up, which is normal for a freshly installed module.

Step 4 — Calibration and Setpoint Verification: Power up the rack and allow the 3300/65 to complete its self-test sequence. Verify the OK relay energizes within the specified time. Confirm vibration amplitude readings against a known reference or portable vibration analyzer. Check that trip and alert setpoints match the approved machinery protection settings document.

Step 5 — DCS Loop Check: Confirm the 4–20 mA output is received correctly at the DCS analog input card. Verify engineering unit scaling, alarm annunciation, and historian data logging are functioning as expected before returning the equipment to service.

This structured replacement workflow reduces mean time to repair (MTTR), eliminates re-work caused by overlooked wiring errors, and ensures the replacement 3300/65 is fully commissioned before the machine is returned to load.

Spare Parts Support FAQ

Q1: Is the NINERMAS 3300/65 compatible with all Bently Nevada 3300 Series racks?
Yes. The 3300/65 is designed for the standard Bently Nevada 3300 Series rack architecture. Compatibility with specific rack revisions and firmware versions can be confirmed by our technical team prior to shipment. We recommend providing your rack model and existing module revision when placing an order to ensure a verified match.

Q2: What pre-shipment testing is performed on the 3300/65?
Every 3300/65 unit undergoes electrical continuity testing, power-up functional verification, and output signal validation before dispatch. Units are inspected for physical damage, connector integrity, and backplane contact condition. A test report is available upon request for quality-critical procurement programs.

Q3: Can NINERMAS support long-term or blanket order supply of the 3300/65?
Yes. NINERMAS supports long-term spare parts supply agreements for the 3300/65 and related 3300 Series components. Blanket orders, scheduled releases, and consignment stock arrangements are available for customers with recurring maintenance requirements. Contact our sales team to discuss volume pricing and supply continuity terms.

Q4: What does the 12-month warranty cover for the 3300/65?
The 12-month warranty covers manufacturing defects, electrical component failure under normal operating conditions, and confirmed compatibility issues identified during installation. Warranty claims are supported by our technical team with replacement or repair options. The warranty period begins from the date of shipment and applies to units installed and operated within the specified environmental and electrical parameters.
