Bently Nevada 3300/55 Retrofit Vibration Monitor for Legacy Systems

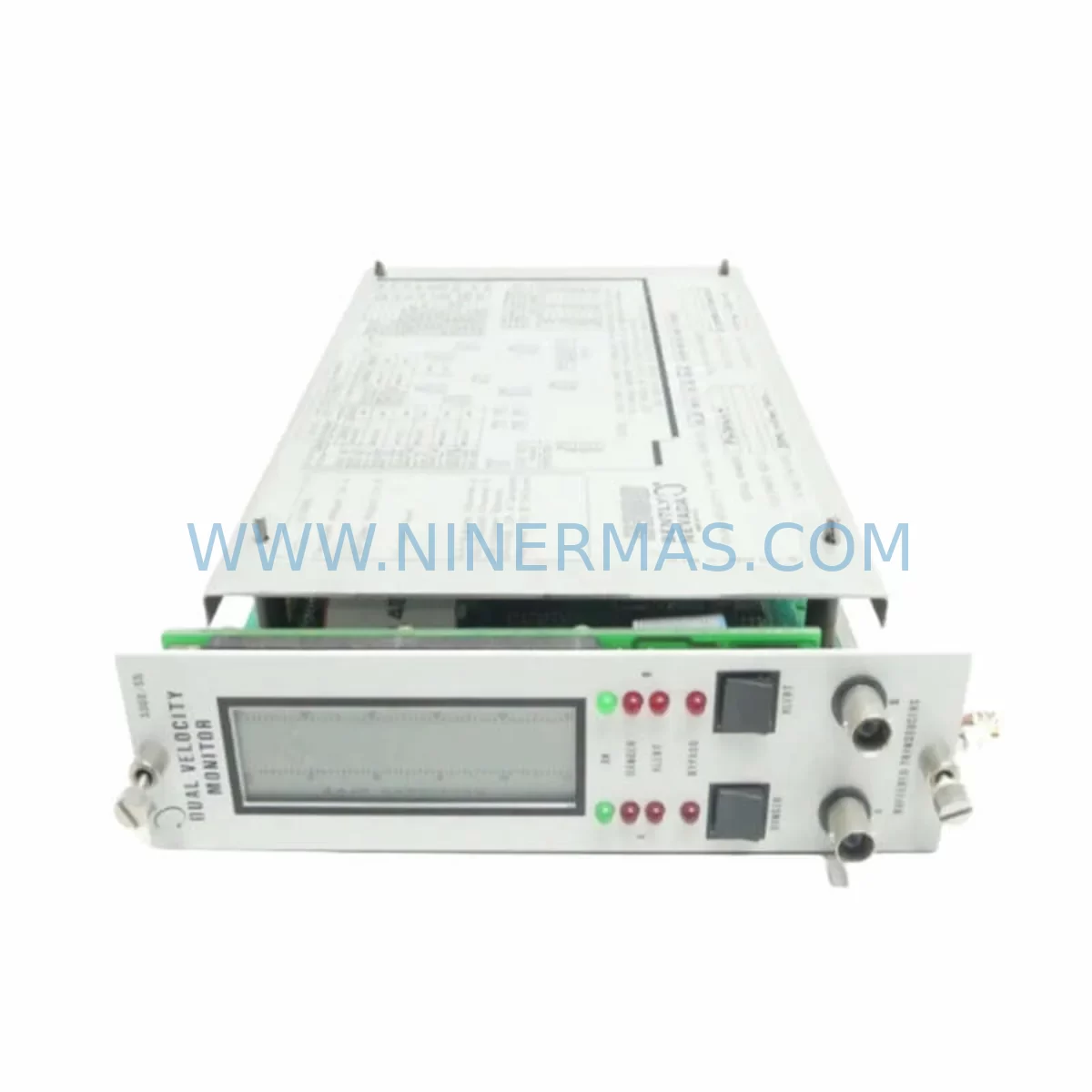

The Bently Nevada 3300/55 is a critical vibration monitoring module widely deployed across rotating machinery protection systems in petrochemical, power generation, and heavy manufacturing facilities. As original equipment manufacturers phase out support for legacy 3300 Series infrastructure, plant engineers and reliability teams face increasing pressure to source tested, retrofit-compatible replacements that preserve existing wiring, rack architecture, and software logic without triggering a full system overhaul. The 3300/55 available through NINERMAS is pre-shipment tested, carries a 12-month warranty, and is supplied from verified long-term inventory to support lifecycle extension programs and unplanned outage recovery.

Facilities running Bently Nevada 3300 Series monitoring systems typically operate a mixed rack environment that includes the 3300/16 proximitor I/O module, the 3300/46 tachometer input card, the 3300/50 dual-channel monitor, and the 3500/22M transient data interface alongside the 3300/55. When planning a retrofit or spare parts replenishment, engineers must account for the full slot configuration of the 3300 rack, confirm backplane connector compatibility, and verify that the replacement module’s channel addressing matches the existing Bently Nevada System 1 or ADRE configuration. Swapping only the 3300/55 without auditing adjacent modules—particularly the 3300/46 tachometer card and the 3300/16 I/O interface—can introduce alarm threshold mismatches or communication dropouts on the Modbus or RS-232 data link.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300/55 retrofit begins well before the replacement module arrives on site. The first step is a full rack audit: document every occupied slot in the 3300 Series enclosure, record the firmware revision of the 3300/50 dual-channel monitor and the 3300/46 tachometer input card, and photograph the existing terminal wiring on the 3300/16 I/O module. This baseline record becomes the rollback reference if commissioning reveals unexpected behavior.

Power budget verification is non-negotiable. The 3300 rack power supply module must have sufficient headroom to support the 3300/55 alongside all co-installed cards. If the existing PSU is operating near capacity—a common situation in racks that have been incrementally expanded over years of plant operation—a supplementary 3300 Series power supply module should be staged before the maintenance window opens. Attempting to power up a new vibration monitor card in an overloaded rack risks nuisance trips across all channels simultaneously.

Terminal wiring on the 3300/55 follows the standard Bently Nevada proximitor input convention: barrier terminal blocks carry the –24 VDC supply to the probe driver, the signal return, and the shield drain. Engineers migrating from an older revision of the 3300/55 should compare terminal numbering against the current wiring diagram, as minor revisions in connector layout have been introduced across production batches. Signal isolators—particularly DIN-rail-mounted galvanic isolators used to break ground loops between the field probe and the rack—should be inspected and replaced if they show signs of drift, since a degraded isolator will corrupt the vibration amplitude reading even when the monitor card itself is functioning correctly.

For facilities that also operate a 3500 Series rack in parallel, the migration path often involves running both systems simultaneously during a transition period. The 3500/22M transient data interface and the 3500/42M proximitor monitor can serve as the primary protection layer while the 3300 rack is being refurbished slot by slot. This parallel operation strategy is particularly effective in turbine protection applications where continuous monitoring is a regulatory requirement and any gap in coverage must be formally documented.

HMI screen updates are frequently overlooked during rack-level retrofits. If the plant DCS or standalone HMI panel displays vibration trend data sourced from the 3300/55 via Modbus, the engineering team must confirm that the register map and scaling factors in the HMI configuration match the replacement module’s output format. A mismatch between the module’s full-scale output voltage and the HMI’s configured engineering unit range will produce readings that appear plausible but are systematically offset—a dangerous condition in a machinery protection context. Programming cables and laptop-based configuration tools compatible with Bently Nevada System 1 should be on hand during commissioning to allow real-time parameter verification against the live machine signal.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300/55 replacement requires a structured pre-outage preparation protocol. The replacement module should be bench-tested against a known-good proximitor signal source before the maintenance window begins, confirming that alert and danger relay outputs actuate at the correct amplitude thresholds. This bench verification step—typically 30 to 60 minutes—eliminates the most common cause of extended commissioning time: discovering a configuration error only after the machine has been brought back online.

During the physical swap, the existing channel configuration should be exported from Bently Nevada System 1 or ADRE and saved to a secure backup location. The replacement 3300/55 should be inserted into the rack with the rack power supply active but with the machine in a safe, non-rotating state. After seating the card and securing the front-panel locking mechanism, the configuration file is re-imported and each channel is verified against the static probe gap voltage reading. Only after all channels report expected gap voltages and the relay outputs are confirmed in the correct de-energized state should the machine be returned to service.

For critical applications where even a brief monitoring gap is unacceptable, a portable vibration data collector can be deployed on the machine bearing housings during the rack swap interval. This provides a manual safety net and maintains a continuous data record that can be reviewed post-commissioning to confirm that no anomalous vibration events occurred during the transition. Documenting this procedure in the plant’s management of change (MOC) record also satisfies most regulatory and insurance audit requirements for rotating machinery protection system modifications.

Retrofit Support FAQ

Q1: Is the 3300/55 a direct drop-in replacement for all revisions of the original Bently Nevada 3300/55?
A: The module is physically and electrically compatible with standard 3300 Series rack slots. Minor differences in terminal labeling between early and late production revisions exist; always compare the replacement unit’s wiring diagram against the as-built drawing before terminating field cables. NINERMAS can provide the applicable wiring documentation upon request.

Q2: What commissioning steps are required after installing the replacement module?
A: After physical installation, re-import the saved channel configuration via Bently Nevada System 1 or ADRE, verify probe gap voltage on each channel, confirm alert and danger relay setpoints, and perform a functional relay trip test before returning the machine to service. Full commissioning typically requires two to four hours for a single-rack replacement.

Q3: Has the unit been tested before shipment, and what does the 12-month warranty cover?
A: Yes. Every 3300/55 supplied by NINERMAS undergoes a functional burn-in test prior to shipment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. A test report is available on request.

Q4: Can NINERMAS support long-term supply commitments for 3300 Series spare parts?
A: Yes. NINERMAS maintains standing inventory of 3300 Series components to support lifecycle extension programs and multi-year spare parts agreements. Customers with planned maintenance schedules or fleet-wide retrofit programs are encouraged to contact our team to discuss volume pricing, reserved stock arrangements, and coordinated delivery scheduling.
