Bently Nevada 21000-16-10-15-029-03-02 Retrofit Proximity Probe Housing

Bently Nevada 21000-16-10-15-029-03-02 Retrofit Proximity Probe Housing: Legacy System Compatibility & Smooth Upgrade

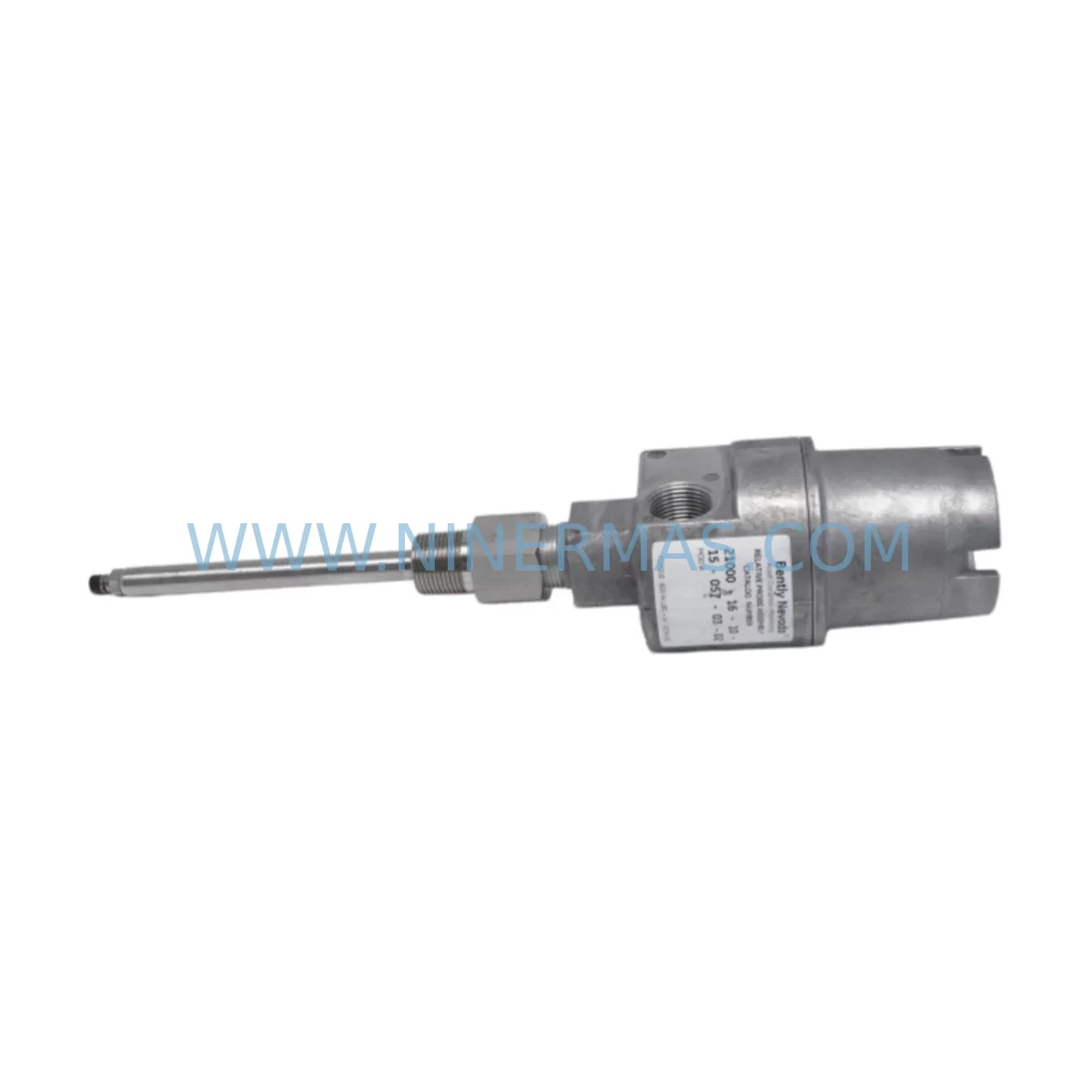

The Bently Nevada 21000-16-10-15-029-03-02 is a retrofit-compatible proximity probe housing engineered for seamless integration into existing 21000 Series vibration monitoring installations. As aging machinery protection systems reach end-of-life and OEM spare parts become increasingly scarce, this housing assembly provides a direct, drop-in replacement path that preserves your existing wiring infrastructure, signal chain integrity, and machinery protection logic — without forcing a full platform migration.

Designed for use in rotating machinery protection applications — including turbines, compressors, pumps, and motors — the 21000-16-10-15-029-03-02 housing maintains the mechanical and electrical interface standards of the original Bently Nevada 21000 Series architecture. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased control system modernization, this component delivers the dimensional accuracy, material specification, and signal compatibility required to restore full system functionality with minimal downtime.

NINERMAS maintains verified inventory of this part and ships with full functional testing, documentation, and a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-16-10-15-029-03-02 into a legacy machinery protection system requires a structured pre-installation review. Begin by auditing the existing probe assembly: confirm the housing thread specification, the installed extension cable length and part number (typically from the 330130 Series coaxial extension cables), and the driver/oscillator module currently in service — most commonly a 3300 XL 8mm proximitor/oscillator or an older 7200 Series driver.

Next, verify the signal conditioning rack. In most 21000 Series installations, the proximity probe signal feeds into a 3300 Series monitoring rack or a 3500 Series rack-based machinery protection system. Confirm that the rack’s I/O module — such as the 3500/42M Proximitor/Seismic Monitor — is configured for the correct probe sensitivity (typically –7.87 V/mm or –200 mV/mil) and that the channel’s OK relay logic will not trigger a nuisance trip during the brief probe swap window.

For installations where the control system interfaces with a DCS or safety instrumented system (SIS), coordinate with the control room to place the affected channel in bypass mode before removing the existing probe housing. This prevents a spurious trip signal from propagating to the DCS I/O module or triggering an ESD sequence. If the plant uses a Bently Nevada System 1 condition monitoring software platform, note the channel tag and confirm that the historian will correctly resume data logging after the probe is re-gapped and the OK status is restored.

Where the installation involves a TK-3 terminal block or a field junction box, photograph the existing wiring before disconnection. The center conductor, shield, and armor connections must be re-terminated in the same configuration. Use the original cable routing to avoid introducing additional cable length that could affect the system’s total cable resistance and capacitance — parameters that directly influence the driver’s operating range and the probe’s linear measurement range.

If the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy relay-based protection panel to a modern 3500 Series rack with Modbus TCP or PROFIBUS communication — plan the probe replacement as the first step, before reconfiguring the rack communication modules. This sequencing ensures that the mechanical protection layer is restored before any software or network changes are made, preserving plant safety margins throughout the migration.

Finally, confirm available installation space in the machinery casing or bearing housing. The 21000-16-10-15-029-03-02 housing maintains the original dimensional envelope, but verify that no secondary modifications (such as added insulation, pipe lagging, or structural reinforcement) have reduced the available clearance since the original installation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing proximity probe components on operating machinery. The 21000-16-10-15-029-03-02 is designed to support a rapid swap procedure: because it maintains the original mechanical interface, no re-machining of the probe port or modification of the mounting bracket is required. A trained technician can typically complete the physical replacement — including probe removal, housing installation, cable re-termination, and initial gap setting — within a single planned maintenance window.

To protect the original program logic and alarm configuration, do not modify the monitoring rack’s configuration database during the probe replacement. The 3500 Series rack stores channel configuration in non-volatile memory; as long as the rack remains powered and the channel is placed in bypass (not deleted), all setpoints, scale factors, and relay assignments are preserved. After the new probe is installed and gapped, simply remove the bypass and verify that the OK LED illuminates and the gap voltage falls within the specified linear range (typically –10 V ± 1 V for an 8 mm probe at nominal gap).

For sites where continuous monitoring is contractually required (e.g., under an API 670 compliance regime), consider using a portable vibration analyzer connected to the driver output during the swap window to maintain a manual monitoring record. This approach keeps the protection philosophy intact even during the brief period when the rack channel is in bypass.

Coordinate the replacement with the operations team to schedule the work during a low-load period or a planned inspection outage. Pre-stage all replacement components — including the probe housing, extension cable, and any required terminal block hardware — before the machinery is shut down. This preparation eliminates search time during the outage and keeps the total downtime window as short as possible.

Retrofit Support FAQ

Q1: Is the 21000-16-10-15-029-03-02 a direct drop-in replacement for the original Bently Nevada part?
Yes. The 21000-16-10-15-029-03-02 is manufactured to the original Bently Nevada dimensional and electrical specification. It is a direct replacement for the legacy housing assembly used in 21000 Series proximity probe installations. No adapter, re-machining, or wiring modification is required for a standard swap.

Q2: What commissioning steps are required after installation?
After physical installation, set the probe gap per the OEM specification (typically 1.0–1.5 mm for an 8 mm probe) and verify the driver output voltage falls within the linear range. Confirm the OK relay status in the monitoring rack, check alarm and trip setpoints, and restore the channel from bypass. If the system uses System 1 software, verify that the channel is logging data correctly before returning the machine to service.

Q3: Can this housing be used with both 3300 Series and 3500 Series monitoring racks?
Yes. The probe housing is compatible with the full range of Bently Nevada eddy-current driver and signal conditioning modules, including the 3300 XL proximitor/oscillator series and the 3500/42M Proximitor/Seismic Monitor. Confirm the driver sensitivity setting matches the probe specification before commissioning.

Q4: What warranty and supply assurance does NINERMAS provide?
