Bently Nevada 16710-66 Armored Cable | Retrofit & Modernization

Bently Nevada 16710-66 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

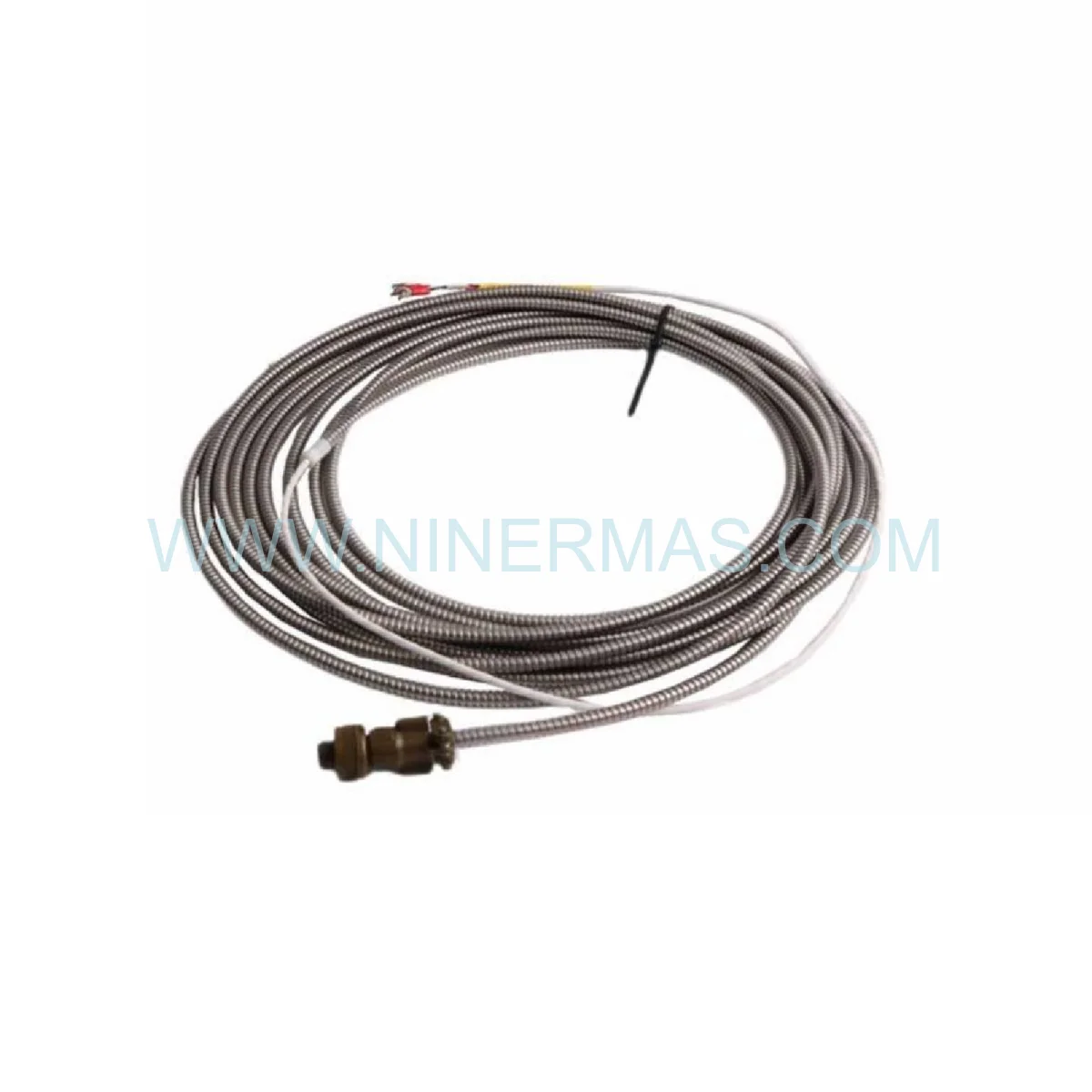

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Bently Nevada 16710-66 stands out as a mission-critical enabler in any system modernization initiative. This 66-foot armored interconnect cable is not merely a passive conductor — it is the physical backbone that bridges aging transducer installations with contemporary 3300 Series vibration monitoring architectures, directly extending equipment service life while dramatically reducing unplanned downtime. Its role in performance enhancement cannot be overstated: by delivering clean, interference-free signals over extended runs, the Bently Nevada 16710-66 ensures that legacy sensor arrays continue to feed accurate data into upgraded monitoring platforms without requiring full infrastructure replacement.

From a legacy compatibility standpoint, this cable’s 3-conductor shielded design and dual-end connector configuration (3-socket plug to terminal lugs) make it inherently backward-compatible with existing 3300 Series field wiring schemes. Retrofit projects frequently encounter the challenge of integrating new monitoring modules into decades-old cable trays and junction boxes — the 16710-66’s standardized connector footprint eliminates costly re-termination work and accelerates deployment timelines. Its hardware upgrade value is amplified by the 95% braided copper shield, which neutralizes EMI/RFI interference introduced by modern variable frequency drives and digital control systems operating alongside legacy equipment.

In terms of migration risk reduction, the 16710-66 delivers measurable cost advantages: by reusing existing cable pathways and transducer mounting points, project teams avoid the capital expenditure of full cable replacement programs. The galvanized steel interlocked armor ensures mechanical integrity throughout the transition period — even in environments where construction activity, equipment repositioning, or phased commissioning creates elevated physical hazards. This makes the 16710-66 an indispensable asset in any phased retrofit strategy where operational continuity must be maintained during modernization.

Upgrade Highlights & Compatibility

• Legacy Compatibility Assured: Direct drop-in fit for existing 3300 Series wiring infrastructure — zero re-engineering of field termination points required
• ✅ Performance Enhancement via EMI Rejection: 95% braided copper shield eliminates signal degradation caused by modern VFDs, servo drives, and digital I/O systems operating in proximity
• Future-Proofing Through Mechanical Resilience: Galvanized steel interlocked armor withstands the physical demands of active retrofit sites — forklift traffic, cable tray modifications, and phased construction
• ✅ Extended Reach for Seamless Integration: 66-foot (20.1m) length bridges the gap between legacy transducer locations and repositioned or upgraded monitoring racks without splicing
• Wide Thermal Tolerance: -40°C to +105°C operating range supports continuous operation during system transitions in both arctic and high-temperature industrial environments
• ✅ Plug-and-Play Retrofit Deployment: Pre-terminated 3-socket plug end enables direct transducer reconnection during hot-swap module upgrades, minimizing system downtime windows

Modernization Use Cases & Success Stories

DCS Migration in Power Generation: During a phased DCS modernization at a combined-cycle power plant, the 16710-66 served as the critical link between legacy proximity probe installations on steam turbine pedestals and newly commissioned 3300 Series rack modules. Rather than replacing 200+ feet of existing cable infrastructure, the retrofit team deployed 16710-66 cables as transition segments, achieving a 40% reduction in installation labor hours. The armored construction withstood the high-vibration, high-temperature environment adjacent to the turbine casing throughout the multi-month commissioning phase.

TSI System Upgrade in Petrochemical Refining: A Gulf Coast refinery undertaking a Turbine Supervisory Instrumentation (TSI) system upgrade leveraged the 16710-66 to maintain continuous vibration monitoring on critical compressor trains during the control system transition. The cable’s 22 AWG conductors and 95% shield coverage ensured that legacy Bently Nevada transducers continued delivering accurate shaft displacement data to the new monitoring platform — preventing any gap in machinery protection coverage during the upgrade window. The seamless integration capability eliminated the need for temporary monitoring bypass systems, reducing project risk exposure significantly.

Offshore Platform Retrofit: On a North Sea offshore platform, aging interconnect cables in compressor monitoring circuits were approaching end-of-life. The 16710-66’s combination of chemical-resistant PVC insulation, galvanized armor, and extended 66-foot length allowed the retrofit team to replace deteriorated cable segments without disturbing the existing conduit routing — a critical constraint in the platform’s congested cable management zones. The hardware upgrade delivered immediate performance gains in signal-to-noise ratio, reducing nuisance alarms by an estimated 60% within the first operational quarter post-installation.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All Bently Nevada 16710-66 units are sourced as genuine OEM components, factory sealed and traceable to original manufacturing documentation. Retrofit projects demand component authenticity — counterfeit or refurbished cables introduce unpredictable failure modes that can compromise machinery protection during the most critical phase of a system transition.

Expedited Global Logistics: Recognizing that retrofit project schedules are often driven by narrow maintenance windows and planned outage calendars, we maintain ready inventory with expedited shipping capabilities to industrial sites worldwide. Whether your project is in Southeast Asia, the Middle East, or North America, we coordinate logistics to meet your commissioning timeline.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Bently Nevada system configurations. We provide installation guidance, compatibility verification, and retrofit pathway analysis for facilities operating mixed-generation monitoring infrastructure. From identifying the correct cable assembly for a 1980s-era 3300 installation to advising on phased migration strategies, we deliver the technical depth that generic distributors cannot match.

Retrofit FAQ (Upgrade Guide)

Q: Can the 16710-66 be installed in existing conduit runs without removing the old cable first?
A: In many retrofit scenarios, yes. The 16710-66’s flexible armor construction allows it to be pulled through existing conduit where the inner diameter permits. However, always verify conduit fill ratios per NEC or applicable local electrical codes before attempting a pull-through installation. In congested conduit systems, a parallel surface-mount run using the armor’s mechanical self-protection capability is often the faster retrofit path.

Q: How does the 16710-66 handle communication between legacy 3300 Series transducers and upgraded monitoring modules?
A: The cable’s electrical characteristics — 22 AWG conductors, 95% shield, and low capacitance design — are fully compatible with the signal conditioning requirements of both original and upgraded 3300 Series monitor modules. The 3-socket plug end maintains the same pin-out as legacy installations, ensuring that transducer signal polarity, common reference, and shield grounding are preserved through the system migration without recalibration of the transducer itself.

Q: What are the approved spare part substitution options if the 16710-66 is unavailable during an emergency retrofit?
A: The 16710 series includes multiple length variants (16710-30, 16710-35, 16710-99) that share identical electrical and mechanical specifications — only the cable length differs. In emergency situations, a longer variant can be coiled and secured within the cable tray to bridge the gap. Field-fabricated assemblies using Bently Nevada-approved cable stock and connectors are also an option, but require engineering sign-off and calibration verification before returning the monitoring circuit to service.

Q: How do I verify installation space compatibility before committing to the 16710-66 in a retrofit design?
A: Key dimensional parameters are the cable outer diameter (approximately 0.5 inches including armor) and the minimum bend radius (approximately 5 inches). Verify that existing cable trays, conduit entries, and junction box knockouts can accommodate these dimensions. The terminal lug end requires a minimum enclosure depth of 3 inches for proper termination. For tight-space installations near turbine pedestals or compressor skids, pre-route a pull string before the outage window to confirm the path is clear.

Q: Does integrating the 16710-66 into a modernized DCS environment require any signal conditioning adjustments?
A: No signal conditioning changes are required when replacing a like-for-like cable in an existing 3300 Series circuit. If the retrofit involves upgrading the monitor module itself (e.g., from a 3300/16 to a 3300/55 series), verify the new module’s input impedance and bias voltage specifications against the transducer datasheet. The 16710-66’s electrical characteristics are transparent to the monitoring system and do not introduce any impedance mismatch or signal attenuation that would require compensating adjustments.

Q: What is the recommended inspection and replacement interval for the 16710-66 in a high-vibration retrofit environment?
A: In high-vibration environments (e.g., directly adjacent to compressor or turbine casings), conduct visual inspections of the armor and connector integrity every 12 months. Pay particular attention to armor sections near cable supports and conduit entry points where flexing stress concentrates. The galvanized steel armor provides excellent fatigue resistance, but cables showing visible armor deformation, insulation cracking, or connector corrosion should be scheduled for replacement during the next planned outage. Under normal industrial conditions, service life of 15-20 years is achievable with proper installation and periodic inspection.
