Bently Nevada 106765-03 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 106765-03 Service-Ready Spare Part for Industrial Maintenance

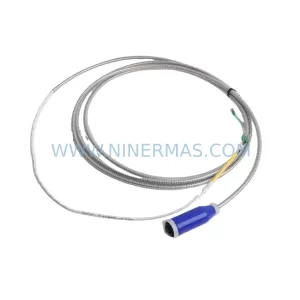

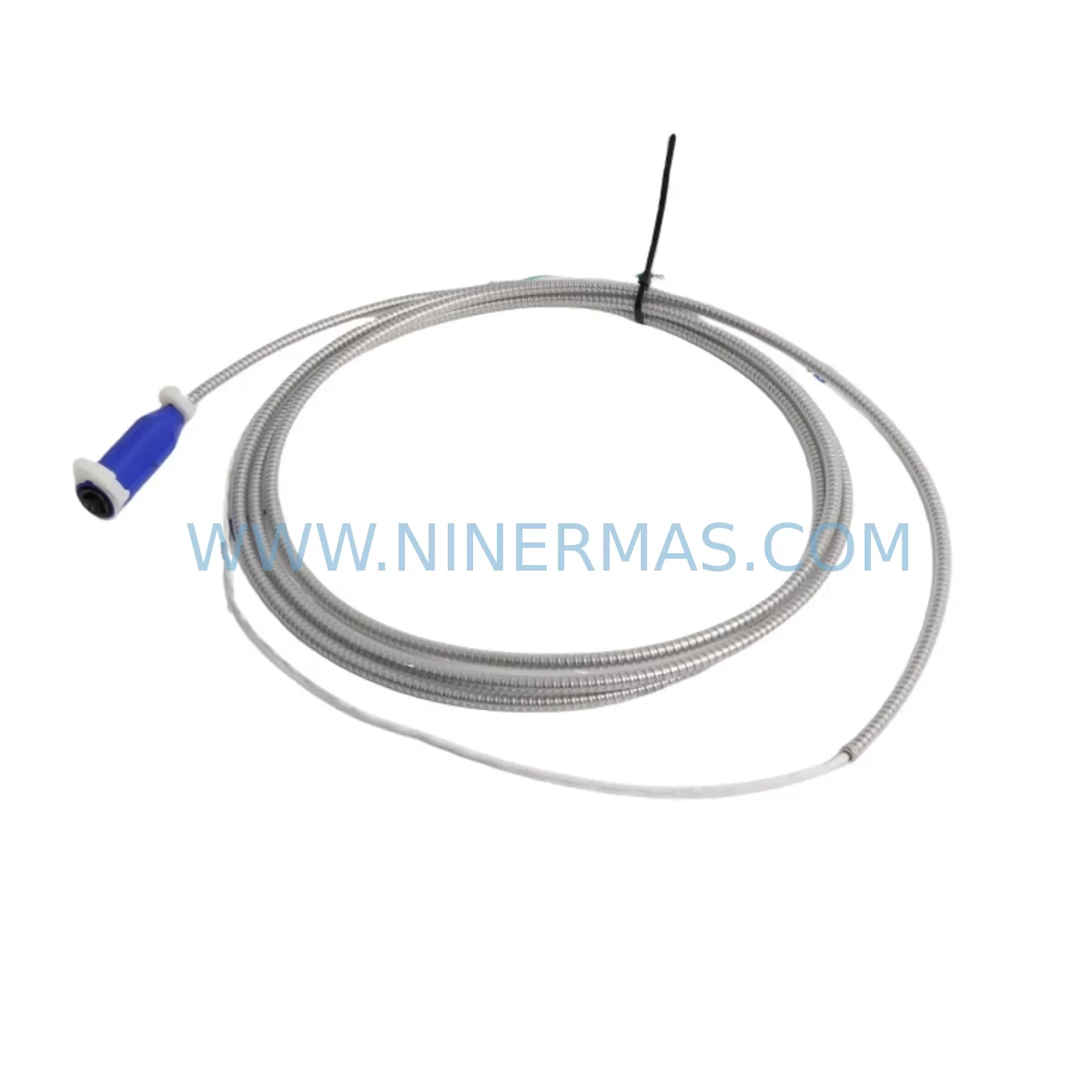

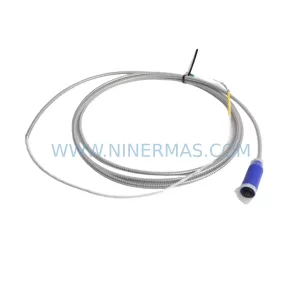

The Bently Nevada 106765-03 is a critical service-ready spare part designed for the Bently Nevada 3300 Series vibration monitoring system — one of the most widely deployed continuous machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for your control room, the 106765-03 represents a high-priority line item for any maintenance engineer responsible for turbines, compressors, pumps, or gearboxes monitored under a Bently Nevada architecture.

Sourced as an original-specification replacement, this module is pre-tested prior to shipment and backed by a 12-month warranty, giving procurement engineers the confidence to stock it as a long-term supply item without concern for shelf-life degradation or compatibility drift. NINERMAS maintains continuous inventory availability to support both emergency same-day dispatch and scheduled replenishment orders.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3300 Series monitoring system requires intervention — whether triggered by a module fault alarm, a failed self-test, or a scheduled preventive maintenance window — the replacement of the 106765-03 module should never be treated in isolation. Experienced maintenance engineers understand that a single module fault often signals stress across adjacent components sharing the same rack, power bus, or signal chain.

During the same maintenance window, it is strongly recommended to inspect and, where applicable, stock spares for the following associated components: the 3300/16 Power Supply module, which feeds the rack and whose output ripple can accelerate module wear; the 3300/55 Keyphasor module, which provides the phase reference signal critical to vector measurements and should be verified for signal integrity; and the 3300/46 Proximitor I/O module, which interfaces directly with eddy-current proximity probes and is subject to connector wear in high-vibration environments.

Beyond the rack itself, the field wiring and junction boxes connecting proximity probes to the 3300 Series chassis deserve attention. Bently Nevada 330130 series proximity probes and their associated 330180 series extension cables are common wear items that should be inspected for insulation damage, connector corrosion, and continuity. A degraded probe or cable can produce false vibration readings that mimic a module fault, leading to unnecessary module replacement if not properly diagnosed first.

For sites running integrated machinery protection with a DCS or safety system, the 3500 Series communication gateway or System 1 software interface card should also be reviewed during the outage, as firmware mismatches between a newly installed 106765-03 and the supervisory layer can cause data dropouts or alarm suppression. Additionally, terminal blocks, cable shields, and grounding connections within the control cabinet should be torqued and inspected — loose terminations are a leading cause of intermittent faults that are frequently misattributed to module failure.

For procurement engineers building or refreshing a spare parts list, pairing the 106765-03 with a 3300/20-02-00 rack fuse kit and a set of 3300 Series blank filler panels ensures that the control cabinet maintains its EMI shielding integrity after any module swap. Stocking these low-cost consumables alongside the primary module eliminates secondary delays during emergency replacements.

Site Replacement Workflow

Replacing the Bently Nevada 106765-03 on-site is a structured process that, when followed correctly, minimizes downtime and eliminates the risk of introducing new faults during the swap. Begin by documenting the current alarm and trip setpoints stored in the existing module — either via the System 1 software export function or by manually recording values from the front-panel display — before any power is removed. This step is critical for older 3300 Series installations where configuration is stored locally in the module rather than in a central database.

With the machinery safely isolated and the rack de-energized at the 3300/16 Power Supply, extract the faulty module using the standard ejector lever mechanism. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement 106765-03. After seating the module and restoring power, allow the system to complete its self-test sequence — typically 30 to 60 seconds — before re-entering setpoints and verifying live vibration readings against baseline values recorded prior to the fault event.

For sites migrating from an older 3300 Series variant or a legacy competitor system, the 106765-03 provides a direct form-fit-function replacement path that preserves existing probe wiring, rack infrastructure, and operator interface configurations. This makes it the preferred choice for life extension programs on aging machinery trains where a full system upgrade is not yet justified by the capital budget cycle. The 12-month warranty provided by NINERMAS covers both the module and its pre-shipment functional test certification, giving site engineers documented evidence of part quality for their maintenance management system records.

Spare Parts Support FAQ

Q1: Is the Bently Nevada 106765-03 compatible with all 3300 Series rack configurations?
The 106765-03 is designed for the Bently Nevada 3300 Series platform and is compatible with standard 3300 Series rack chassis configurations. Before installation, confirm the rack firmware revision and slot assignment against the original system documentation to ensure full compatibility, particularly on older installations that may have mixed-revision modules.

Q2: What pre-shipment testing does NINERMAS perform on the 106765-03?
Each unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and output signal checks. A test report is available upon request. The module ships with a 12-month warranty covering manufacturing defects and functional performance, providing procurement engineers with a documented quality baseline for their records.

Q3: How should the 106765-03 be stored if purchased for strategic spare inventory?
Store the module in its original anti-static packaging in a dry, temperature-controlled environment (typically 0–55°C, <90% RH non-condensing). Avoid proximity to strong magnetic fields or high-vibration areas. NINERMAS recommends periodic inventory rotation — replacing stocked units every 3–5 years — to ensure that spare parts remain within their optimal operational condition window.

Q4: Can NINERMAS support long-term or repeat supply of the 106765-03?
Yes. NINERMAS maintains continuous inventory of the 106765-03 and can support both one-time emergency orders and scheduled blanket purchase agreements for multi-site maintenance programs. For volume pricing, lead time commitments, or supply chain partnership inquiries, contact our technical sales team directly.
