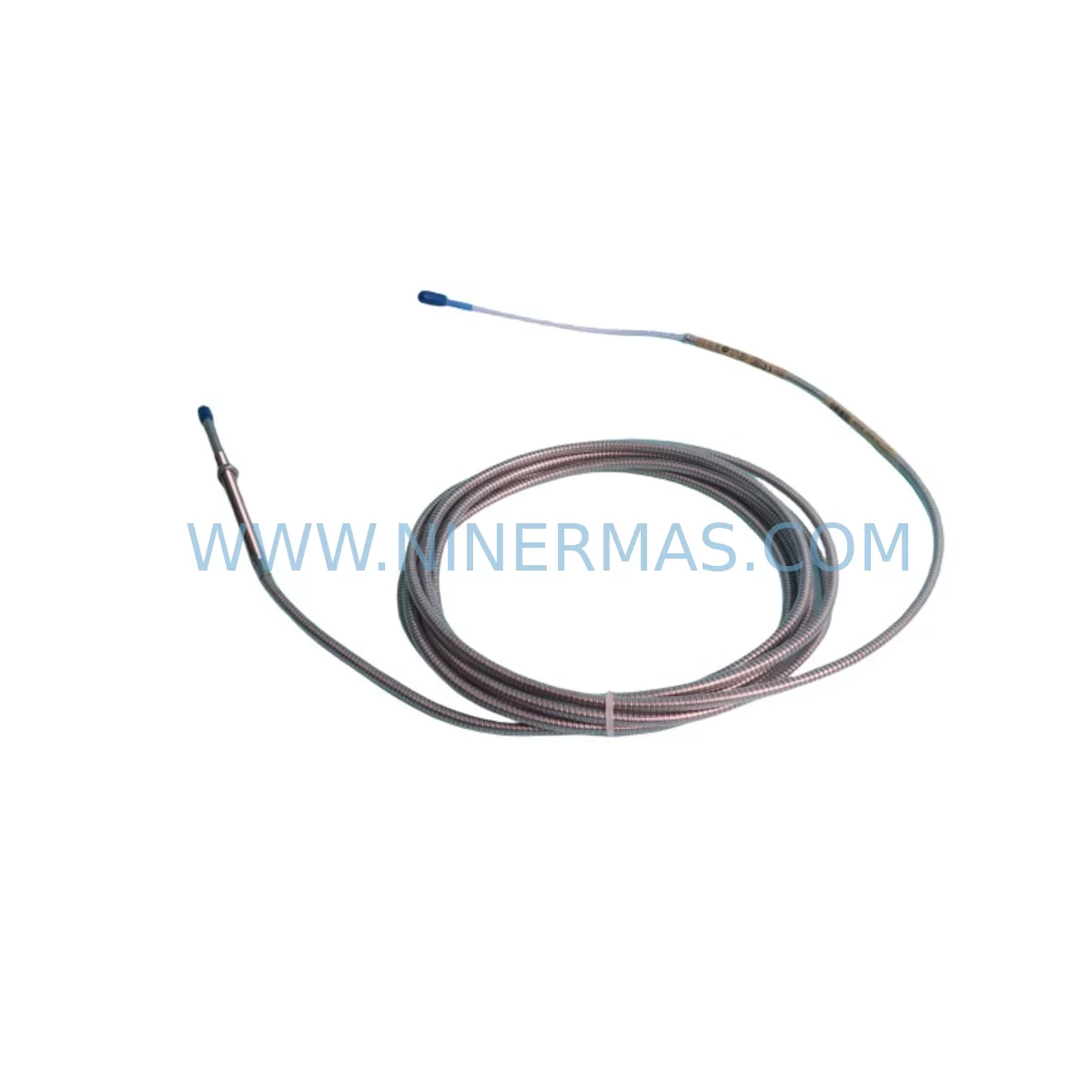

The Bently Nevada 330104-00-16-50-02-00 is an 8mm proximity probe designed for the 3300 XL series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery protection. As original equipment manufacturers phase out support for legacy 3300 series hardware, plant engineers and maintenance teams face increasing pressure to source retrofit-compatible replacements that preserve existing wiring, calibration data, and system architecture without triggering a full control system overhaul.

This probe is a direct retrofit-compatible replacement for end-of-life 3300 XL proximity sensors used in turbines, compressors, pumps, and gearboxes across oil and gas, power generation, petrochemical, and heavy industrial facilities. It maintains the same 8mm sensing tip diameter, 200 mV/mil output sensitivity, and -24 VDC bias voltage characteristics required by the 3300 XL monitoring platform, ensuring seamless integration with existing signal conditioning chains and monitor racks without reprogramming or recalibration of the host system.

NINERMAS maintains verified stock of the 330104-00-16-50-02-00 with a 12-month warranty and pre-shipment functional testing, supporting urgent spare parts requirements and planned retrofit projects alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330104-00-16-50-02-00 in an operating plant requires a structured approach that accounts for the full signal chain from probe tip to control room display. The probe itself is only one element of the 3300 XL measurement loop. Before scheduling a maintenance window, engineers should audit the condition of the associated 330130-080-00-00 extension cable — a 8-meter armored coaxial cable that connects the probe to the Proximitor driver. Damaged or aged extension cables are a common source of erratic gap voltage readings and should be replaced simultaneously to avoid repeat interventions.

The 330180-51-00 Proximitor sensor (driver module) must be verified for compatibility with the replacement probe. The Proximitor conditions the raw probe signal into a calibrated voltage output consumed by the vibration monitor. If the Proximitor is also approaching end-of-life, coordinating its replacement alongside the probe eliminates the risk of a second unplanned outage. The 3300/16 Dual Vibration Monitor or the newer 3500/42M Proximity Monitor in the rack should be checked for correct channel configuration — specifically the OK mode, gap voltage alarm setpoints, and full-scale range — before the new probe is installed.

Power supply integrity is critical. The 3500/15 Power Supply Module feeding the monitor rack must deliver stable -24 VDC to the probe circuit. Voltage sag or ripple at the supply output will manifest as false vibration alarms or OK relay dropout, which can trigger unnecessary process shutdowns. If the rack also includes a 3500/25 Key Phasor Module for phase reference measurements, confirm that the key phasor probe gap is unaffected by the maintenance activity.

For facilities running transient data capture, the 3500/22M Transient Data Interface should be checked to ensure its buffered output connections remain intact after probe replacement. Any disturbance to the BNC or terminal connections on the TDI can corrupt startup and coastdown data used for rotor dynamics analysis.

Where the legacy 3300 XL rack is being migrated toward a 3500 series platform, the 330106-05-30-10-02-00 reverse-mount probe variant may be required for installations where the standard forward-mount configuration is geometrically constrained. Similarly, if the application involves velocity measurement rather than displacement, the 330105-02-12-10-02-00 Velomitor sensor should be evaluated as a complementary channel on the upgraded rack. Signal isolators between the Proximitor output and the DCS analog input card are recommended when long cable runs introduce ground loop interference — a common issue in older control cabinet layouts where the 3300 XL rack shares a common ground with legacy I/O marshalling panels.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement requires pre-staging all components, verifying the replacement unit against the original calibration certificate, and preparing a rollback plan in case the new probe reveals a pre-existing mechanical issue — such as excessive shaft runout or target surface damage — that was masked by a degraded original probe.

The recommended sequence is: (1) document the existing gap voltage and vibration baseline readings before shutdown; (2) isolate the monitor channel and place it in bypass mode to prevent spurious trips during probe removal; (3) install the 330104-00-16-50-02-00 replacement and set the gap voltage to the nominal -10 to -18 VDC range using the TK-3e calibration tool; (4) verify OK relay status and confirm the vibration reading is within the expected baseline range before releasing the bypass; (5) restore normal monitoring and log the new baseline for future reference.

For critical machinery where any unplanned trip carries significant production cost, a hot-standby spare of the 330104-00-16-50-02-00 held in the plant storeroom is the most effective downtime mitigation strategy. NINERMAS supports consignment and buffer stock arrangements for high-criticality spare parts programs, with typical lead times of 3–7 business days for standard orders and expedited options for emergency requirements.

Original program logic in the host DCS or safety system is unaffected by a like-for-like probe replacement, as the 330104-00-16-50-02-00 produces an identical signal output to the original. No PLC reprogramming, HMI screen updates, or communication link reconfiguration is required, which significantly reduces the engineering scope and associated risk of the maintenance activity.

Retrofit Support FAQ

Q: Is the 330104-00-16-50-02-00 a direct drop-in replacement for all 3300 XL 8mm probes?
A: Yes, provided the existing installation uses the standard M10 x 1 mounting thread, 1.0 m integral cable, and the system is configured for 200 mV/mil sensitivity. Confirm the Proximitor model number and gap voltage setpoints before installation. If the existing probe has a different cable length suffix, a matching extension cable adjustment may be required.

Q: What pre-shipment testing is performed on each unit?
A: Every 330104-00-16-50-02-00 supplied by NINERMAS undergoes functional verification including gap voltage output, sensitivity linearity check, and OK relay response test. A test report is included with each shipment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q: Can this probe be used with the 3500/42M monitor without reconfiguration?
A: Yes. The 3500/42M Proximity Monitor accepts the standard 3300 XL probe/Proximitor signal chain without hardware modification. Confirm the channel is configured for the correct full-scale range and that the OK mode is set to match the probe’s bias voltage characteristics. No firmware update is required for standard proximity measurement applications.

Q: What is the typical lead time and do you hold stock?
A: NINERMAS maintains verified inventory of the 330104-00-16-50-02-00. Standard orders ship within 3–7 business days. Emergency and expedited orders are accommodated based on current stock levels. Contact our team directly for real-time availability confirmation and volume pricing for planned maintenance programs.
