BARUFFALDI DMS-08BF Service-Ready Spare Part

BARUFFALDI DMS-08BF Service-Ready Spare Part for Industrial Maintenance

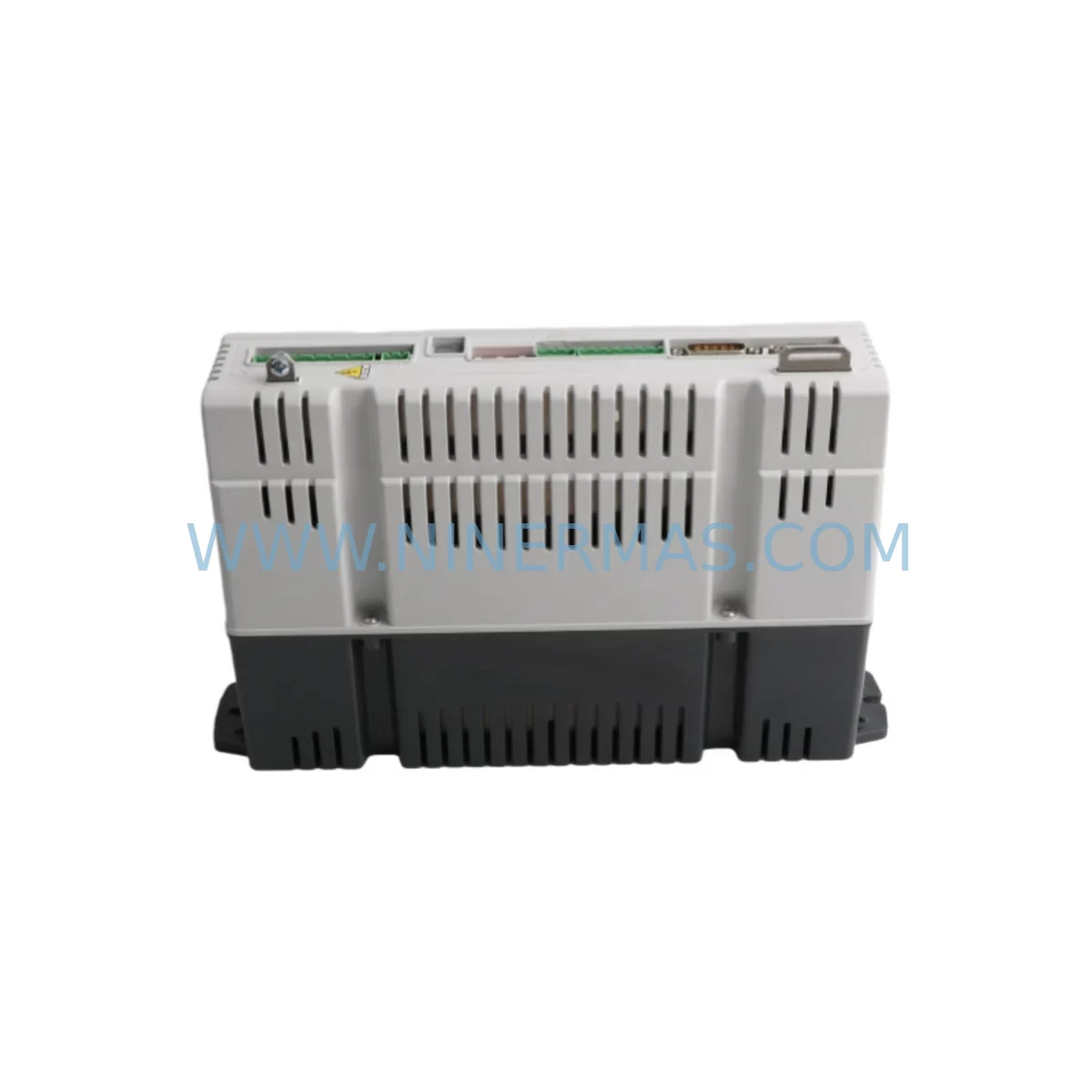

The BARUFFALDI DMS-08BF is a ruggedized servo drive module engineered for demanding industrial environments where uptime is non-negotiable. Designed as a direct replacement spare for legacy and active DMS series control architectures, this module supports maintenance engineers in executing rapid fault isolation, controlled shutdowns, and full system restoration with minimal disruption to production schedules. Whether you are managing a planned annual overhaul or responding to an unscheduled line stoppage, the DMS-08BF provides the electrical and mechanical compatibility required to restore servo axis control without re-engineering the surrounding cabinet infrastructure.

For procurement engineers managing multi-site spare parts inventories, the DMS-08BF represents a high-priority stocking item. Servo drive failures are among the most common causes of extended downtime in automated production lines, and sourcing delays for discontinued or low-volume industrial modules can extend outages from hours to weeks. Maintaining at least one DMS-08BF unit on-site — or securing a confirmed supply agreement — is a recognized best practice in industrial maintenance planning for facilities operating BARUFFALDI servo systems.

Each unit supplied by NINERMAS is pre-shipment tested under load conditions to verify output stage integrity, feedback signal processing, and communication interface functionality before dispatch. A 12-month warranty is included as standard, covering manufacturing defects and component failure under normal operating conditions. Long-term supply continuity is supported through our established sourcing network for BARUFFALDI and compatible industrial automation components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DMS-08BF in a live production environment requires a structured approach to avoid secondary faults and ensure the restored axis performs within specification from the first power-on. Maintenance engineers should treat a servo drive replacement as a cabinet-level inspection event, not a single-component swap.

Before installing the DMS-08BF, verify the condition of the DMS series DC bus power supply module that feeds the drive rail. A degraded power supply with marginal output voltage or excessive ripple will cause the replacement drive to fault immediately or exhibit erratic torque behavior. Similarly, inspect the regenerative braking resistor or braking chopper unit associated with the axis — a failed braking circuit can destroy a new drive module within minutes of commissioning under deceleration load.

Check all encoder or resolver feedback cables connected to the motor shaft. Damaged shielding, loose connector pins, or contaminated feedback signals are a leading cause of servo drive overcurrent faults and position errors that are frequently misdiagnosed as drive failures. Replace any suspect feedback cable assemblies before energizing the new DMS-08BF.

Inspect the DMS series backplane or axis interconnect board for signs of corrosion, bent connector pins, or heat damage at the drive slot. A compromised backplane will prevent proper communication between the DMS-08BF and the system controller, resulting in axis-not-ready faults that cannot be resolved by drive replacement alone.

Review the status of the I/O interface module handling axis enable, drive ready, and fault reset signals. Faulty I/O cards or broken wiring in the enable circuit are a common source of nuisance faults that appear after a drive replacement. Confirm that the 24 VDC control power supply feeding the logic and I/O section of the cabinet is within tolerance — low control voltage causes unpredictable behavior in drive enable and fault relay circuits.

For systems using fieldbus communication modules (such as PROFIBUS-DP, CANopen, or proprietary BARUFFALDI bus interfaces), verify that the replacement DMS-08BF is configured with the correct node address and baud rate before going online. Communication parameter mismatches will prevent the axis from being recognized by the motion controller. Also inspect the terminal blocks and wiring ducts in the motor power circuit — loose motor phase connections cause intermittent overcurrent faults that damage drive output stages over time.

Where the control cabinet includes a signal isolation module between the drive and external sensors or safety relays, confirm that isolation barrier integrity is maintained after the replacement. Degraded isolation can introduce ground loops that corrupt feedback signals and cause axis positioning errors. Finally, check the cabinet cooling fans and thermal management components — a drive module operating in an overtemperature environment will have a significantly reduced service life regardless of its condition at installation.

Site Replacement Workflow

The DMS-08BF is designed to replace aging or failed servo drive modules in existing DMS series cabinets without requiring modifications to the surrounding electrical infrastructure. The following workflow is recommended for field replacement to minimize downtime and ensure system compatibility:

Step 1 — Isolation and lockout: De-energize the cabinet following site LOTO procedures. Discharge the DC bus capacitors and confirm zero voltage on the bus rail before touching any drive components. Allow adequate discharge time per the system documentation.

Step 2 — Documentation: Photograph or record all wiring connections, parameter settings, and axis configuration data from the failed drive before removal. If the drive is still partially functional, use the system controller or drive keypad to export axis parameters. This data is required to configure the replacement unit.

Step 3 — Module removal: Disconnect motor power cables, feedback connectors, and control wiring from the failed DMS drive module. Release the backplane locking mechanism and extract the module from its slot. Inspect the slot and backplane connector for damage.

Step 4 — DMS-08BF installation: Insert the replacement module into the correct axis slot, ensuring full engagement with the backplane connector. Reconnect all motor power, feedback, and control wiring per the original documentation. Verify cable shielding and grounding connections.

Step 5 — Parameter restore and commissioning: Restore axis parameters from the saved configuration. Power up the cabinet in a controlled sequence — control power first, then DC bus. Verify drive ready status, clear any initialization faults, and perform a low-speed jog test before returning the axis to automatic operation.

This workflow supports a target replacement time of under two hours for a prepared maintenance team, significantly reducing the production impact of an unplanned servo drive failure.

Spare Parts Support FAQ

Q: Is the DMS-08BF compatible with all BARUFFALDI DMS series cabinets?
The DMS-08BF is designed for DMS series servo drive architectures. Compatibility depends on the specific axis count, bus configuration, and firmware version of your system. We recommend providing your cabinet model number and existing drive part number when placing an order so our technical team can confirm direct interchangeability before shipment.

Q: How is the DMS-08BF tested before shipment?
Every unit undergoes pre-shipment functional testing covering output stage integrity, feedback signal processing, and communication interface verification. Test records are available on request. The 12-month warranty begins from the date of shipment and covers manufacturing defects and component failure under normal operating conditions.

Q: Can NINERMAS support long-term supply of the DMS-08BF for multi-site inventory programs?
Yes. We support scheduled procurement programs for maintenance teams managing multiple facilities or requiring guaranteed stock availability for critical spare parts. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stocking arrangements.

Q: What information should I provide to verify compatibility before ordering?
To confirm compatibility, please provide: the full cabinet model or system designation, the existing drive module part number (if available), the motor feedback type (encoder or resolver), and the fieldbus protocol in use. This allows us to verify that the DMS-08BF matches your axis configuration and avoids costly installation errors.
