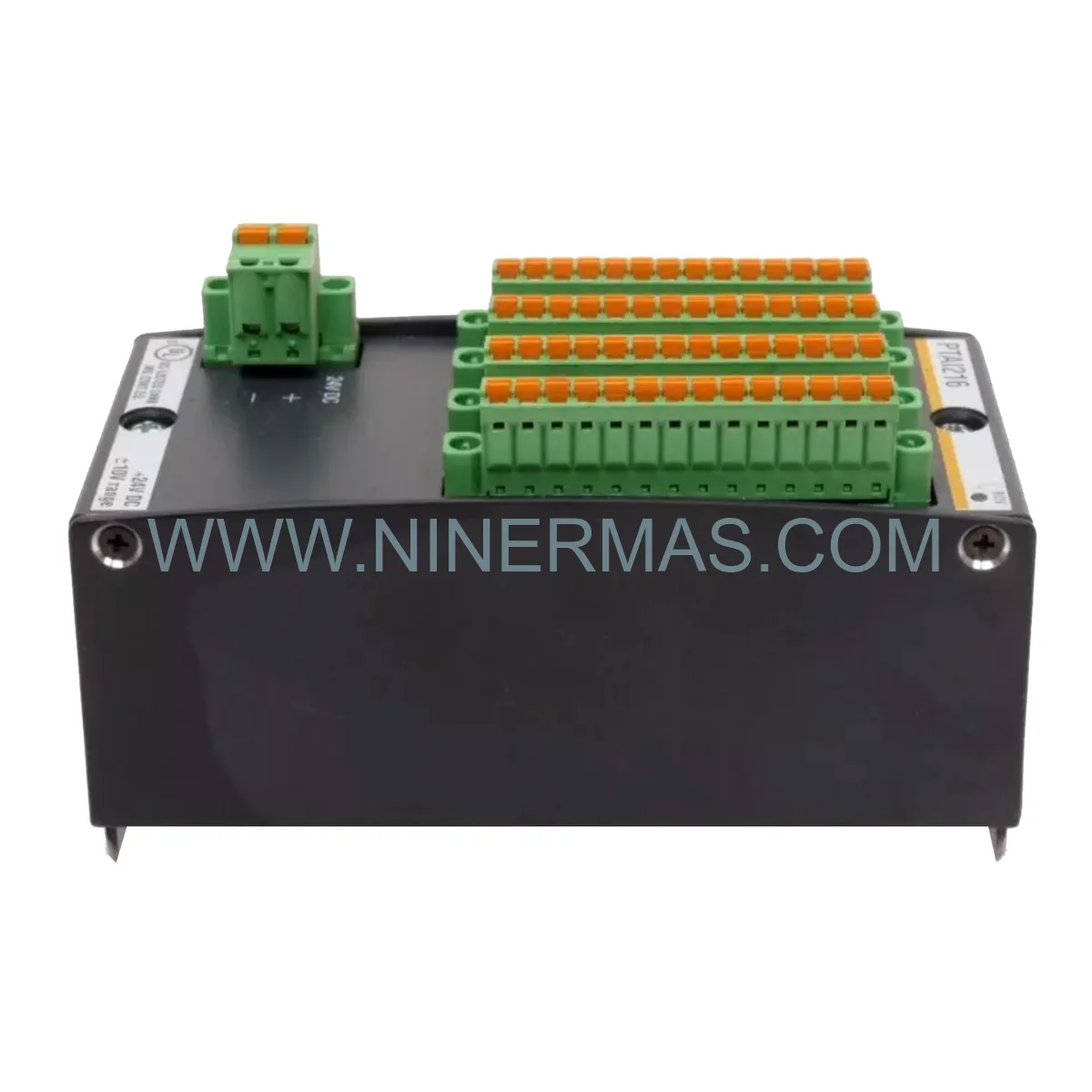

Bachmann PTAI216 (00010708-00) Temperature Recording Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a precision temperature acquisition module embedded within a Distributed Control System. The Bachmann PTAI216 (00010708-00) is exactly that — a mission-critical DCS Hardware node engineered to deliver uninterrupted, high-accuracy thermal and analog data across the most demanding Process Control environments. Combining 12 Pt100/Pt1000 RTD channels with 4 configurable analog inputs, this module serves as the sensory backbone of any Bachmann M1-based automation architecture, where data integrity is non-negotiable and downtime is simply not an option.

What distinguishes the Bachmann PTAI216 (00010708-00) from generic alternatives is its deep compatibility with legacy Bachmann M1 system racks — a critical advantage when managing aging infrastructure that cannot be easily replaced. In an era where Fieldbus integration and DCS Hardware standardization drive procurement decisions, this module bridges the gap between Legacy Components and modern control requirements. Its 14-bit analog resolution and 12-bit RTD resolution ensure measurement fidelity that satisfies both regulatory compliance and real-time process optimization demands.

Original stock of this module is increasingly scarce. As Bachmann continues to evolve its product portfolio, Factory Sealed units of the PTAI216 represent a finite and diminishing supply — making immediate procurement a strategic priority for maintenance engineers and plant managers alike. Whether you are building a Maintenance Stock reserve or responding to an Emergency Repair situation, securing this component now protects your operational continuity.

Key Technical Highlights

12-Channel RTD Acquisition: Supports Pt100 and Pt1000 sensors via 2-wire connection; auto-detects sensor type per channel for maximum deployment flexibility.
4 Universal Analog Inputs: Configurable for ±10V, ±1V voltage or 0-20mA current signals — compatible with standard 4-20mA industrial transmitters.
High-Speed Sampling: 2.5ms analog sample time with 480ms RTD averaging cycle — enabling high-speed, stable data acquisition in dynamic process environments.
Redundancy-Ready Architecture: Galvanic isolation of 500V from system bus protects against ground loops and transient surges, supporting Redundancy in safety-critical installations.
Built-In Wire Break Detection: Continuous RTD circuit monitoring with automatic diagnostic alarm generation — eliminates false readings and reduces unplanned downtime.
Wide Environmental Tolerance: Operates from 30°C to +60°C; measurement range 100°C to +300°C — suitable for both cryogenic and high-temperature industrial zones.
Multi-Certification Compliance: CE, UKCA, cULus, ABS, BV, DNV, KR, LR, NK, RINA — qualified for onshore, offshore, and marine deployments.
Compact Power Profile: 18-34V DC supply, typical 70mA @ 24V — minimizes rack power budget impact in dense I/O configurations.

Vertical Industry Applications

Petrochemical & Refining: In hydrocarbon processing facilities, reactor temperature uniformity directly impacts yield and safety. The PTAI216 provides continuous multi-point thermal profiling across heat exchangers, distillation columns, and catalytic reactors — reducing system downtime caused by undetected thermal excursions. Its galvanic isolation ensures signal integrity even in electrically noisy refinery environments.

Power Generation & Utilities: Turbine bearing temperatures, generator winding heat, and transformer thermal gradients demand millisecond-level monitoring precision. This module’s high-speed sampling and wire break detection make it indispensable for power plant DCS Hardware architectures where a single missed alarm can cascade into catastrophic failure.

Mining & Mineral Processing: Conveyor motor bearings, crusher drive systems, and ore dryer temperatures require robust monitoring under extreme dust and vibration conditions. The PTAI216’s wide operating temperature range and industrial-grade construction ensure reliable data acquisition in underground and open-pit mining environments, directly reducing unplanned maintenance cycles.

Marine & Offshore Platforms: Certified by ABS, DNV, LR, BV, NK, KR, and RINA, this module meets the stringent requirements of marine classification societies. It is deployed in engine room monitoring systems, ballast water treatment controls, and offshore platform process automation — where Factory Sealed condition and traceability documentation are mandatory procurement requirements.

Food & Beverage Processing: Pasteurization, fermentation, and cold chain logistics demand precise, validated temperature records for regulatory compliance. The PTAI216’s 12 RTD channels enable comprehensive thermal mapping across production lines, while its 0-20mA inputs integrate seamlessly with pH and flow transmitters in hygienic process environments.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Bachmann PTAI216 (00010708-00) supplied through our channel is 100% Original — sourced directly from authorized distribution networks with full traceability documentation. We do not supply refurbished, remanufactured, or counterfeit components. Each module ships in its original Factory Sealed packaging, preserving the integrity of internal components and providing verifiable proof of authenticity for your procurement and quality records.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship from the date of shipment. Should a verified defect arise within the warranty period, we provide rapid replacement or full refund — no bureaucratic delays. For Emergency Repair scenarios where production lines cannot wait, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for in-stock units. Global delivery to over 150 countries is supported, with full export documentation including commercial invoices, packing lists, and certificates of origin provided upon request.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the PTAI216 unit I receive is 100% original and not a counterfeit?
A: Authentic Bachmann PTAI216 (00010708-00) modules carry laser-etched serial numbers traceable to Bachmann’s manufacturing records. We provide the original factory label, sealed anti-tamper packaging, and upon request, a Certificate of Conformance. If you require third-party inspection or factory verification, we can coordinate this prior to shipment.

Q2: Where can I obtain the official datasheet and technical documentation for this module?
A: The official Bachmann PTAI216 datasheet, installation manual, and firmware compatibility notes are available through Bachmann Electronic GmbH’s official technical portal. Our sales team can also provide application-specific documentation packages — including wiring diagrams and M1 system integration guides — upon purchase inquiry.

Q3: Is the PTAI216 compatible with all versions of the Bachmann M1 system rack?
A: The PTAI216 is designed for the Bachmann M1 automation platform. Compatibility depends on the firmware version of your M1 CPU module and the SolutionCenter software version in use. We recommend confirming your system’s firmware revision before ordering. Our technical team can assist with compatibility verification based on your existing system configuration.

Q4: Can this module be used as a direct replacement for an older PTAI216 variant in a legacy DCS installation?
A: Yes. The PTAI216 (00010708-00) is the current production part number and is backward-compatible with earlier Bachmann M1 rack configurations. It is a preferred Legacy Components replacement for aging temperature acquisition modules in existing Distributed Control System installations, minimizing re-engineering costs during system upgrades.

Q5: What is the lead time for emergency orders, and do you support partial shipments?
A: For in-stock units, same-day or next-business-day dispatch is available via DHL/FedEx/UPS express services. Partial shipments are fully supported — we can ship available stock immediately while sourcing remaining quantities, ensuring your Emergency Repair timeline is not compromised by supply chain delays.

Q6: Is this module suitable for use in SIS (Safety Instrumented System) applications?
A: The standard PTAI216 is certified for general industrial Process Control applications. For SIL-rated Safety Instrumented System deployments, dedicated SIL-certified I/O modules are required. Please consult our technical team for SIS-compliant alternatives within the Bachmann ecosystem or from complementary DCS Hardware vendors.
