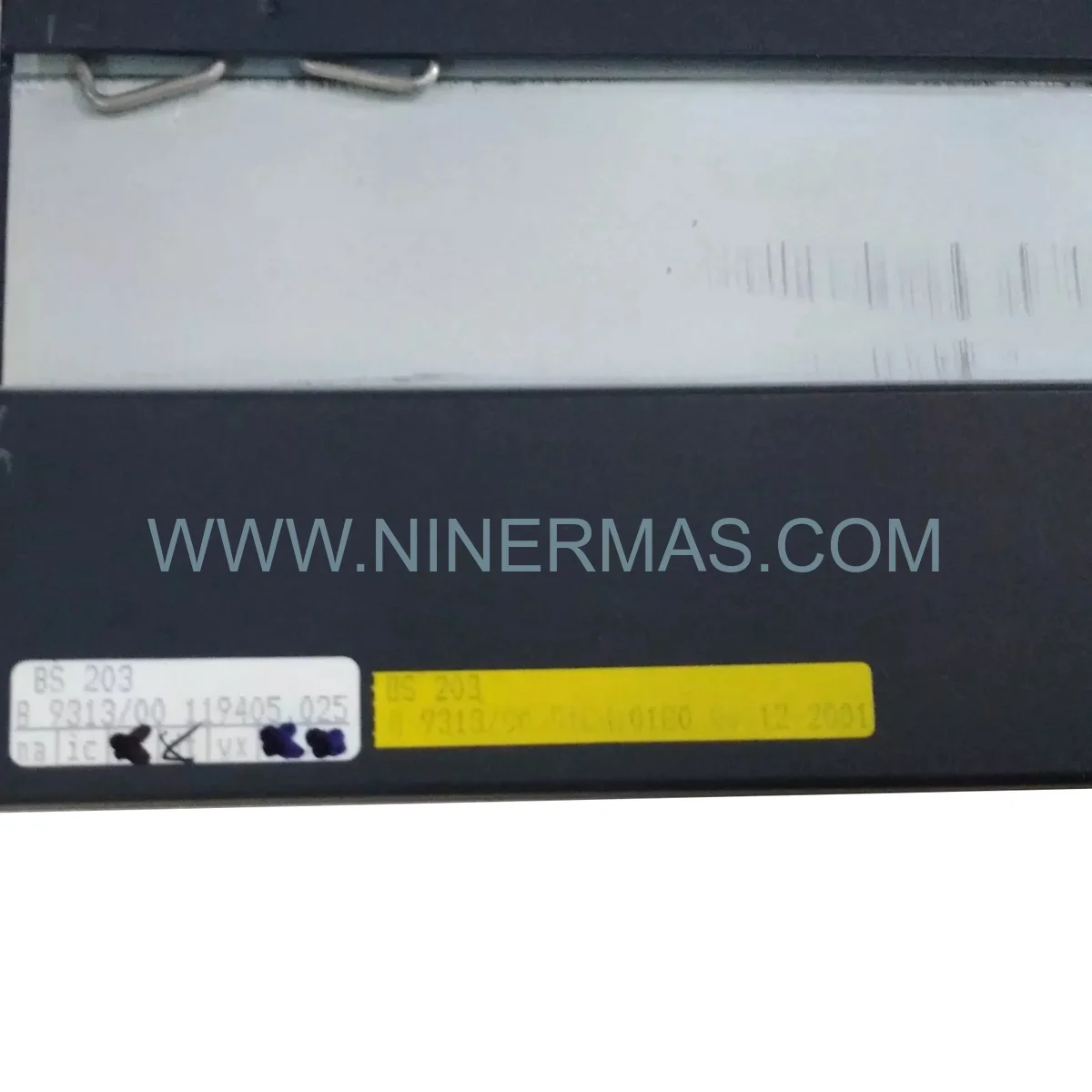

Bachmann BS203 BS204 BS216 Backplane Module | M1 Controller System Base — New & Original

Bachmann BS203 BS204 BS216 Backplane Module | Reliable Automation Component for M1 Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Bachmann BS203 BS204 BS216 backplane module series represents the structural backbone of any M1 controller deployment. The Bachmann BS203 BS204 BS216 provides the physical and electrical interconnection layer that binds power supply units, CPUs, and I/O modules into a unified, high-availability control node — directly contributing to system uptime in mission-critical process environments such as turbine control, water treatment, and chemical processing.

Engineered for operational excellence in harsh industrial conditions, these backplane modules conform to IEC 60068-2-6 vibration standards and operate reliably across a thermal range of -25°C to +60°C. DIN-rail mounting (35mm) simplifies panel integration, while the IP20 protection rating demands proper enclosure selection during installation — a critical consideration for sites with airborne particulates or moisture exposure. Torque specifications for module retention clips must be observed to prevent intermittent bus faults during high-vibration operation.

As a mission-critical spare component, maintaining at least one unit of each slot configuration (3-slot BS203, 4-slot BS204, 16-slot BS216) in your on-site inventory is a recognized best practice for SRE teams managing legacy or end-of-life (EOL) M1 automation architectures. Unplanned backplane failure without a ready replacement can translate directly into hours of production downtime — a risk no reliability-focused operation should accept.

Key Operational Features

Multi-Slot Scalability: Available in 3-slot (BS203), 4-slot (BS204), and 16-slot (BS216) configurations to match compact edge nodes or large-scale distributed control architectures.
High Availability Bus Architecture: M1 system bus design supports redundant CPU and power supply configurations, enabling seamless integration with fail-safe control strategies.
Hot-Swap Module Support: Facilitates live module replacement without full system shutdown, minimizing mean time to repair (MTTR) in continuous-process environments.
Universal Module Compatibility: Accepts the full range of Bachmann M1 I/O modules, communication cards, and processor units — enabling process optimization through flexible system expansion.
EMC-Hardened Design: Compliant with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions), ensuring stable operation in electromagnetically noisy industrial networks.
DIN Rail Mounting: Standard 35mm rail compatibility accelerates panel assembly and supports modular cabinet layouts for system integration projects.

Maintenance & Performance Benchmarks

The BS203 BS204 BS216 series adapts to industrial network architectures of varying scale. In small-footprint installations — such as skid-mounted compressor controls or local pump stations — the BS203 (3-slot) delivers a minimal yet complete control node when paired with a single CPU and power supply. The BS204 (4-slot) extends this capability to accommodate one additional I/O or communication module, making it the preferred choice for mid-tier automation components in HVAC and building management systems.

For enterprise-scale DCS deployments, the BS216 (16-slot) enables dense I/O consolidation within a single rack segment, reducing inter-cabinet wiring complexity and improving signal integrity. Maintenance benchmarks indicate that backplane-level faults account for fewer than 2% of M1 system failures when modules are correctly seated and bus connectors are inspected during scheduled preventive maintenance cycles. Recommended inspection interval: every 12 months or 8,760 operating hours.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the Bachmann BS203 BS204 BS216 backplane module dispatched from our facility ships in original factory packaging, complete with manufacturer labeling and protective anti-static materials — preserving component integrity from warehouse to installation panel. For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock units, subject to order cutoff times.

We maintain a dedicated global supply channel for EOL and legacy Bachmann M1 automation components, ensuring that facilities operating long-lifecycle control systems can source critical spares without compromise. Our logistics network covers major industrial hubs across Europe, Asia-Pacific, the Americas, and the Middle East, with express freight options via DHL, FedEx, and UPS for time-sensitive procurement. All shipments include full commercial documentation for customs clearance and asset tracking.

Engineering Support & FAQ

Q1: What is the correct installation sequence for modules on the BS203 BS204 BS216 backplane?
A: Always power down the system before initial module installation. Insert the power supply module first (leftmost slot), followed by the CPU, then I/O modules in order of priority. For hot-swap operations on a live BS216, ensure the replacement module firmware matches the active system version before insertion.

Q2: Which firmware versions are compatible with the BS216 backplane in redundant CPU configurations?
A: The BS216 supports all Bachmann M1 firmware releases from v2.x onward. For redundant CPU setups, both processor modules must run identical firmware builds. Consult the Bachmann M1 System Manual (Document No. MAN-0001) for version-specific compatibility matrices.

Q3: How do I verify backplane bus integrity after a module replacement?
A: Use the Bachmann SolutionCenter diagnostic tool to run a bus scan post-replacement. Any slot reporting a communication fault should be re-seated and re-scanned. Persistent faults may indicate connector pin damage — inspect under magnification before escalating to hardware replacement.

Q4: What is the warranty claim process for a defective BS203 BS204 BS216 unit?
A: Contact our technical support team at sale@ninermas.com with your order reference, unit serial number, and a brief fault description. RMA authorization is typically issued within 24 business hours. Defective units are replaced or repaired at no charge within the 12-month warranty period.

Q5: Can the BS204 backplane support a mix of analog and digital I/O modules simultaneously?
A: Yes. The M1 system bus is module-agnostic — any combination of analog input, analog output, digital input, digital output, or communication modules can occupy the available slots on the BS204, subject to total bus current limits defined by the installed power supply.

Q6: Is the BS216 suitable for SIL-rated safety system applications?
A: The BS216 itself is a standard backplane; SIL certification depends on the safety-rated CPU and I/O modules installed. For IEC 61508 / IEC 61511 compliant architectures, pair the BS216 with Bachmann-certified safety modules and follow the applicable functional safety engineering guidelines.
