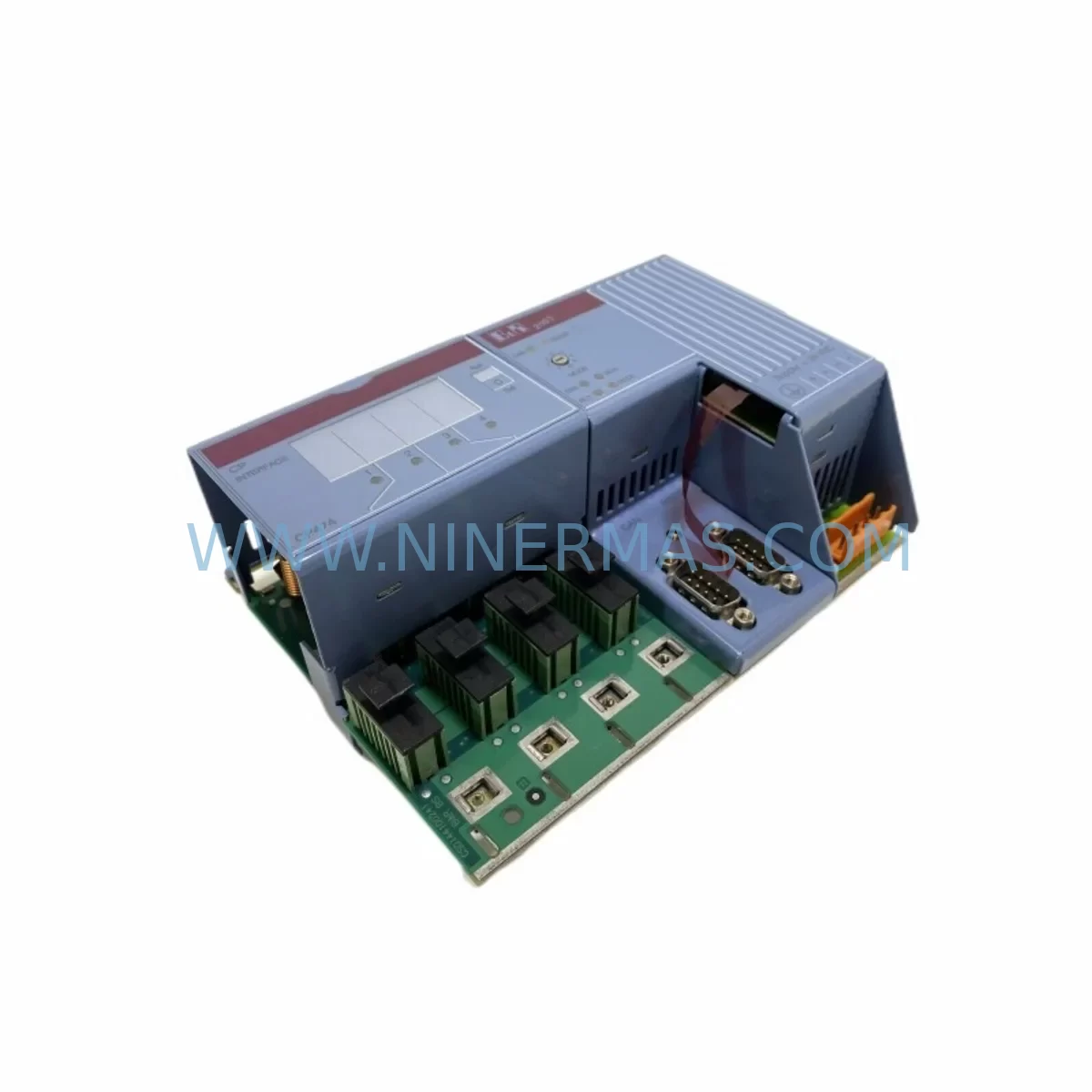

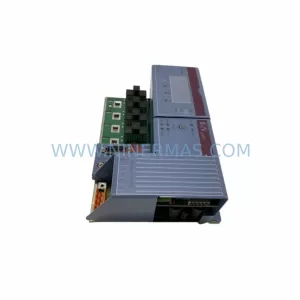

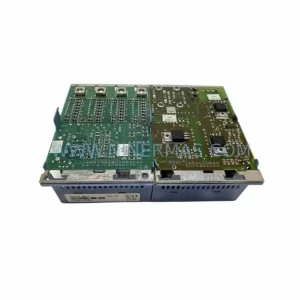

The B&R 7CP476.60-1 is a ruggedized CPU interface module engineered for demanding industrial environments where system uptime is non-negotiable. Designed as part of the B&R Automation PC / X20 control architecture, this module serves as a critical communication and processing bridge within the control cabinet. When a 7CP476.60-1 fails or reaches end-of-service life, the impact is immediate: production lines halt, process control is lost, and every hour of unplanned downtime translates directly into revenue loss and maintenance escalation costs. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path back to full operation.

At NINERMAS, we supply the B&R 7CP476.60-1 as an original or functionally equivalent spare part, pre-tested before shipment and backed by a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams managing aging B&R control systems across processing, packaging, automotive, and energy industries.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the B&R 7CP476.60-1 as a replacement candidate, the replacement scope should never be limited to the module alone. A thorough control cabinet inspection at the time of replacement significantly reduces the risk of secondary failures and repeat downtime events.

Begin by verifying the 24 VDC power supply module feeding the CPU rack — a degraded power supply is a common root cause of intermittent CPU faults that are misdiagnosed as module failures. Inspect the B&R X20PS9400 or equivalent power supply unit for output voltage stability and ripple. Simultaneously, check the backplane bus module (such as the X20BM01 or X20BM11) for physical damage, oxidized contacts, or loose seating, as backplane integrity is essential for reliable data exchange between the CPU and I/O modules.

Review all X20 digital input and output modules (e.g., X20DI9371, X20DO9322) connected to the same rack. A failing CPU interface module can cause cascading I/O errors that may have already stressed downstream field devices. Inspect terminal blocks and wiring harnesses for insulation degradation, loose ferrules, or corrosion — particularly in high-humidity or chemically aggressive environments where the 7CP476.60-1 is typically deployed.

For systems using POWERLINK communication, verify the integrity of the X20BC0083 or equivalent bus controller module and confirm that network topology and node addressing remain correct after module swap. If the control system interfaces with a B&R HMI panel (such as the 4PP065 or 5PP520 series), validate the HMI communication link post-replacement to ensure operator visibility is fully restored.

Check any installed signal isolation modules or analog input cards (e.g., X20AI4622) for drift or calibration offset — these are often overlooked during CPU-level replacements but can cause process deviations after restart. If the cabinet includes safety relay modules or emergency stop circuits, perform a full functional safety test before returning the line to production. Finally, inspect fuse holders and miniature circuit breakers protecting the 24 VDC distribution rail to confirm all protective devices are within rated capacity and have not been thermally stressed.

Maintaining a structured spare parts inventory that includes the 7CP476.60-1 alongside these associated components ensures that your maintenance team can execute a complete cabinet restoration in a single planned intervention rather than multiple reactive callouts.

Site Replacement Workflow

Replacing the B&R 7CP476.60-1 on-site follows a structured sequence designed to minimize downtime and eliminate configuration errors. Before beginning, confirm that the replacement module carries the same firmware baseline or is compatible with the project version loaded in the B&R Automation Studio environment. If the existing system runs an older firmware, coordinate with your controls engineer to determine whether a firmware update is required or whether the replacement module should be downgraded to match the installed project.

Execute a full project backup via Automation Studio before powering down the control system. Document all physical wiring connections, node IDs, and IP address assignments. Power down the cabinet following the site’s lockout/tagout (LOTO) procedure. Remove the faulty 7CP476.60-1 by releasing the DIN-rail latch or panel mount fasteners, disconnect all interface cables carefully, and seat the replacement module in the same position. Reconnect all cables in the documented sequence, restore power, and allow the system to complete its boot cycle.

After boot, verify that all I/O modules are recognized, POWERLINK network nodes are online, and the HMI displays the correct process state. Run a short functional test cycle before releasing the line to production. Log the replacement event in your CMMS with the new module’s serial number and the date of installation to support future warranty claims and lifecycle tracking.

This workflow applies equally when replacing the 7CP476.60-1 as part of a scheduled annual overhaul or as an emergency response to an unplanned fault. In both cases, having a pre-tested, warranty-backed spare on the shelf eliminates the procurement lead time from the critical path of your recovery timeline.
