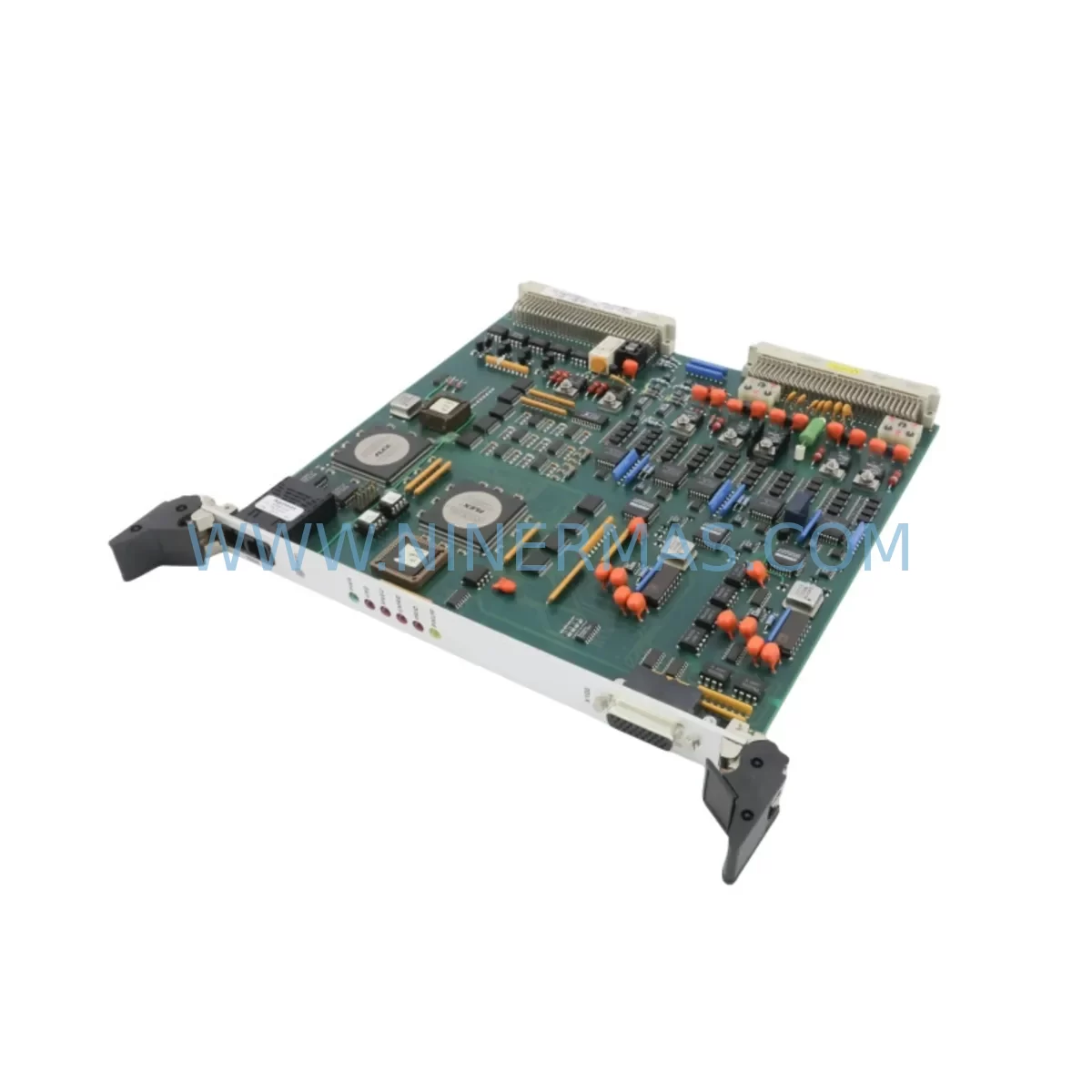

The ASML 4022.436.7817 is a critical PCB assembly module within the 2L81 series, designed for use in ASML lithography and semiconductor process equipment. Identified under part number 2L81-050043-83, this board integrates TAB113-1 and TAB217-8 interface sub-assemblies rated at 300V, making it a precision-engineered component for high-reliability automation environments. For maintenance engineers managing semiconductor fabrication lines, wafer processing systems, or advanced lithography platforms, sourcing a verified replacement for the 4022.436.7817 is essential to minimizing unplanned downtime and restoring system availability within target MTTR windows.

NINERMAS maintains ready stock of the ASML 4022.436.7817 to support emergency replacement, scheduled overhaul, and long-term spare parts inventory programs. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, providing procurement engineers with the confidence needed to commit to a single-source supply arrangement for this critical board assembly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the ASML 4022.436.7817 PCB assembly, maintenance engineers should treat the intervention as an opportunity to audit the surrounding electrical and control architecture. The 2L81 series cabinet typically integrates multiple interdependent boards and modules, and a fault in the 4022.436.7817 may indicate stress or degradation in adjacent components.

During the same maintenance window, engineers should inspect and, where appropriate, replace or test the following related components:

• ASML 4022.436.7818 — The companion PCB in the same 2L81 board set. Simultaneous failure or wear is common due to shared power rail and thermal exposure. Verify signal integrity and connector condition.
• 2L81-050043-84 Interface Board — Adjacent I/O interface board within the same assembly group. Check for corrosion on edge connectors and verify bus communication continuity.
• ASML 4022.471 Series Power Supply Module — The 300V-rated power supply feeding the TAB113-1 and TAB217-8 sub-assemblies. Measure output voltage stability and ripple under load before reinstalling the replacement PCB.
• ASML 4022.634 Series I/O Interface Board — Handles digital and analog I/O routing for the 2L81 control loop. Inspect for blown protection fuses and verify channel-by-channel continuity after board swap.
• ASML 4022.428 Communication Module — Manages fieldbus or proprietary communication between the PCB assembly and the host controller. Confirm firmware version compatibility and re-initialize communication parameters after replacement.
• ASML 4022.636 Signal Conditioning Board — Provides signal isolation and conditioning for sensor inputs feeding the 2L81 control system. Verify calibration status and isolation resistance after any high-voltage board replacement.
• Backplane Connector Assembly (2L81 Series) — The backplane provides the mechanical and electrical interface for all boards in the 2L81 rack. Inspect connector pins for oxidation, bent contacts, and seating depth before installing the replacement 4022.436.7817.
• 300V-Rated DIN-Rail Terminal Blocks — Terminal blocks in the same cabinet section should be inspected for heat discoloration, loose clamping, and insulation integrity, particularly those on the 300V distribution rail.
• Cabinet Fuse Assembly (Lithography Cabinet) — Replace any blown or discolored fuses in the 300V circuit. Use OEM-specified fuse ratings to avoid nuisance trips or under-protection after the PCB swap.
• HMI Display Panel (ASML 300 Series) — If the fault was accompanied by HMI alarm codes or display anomalies, inspect the HMI panel connection and verify that alarm history is cleared and system status is nominal after the replacement procedure.

Procuring these components alongside the 4022.436.7817 as part of a consolidated spare parts order reduces lead time risk and ensures that a single maintenance event fully restores system reliability rather than exposing the line to a secondary failure shortly after restart.

Site Replacement Workflow

Replacing the ASML 4022.436.7817 in a live production environment requires a structured approach to minimize downtime and avoid configuration errors. The following workflow is recommended for maintenance and process engineers:

• Step 1 — Fault Isolation: Confirm the 4022.436.7817 as the root cause using system diagnostics, alarm codes, and visual inspection. Document the fault condition and affected I/O channels before powering down the cabinet.
• Step 2 — Safe Isolation: Follow lockout/tagout (LOTO) procedures for the 300V circuit. Discharge capacitors and verify zero-energy state before opening the cabinet and removing the faulty board.
• Step 3 — Board Removal: Carefully extract the 4022.436.7817 from its backplane slot. Note the orientation, connector positions, and any jumper or DIP switch settings on the original board before removal.
• Step 4 — Replacement Verification: Confirm that the replacement unit’s part number (4022.436.7817), assembly code (2L81-050043-83), and sub-assembly markings (TAB113-1, TAB217-8) match the original. Verify the 300V rating label.
• Step 5 — Installation: Seat the replacement board firmly into the backplane connector. Replicate any jumper or DIP switch configurations from the original board. Reconnect all cables and verify locking mechanisms.
• Step 6 — Power-Up and Functional Test: Restore power in sequence per the OEM procedure. Monitor system startup for alarm codes. Verify that all I/O channels associated with the 4022.436.7817 are responding correctly before returning the system to production.
• Step 7 — Documentation: Record the replacement in the maintenance log, including the new board serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement unit.

Using a pre-tested, service-ready replacement from NINERMAS eliminates the uncertainty associated with refurbished or untested boards, reducing the risk of repeat failures and shortening the overall restoration timeline.

Spare Parts Support FAQ

Q1: Is the ASML 4022.436.7817 a direct drop-in replacement for the original board?
Yes. The NINERMAS-supplied 4022.436.7817 matches the original ASML part number, assembly code 2L81-050043-83, and sub-assembly configuration (TAB113-1, TAB217-8, 300V). Each unit is pre-shipment tested to confirm functional compatibility with the 2L81 series platform. No firmware modification or hardware adaptation is required for standard replacement.

Q2: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact NINERMAS at sale@ninermas.com with the order reference, fault description, and installation date. NINERMAS will arrange inspection and, where applicable, replacement or repair at no additional cost.

Q3: Can NINERMAS support long-term or reserved inventory programs for the 4022.436.7817?
Yes. NINERMAS offers reserved stock and long-term supply commitment programs for critical spare parts including the ASML 4022.436.7817. Procurement engineers can arrange a standing order or reserved inventory allocation to ensure availability during planned shutdowns, annual overhauls, or emergency replacement scenarios. Contact the sales team to discuss volume, lead time, and pricing terms.

Q4: How should the 4022.436.7817 be stored if purchased as a buffer spare?
Store the board in its original anti-static packaging in a dry, temperature-controlled environment (typically 15–30°C, relative humidity below 60%, non-condensing). Avoid exposure to direct sunlight, vibration, or electromagnetic fields. Inspect the packaging integrity annually and rotate stock on a first-in, first-out basis to maintain readiness. NINERMAS can advise on optimal buffer stock quantities based on your system count and MTTR targets.
