ASML MC2-AB41-4022-436-2693 Retrofit Motion Controller

ASML MC2-AB41-4022-436-2693 Retrofit Motion Controller: Legacy System Compatibility & Smooth Upgrade Path

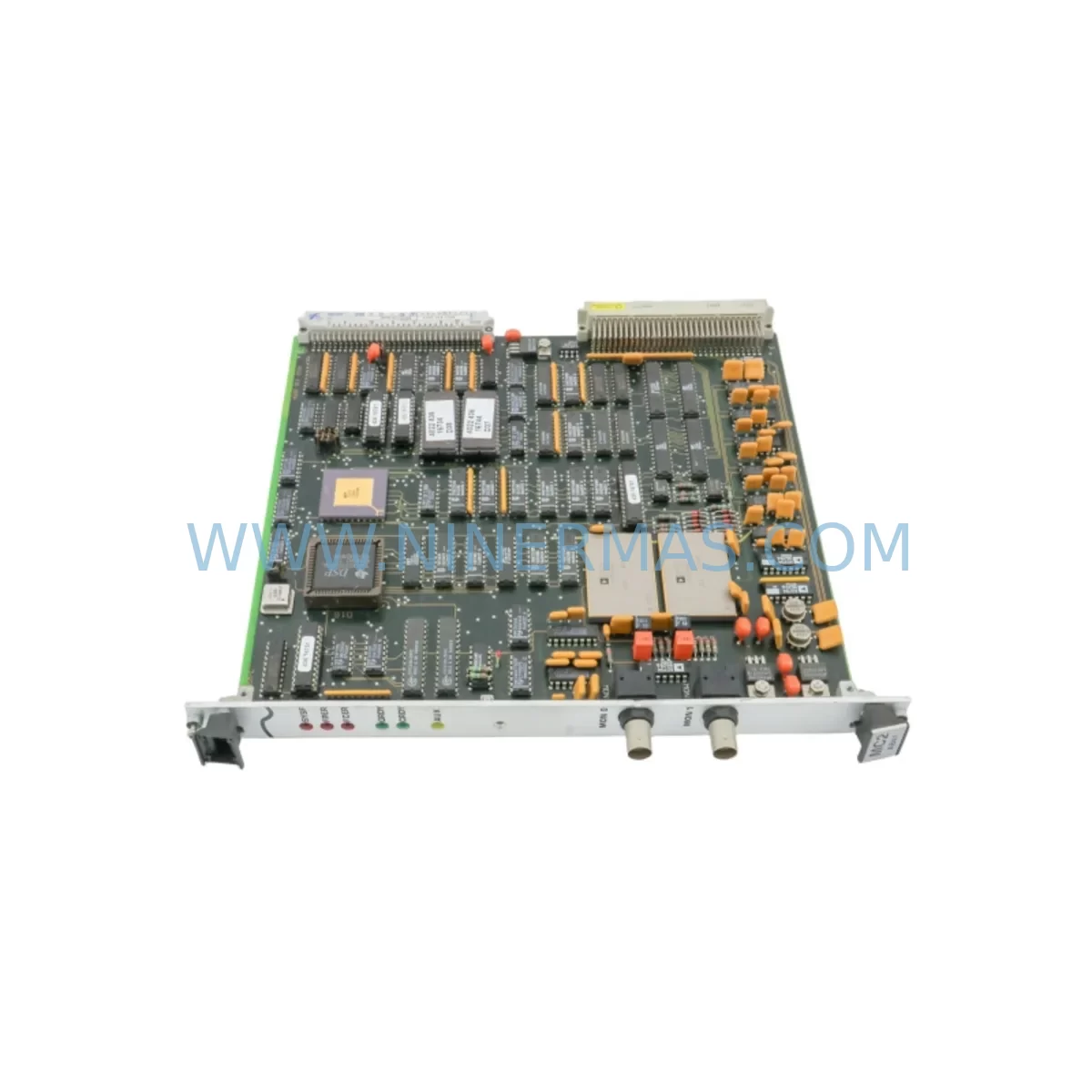

The ASML MC2-AB41-4022-436-2693 is a motion control board designed for integration within ASML’s MC2 platform architecture. As semiconductor fabrication facilities and precision automation environments face the challenge of maintaining aging lithography and wafer-handling systems, this module has become a critical spare part for engineers managing end-of-life equipment. NINERMAS maintains verified stock of the MC2-AB41-4022-436-2693, pre-tested and shipped with a 12-month warranty, to support uninterrupted production continuity.

Whether you are replacing a failed board in an existing MC2 chassis, upgrading a legacy motion control cabinet, or sourcing a long-term backup for a discontinued ASML subsystem, the MC2-AB41-4022-436-2693 provides a direct retrofit path without requiring full system redesign. Each unit undergoes functional verification prior to dispatch, covering axis command response, encoder feedback integrity, and communication link stability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an MC2-based motion control system requires careful coordination across multiple hardware layers. Before removing the failed MC2-AB41-4022-436-2693, engineers should document the current axis configuration, including encoder resolution settings, velocity and acceleration limits, and any custom gain tuning stored in the controller’s non-volatile memory. If the host system uses an ASML MC2 backplane with multiple motion axes, the slot address of the replacement board must match the original to avoid remapping errors in the motion program.

Power supply capacity is a frequent oversight during board replacement. The MC2 rack power supply — often a dedicated DC PSU module within the control cabinet — must be verified to handle the full load of all installed cards, including the replacement MC2-AB41-4022-436-2693. If the existing PSU is already operating near its rated output, a supplementary or higher-capacity unit may be required before the retrofit proceeds.

Terminal wiring and connector integrity should be inspected at the same time. Encoder cables connecting to the motion controller board, as well as drive enable and fault signal wiring routed to servo amplifiers or stepper drives, should be checked for insulation degradation, connector corrosion, and correct pin seating. In systems where the MC2 platform interfaces with external I/O expansion modules — such as digital input/output cards or analog signal conditioning boards — the I/O address map must remain consistent after the board swap to prevent logic errors in the control program.

Communication link integrity is equally important. If the MC2-AB41-4022-436-2693 participates in a multi-node motion network — whether via a proprietary ASML internal bus or a standard fieldbus such as SERCOS or EtherCAT — the network topology must be re-validated after installation. Node addressing, baud rate settings, and master-slave timing parameters should be confirmed before re-enabling the motion sequence.

For facilities managing a broader control cabinet upgrade, the MC2-AB41-4022-436-2693 replacement is often performed alongside related component renewals. Engineers frequently source companion items such as MC2 series backplane assemblies, rack-mount DC power supply modules, servo drive interface cards, encoder signal conditioners, digital I/O expansion boards, HMI operator panels connected to the MC2 host, programming interface cables for axis parameter upload, terminal block assemblies for field wiring, and signal isolation modules for long-distance encoder runs. Addressing these components as part of a planned retrofit — rather than reacting to individual failures — significantly reduces total downtime and repeat intervention costs.

Downtime Control During System Migration

Minimizing production downtime during an MC2-AB41-4022-436-2693 replacement begins with preparation before the maintenance window opens. A complete backup of the motion program, axis parameter tables, and any HMI screen configurations linked to the MC2 system should be saved to an offline storage medium prior to powering down the cabinet. This ensures that if the replacement board requires re-initialization, the original logic can be restored without relying on memory from the failed unit.

Where possible, the replacement board should be bench-tested in a controlled environment before installation in the live system. Connecting the MC2-AB41-4022-436-2693 to a test rack with a known-good power supply and a representative encoder signal allows engineers to confirm basic functionality — axis enable response, encoder count increment, and communication acknowledgment — before committing to the production changeover.

During the physical swap, the control cabinet should be de-energized following the site’s lockout/tagout procedure. After installing the replacement board, power should be restored incrementally: first verifying backplane bus voltage, then enabling the motion controller, and finally re-enabling drive outputs one axis at a time. This staged approach isolates any wiring or configuration issues before full motion is restored, protecting both the equipment and the production process.

Field commissioning should include a full homing cycle for each controlled axis, followed by a low-speed test traverse to confirm encoder feedback polarity and position accuracy. Interlock signals — including over-travel limits, emergency stop chains, and drive fault relays — must be verified as functional before returning the system to automatic operation. With proper preparation, a skilled engineer can complete an MC2-AB41-4022-436-2693 swap and return the system to production within a planned maintenance window, keeping unscheduled downtime to a minimum.

Retrofit Support FAQ

Q1: Is the MC2-AB41-4022-436-2693 a direct replacement for the original ASML board?
Yes. The MC2-AB41-4022-436-2693 supplied by NINERMAS is sourced as an original ASML component and is intended as a direct board-level replacement within the MC2 platform. No hardware modification to the chassis or backplane is required. Axis parameter re-entry may be necessary if the original board’s non-volatile memory cannot be read prior to removal.

Q2: What pre-shipment testing is performed on each unit?
Every MC2-AB41-4022-436-2693 unit undergoes functional verification before dispatch. Testing covers power-on initialization, communication bus response, encoder input signal processing, and drive interface output. A test record is maintained for each unit. All units are shipped with a 12-month warranty from the date of shipment.

Q3: How do I confirm compatibility with my existing MC2 chassis and firmware version?
Compatibility depends on the chassis hardware revision and the firmware version running on the MC2 host controller. Please provide your chassis model number and current firmware version when placing your order. NINERMAS technical support can cross-reference this information against known compatibility data to confirm suitability before shipment.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains in-stock inventory of the MC2-AB41-4022-436-2693 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity or reserved-stock requirements, long-term supply agreements are available. Contact our team to discuss inventory reservation and scheduled delivery options.
