ARISTA ARP-2610A Service-Ready Spare Part for Industrial Maintenance

ARISTA ARP-2610A Service-Ready Spare Part for Industrial Maintenance

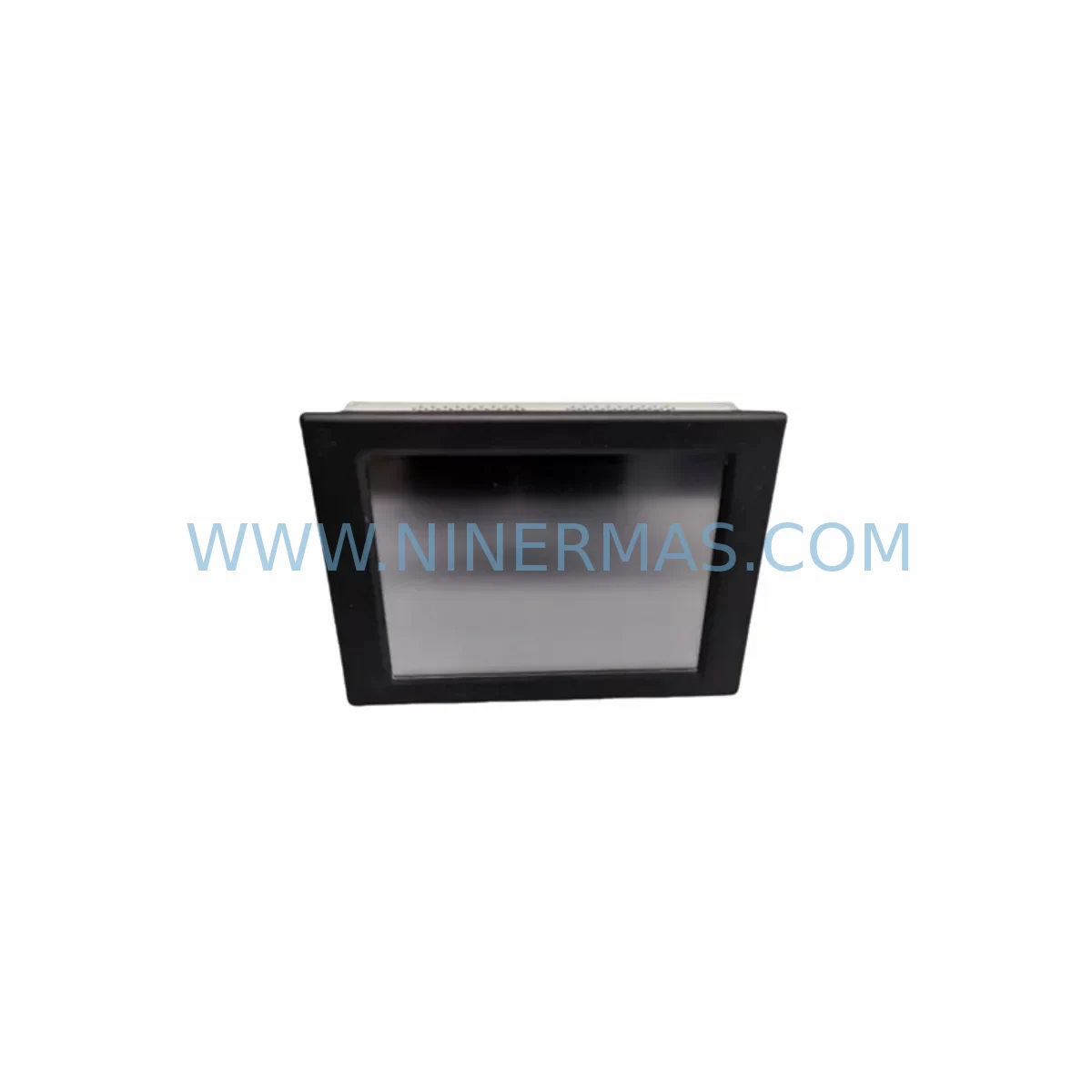

The ARISTA ARP-2610A is a service-ready HMI panel spare part engineered for industrial control environments where unplanned downtime carries significant operational and financial risk. Sourced as an original replacement component, the ARP-2610A is designed to restore operator interface functionality in ARISTA ARP Series control systems with minimal disruption to production schedules. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock this component as a critical spare in their inventory programs.

Whether you are managing a scheduled annual overhaul, responding to an unplanned HMI failure, or building a preventive spare parts kit for a legacy control cabinet, the ARP-2610A delivers the compatibility, reliability, and supply continuity that industrial facilities demand. Its direct form-fit-function compatibility with the ARP Series platform eliminates the need for panel modifications or software reconfiguration during replacement, reducing mean time to repair (MTTR) and keeping your production line operational.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ARISTA ARP-2610A in a live control cabinet, a thorough site assessment is essential to prevent secondary failures and ensure system integrity. Maintenance engineers should treat the HMI panel replacement as an opportunity to inspect the entire operator interface circuit and associated control infrastructure.

Begin by verifying the DC 24V power supply module feeding the HMI panel. A degraded or undersized power supply is a common root cause of HMI display faults and premature panel failures. Check output voltage stability under load and inspect the power distribution terminal blocks for signs of overheating, loose connections, or corrosion. If the cabinet uses a DIN rail-mounted switching power supply (such as those in the 24VDC/5A or 24VDC/10A range), verify its output ripple and replace it proactively if it is approaching end-of-life.

Inspect the communication cables connecting the ARP-2610A to the host PLC or DCS controller. RS-232 and RS-485 cables in industrial environments are susceptible to insulation degradation, connector pin oxidation, and electromagnetic interference from adjacent variable frequency drives (VFDs) or motor starters. Replace any cables showing physical wear and ensure proper shielding and grounding. If the system uses an Ethernet communication module for HMI-to-controller connectivity, verify switch port status and cable integrity at both ends.

Review the I/O modules associated with the process signals displayed on the ARP-2610A. Faulty analog input modules or digital I/O cards can produce erroneous readings on the HMI screen, which are sometimes misdiagnosed as panel failures. Inspect signal isolators and signal conditioners in the loop to confirm they are within calibration tolerance. For systems using relay output modules, check contact wear and coil resistance, particularly on high-cycle outputs controlling pumps, valves, or alarms.

If the control system includes a communications gateway or protocol converter (for example, Modbus RTU to Modbus TCP bridging), verify its firmware version and connection status. Outdated firmware on communication bridges is a frequent source of intermittent HMI data loss. Similarly, inspect any UPS (uninterruptible power supply) units protecting the HMI and controller rack — battery health and transfer time should be tested annually. For cabinets with backplane or rack-mounted controller modules, check seating of all cards and inspect the backplane bus connectors for contamination or mechanical damage.

Finally, review the fuse and circuit breaker protection for the HMI power circuit. Blown or weakened fuses are a leading cause of HMI panel outages and should be replaced with correctly rated components. Stocking a set of spare fuses alongside the ARP-2610A panel is a low-cost, high-value addition to any spare parts kit.

Site Replacement Workflow

The ARP-2610A is designed as a direct replacement for the existing ARISTA ARP Series HMI panel, enabling maintenance teams to execute a rapid swap without requiring panel re-engineering or software re-commissioning in most standard configurations.

Step 1 — Isolation and Safety: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Confirm zero voltage at the HMI power terminals before proceeding.

Step 2 — Documentation: Photograph the existing panel wiring, communication cable routing, and any configuration labels before disconnection. This documentation accelerates re-commissioning and reduces the risk of wiring errors.

Step 3 — Removal: Disconnect the power connector, communication cables (RS-232/RS-485/Ethernet), and any I/O signal wires from the rear of the existing panel. Release the panel mounting clamps or screws and remove the unit from the cabinet cutout.

Step 4 — Installation: Insert the ARP-2610A into the panel cutout. Secure mounting hardware to the specified torque. Reconnect all cables in the reverse order of removal, referencing your documentation photographs.

Step 5 — Power-Up and Verification: Re-energize the cabinet and confirm the HMI panel boots correctly. Verify communication link status with the host controller, check that all process values are displaying correctly, and test operator input functions (touchscreen or keypad) before returning the system to production.

Step 6 — Documentation Update: Record the replacement in your maintenance management system (CMMS), including the date, technician name, and new unit serial number. Update your spare parts inventory to trigger a reorder for the consumed ARP-2610A unit.

Spare Parts Support FAQ

Q1: Is the ARP-2610A compatible with my existing ARISTA ARP Series control system without software changes?
In most standard ARP Series installations, the ARP-2610A is a direct form-fit-function replacement that does not require software reconfiguration. However, if your system uses a customized HMI application or a non-standard communication protocol configuration, we recommend verifying the firmware version and communication settings before installation. Contact our technical team with your system details for compatibility confirmation prior to ordering.

Q2: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or environmental exposure beyond the rated specifications. To initiate a warranty claim, contact our support team with your order reference, a description of the fault, and photographic evidence of the defect. We will arrange for inspection and replacement or repair as appropriate.

Q3: How should I manage ARP-2610A inventory to minimize downtime risk in a multi-line facility?
For facilities operating multiple lines with ARISTA ARP Series HMI panels, we recommend maintaining a minimum of one ARP-2610A spare per five installed units, or one per critical production line — whichever is greater. Given that HMI panels in high-cycle or harsh environments typically have a service life of 5–8 years, a proactive replacement schedule aligned with your annual maintenance shutdown will reduce the risk of unplanned failures. We support long-term supply agreements to ensure consistent availability of the ARP-2610A for your ongoing maintenance program.

Q4: Can the ARP-2610A be used as a cross-replacement for other ARISTA HMI panel models?
The ARP-2610A is specifically designed for ARP Series applications. While some ARISTA HMI models share common communication interfaces and power requirements, physical dimensions, display resolution, and firmware compatibility vary between models. Cross-model substitution should only be performed after confirming mechanical fit, electrical compatibility, and software driver support. Our technical team can assist with cross-reference verification if you are evaluating the ARP-2610A as a replacement for a related ARISTA panel model.
