Allen-Bradley 5069-L320ERMK Safety-Reliable Motion Controller

Allen-Bradley 5069-L320ERMK Safety-Reliable Motion Controller for Critical Control Sites

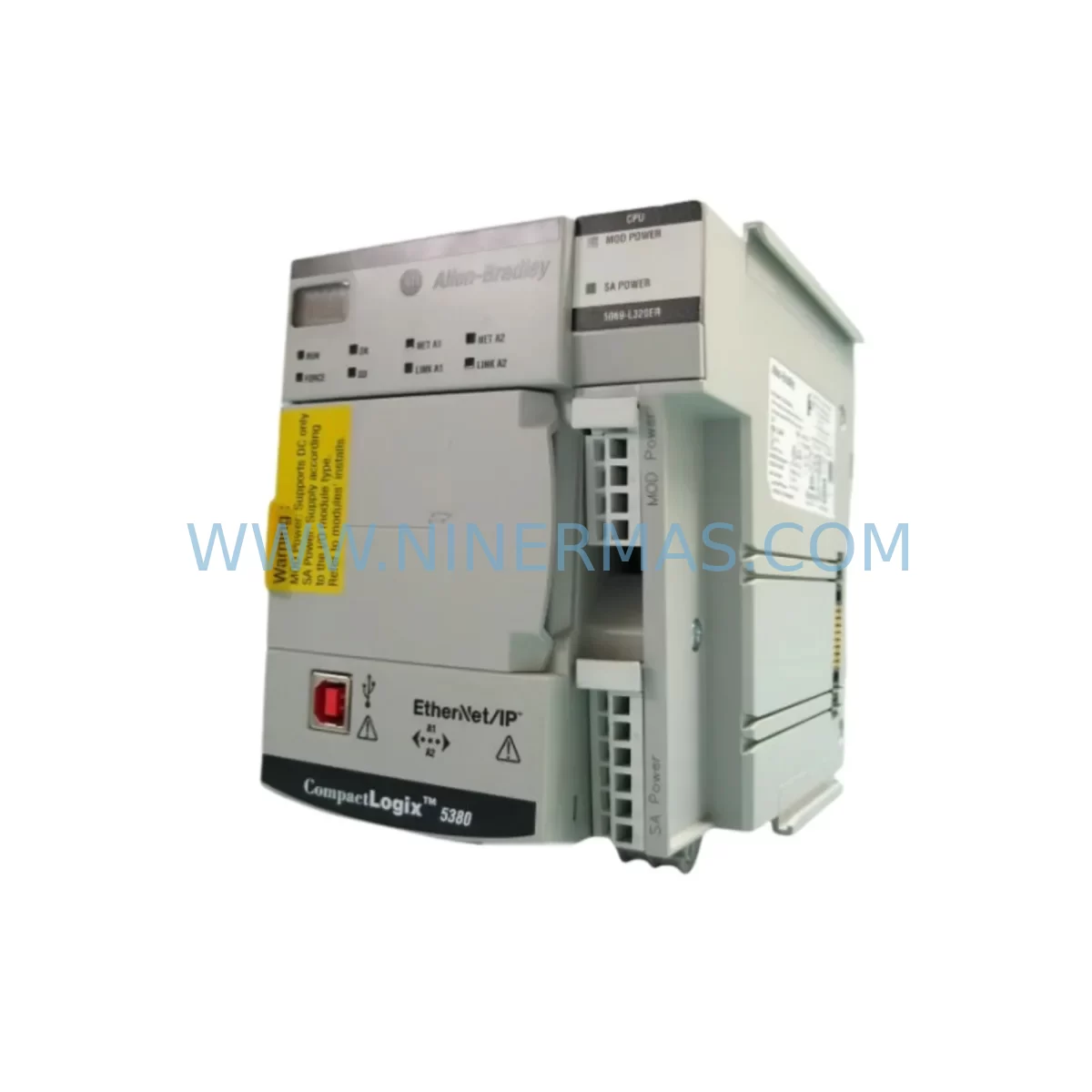

The Allen-Bradley 5069-L320ERMK is a CompactLogix 5380 series programmable logic controller engineered for demanding industrial environments where control continuity, motion precision, and safety reliability are non-negotiable. With 2MB of user memory and native EtherNet/IP connectivity, this controller is purpose-built for integrated motion, discrete, and process control across critical production facilities. Whether deployed in continuous manufacturing lines, safety interlock circuits, or high-load control cabinets, the 5069-L320ERMK delivers the deterministic performance and fault-tolerant architecture that modern industrial safety demands.

In critical control sites — including petrochemical plants, power generation facilities, mining operations, and metallurgical processing — unplanned downtime carries severe operational and safety consequences. The 5069-L320ERMK addresses these risks through its robust hardware design, which is engineered to resist signal drift, power fluctuations, electromagnetic interference, and communication anomalies that commonly destabilize legacy control systems. Its compact Logix architecture supports seamless integration with existing Rockwell Automation infrastructure, enabling rapid spare part replacement without extensive re-engineering or reconfiguration downtime.

For facilities operating aging CompactLogix 5370 or earlier-generation controllers, the 5069-L320ERMK represents a validated upgrade path that preserves existing EtherNet/IP network topology and I/O wiring strategies. This compatibility significantly reduces the risk of control interruption during scheduled maintenance windows or emergency replacement scenarios — a critical advantage in continuous process industries where every hour of downtime translates to measurable production loss.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 5069-L320ERMK as the central logic controller in a control cabinet demands a holistic approach to risk reduction across power, I/O, motion, and communication layers. In high-load cabinets serving continuous production lines, the controller must operate reliably alongside a range of protective and conditioning components to prevent cascading failures.

On the power supply side, the 5069-PA4 and 5069-PB4 CompactLogix power supplies are the recommended companions, providing stable, regulated DC power to the controller backplane. In environments with unstable grid power or frequent voltage sags — common in heavy industrial facilities — pairing these with a dedicated 1606-XLP power supply or an Allen-Bradley 1783-ETAP EtherNet/IP tap for network redundancy significantly reduces the risk of controller brownout or communication loss.

For motion control integrity, the 5069-L320ERMK coordinates directly with Kinetix 5500 and Kinetix 5700 servo drives via CIP Motion over EtherNet/IP. These drives provide closed-loop position and velocity feedback, ensuring that axis faults or encoder signal anomalies are detected and handled at the drive level before they can propagate to the controller or cause mechanical damage. In high-vibration environments such as mining conveyors or port crane systems, this distributed fault detection architecture is essential for safe operation.

On the I/O side, 5069-IB16 digital input modules and 5069-OB16 digital output modules extend the controller’s reach to field devices while maintaining signal isolation that protects the controller backplane from voltage transients and ground loops. For analog process signals in petrochemical or water treatment applications, the 5069-IF8 analog input module provides 16-bit resolution with per-channel diagnostics, enabling early detection of sensor drift before it affects process control accuracy.

Safety interlock circuits in critical facilities often require integration with a 5069-L3100ERS2 GuardLogix safety controller or dedicated 440C-CR30 safety relay modules to enforce SIL-rated shutdown logic independently of the standard control program. The 5069-L320ERMK’s EtherNet/IP architecture supports CIP Safety protocol extensions, allowing safety and standard control data to coexist on the same network infrastructure without compromising safety integrity.

For communication resilience in high-EMI environments — such as those found near large variable frequency drives, arc furnaces, or high-voltage switchgear — deploying a 1783-BMS10CGP managed Ethernet switch with IGMP snooping and QoS prioritization ensures that controller-to-drive and controller-to-SCADA communications remain stable even under heavy network load or electromagnetic disturbance.

Critical Industrial Safety Applications

The Allen-Bradley 5069-L320ERMK is deployed across a wide spectrum of critical industrial environments where control reliability directly impacts operational safety and regulatory compliance.

Petrochemical and Refinery Operations: In continuous process plants handling flammable or toxic materials, the 5069-L320ERMK manages burner management sequences, compressor control, and emergency shutdown pre-logic. Its deterministic scan time and EtherNet/IP connectivity to safety instrumented systems ensure that process deviations trigger appropriate protective responses within defined response time requirements.

Power Generation and Utilities: Turbine auxiliary control, boiler feed pump sequencing, and grid synchronization logic benefit from the controller’s high-speed motion coordination and robust communication architecture. In power plants where control system failures can result in grid instability, the 5069-L320ERMK’s fault-tolerant design and rapid spare part availability from NINERMAS provide critical operational continuity assurance.

Mining and Mineral Processing: Conveyor drive coordination, crusher sequencing, and flotation cell control in dusty, high-vibration mining environments demand controllers with proven environmental resilience. The 5069-L320ERMK’s compliance with IEC 60068-2-6 vibration standards and its sealed backplane design make it well-suited for panel installations in surface and underground mining control rooms.

Water and Wastewater Treatment: Pump station automation, chemical dosing control, and SCADA integration in water treatment facilities rely on the controller’s reliable EtherNet/IP communication and analog I/O accuracy. In facilities operating under 24/7 regulatory monitoring, the 12-month warranty and pre-shipment testing provided by NINERMAS ensure that replacement units meet operational specifications from day one.

Metallurgical and Steel Processing: Rolling mill drive coordination, furnace temperature control, and ladle handling automation in steel plants expose control hardware to extreme thermal cycling, high electromagnetic interference from induction heating systems, and mechanical shock. The 5069-L320ERMK’s industrial-grade design and compatibility with Kinetix servo drive systems make it a reliable choice for these demanding motion control applications.

Port and Maritime Logistics: Container crane control, ship loader sequencing, and bulk material handling systems in port environments require controllers capable of operating reliably in high-humidity, salt-air conditions with frequent load cycling. The 5069-L320ERMK’s robust power supply compatibility and EtherNet/IP network resilience support the high-availability requirements of port logistics operations.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the 5069-L320ERMK?
All Allen-Bradley 5069-L320ERMK units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers hardware defects, communication failures, and functional performance issues identified under normal operating conditions. Our technical team provides direct support for warranty claims, including replacement unit coordination to minimize your facility’s downtime exposure.

Q2: What pre-shipment testing is performed on each unit?
Every 5069-L320ERMK unit undergoes a comprehensive pre-shipment inspection that includes power-on functional verification, EtherNet/IP communication port testing, memory integrity checks, and visual inspection for physical damage or component anomalies. Units that do not pass all test criteria are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 5069-L320ERMK compatible with existing CompactLogix 5370 installations?
The 5069-L320ERMK is part of the CompactLogix 5380 generation, which uses the 5069 Compact I/O platform rather than the 1769 Compact I/O used by CompactLogix 5370 controllers. While direct backplane compatibility requires I/O module migration, the EtherNet/IP network topology, Studio 5000 programming environment, and CIP Motion drive connections are fully compatible. NINERMAS technical advisors can assist with migration planning to ensure a safe and efficient transition.

Q4: Can NINERMAS support long-term spare parts supply for the 5069-L320ERMK?
Yes. NINERMAS maintains dedicated inventory of the 5069-L320ERMK and related CompactLogix 5380 series components to support long-term spare parts programs for critical facilities. We offer scheduled procurement arrangements, priority stock reservation, and rapid dispatch capabilities to ensure that your maintenance team has access to verified replacement units when needed — without dependence on unpredictable OEM lead times.
