Allen-Bradley 5069-L306ER Service-Ready Spare Part

Allen-Bradley 5069-L306ER Service-Ready Spare Part for Industrial Maintenance

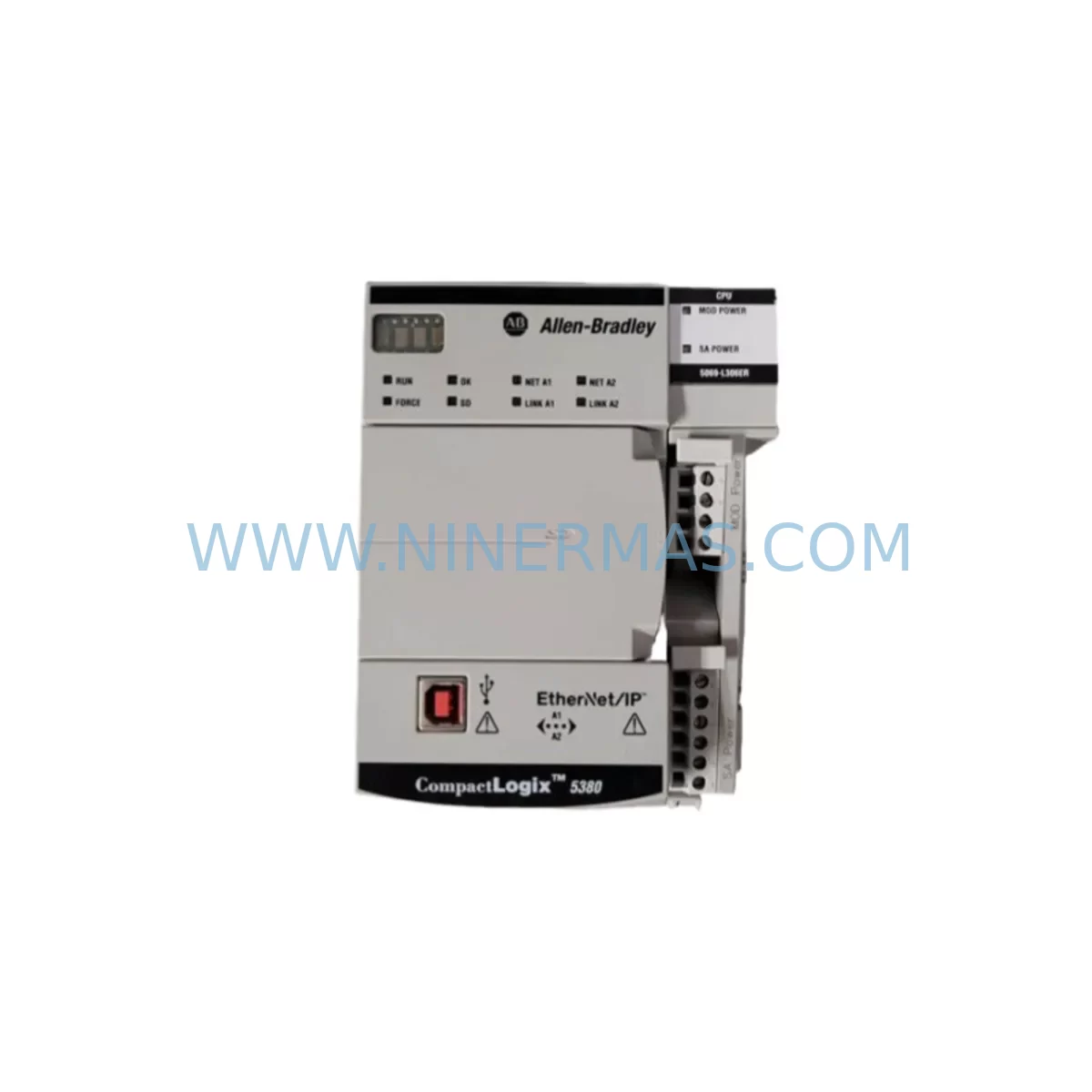

The Allen-Bradley 5069-L306ER is a CompactLogix 5380 series programmable logic controller designed for high-performance discrete and process control applications in industrial automation environments. As a service-ready spare part sourced through NINERMAS, this unit is pre-tested, fully inspected, and shipped with a 12-month warranty — enabling maintenance teams to execute rapid replacements and restore production lines with minimal downtime risk.

Industrial facilities operating aging or mid-life CompactLogix 5380 infrastructure depend on reliable spare parts availability to sustain uptime targets. The 5069-L306ER supports up to 6 MB of user memory and is compatible with the 5069 Compact I/O system, making it a direct fit for existing control cabinet configurations without requiring rewiring or software re-architecture. For maintenance engineers managing scheduled shutdowns or responding to unplanned failures, having a verified 5069-L306ER on the shelf eliminates the most critical delay in the recovery sequence: sourcing the controller.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 5069-L306ER in a CompactLogix 5380 control system, a disciplined maintenance engineer will treat the controller swap as a trigger for a broader cabinet inspection. The controller does not operate in isolation — its performance depends on the integrity of every connected component in the electrical and communication chain.

Begin with the 5069-PA4 or 5069-PB4 power supply module: verify output voltage stability and check for capacitor aging or thermal discoloration. A degraded power supply is a common root cause of intermittent controller faults and should be replaced proactively if the unit has been in service for more than five years. Next, inspect all 5069 Compact I/O modules — including digital input modules such as the 5069-IB16 and digital output modules such as the 5069-OB16 — for contact wear, loose terminal connections, and LED fault indicators. These modules share the same backplane as the controller and are subject to the same environmental stresses.

Review the EtherNet/IP network infrastructure connected to the controller’s dual embedded ports. Check managed switch port configurations, verify IGMP snooping settings, and inspect Ethernet patch cables and RJ45 connectors for physical damage or corrosion — particularly in high-humidity or high-vibration environments. If the system uses a 1783-series Stratix managed switch, confirm firmware compatibility with the 5069-L306ER’s embedded EtherNet/IP stack.

For systems integrating motion or drive control, inspect the Kinetix 5500 or Kinetix 5700 servo drives connected via the integrated motion EtherNet/IP (IMEI) network. Verify axis configuration files are backed up in Studio 5000 before the controller is swapped. Simultaneously, audit 24V DC terminal blocks and wiring harnesses in the control cabinet — loose or oxidized terminals are a leading cause of I/O signal errors that are often misdiagnosed as controller failures.

If the system includes POINT I/O or Flex I/O remote adapter modules communicating over EtherNet/IP, confirm that their IP addresses and connection parameters are documented and will survive the controller replacement without requiring manual reconfiguration. For installations using PanelView Plus HMI terminals, verify that the FactoryTalk View ME application references the correct controller path and that the HMI firmware is compatible with the replacement unit’s firmware version.

Finally, check signal isolators and surge protection devices on analog I/O circuits — particularly on 4–20 mA loops connected to pressure transmitters, flow meters, or temperature sensors. These passive components are frequently overlooked during controller replacements but can introduce measurement errors if their isolation barriers have degraded. A complete spare parts kit for a CompactLogix 5380 cabinet should include at minimum: one controller, one power supply, one set of I/O modules, a managed switch, and a set of terminal block assemblies.

Site Replacement Workflow

Replacing the 5069-L306ER on-site follows a structured sequence designed to minimize downtime and eliminate configuration errors. Before removing the existing controller, use Studio 5000 Logix Designer to perform a full project backup — save the .ACD file to a secure network location and verify the backup opens without errors on a separate workstation. Document the current firmware revision installed on the controller, as the replacement unit must be updated to match before going online.

Power down the control cabinet following your site’s lockout/tagout (LOTO) procedure. Remove the existing 5069-L306ER from the 5069 system base by releasing the locking tab and sliding the module out. Install the replacement unit into the same slot, ensuring the module seats fully into the backplane connector. Restore power and connect a programming laptop via the USB port or EtherNet/IP to perform the firmware update using ControlFLASH or ControlFLASH Plus.

Once firmware is matched, download the backed-up project file to the controller and verify all I/O modules are recognized in the I/O tree. Transition the controller to Run mode and monitor the first 15 minutes of operation for any fault codes, particularly connection timeout faults on EtherNet/IP devices. Confirm HMI communication is restored and all process values are reading correctly before releasing the system to production.

This workflow is compatible with direct replacement of earlier CompactLogix 5380 variants and does not require changes to existing field wiring, I/O module assignments, or network topology — making the 5069-L306ER a drop-in solution for lifecycle extension of existing control infrastructure.

Spare Parts Support FAQ

Q1: Is the 5069-L306ER compatible with my existing CompactLogix 5380 I/O bases and power supplies?
Yes. The 5069-L306ER is fully compatible with all 5069 Compact I/O bases, 5069-PA4 and 5069-PB4 power supplies, and the complete range of 5069 digital and analog I/O modules. No hardware modifications are required for a direct replacement. Confirm firmware version compatibility using the Rockwell Automation Product Compatibility and Download Center (PCDC) before installation.

Q2: What pre-shipment testing does NINERMAS perform on the 5069-L306ER?
Each unit undergoes functional power-on testing, communication port verification, and visual inspection for physical damage before shipment. Units are shipped in anti-static packaging with a test report. The 12-month warranty covers functional defects identified after installation under normal operating conditions.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for the CompactLogix 5380 platform?
Yes. NINERMAS offers long-term spare parts programs for industrial facilities managing aging Rockwell Automation infrastructure. We can support annual procurement schedules, blanket orders, and emergency stock arrangements for the 5069-L306ER and related components including I/O modules, power supplies, and communication accessories. Contact our team to discuss a customized supply agreement.

Q4: How do I verify compatibility before committing to a purchase?
Provide your existing controller’s catalog number, firmware revision, and Studio 5000 project version to our technical team. We will confirm compatibility and advise on any firmware update requirements before shipment. For multi-unit orders or critical infrastructure replacements, we recommend requesting a compatibility confirmation in writing prior to purchase.
