Allen-Bradley 2711P-T6M20A Safety-Reliable HMI for Critical Control Sites

Allen-Bradley 2711P-T6M20A Safety-Reliable HMI for Critical Control Sites

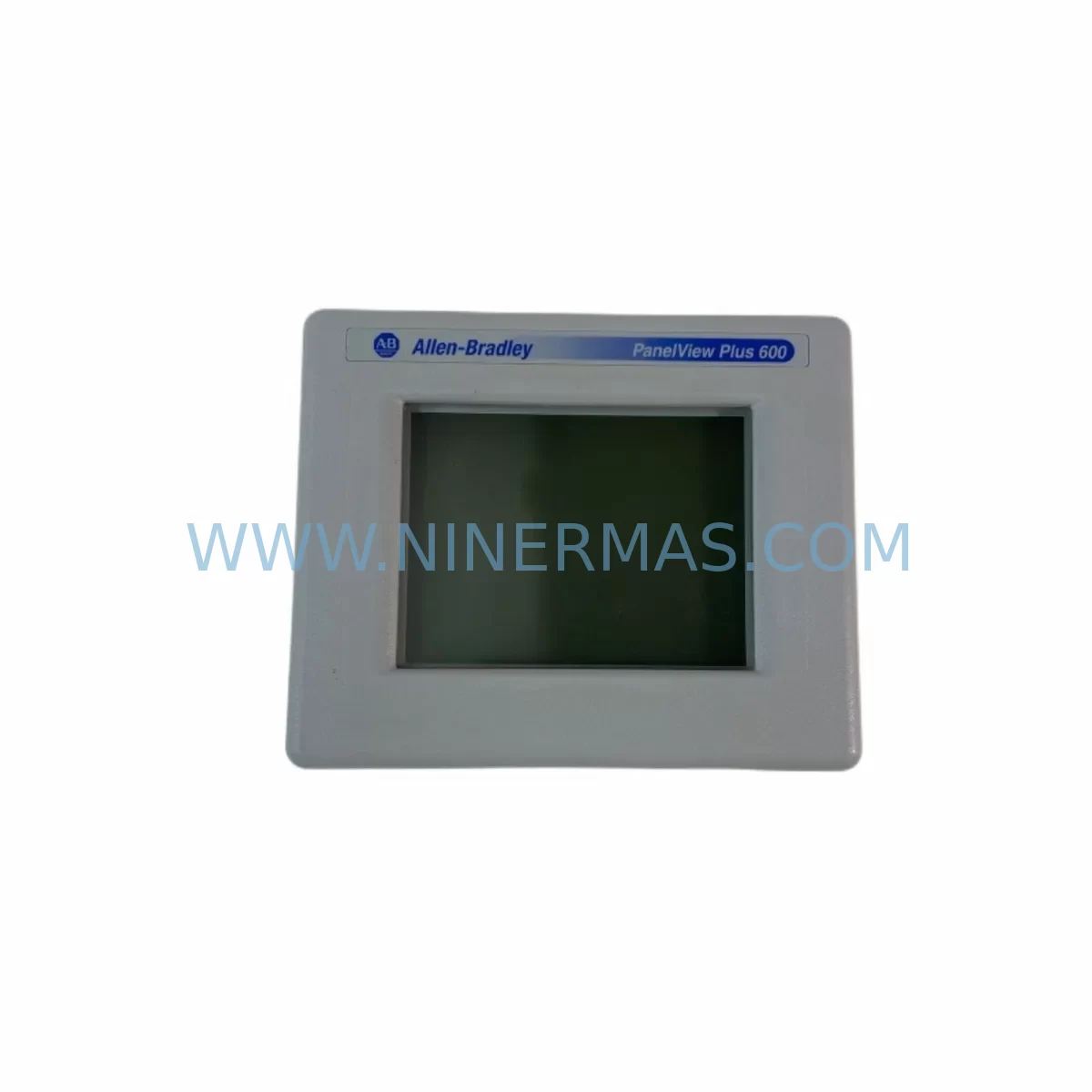

The Allen-Bradley 2711P-T6M20A is a 6-inch color touch-screen operator terminal from the PanelView Plus 600 series, engineered by Rockwell Automation for demanding industrial environments where control continuity and operator safety are non-negotiable. Designed to serve as the primary human-machine interface in critical control cabinets, this unit delivers stable, high-visibility display performance across continuous production lines, safety interlock systems, and high-load control enclosures where unplanned downtime carries severe operational and safety consequences.

In industrial facilities operating under high electromagnetic interference — such as variable frequency drive (VFD) banks, large motor starters, or arc furnace environments — the 2711P-T6M20A maintains reliable communication with the control system through its integrated RS-232, RS-422/485, and Ethernet/IP ports. Its robust communication architecture reduces the risk of signal drift, communication timeouts, and HMI-to-PLC link failures that can trigger nuisance alarms or, worse, undetected process deviations in safety-critical loops.

For sites operating in dusty, humid, or high-vibration conditions — including mineral processing plants, port crane control rooms, offshore platforms, and chemical dosing stations — the sealed front panel of the 2711P-T6M20A provides IP65-rated ingress protection, preventing particulate and moisture intrusion that commonly degrades operator terminal performance over time. This makes it a dependable long-term spare for facilities that cannot afford display failures during shift operations or emergency shutdowns.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet serving a critical process loop, the 2711P-T6M20A does not operate in isolation. Its reliability is directly tied to the quality and compatibility of the surrounding control architecture. When paired with a Allen-Bradley 1756-L71 ControlLogix processor or a 1769-L33ER CompactLogix controller, the HMI terminal benefits from deterministic scan-cycle communication, reducing the risk of display lag or missed operator inputs during high-speed interlock sequences.

Power supply stability is equally critical. Surges, brownouts, and transient spikes on the 24V DC bus are among the leading causes of HMI resets and memory corruption in field installations. Deploying a Allen-Bradley 1606-XLP power supply upstream of the 2711P-T6M20A provides regulated, filtered DC power with built-in overload protection, significantly extending the service life of the terminal in environments with unstable utility feeds or heavy motor switching loads.

For Ethernet/IP-based architectures, network integrity is a safety concern. A managed industrial switch such as the Stratix 2000 or Stratix 5700 ensures that HMI-to-controller communication remains prioritized and protected from broadcast storms or unauthorized device intrusion on the plant network. In installations where legacy DH-485 or RS-232 communication is still in use, a 1761-NET-AIC Advanced Interface Converter provides reliable protocol bridging without introducing communication latency that could mask process alarms.

In safety interlock circuits, the operator terminal must never become a single point of failure. Complementing the 2711P-T6M20A with a Allen-Bradley 440C-CR30 SmartGuard safety controller or a dedicated 1791DS safety I/O module ensures that safety functions remain hardwired and independent of HMI availability. This architecture is particularly important in machinery guarding, emergency stop circuits, and SIL-rated process shutdowns where operator panel failure must not compromise the integrity of the safety function.

For installations in high-vibration or thermally stressed enclosures — such as those found in mining headframes, steel mill pulpits, or offshore compressor control rooms — supplementing the cabinet with a 1492-AIFM analog interface module and proper cable management using 1492-CABLE series pre-wired cables reduces mechanical stress on terminal connections and minimizes the risk of intermittent signal faults that are difficult to diagnose during live production.

Critical Industrial Safety Applications

Petrochemical and Refinery Control Rooms: In continuous process plants handling flammable or toxic media, the 2711P-T6M20A serves as the local operator interface for unit control panels managing pump stations, heat exchanger bypass valves, and compressor surge control loops. Its sealed enclosure and EMC-hardened design allow it to operate reliably in classified areas adjacent to hazardous zone boundaries, where operator visibility and response speed are directly linked to process safety outcomes.

Power Generation and Substation Automation: Thermal power plants and hydroelectric facilities use PanelView Plus 600 terminals to provide local HMI access to turbine governor panels, excitation control cabinets, and auxiliary system monitoring stations. The 2711P-T6M20A’s Ethernet/IP connectivity allows seamless integration with plant-wide SCADA systems while maintaining local control capability during network outages — a critical feature for black-start and islanding scenarios.

Mining and Mineral Processing: In underground mining and surface processing operations, control panels managing conveyor drives, crusher interlocks, and flotation cell dosing systems require HMI terminals that can withstand continuous vibration, coal dust ingress, and wide ambient temperature swings. The IP65-rated front panel and wide operating temperature range of the 2711P-T6M20A make it a proven choice for these demanding environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on PanelView Plus terminals to operate pump station control panels, chemical dosing skids, and UV disinfection systems. The 2711P-T6M20A provides operators with real-time process visualization and alarm acknowledgment capability at the field level, reducing response time to process deviations and supporting compliance with environmental discharge regulations.

Port, Marine, and Heavy Lifting: Ship-to-shore crane control cabinets, bulk material handling systems, and vessel engine room automation panels frequently specify Allen-Bradley HMI terminals for their proven reliability in salt-air, high-humidity, and high-vibration marine environments. The 2711P-T6M20A is a direct replacement candidate for aging PanelView Plus 600 installations in these applications, supporting lifecycle extension without requiring control system redesign.

Safety and Quality FAQ

Q1: Does the 2711P-T6M20A come with a warranty, and what does it cover?
Yes. Every 2711P-T6M20A supplied by NINERMAS is backed by a 12-month warranty covering manufacturing defects, functional failures, and communication faults under normal operating conditions. Warranty support includes technical diagnosis, unit replacement, and documentation assistance for site maintenance records.

Q2: What pre-shipment testing is performed on this unit?
Each unit undergoes a full functional test prior to dispatch, including power-on verification, display integrity check, touch-screen calibration confirmation, and communication port validation. Test records are available upon request for quality documentation and incoming inspection purposes.

Q3: Is this unit compatible with existing FactoryTalk View ME applications?
Yes. The 2711P-T6M20A is fully compatible with applications developed in FactoryTalk View Machine Edition (ME) software. Existing .MER application files can be transferred directly to this unit without modification, provided the FactoryTalk View ME version used is compatible with the PanelView Plus 600 firmware. NINERMAS recommends verifying firmware revision compatibility prior to installation in safety-critical applications.

Q4: Can NINERMAS support long-term or recurring supply of this spare part?
Yes. NINERMAS maintains stock of the 2711P-T6M20A and related PanelView Plus 600 series components to support planned maintenance programs, emergency replacements, and multi-unit procurement for facilities managing large installed bases. Long-term supply agreements and priority allocation arrangements are available for customers with critical spare part requirements.
