Allen-Bradley 2711P-T6C5A Service-Ready Spare Part

Allen-Bradley 2711P-T6C5A Service-Ready Spare Part for Industrial Maintenance

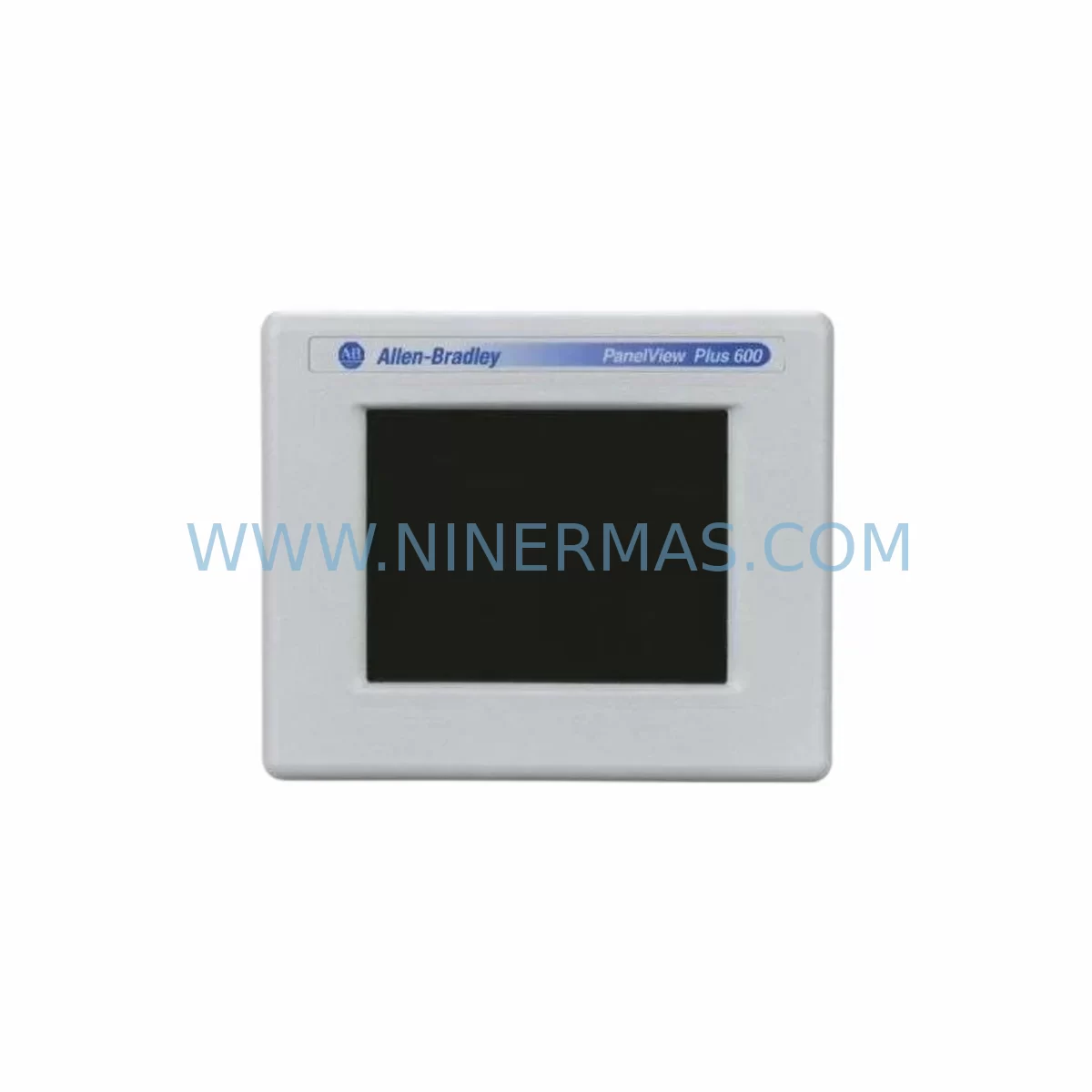

The Allen-Bradley 2711P-T6C5A is a 6-inch color touchscreen HMI terminal from the PanelView Plus 600 series, designed for operator interface applications in demanding industrial environments. As a direct-replacement spare part, the 2711P-T6C5A supports Rockwell Automation ControlLogix, CompactLogix, and MicroLogix PLC platforms via EtherNet/IP and DH-485 communication protocols. For maintenance engineers managing aging control systems, securing a verified service-ready unit of the 2711P-T6C5A is a critical step in preventing unplanned downtime and protecting production continuity.

NINERMAS supplies the 2711P-T6C5A as an original spare part, pre-tested before shipment, with a 12-month warranty and long-term stock availability. Whether you are executing a planned annual shutdown, responding to an emergency HMI failure, or building a strategic spare parts inventory for your control cabinet, the 2711P-T6C5A is available for rapid dispatch to global destinations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2711P-T6C5A in a live control cabinet, a thorough inspection of the surrounding electrical environment is essential to ensure a clean, reliable installation and to prevent repeat failures. Maintenance engineers should begin by verifying the 24V DC power supply feeding the HMI — a failing or undersized power supply unit is a common root cause of HMI resets and communication dropouts. Check the power supply output voltage under load and confirm the cable gauge and terminal connections at the 2711P-T6C5A power input connector are secure and corrosion-free.

The EtherNet/IP communication path between the 2711P-T6C5A and the ControlLogix or CompactLogix controller should be validated at the managed switch or unmanaged switch level. Inspect the Cat5e or Cat6 patch cables, RJ45 connectors, and switch port status indicators. If the panel uses a 1756-ENBT or 1756-EN2T EtherNet/IP bridge module in the ControlLogix chassis, confirm the module firmware is compatible with the replacement HMI runtime version. For legacy installations using DH-485, inspect the 1747-AIC link coupler and the shielded twisted-pair cable for continuity and proper termination resistance.

I/O integrity checks are equally important during an HMI replacement outage. Use the opportunity to inspect 1756-IB16 or 1756-OB16 digital I/O modules for blown fuses, loose terminal block connections, and indicator LED status. Analog I/O modules such as the 1756-IF8 or 1756-OF8 should be verified for signal drift, particularly in temperature-sensitive environments. If the control system includes a 1756-L71 or 1756-L73 ControlLogix controller, confirm the controller battery (1756-BA2) is within its service life to prevent program loss during power interruptions.

Relay output modules and safety relay circuits connected to the HMI’s alarm outputs should be tested for contact continuity and coil resistance. Terminal blocks throughout the cabinet — particularly Phoenix Contact or Weidmüller spring-clamp types — should be inspected for loose conductors and re-torqued to specification. Signal isolators protecting analog inputs from ground loops should be checked for output accuracy. If the installation includes a 1783-MS10T Stratix managed switch, review the port configuration and VLAN settings to ensure the replacement 2711P-T6C5A is assigned to the correct network segment.

For facilities running a broader Rockwell Automation architecture, this maintenance window is also an appropriate time to audit the 1756-PA75 or 1756-PB75 power supply modules in the ControlLogix chassis, verify the 1756-RM2 redundancy module status if applicable, and confirm that the PanelView Plus application file (.MER) stored on the replacement HMI’s CompactFlash card or internal flash is the current approved revision. Maintaining a documented spare parts list that includes the 2711P-T6C5A alongside associated communication cables, power supply units, and I/O modules significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Replacing the 2711P-T6C5A on-site follows a structured sequence to minimize downtime and ensure system compatibility. Before removing the existing unit, document the current application runtime version, IP address configuration, and any custom alarm page settings. Back up the application file from the existing HMI if it remains accessible. Power down the panel following your site’s lockout/tagout (LOTO) procedure and disconnect the 24V DC power and communication cables from the rear of the unit.

Remove the four panel-mount clamps securing the 2711P-T6C5A to the enclosure cutout and extract the unit. Install the replacement 2711P-T6C5A into the same cutout — the standard 6-inch PanelView Plus panel cutout dimensions are 192 mm × 138 mm — and secure the mounting clamps evenly to achieve the IP65 front-panel seal. Reconnect the 24V DC power cable and EtherNet/IP or DH-485 communication cable, then restore power. Load the application file via USB, CompactFlash, or network transfer using FactoryTalk View ME Station software, and verify all operator screens, alarm pages, and PLC tag connections are functioning correctly before returning the system to production.

This direct-replacement approach preserves the existing control system architecture, eliminates the need for PLC program modifications, and allows the maintenance team to restore operations within a single shift. NINERMAS pre-tests each 2711P-T6C5A unit before shipment to confirm display function, touchscreen calibration, and communication port integrity, reducing the risk of receiving a non-functional spare during a critical outage.
