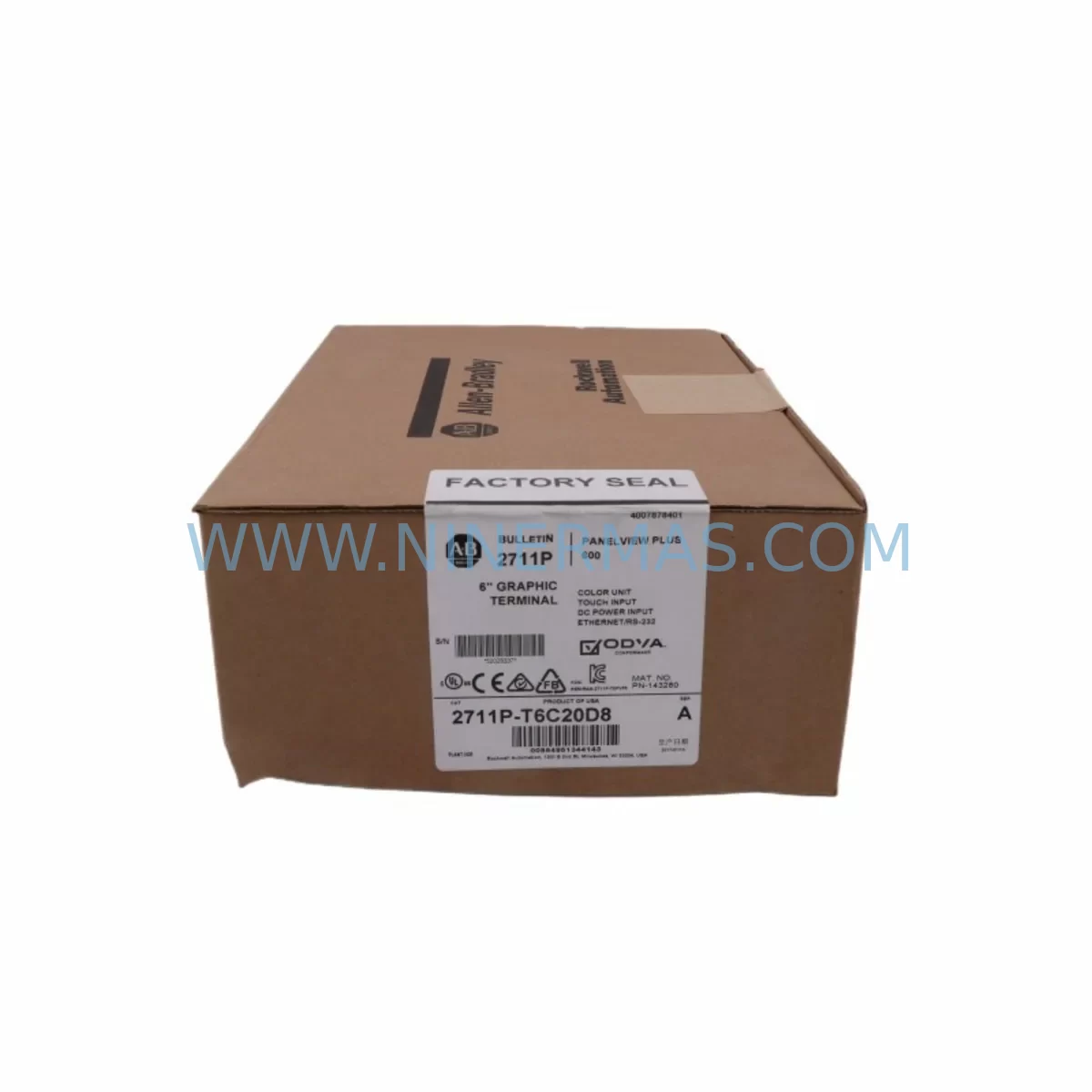

Allen-Bradley 2711P-T6C20D8 Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 2711P-T6C20D8 Service-Ready Spare Part for Industrial Maintenance

The Allen-Bradley 2711P-T6C20D8 is a 6-inch color touch screen HMI terminal from the PanelView Plus 6 series, engineered by Rockwell Automation for demanding industrial environments. As a critical human-machine interface component, this unit serves as the primary operator interface in control cabinets across manufacturing, oil & gas, water treatment, automotive assembly, and process automation facilities. When this terminal fails or reaches end-of-life, production lines halt — making a verified, service-ready spare part an essential element of any proactive maintenance strategy.

At NINERMAS, every 2711P-T6C20D8 unit is sourced as an original Rockwell Automation component, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned annual shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory for aging PanelView Plus 6 installations, this listing provides a reliable, fast-ship solution with long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 2711P-T6C20D8 is rarely an isolated task. In a well-structured maintenance workflow, the HMI terminal sits at the intersection of power distribution, controller communication, and operator interaction — meaning a fault in this unit often signals stress in adjacent components that should be inspected simultaneously.

During a planned replacement or emergency swap of the 2711P-T6C20D8, maintenance engineers should conduct a concurrent inspection of the 24V DC power supply module feeding the HMI rail, as voltage fluctuations are a leading cause of premature display failure. Check the Ethernet/IP communication cable and RJ45 connector integrity — degraded shielding on Cat5e or Cat6 runs inside the control cabinet can introduce packet loss that manifests as HMI freeze or communication fault alarms. If the cabinet also houses a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module on the ControlLogix backplane, verify its firmware version is compatible with the replacement terminal’s FactoryTalk View ME runtime.

For installations running CompactLogix L-series controllers (such as the 1769-L33ER or 1769-L36ERM), confirm that the RSLinx Classic or FactoryTalk Linx driver configuration does not require re-mapping after the HMI swap. It is also advisable to inspect the 1492-J terminal blocks and associated wiring harness connected to the I/O modules in the same cabinet — loose terminations that were masked by the previous HMI’s fault tolerance may surface after a clean unit is installed.

If the facility operates a mixed environment with MicroLogix 1100 or MicroLogix 1400 controllers, verify that the DH-485 or RS-232 serial communication parameters (baud rate, parity, stop bits) are correctly configured on the replacement 2711P-T6C20D8 before commissioning. Procurement teams building annual spare parts kits for PanelView Plus 6 installations should also consider stocking a 2711P-RN15S wireless network card or a spare 2711P-RDT6C replacement display module to cover both full-unit and component-level failure scenarios.

For facilities with aging control infrastructure, a proactive spare parts list for the same control cabinet might also include 1606-XLP power supplies, 1492-SP fuse terminal blocks, and 1783-US5T unmanaged Ethernet switches — all of which interact directly with the HMI’s power and communication environment. Addressing these components during the same maintenance window reduces the risk of a secondary fault shortly after the HMI is restored to service.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Before powering down the existing 2711P-T6C20D8, use FactoryTalk View ME Studio to export the current application (.MER file) to a USB drive or network share. Confirm the firmware version of the installed unit so the replacement can be pre-loaded with a matching or compatible runtime version.

Step 2 — Power Isolation: Isolate the 24V DC supply to the HMI terminal using the dedicated circuit breaker or fuse terminal block. Verify zero voltage at the terminal’s power connector before disconnecting cables. Label all communication and power connectors before removal to prevent mis-wiring during reinstallation.

Step 3 — Physical Swap: Remove the faulty 2711P-T6C20D8 from the panel cutout. The PanelView Plus 6 series uses a standard panel-mount design with rear-locking clips — inspect the cutout gasket for damage and replace if compression is compromised, as this affects the IP65 front-panel rating. Mount the replacement unit, reconnect all cables in sequence, and restore power.

Step 4 — Application Restore and Communication Test: Load the backed-up .MER application file via USB. Verify Ethernet/IP communication with the ControlLogix or CompactLogix controller by confirming tag browse and live data display. Run a full I/O status check from the HMI screen to confirm all process values are reading correctly before returning the line to production.

Step 5 — Documentation Update: Record the replacement date, new unit serial number, and firmware version in the facility’s maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement 2711P-T6C20D8 unit to maintain buffer stock continuity.

Spare Parts Support FAQ

Q1: Is the 2711P-T6C20D8 still available as a new original spare, or only as a refurbished unit?
NINERMAS supplies the 2711P-T6C20D8 as an original Allen-Bradley component. Each unit undergoes pre-shipment inspection covering power-on function, display integrity, and communication port verification. Units are not relabeled, reconditioned, or third-party clones. If original new stock is unavailable for a specific order, our team will notify you before shipment and provide documented alternatives.

Q2: What is the compatibility scope of the 2711P-T6C20D8 with existing PanelView Plus 6 applications?
The 2711P-T6C20D8 is fully compatible with FactoryTalk View ME applications developed for the PanelView Plus 6 platform. It supports Ethernet/IP, DH-485, and RS-232 communication protocols, making it interoperable with ControlLogix, CompactLogix, MicroLogix, SLC 500, and PLC-5 controller families. Application files (.MER) created on earlier PanelView Plus 6 terminals of the same screen size can be loaded directly without modification in most cases.

Q3: How does NINERMAS handle long-term supply for discontinued or end-of-life Allen-Bradley HMI parts?
NINERMAS maintains strategic inventory of high-demand Rockwell Automation spare parts, including PanelView Plus 6 terminals, to support facilities operating legacy systems beyond the manufacturer’s active production period. For customers with multi-site operations or annual maintenance contracts, we offer reserved stock arrangements and priority fulfillment agreements. Contact sale@ninermas.com to discuss long-term supply planning for your specific installed base.

Q4: What warranty and post-shipment support does NINERMAS provide for the 2711P-T6C20D8?
Every 2711P-T6C20D8 shipped by NINERMAS is covered by a 12-month warranty from the date of delivery. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NINERMAS provides replacement dispatch or credit resolution within an agreed service window. Pre-shipment testing documentation is available upon request for quality-critical procurement processes.
