Allen-Bradley 2711P-T12W22D9P-B Retrofit-Compatible HMI Terminal

Allen-Bradley 2711P-T12W22D9P-B Retrofit-Compatible HMI Terminal: Legacy System Compatibility and Smooth Upgrade Path

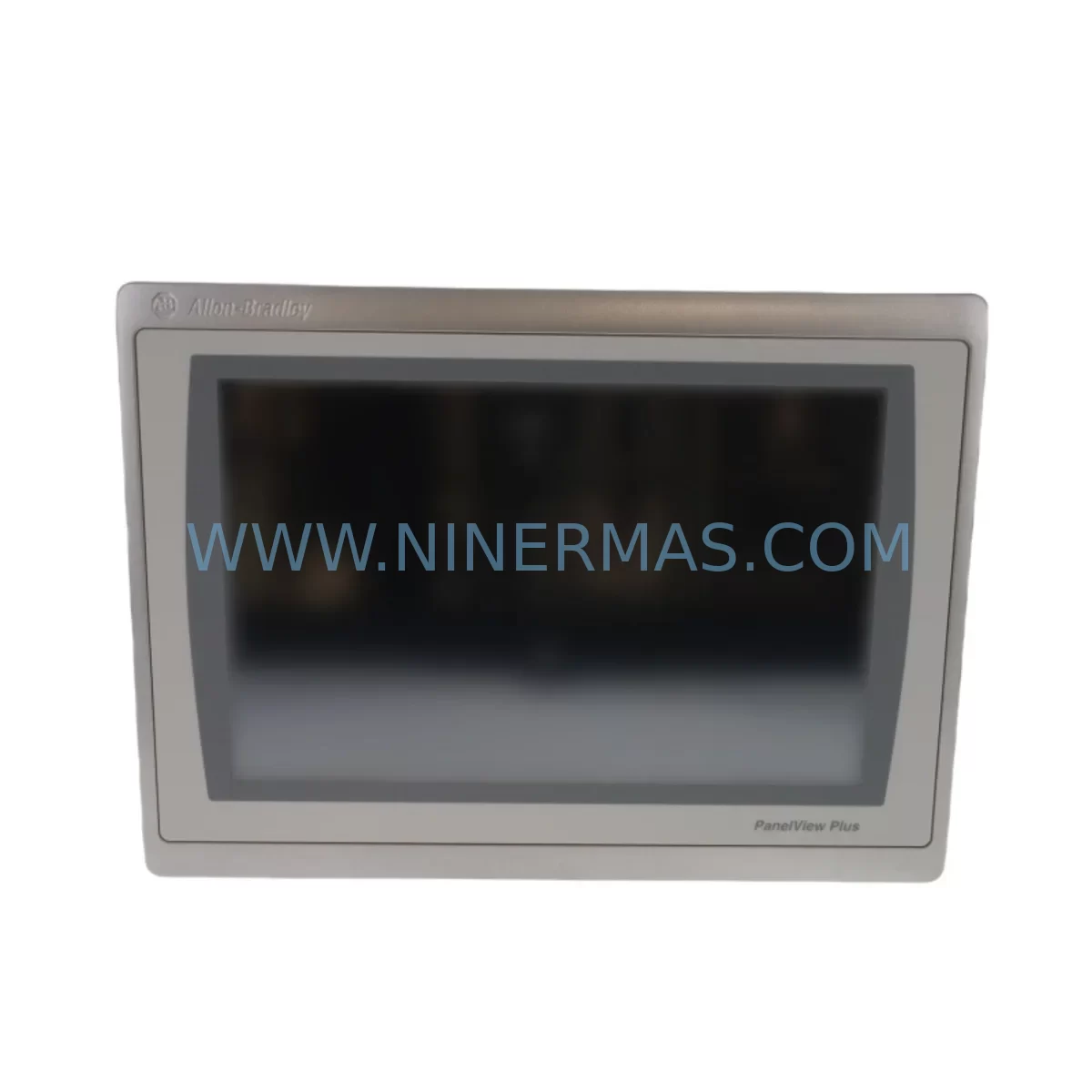

The Allen-Bradley 2711P-T12W22D9P-B is a PanelView Plus 7 Performance series 12.1-inch widescreen HMI terminal designed for demanding industrial environments. As legacy PanelView Plus 6 and earlier PanelView Plus 7 Standard units reach end-of-life or become increasingly difficult to source, the 2711P-T12W22D9P-B has become a primary retrofit target for system integrators and maintenance engineers managing aging control cabinets across discrete manufacturing, process control, and material handling applications. This unit supports FactoryTalk View ME runtime and communicates natively over EtherNet/IP, making it a direct upgrade path from older 2711P-T12C4D8 and 2711P-T12C4A8 terminals without requiring PLC program modifications in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2711P-T12W22D9P-B into an existing control system begins well before the unit arrives on-site. Engineers should start by auditing the current control cabinet layout to confirm available panel space, since the widescreen aspect ratio of the Plus 7 Performance series requires a wider cutout than the older 4:3 format displays used in earlier PanelView Plus 6 installations. If the cabinet houses a 1756 ControlLogix rack or a 1769 CompactLogix controller, the EtherNet/IP connection from the new HMI can typically be mapped directly to the existing controller IP without changes to the ladder logic or function block programs, provided the FactoryTalk Linx gateway is updated to a compatible version.

Power supply capacity is a critical checkpoint. The 2711P-T12W22D9P-B draws up to 45W at 24VDC, and many older panels were sized for the lower draw of previous-generation terminals. If the existing 2711P-RSACDIN or third-party DIN-rail PSU is already running near capacity — particularly in cabinets that also power 1734 POINT I/O modules, 1783 Stratix managed switches, or 1492 terminal block assemblies — a PSU upgrade should be planned as part of the retrofit scope rather than treated as an afterthought.

For sites still running DH-485 or Remote I/O networks, the migration to EtherNet/IP is a prerequisite for using the 2711P-T12W22D9P-B. This typically involves installing a 1761-NET-ENI or replacing legacy communication cards in the controller rack. Where a 1747 SLC 500 controller is still in service, engineers should evaluate whether a full controller upgrade to a 1769-L33ER CompactLogix is more cost-effective than maintaining the legacy network infrastructure. In either case, the HMI application will need to be rebuilt or converted in FactoryTalk View Studio ME, with all tag bindings, alarm configurations, and trend displays verified against the new controller tag database.

Backplane and rack considerations also apply in multi-slot chassis environments. If the existing installation uses a 1756-A10 or 1756-A17 ControlLogix chassis with a mix of 1756-EN2T EtherNet/IP modules, 1756-IF16 analog input modules, and 1756-OB16I digital output modules, the HMI retrofit can proceed independently of the I/O infrastructure — but the tag paths in the FactoryTalk View ME application must be updated to reflect any controller slot or module address changes made during the upgrade window. Signal isolators such as the 1492-AIFM series should be checked for terminal compatibility if field wiring is being re-terminated during the same outage.

Downtime Control During System Migration

Minimizing production downtime during an HMI retrofit requires a structured pre-commissioning approach. Before the scheduled outage, the existing 2711P-T12C4D8 or equivalent terminal’s application should be backed up to SD card and archived to a project folder in FactoryTalk View Studio. The new 2711P-T12W22D9P-B should be pre-loaded with the converted application, IP address configured, and controller communications verified on a bench test setup using a spare 1769-L18ER or equivalent CompactLogix unit if available.

During the outage window, the sequence should follow: power down the panel, remove the legacy terminal, prepare the new cutout if dimensions differ, install the 2711P-T12W22D9P-B, reconnect 24VDC power and EtherNet/IP cabling, power up, and verify controller communications before restoring the process to automatic mode. Having a 1747-UIC or 1784-U2DHP programming cable available for direct controller access during commissioning allows the engineer to monitor PLC status and force I/O points without relying on the HMI during the verification phase. The goal is to restore operator visibility within the first 15 minutes of power-up, with full alarm and trend functionality confirmed before the process is handed back to operations.

Original program logic in the controller is not affected by the HMI swap, which is one of the key advantages of this retrofit path. The PLC continues to execute its scan cycle normally throughout the HMI replacement, meaning field devices, drives, and safety relays remain under program control even while the operator interface is offline. This characteristic makes the 2711P-T12W22D9P-B retrofit particularly well-suited to processes where a brief loss of operator visibility is acceptable but a loss of control is not.

Retrofit Support FAQ

Q: Is the 2711P-T12W22D9P-B a direct drop-in replacement for the 2711P-T12C4D8?
A: Functionally yes — both are 12.1″ PanelView Plus 7 terminals communicating over EtherNet/IP and running FactoryTalk View ME. However, the panel cutout dimensions differ due to the widescreen format, and the FactoryTalk View ME application will require conversion and testing before go-live. Power supply capacity should also be verified.

Q: Does the unit ship with a functional test certificate?
A: Yes. Every 2711P-T12W22D9P-B unit is tested prior to shipment and ships with a functional test record. The unit is covered by a 12-month warranty from the date of shipment, covering hardware defects and communication interface failures.

Q: What is the lead time and stock availability?
A: Units are held in stock and available for same-day or next-business-day dispatch depending on order cut-off time. For urgent retrofit requirements, contact our team directly to confirm current inventory levels and expedited shipping options.

Q: Can the existing FactoryTalk View ME application be reused without modification?
A: In most cases, the application will require at minimum a display resolution adjustment and tag path review. If the source application was developed on a 4:3 display, graphic objects will need to be repositioned for the 16:10 widescreen layout. Alarm and data log configurations are generally portable. Rockwell Automation’s FactoryTalk View Studio migration wizard can automate much of this process, but engineer review and on-site testing remain essential before returning the system to production.
