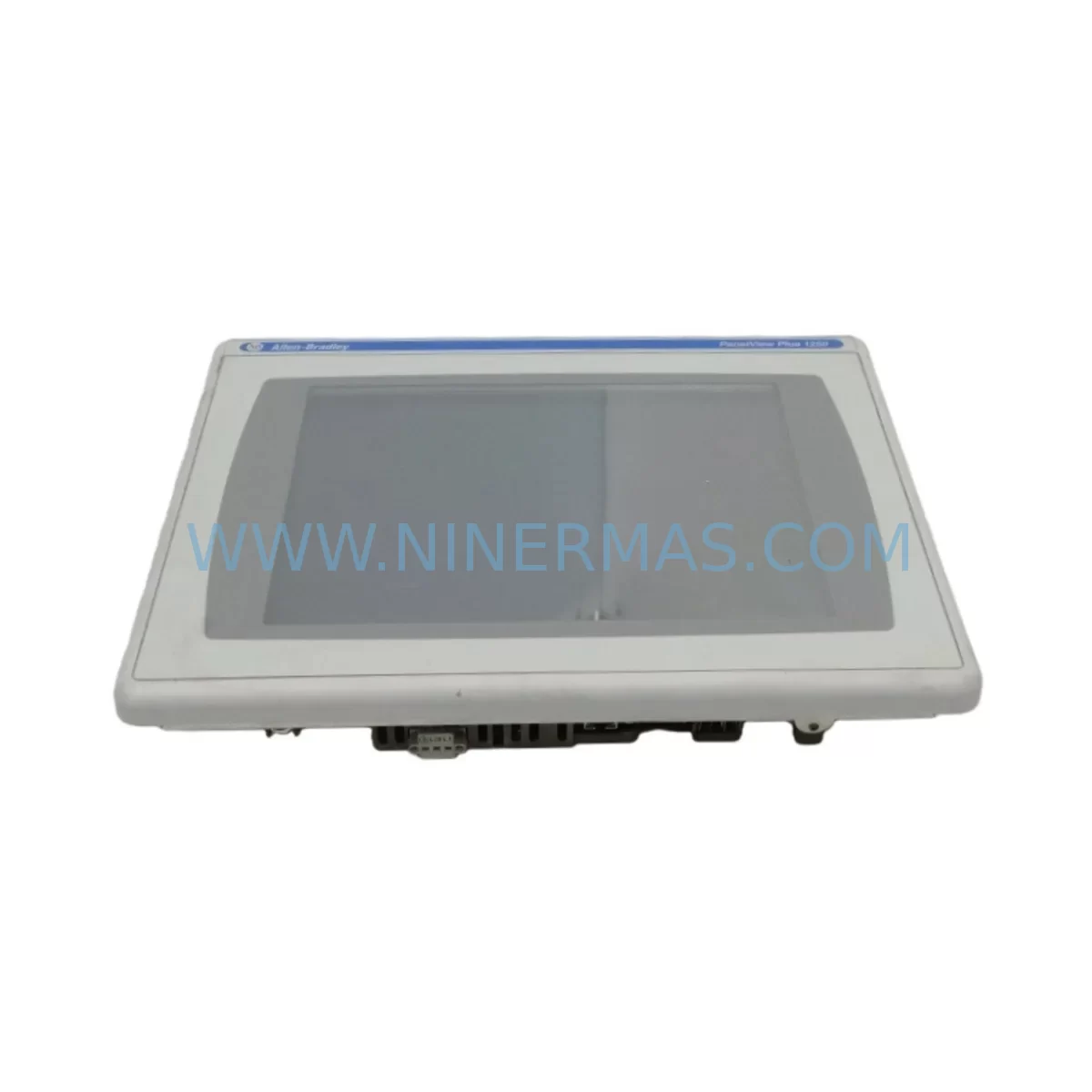

The Allen-Bradley 2711P-T12C4A8 is a 12-inch ruggedized HMI terminal from the PanelView Plus 6 series, engineered for demanding industrial environments where legacy operator interface panels are reaching end-of-life or have been discontinued. As automation engineers and maintenance teams face increasing pressure to modernize aging control systems without full line shutdowns, the 2711P-T12C4A8 offers a proven migration path that preserves existing program logic, minimizes downtime, and extends the operational life of installed control cabinets.

Whether you are replacing a failed 2711P-T10C4D8 or 2711P-T12C4D1 unit, upgrading from an older 2711E or 2711 PanelView Standard series, or integrating a new HMI into a retrofitted Allen-Bradley ControlLogix or CompactLogix control platform, the 2711P-T12C4A8 provides the display resolution, communication flexibility, and environmental durability required for continuous industrial operation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2711P-T12C4A8 into an existing control system requires careful pre-installation planning across several technical dimensions. Before removing the legacy HMI, engineers should document all existing communication link configurations, including node addresses on DH-485 networks or IP address assignments on EtherNet/IP segments. If the legacy panel was connected to an Allen-Bradley SLC 500 processor via a 1747-PIC programming cable or a 1761-NET-AIC interface converter, the replacement unit’s communication path must be reconfigured to match or an appropriate protocol bridge must be installed.

Panel cutout dimensions are a frequent source of delay during HMI retrofits. The 2711P-T12C4A8 has specific mounting cutout requirements that may differ from older 2711 or 2711E series terminals. In cases where the existing cabinet door cutout is larger or smaller, a stainless steel adapter plate or a new panel section may be required. Confirm available depth behind the panel door, as the 2711P-T12C4A8 requires adequate clearance for rear connectors and cable routing.

Power supply capacity must be assessed before installation. The 2711P-T12C4A8 operates on 24VDC and draws a defined current load. If the existing 1606-XLP or 1606-XLS series power supply in the control cabinet is already near capacity due to other loads from I/O modules, communication adapters, or relay coils, a supplementary or replacement power supply should be planned as part of the retrofit bill of materials.

For systems using Allen-Bradley 1756 ControlLogix backplanes with 1756-EN2T or 1756-ENBT EtherNet/IP communication modules, the HMI’s network configuration must be updated to reflect the correct controller slot, chassis path, and tag database. FactoryTalk View Studio ME is used to develop, convert, and download the updated application file to the 2711P-T12C4A8. Engineers should verify that all existing screen graphics, alarm configurations, trend displays, and tag bindings transfer correctly before going live.

In CompactLogix-based systems using 1769-L30ER or similar processors, the HMI communicates directly over EtherNet/IP without requiring a separate communication module, simplifying the retrofit. However, if the legacy system used a 1747-SN Remote I/O scanner or a 1771 PLC-5 backplane, a protocol conversion gateway such as the ProSoft MVI56E or a similar EtherNet/IP-to-DH+ bridge may be necessary to maintain full HMI functionality without reprogramming the controller.

Signal isolation requirements should also be reviewed. In environments with significant electrical noise from variable frequency drives, servo amplifiers, or large motor starters, signal isolators on analog input channels connected to the controller may need to be verified or upgraded as part of the overall system modernization effort.

Downtime Control During System Migration

Minimizing production downtime is the primary concern during any HMI replacement or control system retrofit. For the 2711P-T12C4A8, a structured migration approach can reduce on-site changeover time to under four hours in most standard panel configurations.

Begin by completing all software preparation offline. Use FactoryTalk View Studio ME to build or convert the application file on a laptop or engineering workstation before the scheduled maintenance window. Perform a full simulation of screen navigation, alarm acknowledgment, and tag communication in offline mode to identify any issues before the panel is powered down.

Back up the existing HMI application file from the legacy terminal using a USB drive or network transfer before disconnecting any hardware. Even if the original application file is available from the engineering archive, confirming that the backup matches the currently running version prevents discrepancies caused by undocumented field modifications.

During the physical swap, label all communication cables, power wiring, and USB connections before removal. The 2711P-T12C4A8 uses a standard terminal block for power input and rear-mounted connectors for communication. Photograph the existing wiring layout before disconnection to support accurate reconnection and reduce the risk of wiring errors that could damage the new unit or the connected controller.

After installation, power up the unit and download the prepared application file. Verify communication link status, confirm that all tags are reading correctly, and test critical operator functions including setpoint entry, mode selection, and alarm reset before returning the system to automatic operation. Document the completed retrofit with updated as-built drawings and store the backup application file in a secure engineering archive.

All units supplied by NINERMAS undergo pre-shipment functional testing to confirm display operation, communication port integrity, and power input performance. This reduces the risk of receiving a non-functional unit and supports tighter scheduling of maintenance windows.

Retrofit Support FAQ

Q: Is the 2711P-T12C4A8 a direct drop-in replacement for the 2711P-T12C4D1?
A: The 2711P-T12C4A8 and 2711P-T12C4D1 share the same PanelView Plus 6 platform and are functionally compatible. However, panel cutout dimensions, rear connector layout, and firmware version should be verified before installation. Application files developed for the 2711P-T12C4D1 are generally compatible but should be tested in FactoryTalk View Studio ME before deployment.

Q: Can this unit communicate with a legacy SLC 500 or PLC-5 controller?
A: Yes, with appropriate configuration. The 2711P-T12C4A8 supports DH-485 and DF1 serial communication natively, enabling direct connection to SLC 500 processors. Communication with PLC-5 controllers over DH+ requires an external protocol gateway. Consult your system documentation to confirm the correct driver and node address settings.

Q: What is the lead time and warranty coverage?
A: Units are available from stock and typically ship within 1–3 business days. All units are covered by a 12-month warranty from the date of shipment. Pre-shipment testing is performed on every unit to verify display, communication, and power input functionality.

Q: What support is available for wiring and commissioning questions?
A: NINERMAS technical support is available via email and phone to assist with wiring diagrams, communication configuration, and compatibility verification. Contact our team at sale@ninermas.com or +0086 187 5021 5667 before and during installation to reduce commissioning time and avoid configuration errors.
