Allen-Bradley 2711P-K15C4D2 Service-Ready Spare Part

Allen-Bradley 2711P-K15C4D2 Service-Ready Spare Part for Industrial Maintenance

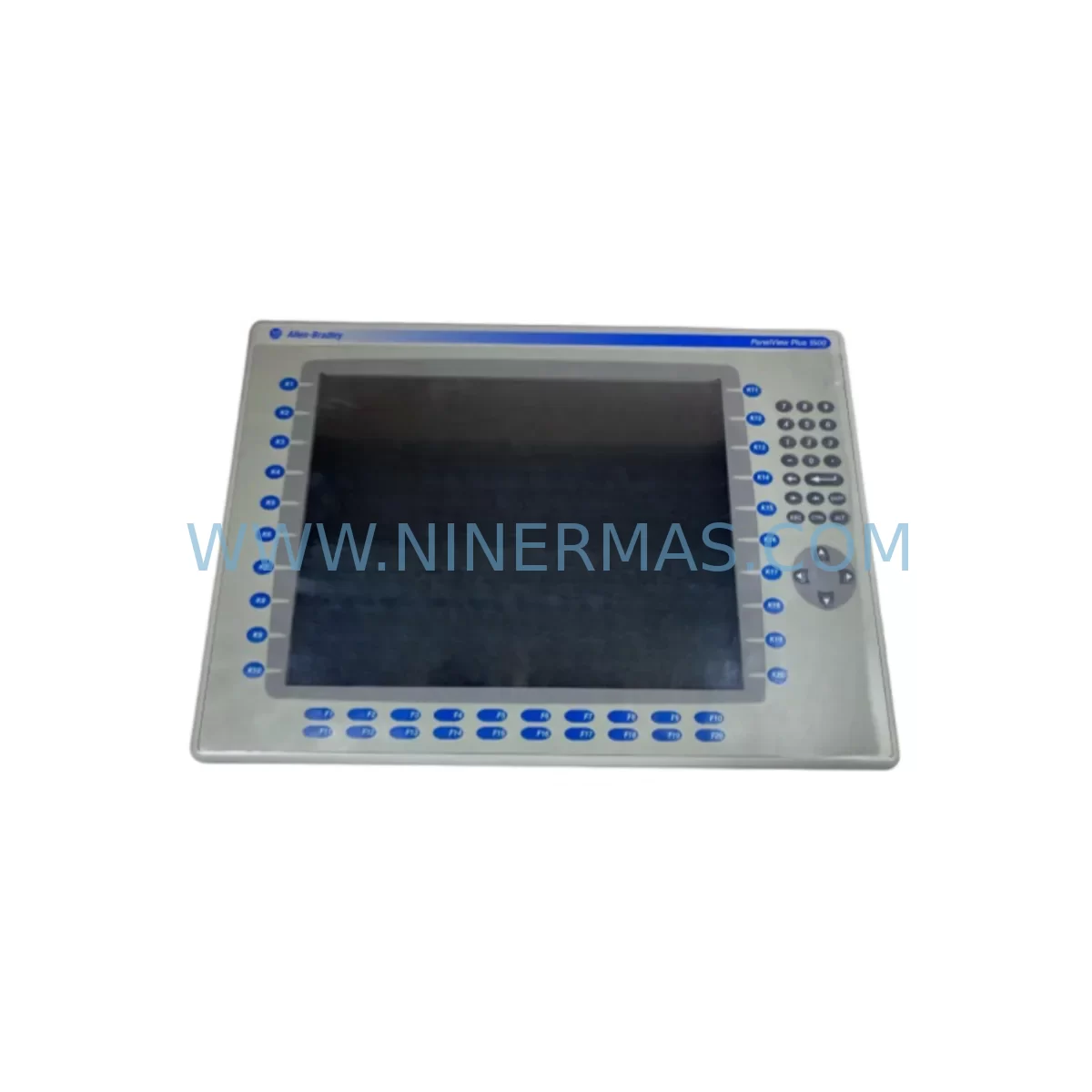

The Allen-Bradley 2711P-K15C4D2 is a 15-inch ruggedized HMI display module from the PanelView Plus 7 series, engineered by Rockwell Automation for demanding industrial environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a strategic spare parts inventory for a critical production cell, the 2711P-K15C4D2 represents one of the most operationally significant components in your control cabinet. Its failure directly impacts operator visibility, process control, and production continuity — making rapid, verified replacement essential.

Maintenance engineers working with Allen-Bradley PanelView Plus 7 platforms understand that HMI downtime is rarely isolated. A failed 2711P-K15C4D2 often signals the need for a broader inspection of the surrounding electrical and communication infrastructure. During replacement, it is best practice to simultaneously inspect the 24VDC power supply feeding the HMI panel, verify the integrity of the EtherNet/IP communication cable connecting the display to the ControlLogix or CompactLogix PLC backplane, and confirm that the associated I/O modules are reporting correctly. Overlooking these adjacent components can result in repeat failures or masked faults that only surface after the new unit is commissioned.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a PanelView Plus 7 installation goes well beyond stocking a single replacement unit. When the 2711P-K15C4D2 is identified as a critical spare, procurement engineers should simultaneously evaluate the broader bill of materials for the control cabinet in which it operates.

The 24VDC panel power supply — commonly a 1606-XLP or equivalent Allen-Bradley power supply module — should be inspected for output voltage stability and ripple, as HMI display anomalies are frequently caused by marginal power quality rather than a failed display itself. Similarly, the EtherNet/IP network switch or managed switch port serving the HMI node should be verified for link integrity and error counters before condemning the display module.

Within the same control cabinet, maintenance teams should inspect the ControlLogix 1756 series I/O modules or CompactLogix 1769 I/O modules for any latched faults that may have contributed to the HMI communication loss. The 1756-EN2T or 1756-EN2TR EtherNet/IP communication module connecting the PLC backplane to the plant network is another component that warrants inspection during any HMI replacement event, as firmware mismatches or port faults on this module can prevent the new 2711P-K15C4D2 from establishing a stable connection.

For facilities operating older Allen-Bradley SLC 500 or PLC-5 systems alongside PanelView Plus 7 terminals, the RS-232 or DH-485 communication cable and associated terminal blocks on the 1747-KE or 1784-KTX interface module should be checked for corrosion, loose terminations, and correct baud rate settings. Signal isolation barriers and surge protection devices on communication lines are often overlooked during routine maintenance but are critical for long-term HMI reliability in electrically noisy environments.

Procurement engineers building a comprehensive spare parts list for a PanelView Plus 7 installation should also consider stocking the 2711P-RN15S replacement display overlay, the 2711P-T15C4D2 touch screen variant for mixed-fleet environments, and the 2711P-B15C4D2 keypad model where operator interface requirements differ. Maintaining a minimum of one replacement unit per production line, combined with a documented commissioning checklist, significantly reduces mean time to repair (MTTR) and supports compliance with planned maintenance intervals.

Site Replacement Workflow

Replacing the 2711P-K15C4D2 on-site follows a structured sequence designed to minimize downtime and ensure system compatibility. Begin by documenting the existing HMI application version and FactoryTalk View ME project file stored on the unit, either via USB backup or network archive, before powering down the panel. This step is critical — failure to back up the application can result in extended downtime while the project file is recovered from the engineering workstation or SCADA server.

Once the replacement unit is installed and powered, verify that the firmware version on the new 2711P-K15C4D2 matches the version required by the FactoryTalk View ME application. Firmware mismatches are a leading cause of post-replacement communication failures and display rendering errors. Rockwell Automation’s FactoryTalk Activation Manager should be used to transfer or reactivate any software licenses associated with the original unit.

After communication is restored, perform a full I/O status check from the HMI operator screen to confirm that all process values are updating correctly and that no communication faults are present on the EtherNet/IP network. Document the replacement event in the site maintenance log, including the serial number of the removed unit, the replacement unit’s serial number, firmware version, and the date of installation. This record supports warranty claims and provides traceability for future maintenance audits.

For facilities managing legacy system life extension programs, the 2711P-K15C4D2 is a direct form-fit-function replacement for earlier PanelView Plus 6 and PanelView Plus 1000 installations where panel cutout dimensions and communication protocols are compatible. Confirming cutout dimensions and backplate mounting hole patterns before ordering eliminates the risk of installation delays on the production floor.

All units supplied by NINERMAS are tested prior to shipment, shipped with protective packaging, and covered by a 12-month warranty against manufacturing defects. Long-term supply agreements are available for customers requiring guaranteed stock availability across multi-year maintenance contracts.
