Allen-Bradley 2711-T10C15 Retrofit-Compatible HMI for Legacy PanelView

Allen-Bradley 2711-T10C15 Retrofit-Compatible HMI for Legacy PanelView 1000 Systems

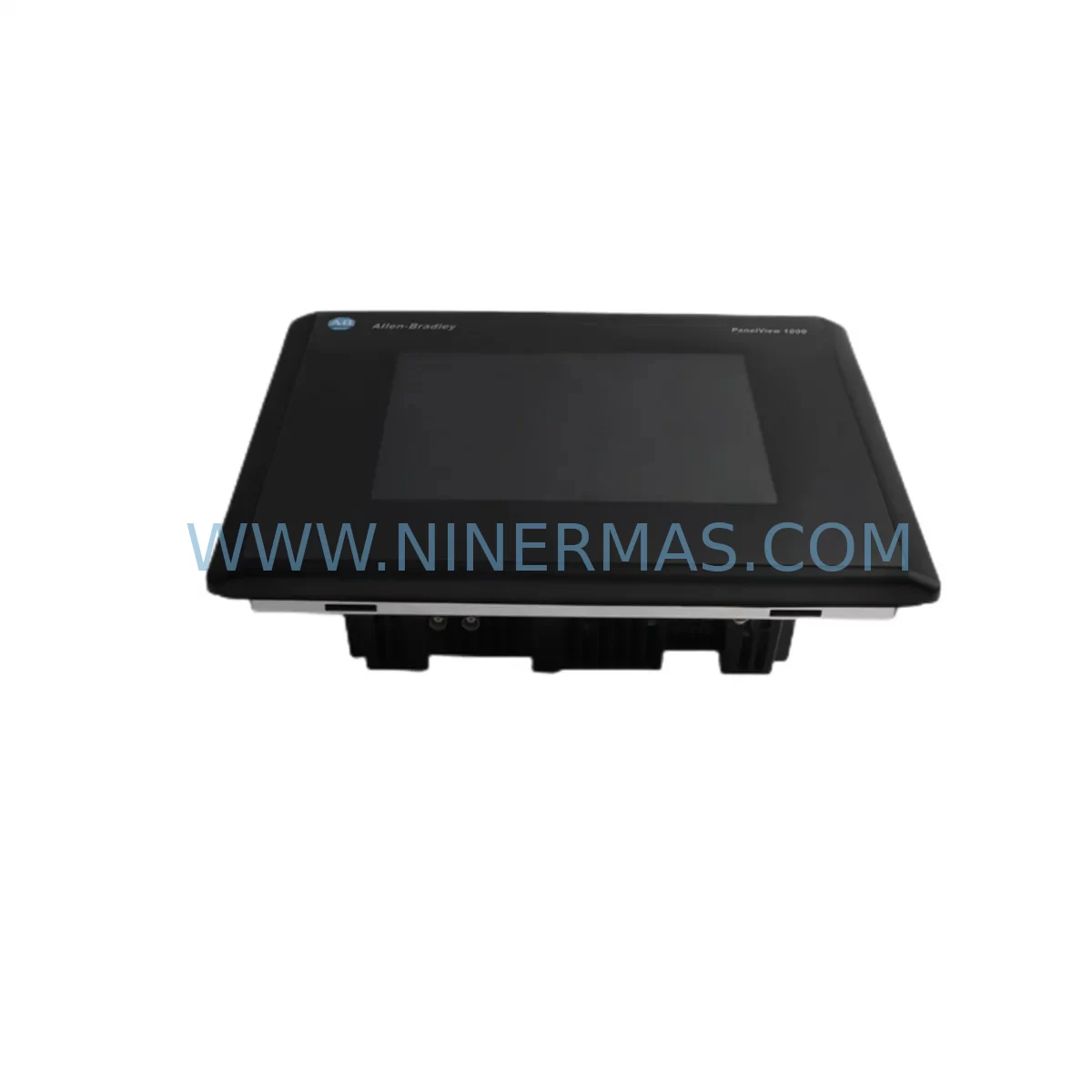

The Allen-Bradley 2711-T10C15 is a 10.4-inch color touch panel operator terminal from the PanelView 1000 series, designed for direct-mount integration into legacy control cabinets running Rockwell Automation PLC platforms. As original production of this model has been discontinued, NINERMAS supplies tested, retrofit-ready units to support ongoing plant operations, scheduled upgrades, and emergency spare part replacement without forcing a full system overhaul.

Whether your facility is managing a phased migration from an aging DH-485 or DH+ network to EtherNet/IP, or simply needs a verified drop-in replacement to restore HMI functionality on an existing control panel, the 2711-T10C15 provides a proven path to continuity. Our units are pre-tested against factory specifications and shipped with a 12-month warranty covering hardware defects and operational failures under normal industrial use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 2711-T10C15 into an existing control system requires careful pre-installation planning to avoid extended downtime and configuration errors. The most common retrofit scenario involves replacing a failed or end-of-life PanelView 1000 terminal on a production line controlled by a Rockwell SLC 500 or PLC-5 processor communicating over a DH-485 network.

Before removing the existing terminal, engineers should export the current application from the original unit using PanelBuilder 1400e if the unit is still partially functional, or retrieve the backup .pba file from the site’s document control system. This application file contains all screen layouts, tag bindings, alarm configurations, and communication settings that must be preserved or adapted for the replacement unit.

On the hardware side, confirm that the existing 1606-XLP power supply or equivalent 24VDC source can sustain the current draw of the replacement terminal alongside other panel loads such as the 1756-PA72 power supply module feeding the ControlLogix rack, any 1734 POINT I/O modules, and auxiliary relay outputs. Undersized power capacity is a leading cause of intermittent HMI faults after retrofit.

The communication link between the 2711-T10C15 and the host PLC is established via the DH-485 port using a 1747-PIC or 1747-AIC link coupler, or directly via the RS-232 DF1 port depending on the network topology. If the site is in the process of migrating from DH-485 to EtherNet/IP as part of a broader network modernization, a 1761-NET-ENI serial-to-Ethernet adapter can bridge the legacy terminal to the new network infrastructure without requiring an immediate HMI hardware upgrade.

For facilities running mixed-generation control architectures — for example, a ControlLogix L61 processor alongside legacy SLC 5/04 nodes — the 2711-T10C15 can be configured to communicate with either platform, provided the correct driver and node address are set in the terminal’s communication configuration menu. Node address conflicts with existing 1747-SDN DeviceNet scanner modules or other network devices must be resolved before commissioning.

Panel cutout dimensions should be verified against the 2711-T10C15 installation drawing. The standard cutout for PanelView 1000 terminals is 285mm × 228mm. If the existing opening was cut for an earlier PanelView 900 or a third-party HMI, a panel adapter plate may be required. Confirm NEMA 4/12 gasket condition and replace if the seal shows compression fatigue.

Where the retrofit involves upgrading from a monochrome PanelView 550 or PanelView 600 to the 2711-T10C15 color display, screen layouts will require redesign in PanelBuilder 1400e to take advantage of the larger display area and color alarm differentiation. Tag names and data file addresses from the original application can typically be reused without modification if the host PLC program has not changed.

Downtime Control During System Migration

Minimizing production downtime during an HMI replacement is a primary concern for maintenance teams operating in continuous-process or high-throughput manufacturing environments. A structured replacement procedure for the 2711-T10C15 typically requires between two and four hours of planned downtime when all preparatory steps have been completed in advance.

The recommended sequence begins with a full backup of the existing HMI application and PLC program, including any RSLogix 500 or RSLogix 5 project files stored on the engineering workstation. The PLC program should not be modified during the HMI replacement unless a known compatibility issue requires a tag database update. Keeping the controller program unchanged eliminates one variable from the commissioning process and reduces the risk of introducing new faults.

Once the replacement 2711-T10C15 is mounted and wired, the restored application file is downloaded via the programming cable connected to the terminal’s serial port. After download, perform a full screen-by-screen functional check against the original HMI specification, verifying that all analog displays, discrete status indicators, setpoint entry fields, and alarm pages respond correctly to live PLC data. Any discrepancies in tag binding or communication node addressing should be resolved before returning the system to automatic mode.

For sites where even brief unplanned downtime carries significant cost, NINERMAS recommends maintaining a pre-configured spare 2711-T10C15 unit with the current application loaded, ready for immediate swap. This hot-spare strategy reduces emergency replacement time to under 30 minutes and is particularly effective in food processing, pharmaceutical, and utilities applications where regulatory requirements mandate rapid system restoration.

Retrofit Support FAQ

Q: Is the 2711-T10C15 a direct drop-in replacement for other PanelView 1000 models such as the 2711-T10G8 or 2711-T10C8?
A: The 2711-T10C15 shares the same form factor and panel cutout dimensions as other PanelView 1000 terminals, making physical installation straightforward. However, communication port configuration and application compatibility should be verified. The 2711-T10C8 uses a different backlight type; confirm display specifications match your application requirements before ordering.

Q: What pre-shipment testing does NINERMAS perform on the 2711-T10C15?
A: Each unit undergoes power-on functional testing, display verification, touchscreen calibration check, and communication port continuity testing before shipment. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery.

Q: Can the 2711-T10C15 communicate with a ControlLogix or CompactLogix PLC over EtherNet/IP?
A: The 2711-T10C15 natively supports DH-485, DH+, and RS-232 DF1 protocols. Direct EtherNet/IP communication requires an external protocol converter such as the 1761-NET-ENI. For new installations requiring native EtherNet/IP HMI connectivity, the PanelView Plus 6 (2711P-T10C21D8S) is the recommended upgrade path.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the 2711-T10C15 for immediate dispatch. Standard orders ship within 1–3 business days. For bulk orders or urgent requirements, contact our sales team directly to confirm current stock levels and expedited shipping options.
