Allen-Bradley 2711-K3A17L1 Safety-Reliable HMI for Critical Control

Allen-Bradley 2711-K3A17L1 Safety-Reliable HMI Terminal for Critical Industrial Control Sites

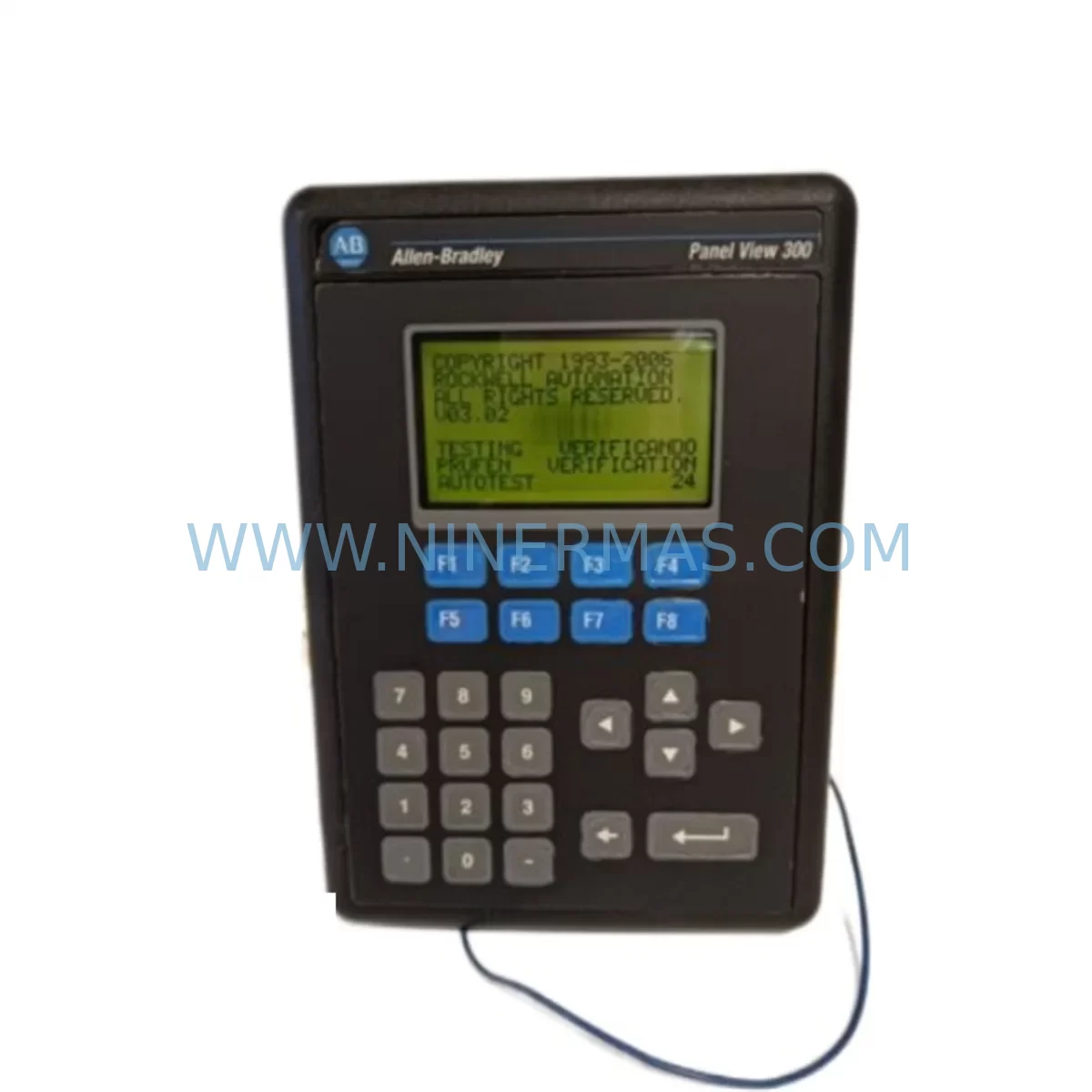

The Allen-Bradley 2711-K3A17L1 is a compact, rugged operator interface terminal from the PanelView 300 Series, engineered for demanding industrial environments where control reliability and operator safety are non-negotiable. Designed to integrate seamlessly into Rockwell Automation control architectures, this HMI terminal delivers stable, accurate machine visualization and operator input capabilities across continuous production lines, critical interlock circuits, and high-load control panels. Whether deployed in petrochemical processing, power generation, mining operations, water treatment facilities, or heavy manufacturing, the 2711-K3A17L1 provides the dependable human-machine interface that keeps critical processes running safely and without interruption.

At NINERMAS, every 2711-K3A17L1 unit undergoes rigorous pre-shipment functional testing to verify display integrity, keypad response, communication port operation, and power input stability before dispatch. Backed by a 12-month warranty, long-term inventory availability, and dedicated technical support, this unit is a trusted choice for maintenance engineers, system integrators, and procurement teams managing spare parts for safety-critical control systems.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet installations, the Allen-Bradley 2711-K3A17L1 serves as the primary operator interface node, enabling real-time process visualization and direct command input without reliance on remote SCADA systems. This local control capability is essential for reducing response time during fault conditions and minimizing the risk of unplanned shutdowns caused by communication failures between the HMI layer and the controller.

When paired with an Allen-Bradley SLC 5/04 processor (1747-L541) or a MicroLogix 1100 (1763-L16BWA), the 2711-K3A17L1 forms a tightly integrated control loop that maintains deterministic scan times even under high electromagnetic interference conditions common in motor control centers and variable frequency drive (VFD) enclosures. The DH-485 communication link between the HMI and the PLC is inherently noise-tolerant, reducing the risk of signal drift and spurious operator alarms that can trigger unnecessary process interruptions.

For power supply stability within the same control cabinet, engineers frequently deploy the Allen-Bradley 1606-XLP power supply series alongside the 2711-K3A17L1. These 24V DC regulated power supplies provide clean, stable voltage with built-in overload and short-circuit protection, directly reducing the risk of HMI brownout or display lockup during power grid fluctuations — a common failure mode in remote industrial sites. Complementing this, Phoenix Contact TRABTECH surge protection devices or equivalent DIN-rail mounted surge arrestors are installed on the 24V DC bus to absorb transient voltage spikes generated by large inductive loads such as motor starters and solenoid valves.

In safety interlock circuits, the 2711-K3A17L1 is often integrated with Allen-Bradley 440R GuardMaster safety relays and 1734 POINT Guard I/O modules, enabling the operator interface to display real-time safety relay status and interlock bypass conditions. This visibility is critical in facilities operating under IEC 62061 or ISO 13849 functional safety requirements, where operators must confirm interlock states before initiating process restarts. The combination of the 2711-K3A17L1 with Allen-Bradley 800F illuminated push buttons and 855T stack lights on the panel door creates a complete local safety annunciation system that reduces the risk of operator error during abnormal process conditions.

For communication architecture integrity, the RS-232 port on the 2711-K3A17L1 supports connection to Allen-Bradley 1761-NET-AIC Advanced Interface Converters, enabling multi-drop DH-485 network topologies across multiple operator stations without signal degradation. In environments with heavy cable runs through conduit shared with power wiring, the use of shielded twisted-pair cabling and proper grounding of the AIC converter chassis is essential to prevent communication anomalies that could cause HMI screen freezes or false fault displays.

Critical Industrial Safety Applications

The Allen-Bradley 2711-K3A17L1 has established a proven track record across the most demanding industrial safety applications globally.

In petrochemical and refinery operations, this HMI terminal is deployed at local control panels for pump stations, compressor skids, and heat exchanger bypass systems. Its IP65-rated front panel resists hydrocarbon vapors, cleaning solvents, and high-pressure wash-down procedures, while its sealed keypad prevents ingress of process fluids that could cause short circuits or erratic operator inputs. The ability to display real-time process values — flow rates, pressures, temperatures — directly at the field panel reduces the need for operators to return to the central control room for routine monitoring, improving both safety and operational efficiency.

In power generation and electrical substation environments, the 2711-K3A17L1 is used to interface with generator control systems, automatic transfer switch (ATS) panels, and load shedding controllers. Its EMI immunity ensures stable display and keypad operation even in proximity to high-voltage switchgear, bus bars, and large power transformers that generate intense electromagnetic fields. Operators rely on this terminal to confirm generator synchronization status and interlock conditions before closing breakers — a safety-critical step where display accuracy is paramount.

In mining and mineral processing facilities, the terminal operates reliably in environments characterized by heavy dust loading, mechanical vibration from crushers and conveyors, and wide ambient temperature swings between outdoor and underground installations. The 2711-K3A17L1’s robust construction and wide operating temperature range make it suitable for conveyor belt control panels, crusher interlock stations, and slurry pump control cabinets where standard commercial HMI equipment would fail prematurely.

In water and wastewater treatment plants, the terminal is used at lift station control panels, chemical dosing skids, and aeration blower control cabinets. Its resistance to high ambient humidity and condensation — common in wet well environments — ensures continuous operation without the display failures or keypad malfunctions that can lead to chemical overdosing or pump cavitation events.

In metallurgical and steel mill applications, the 2711-K3A17L1 withstands the radiant heat, airborne metallic dust, and intense vibration generated by rolling mills, electric arc furnaces, and continuous casting lines. Local HMI visibility at the machine level allows operators to respond immediately to process deviations without waiting for SCADA system updates, reducing the risk of product defects and equipment damage caused by delayed operator response.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Allen-Bradley 2711-K3A17L1?
The 12-month warranty covers all functional defects in the display, keypad, communication ports, and power input circuitry under normal industrial operating conditions. If a unit fails within the warranty period due to a manufacturing or component defect, NINERMAS will provide a replacement unit or full repair at no additional cost. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each 2711-K3A17L1 unit?
Every unit dispatched by NINERMAS undergoes a comprehensive functional test protocol that includes: power-on display verification, full keypad actuation test, DH-485 and RS-232 communication port continuity and signal integrity check, and visual inspection for physical damage, connector integrity, and label legibility. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained for traceability.

Q3: Is the 2711-K3A17L1 compatible with my existing SLC 500 or MicroLogix control system?
Yes. The 2711-K3A17L1 is fully compatible with Allen-Bradley SLC 500 series processors (including 1747-L20, 1747-L30, 1747-L40, and 1747-L541) and MicroLogix 1000, 1100, and 1200 series controllers via DH-485 or RS-232 communication. Existing PanelView 300 application files (.PVA format) created with PanelBuilder 1400e software are directly transferable to replacement units without reprogramming, minimizing downtime during spare part replacement.

Q4: Can NINERMAS guarantee long-term supply availability for the 2711-K3A17L1 as a critical spare part?
Yes. NINERMAS maintains dedicated inventory of the 2711-K3A17L1 and other PanelView 300 series components to support long-term maintenance programs for facilities that cannot migrate to newer HMI platforms due to legacy system constraints or capital expenditure limitations. We provide supply commitment documentation upon request for customers managing multi-year maintenance contracts or critical spare parts programs. Contact sale@ninermas.com for inventory reservation and bulk pricing inquiries.
