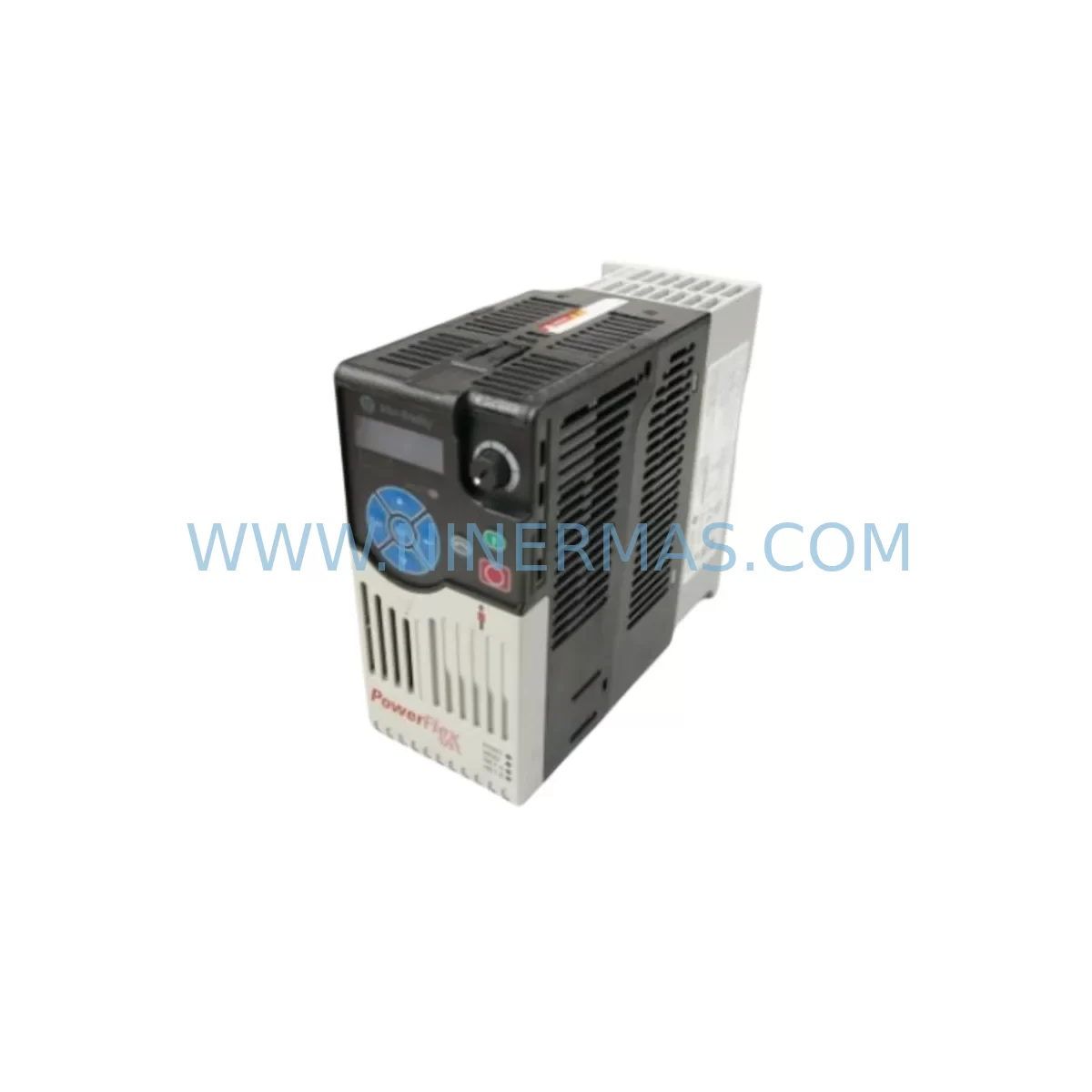

The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 series AC variable frequency drive rated at 6.0A output current, designed for 240V AC three-phase motor control applications in demanding industrial environments. As a service-ready spare part stocked by NINERMAS, this unit is sourced, inspected, and dispatched to support rapid downtime recovery, planned maintenance cycles, and long-term spare parts inventory programs across manufacturing, process automation, and material handling facilities worldwide.

Whether you are managing a scheduled annual overhaul, responding to an unplanned drive fault, or building a critical-spare inventory for a legacy PowerFlex 525 installation, the 25B-D6P0N114 provides a direct, compatible replacement that restores production continuity without requiring system re-engineering. Each unit is tested prior to shipment and backed by a 12-month warranty, giving procurement and maintenance engineers confidence in both quality and supply chain reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 25B-D6P0N114 in a PowerFlex 525 installation, a thorough site inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should begin by verifying the integrity of the 24VDC control power supply feeding the drive’s logic circuit — a degraded or undersized power supply is a common root cause of nuisance drive faults and premature component failure. The 25B-D6P0N114’s embedded EtherNet/IP port should be tested against the network switch or managed Ethernet module to confirm communication is re-established after replacement.

Inspect all motor power cables and control wiring terminations at the drive’s input and output terminals. Loose or corroded terminal connections on the U, V, W output phases can cause overcurrent trips immediately after commissioning a replacement drive. Terminal blocks and DIN rail mounting hardware within the same cabinet section should be checked for mechanical integrity and re-torqued to specification.

For installations where the 25B-D6P0N114 operates within a safety-rated circuit, the associated safety relay or safety I/O module — such as a Guardmaster 440C or a 1791DS safety I/O block — must be functionally tested after drive replacement to confirm the safety loop remains intact. If the drive is connected to a CompactLogix or MicroLogix PLC via EtherNet/IP, verify that the drive’s IP address, node configuration, and Add-On Profile (AOP) parameters are correctly restored from the backup configuration file.

Procurement engineers building a comprehensive spare parts kit for PowerFlex 525 installations should also consider stocking the following complementary components: the 25-RF027-AL EMC filter for line-side noise suppression, the 25-PM1-B1C dynamic braking module for applications with high-inertia loads, and the 1203-USB DeviceNet/USB converter for legacy parameter backup workflows. For cabinet-level protection, a set of class J semiconductor fuses rated for the drive’s input current, along with a surge protection device (SPD) on the incoming AC supply, are strongly recommended as part of any annual maintenance kit.

Signal integrity between the drive’s analog I/O and the process controller should be verified using a loop calibrator. If 4–20 mA speed reference signals show drift or noise, a signal isolator or signal conditioner inserted between the PLC analog output module and the drive’s AI terminal can resolve interference issues without requiring rewiring. HMI panels connected to the same network segment — such as a PanelView Plus 7 or PanelView Component — should be checked for communication timeout alarms following drive replacement, as a new drive may require a brief network re-discovery cycle before the HMI tag database reconnects cleanly.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the incoming AC supply to the drive using the upstream disconnect or circuit breaker. Apply LOTO per site safety procedures. Verify zero voltage at the drive’s L1, L2, L3 input terminals using a calibrated multimeter before opening the cabinet door.

Step 2 — Parameter Backup: If the existing drive is still partially functional, connect via the 25-USB-A1 USB adapter or EtherNet/IP and export the full parameter set using Connected Components Workbench (CCW) or Studio 5000. Store the backup file with the equipment asset record.

Step 3 — Physical Removal: Disconnect all power and control wiring, labelling each conductor before removal. Unclip the drive from the DIN rail or remove panel-mount fasteners. Note the orientation of the keypad module (25-HIM-A5 or 25-HIM-C5S) if fitted — it transfers directly to the replacement unit.

Step 4 — Replacement Installation: Mount the 25B-D6P0N114 replacement unit. Reconnect all wiring per the original schematic, verifying phase rotation on the output terminals. Re-seat the HIM keypad module and any option cards (e.g., 25-COMM-E2P EtherNet/IP adapter if applicable to your variant).

Step 5 — Parameter Restore & Commissioning: Restore the saved parameter file via CCW or manually re-enter critical parameters (motor nameplate data, ramp times, speed references, I/O configuration). Perform a no-load test run before reconnecting the motor load. Confirm EtherNet/IP communication with the PLC and HMI before returning the drive to automatic control.

Step 6 — Documentation: Update the equipment maintenance log with the replacement date, new unit serial number, and technician sign-off. Schedule the next preventive maintenance inspection per the site’s PM calendar.

This structured workflow minimises unplanned downtime, preserves system compatibility, and ensures the replacement 25B-D6P0N114 is commissioned safely and correctly on the first attempt — reducing the risk of a second callout.

Spare Parts Support FAQ

Q1: Is the 25B-D6P0N114 supplied by NINERMAS an original Allen-Bradley unit?
Yes. NINERMAS supplies only original Allen-Bradley / Rockwell Automation components. The 25B-D6P0N114 is sourced through authorised industrial supply channels and is not a counterfeit, clone, or remanufactured substitute. Each unit carries the original manufacturer’s labelling and is traceable to its production batch.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded at NINERMAS’s discretion. The warranty does not cover damage caused by incorrect installation, overvoltage events, or operation outside the published electrical ratings of the 25B-D6P0N114.

Q3: Can I use the 25B-D6P0N114 as a direct drop-in replacement for other PowerFlex 525 variants?
The 25B-D6P0N114 is a specific variant within the PowerFlex 525 family, defined by its 240V input, 6.0A output rating, and embedded EtherNet/IP communication. It is a direct replacement for units with the same catalogue number. Cross-variant substitution (e.g., replacing a 25B-D4P0N114 or a 25B-D6P0N104) requires careful verification of voltage rating, current rating, and communication suffix before installation. NINERMAS technical support can assist with compatibility confirmation prior to order.

Q4: Does NINERMAS support long-term supply agreements for critical spare parts?
Yes. NINERMAS offers long-term supply and stock-commitment programs for maintenance engineers and procurement teams managing legacy PowerFlex 525 installations. If the 25B-D6P0N114 is a critical spare in your facility’s maintenance plan, contact our team to discuss reserved stock arrangements, scheduled delivery programs, and volume pricing. This ensures supply continuity even as the product approaches end-of-life in the Rockwell Automation catalogue.
