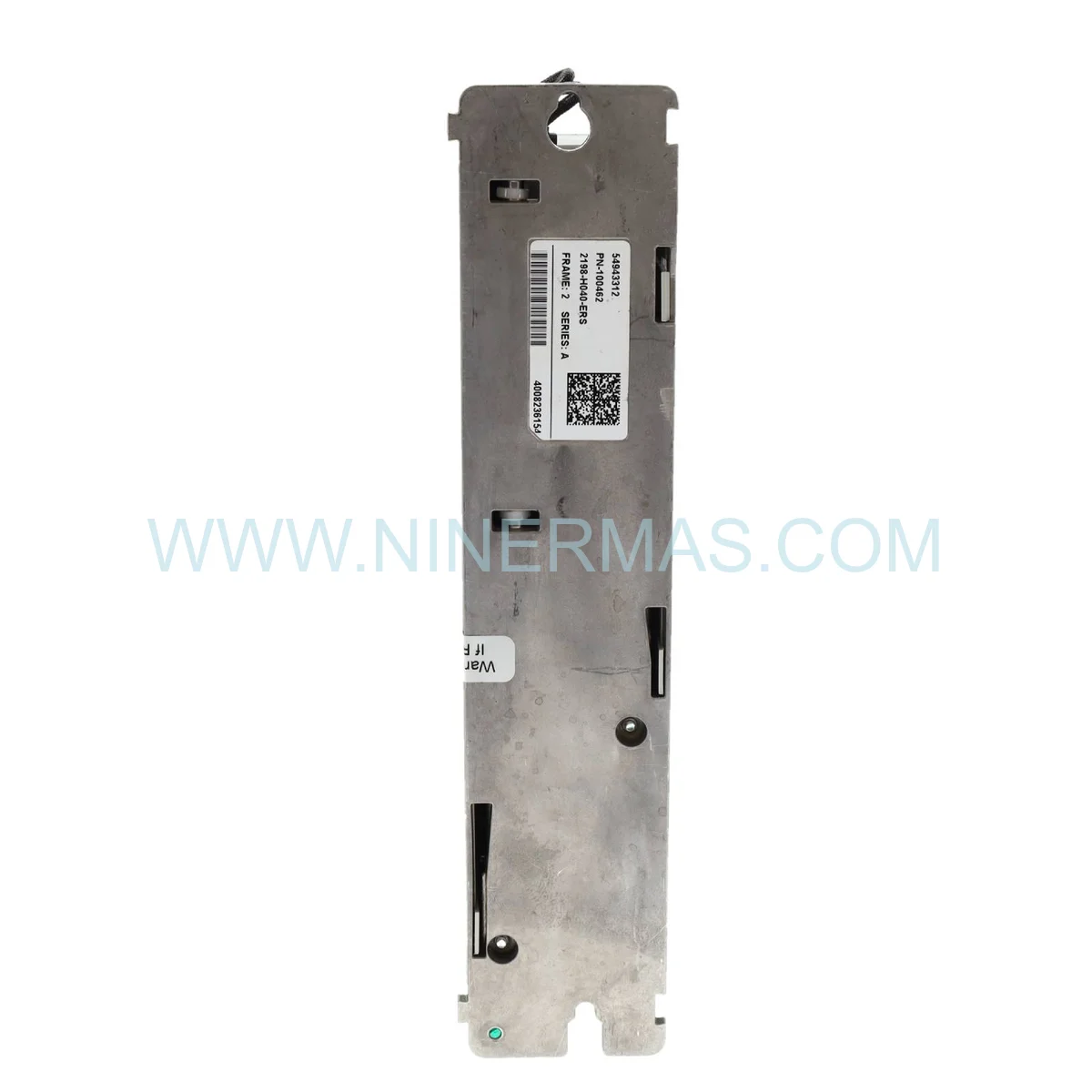

Allen-Bradley 2198-H040-ER | Kinetix 5500 4.0kW EtherNet/IP Servo Drive

Allen-Bradley 2198-H040-ER – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 2198-H040-ER represents a cornerstone asset in maintaining the operational integrity of mission-critical automation systems. As a certified single-axis servo drive within the Kinetix 5500 platform, the 2198-H040-ER delivers a 4.0kW continuous power output with SIL 2 / PLd-rated Safe Torque-Off (STO) functionality — a non-negotiable requirement for facilities operating under IEC 62061 and ISO 13849-1 safety frameworks. Its role in preserving system integrity extends beyond mere motion control; it functions as a compliance anchor within the broader safety architecture.

Within the context of Industry 4.0 and smart manufacturing ecosystems, the 2198-H040-ER demonstrates long-term architectural compatibility through its native EtherNet/IP interface with CIP Motion technology. This enables deterministic real-time communication with Allen-Bradley CompactLogix and ControlLogix PACs, supporting scalable, future-proof automation topologies including Device Level Ring (DLR) redundancy. Asset Optimization is achieved through the drive’s advanced auto-tuning algorithms, which minimize commissioning cycles and reduce total lifecycle cost.

As a factory-sealed, Original Documentation-backed OEM component, the 2198-H040-ER carries the full weight of Rockwell Automation’s quality control heritage. Procurement of certified original parts is the single most effective strategy for preserving System Performance and avoiding the compliance risks associated with counterfeit or refurbished alternatives in regulated industrial environments.

Compliance & Safety Benchmarks

✅ SIL 2 / PLd Certified: Integrated Safe Torque-Off (STO) function meets IEC 62061 and ISO 13849-1 requirements for functional machine safety.

✅ CE & UL Listed: Fully compliant with European Machinery Directive and North American electrical safety standards, enabling global deployment without re-certification.

Conformal Coating Option: Available for harsh environments with elevated humidity, particulate contamination, or chemical exposure — extending operational lifespan in non-standard industrial conditions.

✅ Standard Adherence: Designed and tested in accordance with IEC 61800-5-1 (adjustable speed electrical power drive systems) and NEMA ICS standards for industrial control equipment.

Firmware Integrity: All units ship with factory-validated firmware versions, ensuring compatibility with Studio 5000 Logix Designer and eliminating version-mismatch compliance risks.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: The 2198-H040-ER’s sub-millisecond torque response and high-resolution feedback support (incremental, absolute encoder, resolver) make it indispensable for wafer handling robots and precision stage positioning systems, where micron-level accuracy is a process compliance requirement.

Pharmaceutical & Life Sciences: In filling, capping, and labeling lines governed by FDA 21 CFR Part 11 and GMP standards, this drive’s deterministic EtherNet/IP communication and integrated safety functions support validated process control architectures, reducing audit risk and ensuring batch traceability.

Chemical & Petrochemical Processing: For pump control, agitator drives, and conveyor systems in ATEX-adjacent environments, the drive’s robust thermal management (0°C to 50°C operating range) and optional conformal coating provide the durability required for continuous 24/7 operation under demanding ambient conditions.

Automotive & Tier-1 Suppliers: Synchronized multi-axis applications such as transfer lines, robotic welding cells, and press automation benefit from the drive’s electronic gearing and camming capabilities, enabling Operational Excellence through reduced mechanical complexity and improved Overall Equipment Effectiveness (OEE).

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 2198-H040-ER unit is dispatched in its original, unopened manufacturer packaging with full Original Documentation — including installation manual, compliance declarations, and firmware release notes. This preserves the component’s warranty validity and ensures traceability for regulated industry audits.

Rapid Global Logistics: Leveraging established freight partnerships, we provide expedited international shipping with full export documentation, HS code classification, and customs compliance support. Most in-stock orders are processed within 1-2 business days, with estimated delivery timelines provided at order confirmation.

12-Month Quality Guarantee for Legacy Systems: We extend a 12-Month Quality Guarantee covering manufacturing defects and performance non-conformance. This is particularly valuable for facilities maintaining legacy Kinetix 5500 infrastructure, where sourcing certified replacement components with documented warranty coverage is critical to maintaining Safety Integrity and regulatory compliance.

Technical Support Access: Our engineering support team provides pre-sales compatibility consultation, installation guidance, and post-sales troubleshooting assistance — ensuring that the 2198-H040-ER is correctly integrated into your specific control architecture from day one.

Expert Technical FAQ

Q1: Does the 2198-H040-ER carry current SIL 2 certification, and which safety standard governs its STO function?
A: Yes. The 2198-H040-ER’s integrated Safe Torque-Off (STO) function is certified to SIL 2 per IEC 62061 and Performance Level d (PLd) per ISO 13849-1. This certification is documented in the Rockwell Automation Safety Reference Manual (publication 2198-RM002), which is included with all factory-sealed units and available from Rockwell’s official literature library.

Q2: What firmware version is pre-installed, and how does it affect compatibility with Studio 5000 Logix Designer?
A: Units are shipped with the factory-default firmware version as released by Rockwell Automation at the time of manufacture. Firmware version compatibility with Studio 5000 is governed by the Kinetix 5500 Firmware Compatibility Matrix. We recommend verifying the target controller’s AOP (Add-On Profile) version prior to installation to ensure seamless Compliance Standards adherence during commissioning.

Q3: What are the environmental operating limits, and is the drive suitable for high-humidity or chemically aggressive atmospheres?
A: The standard 2198-H040-ER is rated for 0°C to 50°C ambient temperature with a maximum relative humidity of 95% non-condensing. For environments with elevated chemical exposure or condensation risk, Rockwell Automation offers a conformal-coated variant. Installations in ATEX Zone 2 or equivalent classified areas require additional enclosure-level protection measures per local regulatory requirements.

Q4: Can the 2198-H040-ER be integrated into an existing Kinetix 6000 or Kinetix 6500 system without a full architecture overhaul?
A: Direct drop-in replacement is not supported due to fundamental differences in communication protocol — the Kinetix 5500 utilizes EtherNet/IP/CIP Motion, whereas the Kinetix 6000 uses SERCOS III. Migration requires controller firmware updates, network infrastructure changes, and re-validation of the safety architecture. Rockwell Automation’s Migration Tool within Studio 5000 provides structured guidance for this Lifecycle Management transition.

Q5: How does the drive’s auto-tuning function contribute to long-term Asset Optimization and reduced maintenance intervals?
A: The 2198-H040-ER’s adaptive auto-tuning algorithm dynamically characterizes the connected motor-load system and calculates optimal gain parameters, minimizing mechanical resonance and reducing wear on drive train components. This directly contributes to extended Mean Time Between Failures (MTBF) and supports predictive maintenance strategies aligned with ISO 55000 asset management principles.

Q6: What documentation is provided with the unit to support installation compliance and regulatory audit requirements?
A: Each factory-sealed unit is accompanied by the original Rockwell Automation product documentation package, including the Installation Instructions sheet, Declaration of Conformity (CE), UL listing evidence, and applicable safety certification references. This Original Documentation package is essential for facilities subject to FDA, GMP, or ISO 9001 quality management system audits.
