Allen-Bradley 2094-BC07-M05-S SER C Safe Servo Drive Module

Allen-Bradley 2094-BC07-M05-S SER C Safe Servo Drive Module: Safety Control and Critical Industrial Site Reliability

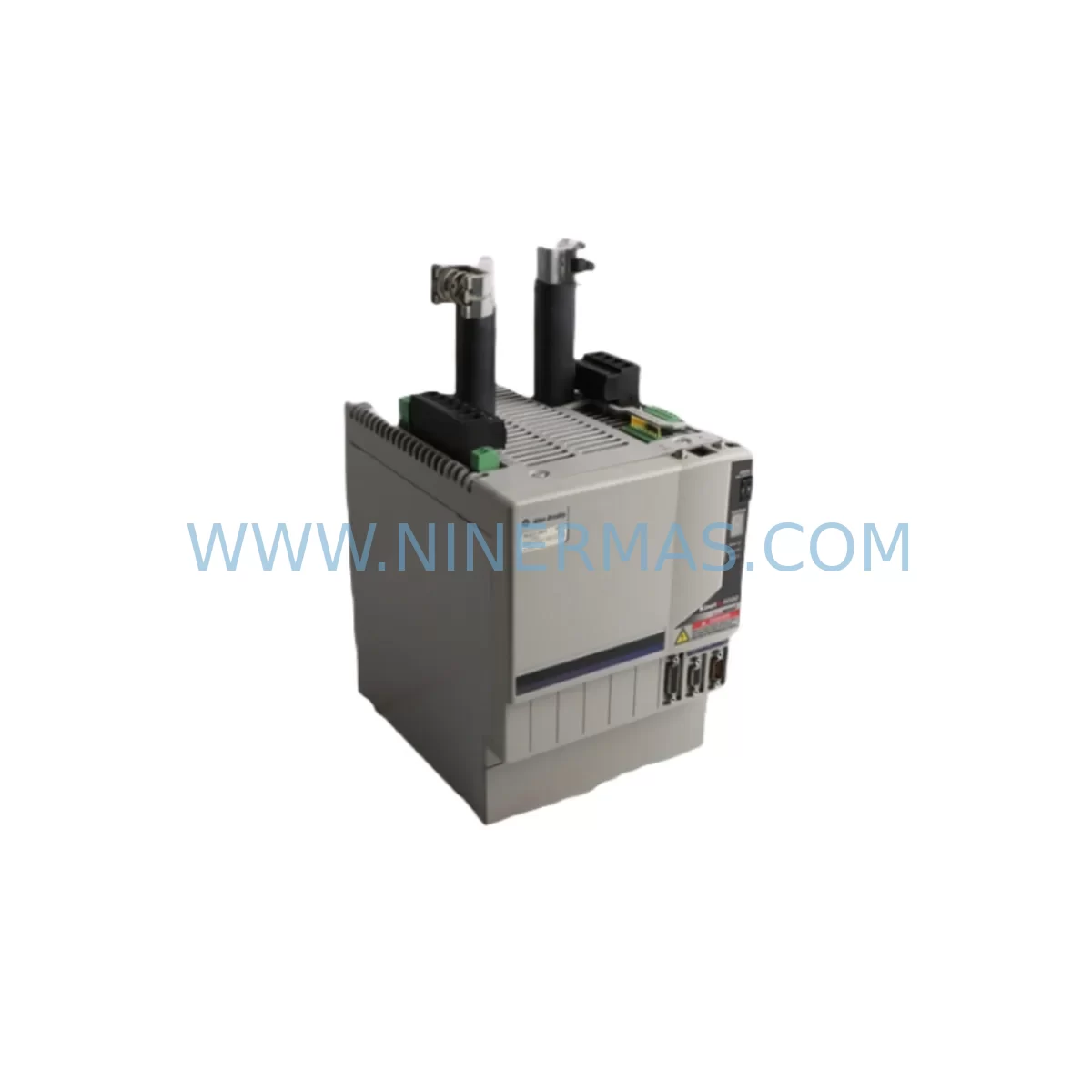

The Allen-Bradley 2094-BC07-M05-S SER C is a Kinetix 6000 multi-axis servo drive power module engineered for demanding industrial environments where control loop integrity and uninterrupted machine operation are non-negotiable. Designed by Rockwell Automation under the Allen-Bradley brand, this Series C power rail module delivers stable DC bus power distribution across multi-axis servo configurations, making it a cornerstone component in safety-critical motion control architectures found in continuous manufacturing, heavy process industries, and hazardous-duty installations.

At NINERMAS, every 2094-BC07-M05-S SER C unit is sourced as a genuine original spare, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring that your replacement or expansion project proceeds without compromise to site safety or production continuity.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet designs, the 2094-BC07-M05-S SER C functions as the shared DC bus backbone for Kinetix 6000 axis modules such as the 2094-AM01 and 2094-AM02, distributing regulated bus power across multiple servo axes simultaneously. This shared-bus topology inherently reduces the number of independent rectifier stages in the cabinet, lowering the probability of cascading power failures that could trigger unplanned machine stops or unsafe motion states.

To maintain safe and stable operation across the full drive system, the 2094-BC07-M05-S SER C is typically paired with a 2094-BL02 bus bar link kit, which provides the mechanical and electrical interconnection between the integrated axis module (IAM) and expansion axis modules on the power rail. Proper torque and seating of these bus connections is critical to preventing intermittent contact faults that manifest as DC bus undervoltage trips — a leading cause of nuisance shutdowns in servo-intensive lines.

On the power input side, upstream protection using Allen-Bradley 140M motor protection circuit breakers or equivalent IEC Type E coordination devices ensures that fault currents are interrupted before they can propagate into the servo bus. Surge protection devices rated for the incoming AC supply, such as those in the 1783 or third-party DIN-rail SPD families, are recommended at the panel entry point to guard against transient overvoltage events from nearby heavy switching loads or lightning-induced surges on long cable runs.

For motion feedback integrity, the 2094-BC07-M05-S SER C operates in conjunction with 2090-series feedback cables and Kinetix-compatible encoder modules. Signal degradation in feedback loops — caused by cable routing near high-current conductors, inadequate shielding termination, or connector corrosion in humid environments — is a primary source of position drift and uncommanded motion faults. Specifying double-shielded 2090-XXNFMF feedback cables and ensuring proper shield grounding at the drive end eliminates the majority of EMI-induced feedback anomalies.

In installations where the Kinetix 6000 system interfaces with a ControlLogix or CompactLogix PLC backplane via a 1756-M08SE or 1756-M16SE SERCOS interface module, network synchronization integrity becomes a safety-relevant parameter. Loss of SERCOS ring continuity causes all axes to enter a controlled stop state — a designed-in safety behavior, but one that must be accounted for in the machine’s safety function analysis. Redundant fiber ring topologies and regular inspection of SERCOS fiber connectors for contamination or bend-radius violations are standard preventive measures in high-availability servo systems.

Thermal management within the control cabinet directly affects the long-term reliability of the 2094-BC07-M05-S SER C. Adequate cabinet ventilation, properly sized cooling units, and thermal barriers between heat-generating drive components and temperature-sensitive signal wiring are essential. In foundry, cement, or outdoor enclosure applications where ambient temperatures approach the module’s upper derate threshold, supplemental forced-air cooling or heat exchanger units maintain junction temperatures within safe operating limits, preventing thermally induced derating that reduces available torque and increases fault trip frequency.

Critical Industrial Safety Applications

The 2094-BC07-M05-S SER C Kinetix 6000 power module is deployed across a broad spectrum of safety-critical and continuous-process industrial sites:

Petrochemical and Refinery Plants: In compressor train control and reactor agitator drives, servo motion accuracy and bus stability are directly linked to process safety. The Kinetix 6000 platform’s deterministic SERCOS communication and integrated safe-torque-off (STO) capability — when combined with a GuardLogix safety controller — supports SIL 2 machine safety functions without external safety relays, reducing wiring complexity and potential failure points in the safety circuit.

Electric Power Generation and Transmission: Turbine governor actuator test rigs, valve positioner calibration systems, and generator excitation control benches use Kinetix 6000 servo drives for their precise torque and velocity control. The 2094-BC07-M05-S SER C’s regulated DC bus ensures that transient load changes on one axis do not induce voltage disturbances on adjacent axes — a critical requirement in power plant auxiliary systems where simultaneous multi-axis motion is common.

Mining and Mineral Processing: Conveyor positioning systems, crusher feed control, and flotation cell agitator drives in underground and surface mining operations demand servo components that withstand high dust concentrations, mechanical vibration from blasting and heavy equipment, and wide ambient temperature swings. The Kinetix 6000 system’s robust cabinet-mount design and IEC 60068-2-6 vibration compliance make the 2094-BC07-M05-S SER C a reliable choice for these environments when installed in properly sealed and filtered enclosures.

Water and Wastewater Treatment: Pump speed control, chemical dosing actuators, and sluice gate positioning in water treatment facilities require servo drives that operate reliably in high-humidity, chemically aggressive atmospheres. The 2094-BC07-M05-S SER C, installed in NEMA 12 or IP54 enclosures with appropriate thermal management, provides the motion control backbone for these critical infrastructure assets, where unplanned downtime directly impacts public health compliance.

Metallurgy and Steel Production: Rolling mill positioning, ladle transfer car control, and continuous casting withdrawal drives represent some of the most demanding servo applications in industry. High ambient temperatures, intense electromagnetic interference from arc furnaces and induction heaters, and the safety consequences of uncontrolled motion make the Kinetix 6000’s deterministic control and integrated safety functions essential. The shared DC bus architecture of the 2094-BC07-M05-S SER C supports the high regenerative energy recovery demands of rolling mill deceleration cycles.

Port and Marine Logistics: Ship-to-shore crane trolley drives, automated stacking crane systems, and vessel mooring winch controls use multi-axis servo platforms for precise load positioning. The 2094-BC07-M05-S SER C’s ability to manage regenerative braking energy across a shared bus reduces the need for external braking resistors in high-cycle crane applications, improving energy efficiency and reducing thermal load in the drive cabinet.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 2094-BC07-M05-S SER C?
Every 2094-BC07-M05-S SER C unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch or repair coordination, minimizing your site’s exposure to extended downtime.

Q2: Is pre-shipment testing performed on each unit?
Yes. Each 2094-BC07-M05-S SER C undergoes pre-shipment functional verification before dispatch. This includes DC bus power-up checks, communication interface validation, and visual inspection for physical integrity. Test records are available upon request for quality documentation purposes.

Q3: Is the 2094-BC07-M05-S SER C compatible with existing Kinetix 6000 installations?
The Series C designation confirms compatibility with the Kinetix 6000 power rail system, including 2094-series IAM and AM axis modules. It is designed as a direct replacement for earlier series units in the same power rail configuration. Customers should verify firmware revision compatibility with their existing 1756-M08SE or 1756-M16SE SERCOS interface modules and confirm axis module ratings match the application load profile before installation.

Q4: Can NINERMAS support long-term or repeat supply of this part?
NINERMAS maintains stocked inventory of Kinetix 6000 series components, including the 2094-BC07-M05-S SER C, to support both emergency replacement and planned maintenance programs. We serve customers in petrochemical, power, mining, and manufacturing sectors with consistent lead times. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss volume requirements or scheduled supply agreements.
