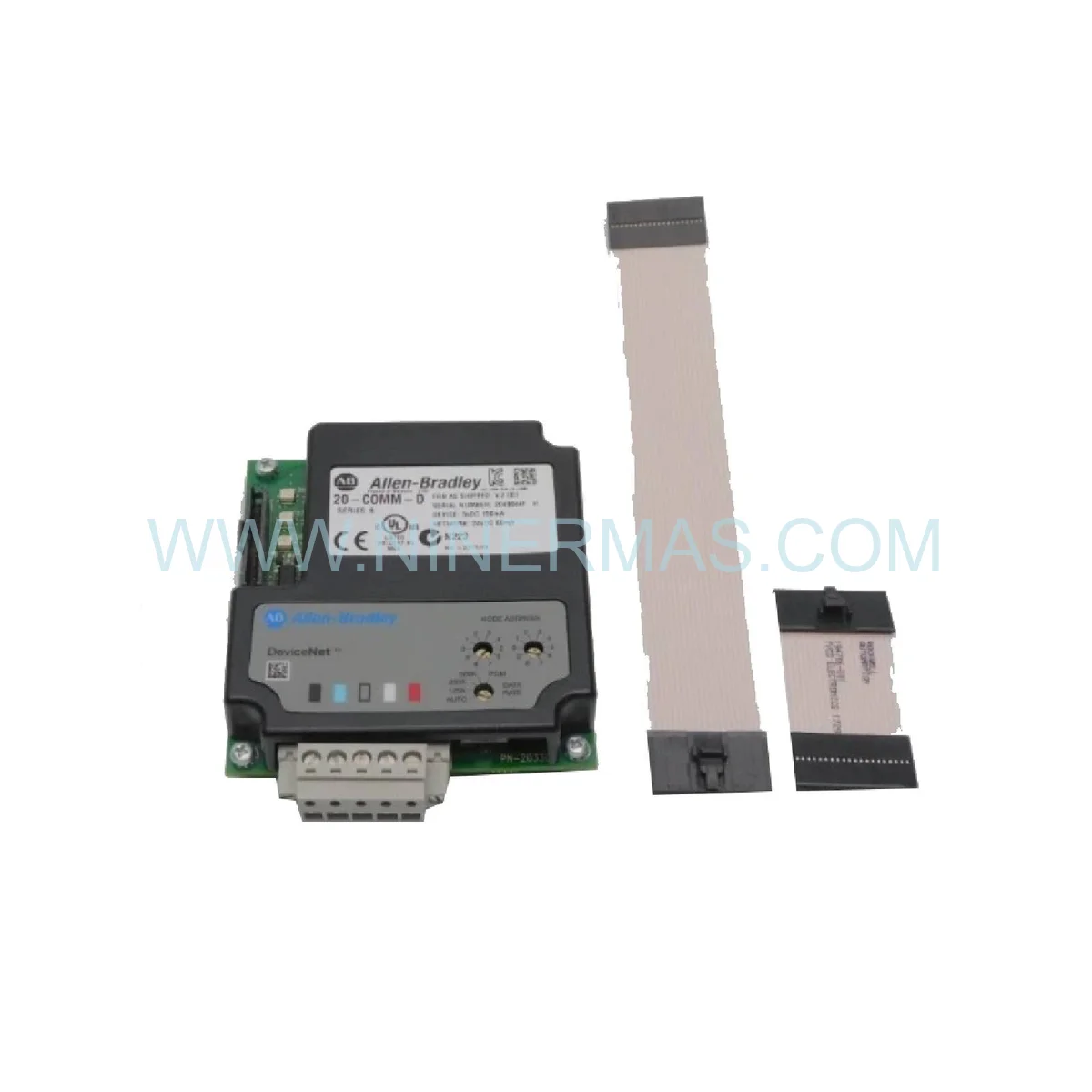

Allen-Bradley 20-COMM-D DeviceNet Adapter for PowerFlex Drives — New & Original

Allen-Bradley 20-COMM-D DeviceNet Communication Adapter | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 20-COMM-D stands as a cornerstone component for maximizing drive network availability. Deployed across PowerFlex 4, 40, 70, 700, 753, and 755 series platforms, the 20-COMM-D delivers deterministic DeviceNet communication at selectable baud rates of 125, 250, and 500 kbps — enabling real-time parameter exchange and coordinated drive control that directly reduces unplanned downtime in high-throughput environments. Its role in process optimization is not incidental; it is architecturally fundamental.

In demanding industrial environments — including automotive assembly, chemical processing, and heavy material handling — the 20-COMM-D demonstrates exceptional durability. Operating reliably from 0°C to 60°C with humidity tolerance up to 95% non-condensing, this module is engineered for continuous-duty installations. Field engineers should note that the adapter draws power directly from the drive backplane, eliminating external supply dependencies and simplifying panel wiring. Proper seating in the drive option slot and EDS file registration in RSNetWorx are critical installation steps that ensure seamless integration from day one.

For maintenance planners and procurement teams, stocking the 20-COMM-D as a certified spare is a non-negotiable element of any reliability-centered maintenance (RCM) strategy. As a legacy-compatible yet actively sourced automation component, it bridges the gap between aging DeviceNet infrastructure and modern system integration requirements — protecting capital investment while sustaining operational excellence.

Key Operational Features

Auto-Detect Baud Rate: Supports 125 / 250 / 500 kbps — eliminates manual configuration errors during commissioning
Broad Drive Compatibility: Plug-in integration with PowerFlex 4, 40, 70, 700, 753 & 755 series for maximum fleet standardization
Backplane-Powered Architecture: No external power supply required — reduces wiring complexity and single points of failure
High Availability Diagnostics: Onboard LED indicators for network status, communication activity, and fault isolation — accelerates MTTR
Redundancy-Ready Design: Compatible with dual-adapter configurations on PowerFlex 700+ for high-availability drive networks
UL / CE / RoHS Certified: Meets global compliance standards for safe deployment in regulated industries

Maintenance & Performance Benchmarks

The 20-COMM-D is engineered to scale across diverse industrial network architectures — from compact machine-level cells with fewer than 10 nodes to plant-wide DeviceNet trunk systems supporting up to 64 nodes per segment. Its deterministic communication model ensures that I/O Modules and drive parameters are exchanged within predictable scan cycles, a critical requirement for synchronized multi-axis conveyor and packaging line control.

Performance benchmarks confirm maximum trunk cable lengths of 500 m at 125 kbps, 250 m at 250 kbps, and 100 m at 500 kbps — providing flexible topology design for both compact and distributed plant layouts. The module’s compatibility with RSNetWorx for DeviceNet and the drive’s HIM interface allows in-situ diagnostics without network disruption, supporting zero-downtime maintenance cycles. For EOL and legacy system environments, the 20-COMM-D remains a critical automation component that sustains operational excellence without requiring full drive replacement.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 20-COMM-D unit dispatched from our inventory is supplied in Original Factory Packaging, complete with manufacturer documentation and authenticity traceability. For verified in-stock orders, same-day dispatch is available upon order confirmation before the daily cut-off — a critical advantage when production continuity is at stake.

Our global supply network is specifically structured to support EOL (End-of-Life) and legacy automation components, ensuring that facilities running long-lifecycle DeviceNet architectures are never left without a qualified replacement source. Worldwide express logistics partnerships guarantee delivery to major industrial hubs across North America, Europe, Southeast Asia, and the Middle East — with full shipment tracking and customs documentation support included as standard.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 20-COMM-D?
A: Power down the drive completely before inserting the 20-COMM-D into the designated option slot. Secure the module until the latch clicks. Power up the drive, then use RSNetWorx for DeviceNet to load the EDS file and assign a node address (0-63). Verify LED status indicators show solid green for healthy network communication before going live.

Q2: Which firmware versions are compatible with the 20-COMM-D?
A: The 20-COMM-D is compatible with PowerFlex drive firmware versions that support the DPI (Drive Peripheral Interface) communication standard. For PowerFlex 700 series, firmware 4.001 and above is recommended. Always cross-reference the drive’s release notes on the Rockwell Automation Product Compatibility and Download Center (PCDC) for version-specific compatibility matrices.

Q3: Can the 20-COMM-D operate alongside other communication adapters in the same drive?
A: Yes. PowerFlex 700 and 755 series drives support dual option slots, allowing the 20-COMM-D to operate concurrently with a second protocol adapter (e.g., EtherNet/IP). This enables multi-protocol system integration without additional gateway hardware, reducing infrastructure cost and latency.

Q4: How is the warranty claim process handled?
A: Units exhibiting manufacturing defects within the 12-month warranty period are eligible for replacement or repair at no charge. Contact our technical support team at sale@ninermas.com with the order reference, fault description, and photographic evidence. RMA authorization is typically issued within 1 business day, with expedited replacement shipping for mission-critical applications.

Q5: What diagnostic steps should be taken if the 20-COMM-D shows a fault LED?
A: A flashing red LED on the MOD indicator typically signals a recoverable configuration fault — verify node address uniqueness and EDS file integrity. A solid red NET LED indicates a bus-off condition; inspect trunk cable continuity, termination resistors (121Ω at each end), and power supply voltage (11-25 VDC on the network). Use RSNetWorx diagnostic tools to isolate the fault node without disrupting the remaining network.

Q6: Is the 20-COMM-D suitable for use in safety-rated control architectures?
A: The 20-COMM-D is a standard (non-safety) DeviceNet adapter and is not certified for use as a safety-rated I/O module in SIL-rated or Category 3/4 safety systems. For safety-rated DeviceNet applications, consult Rockwell Automation’s GuardLogix and Safety I/O product lines. The 20-COMM-D is fully appropriate for standard process optimization and automation control loops.
