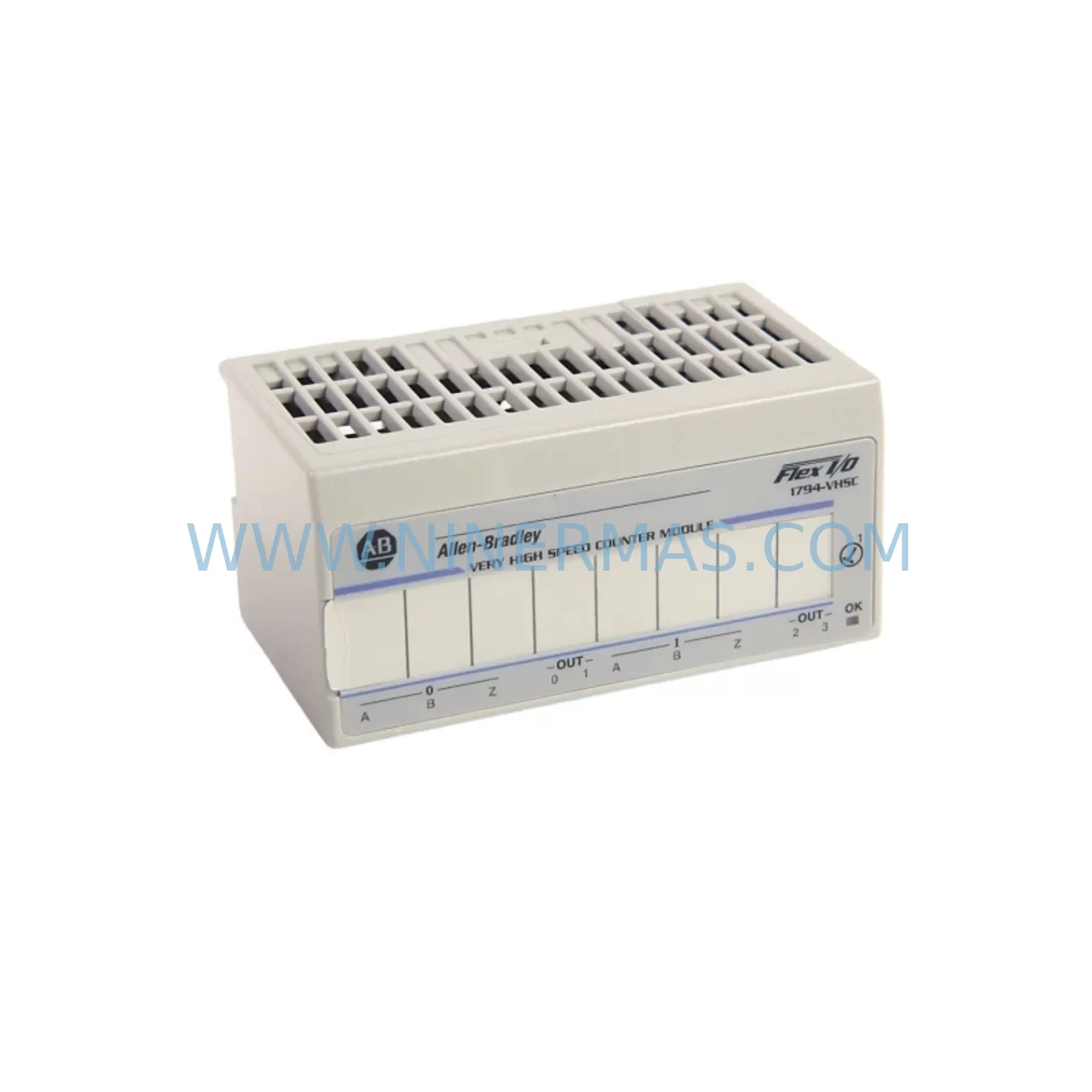

Allen-Bradley 1794-VHSC Safety-Reliable Counter Module

Allen-Bradley 1794-VHSC Safety-Reliable Counter Module for Critical Control Sites

The Allen-Bradley 1794-VHSC is a ruggedized high-speed versatile counter module within the Rockwell Automation FLEX I/O platform, engineered for deployment in the most demanding industrial control environments. Designed to deliver uninterrupted signal acquisition and pulse counting accuracy in continuous production lines, critical interlock circuits, and heavy-duty control cabinets, the 1794-VHSC stands as a cornerstone component for facilities where control interruption carries serious operational and safety consequences. NINERMAS maintains verified stock of this module with full 12-month warranty coverage and pre-shipment functional testing on every unit.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving petrochemical reactors, power generation auxiliaries, or mineral processing conveyors, a single point of signal failure can cascade into unplanned shutdowns or, worse, unsafe machine states. The 1794-VHSC mitigates this risk by providing deterministic, high-frequency pulse counting that remains stable even under severe electromagnetic interference generated by variable frequency drives, large motor starters, and high-current bus bars sharing the same enclosure.

When integrated with a 1794-AENT EtherNet/IP FLEX I/O adapter, the 1794-VHSC feeds real-time position and speed data directly into a ControlLogix L7x or CompactLogix L3x controller without signal degradation, ensuring that safety-critical interlock logic executes on accurate, up-to-date process values. For installations requiring redundant power integrity, pairing the module with a 1606-XLP or 1606-XLS series power supply ensures that voltage sags and transient surges — common in heavy industrial environments — do not corrupt counter data or trigger spurious output responses.

In safety interlock architectures, the 1794-VHSC is frequently deployed alongside 1791DS series safety I/O modules and GuardLogix safety controllers to form a complete SIL-capable control loop. The counter module’s discrete outputs can be wired into emergency stop relay circuits or MSR127 safety relay modules, providing a hardware-level response path that operates independently of the communication network — a critical design feature for applications where network latency or communication anomalies cannot be tolerated in the safety response chain.

To protect against surge and transient events entering through field wiring, engineers routinely install 1492-CABLE series pre-wired interface cables and 1492-IFM interface modules between field devices and the FLEX I/O rack, reducing wiring errors and providing a clean, tested signal path. In environments with significant dust ingress, moisture, or chemical exposure, the control cabinet housing the 1794-VHSC should be rated to at least IP54, with the FLEX I/O rail assembly mounted on vibration-damping DIN rail supports to further reduce mechanical stress on module connectors.

For facilities managing spare parts inventory across multiple production lines, maintaining a buffer stock of the 1794-VHSC alongside companion modules such as the 1794-IB16 discrete input module and 1794-OB16 discrete output module ensures that any I/O failure in the FLEX I/O rack can be resolved within a single maintenance window, minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Industrial Safety Applications

The Allen-Bradley 1794-VHSC has established a proven track record across the most demanding industrial sectors where control reliability is non-negotiable:

Petrochemical & Refining: In continuous distillation and reaction processes, the 1794-VHSC monitors pump rotation speed and valve actuator position pulses, providing the control system with the real-time feedback needed to maintain safe operating envelopes. Any deviation from expected pulse rates triggers interlock responses before process parameters reach hazardous thresholds.

Electric Power Generation & Transmission: Turbine overspeed protection systems and generator synchronization circuits rely on high-frequency pulse counting with microsecond-level accuracy. The 1794-VHSC’s 1 MHz counting capability makes it suitable for tachometer input processing in both steam and gas turbine auxiliary control panels.

Mining & Mineral Processing: Conveyor belt speed monitoring, crusher rotation detection, and hoist position tracking in underground and open-pit mining operations expose control hardware to extreme vibration, coal dust, and humidity. The ruggedized design of the 1794-VHSC, combined with proper cabinet sealing, delivers reliable operation in these conditions where module replacement is costly and logistically complex.

Water & Wastewater Treatment: Flow totalizing, pump cycle counting, and chemical dosing pulse verification in water treatment facilities require accurate, drift-free counter operation over extended periods. The 1794-VHSC supports these applications with stable counting performance that does not require frequent recalibration.

Metallurgy & Steel Production: Rolling mill speed synchronization and ladle transfer position control in steel plants involve high electromagnetic noise from induction furnaces and large DC drives. The 1794-VHSC’s noise immunity characteristics allow it to maintain signal integrity in these environments, preventing the signal drift and miscounts that could lead to material waste or equipment damage.

Port & Marine Logistics: Crane hoist position monitoring and ship-loader belt speed control in port terminals require counter modules that can withstand salt air corrosion, wide temperature swings, and the mechanical vibration of heavy lifting equipment. Proper enclosure selection paired with the 1794-VHSC ensures reliable operation throughout the equipment lifecycle.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 1794-VHSC?
Every 1794-VHSC shipped by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes direct technical assistance and replacement coordination to minimize your downtime.

Q2: Is each unit tested before shipment?
Yes. All 1794-VHSC modules undergo full functional pre-shipment testing at our facility before dispatch. This includes verification of counter input response, output switching, and communication interface integrity, ensuring that the unit you receive is ready for immediate installation.

Q3: Is the 1794-VHSC compatible with my existing FLEX I/O rack and adapter?
The 1794-VHSC is compatible with the full range of Allen-Bradley FLEX I/O adapters, including DeviceNet (1794-ADN), ControlNet (1794-ACN15), and EtherNet/IP (1794-AENT) variants. It installs directly into any standard FLEX I/O terminal base and is supported by RSLogix 5000 / Studio 5000 Logix Designer for configuration. If you have questions about compatibility with a specific system revision, contact our technical team before ordering.

Q4: Can NINERMAS support long-term supply and emergency replacement needs?
NINERMAS maintains ongoing inventory of the 1794-VHSC and related FLEX I/O components to support both planned maintenance programs and emergency replacement scenarios. We understand that production-critical spare parts cannot wait weeks for delivery, and our stock management is designed to support rapid dispatch for urgent requirements. Contact us to discuss blanket order arrangements for high-volume or multi-site operations.
