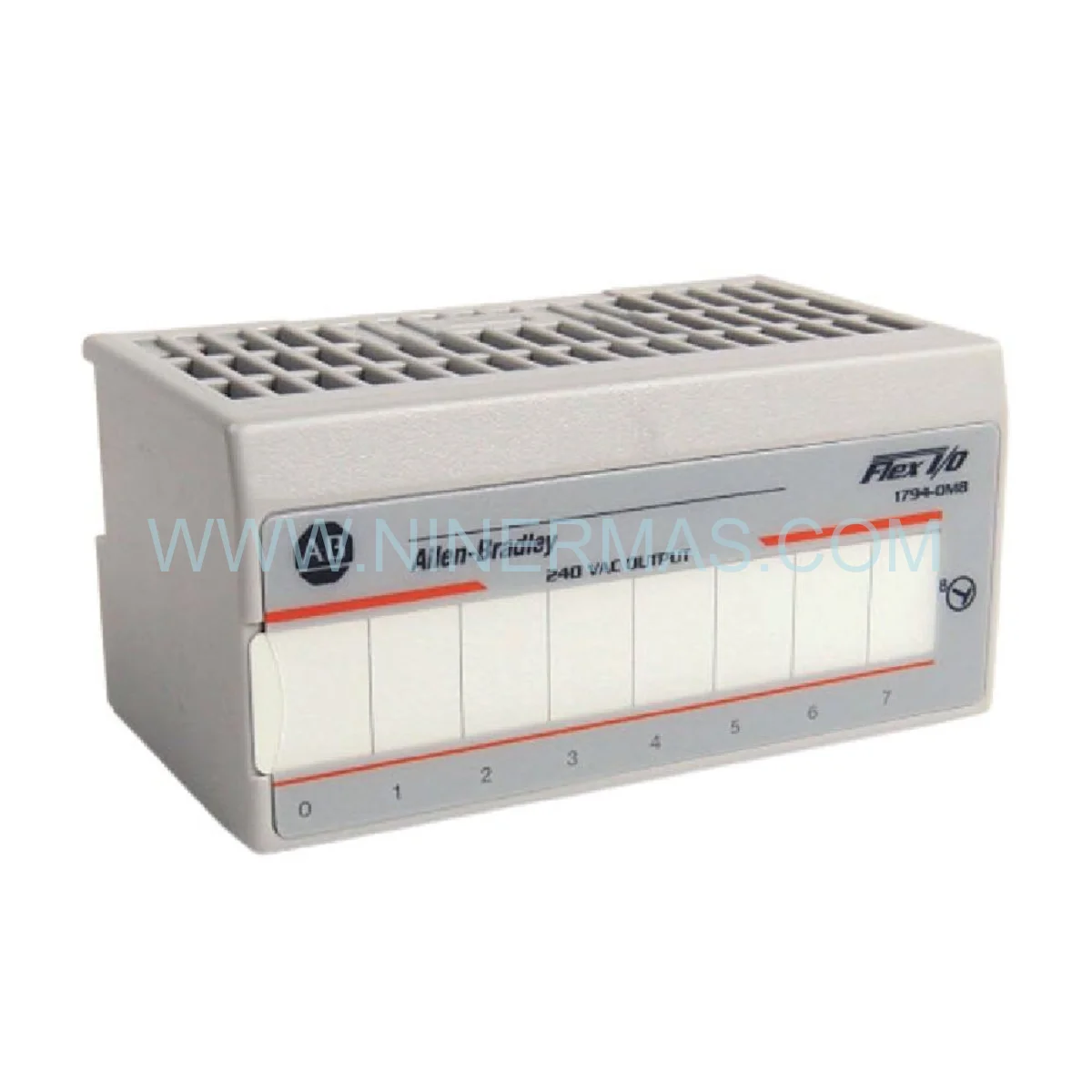

Allen-Bradley 1794-OM8 | FLEX I/O 8-Ch AC Relay Output Module

Allen-Bradley 1794-OM8 – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1794-OM8 represents a cornerstone component in maintaining the operational integrity of distributed control architectures. As an 8-channel electromechanical relay output module engineered for the FLEX I/O platform, the 1794-OM8 fulfills a critical role in bridging high-voltage field devices with programmable logic controllers — a function that demands absolute precision, certified reliability, and adherence to global safety benchmarks. Its deployment in safety-sensitive environments is not merely a matter of performance, but of systemic compliance and long-term asset optimization.

Within the evolving framework of Industry 4.0, the 1794-OM8 demonstrates exceptional long-term compatibility with legacy and next-generation control architectures alike. Its modular design philosophy aligns with distributed I/O strategies that underpin smart manufacturing ecosystems, enabling seamless integration without compromising system performance or safety integrity. The module’s standardized backplane interface ensures forward compatibility across FLEX I/O adapter generations, reducing lifecycle replacement costs and supporting continuous operational excellence.

As a factory-sealed, certified original component, the 1794-OM8 delivers the highest assurance of system safety. Counterfeit or non-OEM substitutes introduce unquantifiable risk into critical control loops — risks that certified original documentation and traceable supply chains are specifically designed to eliminate. Sourcing genuine Allen-Bradley components is not a preference; it is a compliance imperative for regulated industries.

Compliance & Safety Benchmarks

• ✅ UL 508 Listed — Certified for industrial control equipment per North American safety standards
• ✅ CSA C22.2 No. 142 — Canadian Standards Association approval for process control equipment
• ✅ CE Marked — Conforms to EU Low Voltage Directive 2014/35/EU for European market compliance
• Class I Division 2 — Approved for hazardous location deployment (Groups A, B, C, D) with certified FLEX I/O adapters
• ✅ DNV GL Type Approved — Validated for marine and offshore platform automation systems
• ✅ RoHS / REACH Compliant — Meets global environmental and substance restriction directives
• EN 61000-6-2 / EN 61000-6-4 — Industrial EMC immunity and emissions standards adherence
• ✅ 1500V AC Isolation — Galvanic separation between control logic and field power circuits ensures personnel and equipment safety

Vertical Industry Integration & Optimization

The 1794-OM8 is engineered to address the precise control demands of high-compliance industrial verticals:

• Semiconductor Manufacturing: Manages solenoid valve actuation and process interlock circuits in cleanroom environments where relay isolation prevents cross-contamination of sensitive control signals. Its zero-leakage contact design eliminates false triggering risks in ultra-precision fabrication lines.
• Pharmaceutical & Life Sciences: Supports GMP-compliant process control by providing auditable, deterministic switching for sterilization equipment, bioreactor heating systems, and cleanroom HVAC — all requiring traceable, certified original components per FDA 21 CFR Part 11 asset management protocols.
• Chemical Processing: Operates in ATEX/NEC hazardous zones where Class I Div 2 certification is mandatory. Controls 220V AC motor starters, agitator drives, and emergency shutdown solenoids with the galvanic isolation required to prevent ignition in volatile atmospheres.
• Automotive Assembly: Drives pneumatic actuators, welding contactors, and conveyor motor starters across high-cycle production lines. The module’s 100,000-operation electrical life rating and arc suppression technology sustain throughput without unplanned downtime.
• Water & Wastewater Treatment: Controls pump motor starters, valve actuators, and chemical dosing systems in corrosive environments. DNV GL approval extends its applicability to offshore desalination and marine water treatment platforms.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

• Factory Sealed Condition: Every 1794-OM8 unit is dispatched in its original manufacturer packaging with intact tamper-evident seals, ensuring component integrity from production line to installation point. Original documentation — including calibration records and compliance certificates — is included with each shipment.
• Rapid Global Logistics: Leveraging established international freight partnerships, orders are processed with priority dispatch to minimize control system downtime. Expedited air freight options are available for critical maintenance scenarios across North America, Europe, and Asia-Pacific regions.
• 12-Month Quality Guarantee for Legacy Systems: A comprehensive 12-month quality assurance warranty covers all supplied 1794-OM8 modules against manufacturing defects and performance deviations from published specifications. This extended warranty is specifically structured to support legacy FLEX I/O system operators managing long-term asset lifecycles.
• Technical Support Access: Pre-sales engineering consultation is available to verify compatibility with existing FLEX I/O adapter configurations, terminal base selections, and controller firmware versions. Post-installation support covers commissioning guidance and diagnostic assistance.

Expert Technical FAQ

Q1: What installation compliance requirements apply to the 1794-OM8 in a Class I Division 2 hazardous location?
The 1794-OM8 must be paired with a Division 2 certified FLEX I/O adapter (such as the 1794-AENT or 1794-ADN) and installed within an enclosure rated NEMA 4X or IP66 minimum. All field wiring must use conduit seals per NEC Article 501 to prevent gas migration. The complete assembly must be documented in the facility’s Process Hazard Analysis (PHA) and verified by a certified electrical inspector prior to energization.

Q2: How does the 1794-OM8 maintain safety integrity when switching inductive loads such as motor starters?
The module incorporates built-in RC snubber networks that suppress voltage transients generated during inductive load switching. For loads exceeding 500 VA or with high inrush characteristics, external metal oxide varistors (MOVs) rated at 275V AC should be installed across load terminals. This dual-layer arc suppression strategy preserves contact integrity and maintains the module’s rated electrical life of 100,000 operations under AC-15 duty conditions.

Q3: What firmware versions of RSLogix 5000 / Studio 5000 are certified compatible with the 1794-OM8?
The 1794-OM8 is compatible with RSLogix 5000 v16.0 and above, and Studio 5000 Logix Designer v21.0 and above. The module’s Electronic Data Sheet (EDS) file must be installed in the software library prior to configuration. Rockwell Automation’s Product Compatibility and Download Center (PCDC) provides the authoritative firmware compatibility matrix for all FLEX I/O modules.

Q4: What environmental adaptation measures are required for high-humidity or coastal installations?
For installations in environments exceeding 85% relative humidity or with salt-laden atmospheres, the 1794-OM8 should be housed in a NEMA 4X stainless steel enclosure with desiccant packs and a thermostatically controlled anti-condensation heater. Terminal connections should use tin-plated copper lugs with dielectric grease to prevent oxidation. Inspection intervals should be reduced to quarterly cycles per IEC 60068-2-52 salt mist compliance protocols.

Q5: How should the 1794-OM8 be incorporated into a preventive maintenance lifecycle program?
Lifecycle management best practice dictates tracking cumulative relay switching cycles via the controller’s diagnostic counters. At 80,000 operations (80% of rated electrical life), schedule a planned replacement during the next scheduled maintenance window. Maintain a minimum 10% spare module inventory ratio for critical production lines. All replacement activities should be logged in the facility’s Computerized Maintenance Management System (CMMS) with the module’s serial number and installation date for full asset traceability.

Q6: Does the 1794-OM8 support hot-swap replacement without system shutdown?
The FLEX I/O platform supports module removal and insertion under power (RIUP) when the system adapter is configured for fault-tolerant operation. However, field power to the 1794-OM8’s output circuits must be de-energized before physical module removal to comply with NFPA 70E arc flash safety standards and OSHA 29 CFR 1910.147 lockout/tagout (LOTO) requirements. Consult the facility’s electrical safety program before performing any live maintenance activities.
