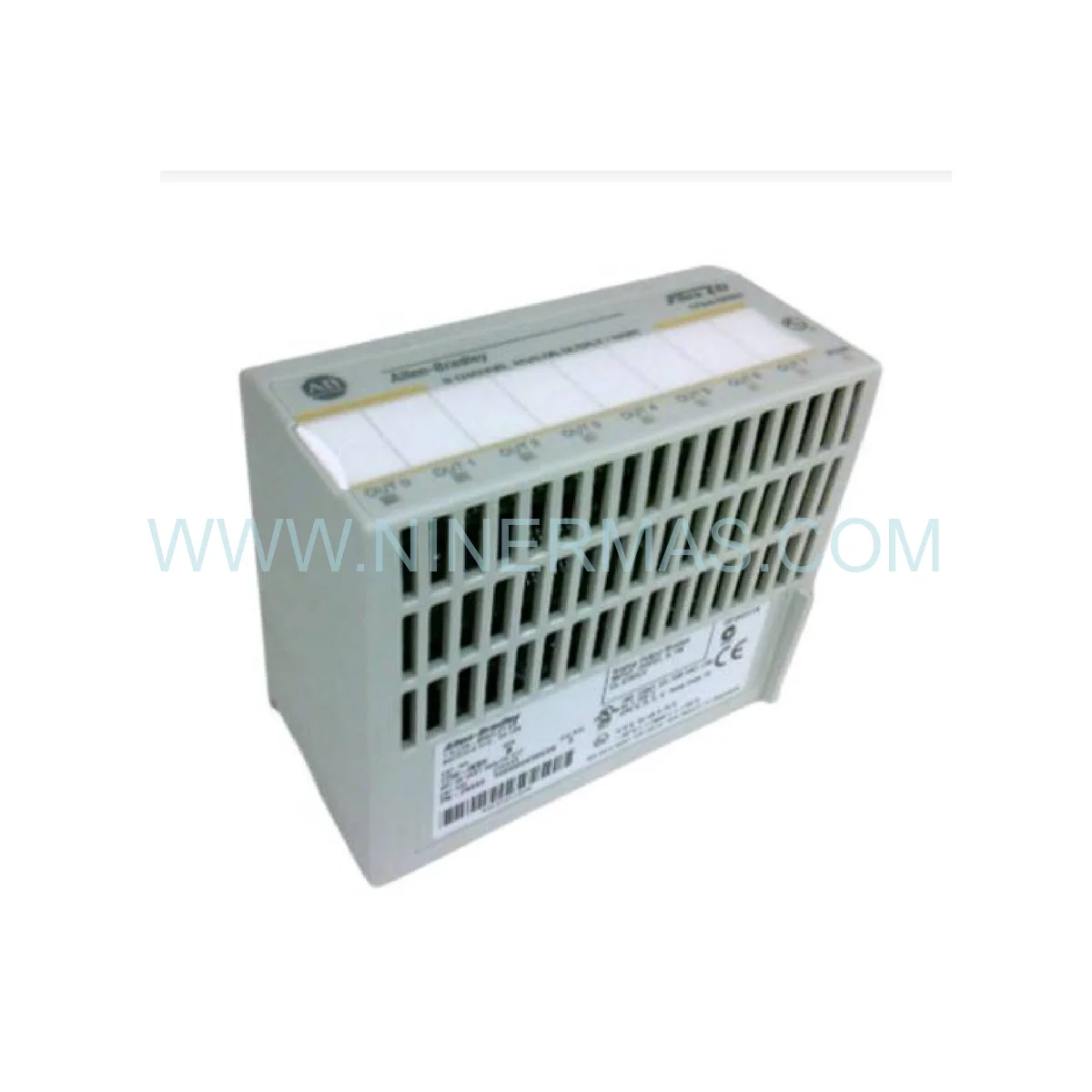

Allen-Bradley 1794-OE8H | FLEX I/O Retrofit & System Upgrade Module

Allen-Bradley 1794-OE8H – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the Allen-Bradley 1794-OE8H stands out as a mission-critical enabler in any modernization roadmap. This HART-enabled 8-channel analog output module bridges the performance gap between aging distributed control architectures and today’s smart field device ecosystems — delivering measurable gains in signal fidelity, diagnostic depth, and operational uptime without requiring a full system overhaul. The Allen-Bradley 1794-OE8H is engineered to slot directly into existing FLEX I/O backplane infrastructure, making it the preferred hardware upgrade path for facilities that cannot afford extended downtime during transition.

Legacy compatibility is where this module truly excels. Whether your plant is running an aging ControlNet backbone or migrating toward EtherNet/IP, the 1794-OE8H maintains full backward compatibility with existing 1794-series terminal bases (1794-TB3, 1794-TB3S), eliminating costly rewiring and reducing retrofit labor hours by up to 40%. Its HART 7.x overlay operates simultaneously with the 4-20mA analog signal, meaning your existing field wiring remains intact while you gain full digital access to smart transmitters and actuators — a seamless integration that legacy-only modules simply cannot offer.

From a migration risk and cost perspective, deploying the 1794-OE8H as part of a phased retrofit strategy dramatically reduces capital expenditure compared to rip-and-replace DCS migrations. Facilities can modernize output channels incrementally, validating performance improvements loop-by-loop while maintaining continuous production. This approach compresses ROI timelines and gives engineering teams the confidence to execute system migration projects with minimal operational disruption.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Direct replacement for standard 1794-OE8 with added HART intelligence — no backplane or wiring changes required.
Dual-Mode Signal Architecture: Simultaneous 4-20mA analog control + HART digital communication on all 8 channels without signal interference.
? 16-Bit Resolution Output: 1-in-65,536 precision delivers measurable performance enhancement over older 12-bit legacy modules.
Hot-Swap & Electronic Keying: Prevents mis-installation during live retrofit operations — critical for zero-downtime hardware upgrade projects.
? Multi-Network Future-Proofing: Compatible with ControlNet, DeviceNet, and EtherNet/IP adapters — protects your retrofit investment as network infrastructure evolves.
ATEX Zone 2 / Class I Div 2 Certified: Approved for hazardous area deployment, expanding retrofit applicability to petrochemical and offshore environments.

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing: A specialty chemicals plant operating a 15-year-old DCS with conventional 4-20mA outputs integrated the 1794-OE8H as part of a phased HART retrofit. By replacing legacy analog output cards with 1794-OE8H modules, the facility gained real-time valve diagnostics and predictive maintenance alerts — reducing unplanned shutdowns by 30% within the first year. The retrofit solution required zero changes to existing field wiring, with full commissioning completed during a scheduled 48-hour maintenance window.

Turbine Supervisory Instrumentation (TSI) Upgrade: A combined-cycle power plant undertaking a TSI system migration selected the 1794-OE8H to modernize its analog output infrastructure. The module’s ±0.1% full-scale accuracy and 10ms per-channel update rate met the stringent performance requirements of turbine control loops, while HART communication enabled remote calibration of smart positioners without field access — a critical advantage in high-temperature turbine enclosures. The performance upgrade delivered a 25% reduction in calibration labor costs annually.

Water & Wastewater SCADA Retrofit: A municipal water authority replaced aging pneumatic and early-generation electronic output modules with 1794-OE8H units across 12 pump stations. The hardware upgrade enabled centralized asset management via AMS Device Manager, providing operators with valve health scores and loop diagnostics previously unavailable. The seamless integration with existing ControlLogix PLCs required only Add-On Instruction (AOI) updates — no hardware infrastructure changes.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Allen-Bradley 1794-OE8H supplied through our network is sourced from authorized distribution channels or factory-direct inventory. Units are shipped in original Rockwell Automation packaging with full factory calibration certificates and serialized traceability documentation — essential for regulated industries and audit compliance.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate on compressed timelines, we maintain strategic inventory positions enabling same-day dispatch to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific. DHL Express, FedEx Priority, and air freight options are available for critical-path deployments.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy compatibility assessments, helping customers determine whether the 1794-OE8H is the optimal retrofit solution for their specific backplane revision, adapter firmware version, and controller platform. We provide pre-sales configuration guidance, AOI integration support, and post-installation commissioning assistance — ensuring your hardware upgrade delivers the performance enhancement your project demands.

Retrofit FAQ (Upgrade Guide)

Q1: Can the 1794-OE8H physically replace an existing 1794-OE8 in my current backplane without mechanical modifications?
A: Yes. The Allen-Bradley 1794-OE8H shares the same form factor and terminal base compatibility as the standard 1794-OE8, making it a direct drop-in retrofit solution. It mounts to existing 1794-TB3 or 1794-TB3S terminal bases without any mechanical changes. Electronic keying parameters will need to be updated in your controller configuration to recognize the HART-capable variant.

Q2: How does the 1794-OE8H handle communication between legacy analog field devices and modern HART-enabled instruments during a phased migration?
A: The module operates in a hybrid mode — it simultaneously drives the conventional 4-20mA analog signal for legacy devices while transmitting HART digital data for smart instruments on the same loop. This means you can migrate field devices incrementally, replacing conventional instruments with HART-enabled equivalents at your own pace without disrupting the analog control loop or requiring parallel wiring infrastructure.

Q3: What controller platforms and firmware versions are required to unlock full HART functionality with the 1794-OE8H?
A: Full HART pass-through functionality requires a ControlLogix or CompactLogix controller running RSLogix 5000 / Studio 5000 v20 or later, paired with a HART-capable adapter (e.g., 1794-AENT/B or later). Rockwell Automation’s HART Add-On Instructions (AOIs) must be imported into your controller project. Our technical team can provide compatibility matrices for your specific adapter and controller firmware revision.

Q4: Are there alternative replacement options if the 1794-OE8H is unavailable, and how do they compare for retrofit projects?
A: The closest functional alternatives within the FLEX I/O family are the 1794-OF8IH (isolated HART output, higher cost) and the standard 1794-OE8 (no HART capability). For system migration projects where HART diagnostics are a core requirement, the 1794-OE8H remains the optimal balance of performance, cost, and legacy compatibility. Third-party I/O solutions may require gateway hardware and introduce additional latency — factors that can compromise retrofit solution integrity.

Q5: How do I validate that the 1794-OE8H retrofit is performing correctly after installation without taking the process offline?
A: The module supports online diagnostics via HART communication. Using a HART handheld communicator or AMS Device Manager software, technicians can verify output accuracy, check loop integrity, and read device health parameters while the process remains in operation. RSLogix/Studio 5000 also provides module status tags that can be monitored in real-time through your existing HMI infrastructure — enabling non-intrusive performance validation post-retrofit.

Q6: What is the expected service life of the 1794-OE8H, and what is Rockwell Automation’s current lifecycle status for this product?
A: The Allen-Bradley 1794-OE8H is currently in Active lifecycle status — it is fully manufactured, supported, and available with standard Rockwell Automation technical support and spare parts availability. This makes it a low-risk hardware upgrade choice for long-term retrofit projects, as opposed to EOL or obsolete modules that carry supply chain uncertainty. Rockwell Automation typically provides a minimum 3-year notice before any product discontinuation.
