Allen-Bradley 1794-OB8EPXT — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

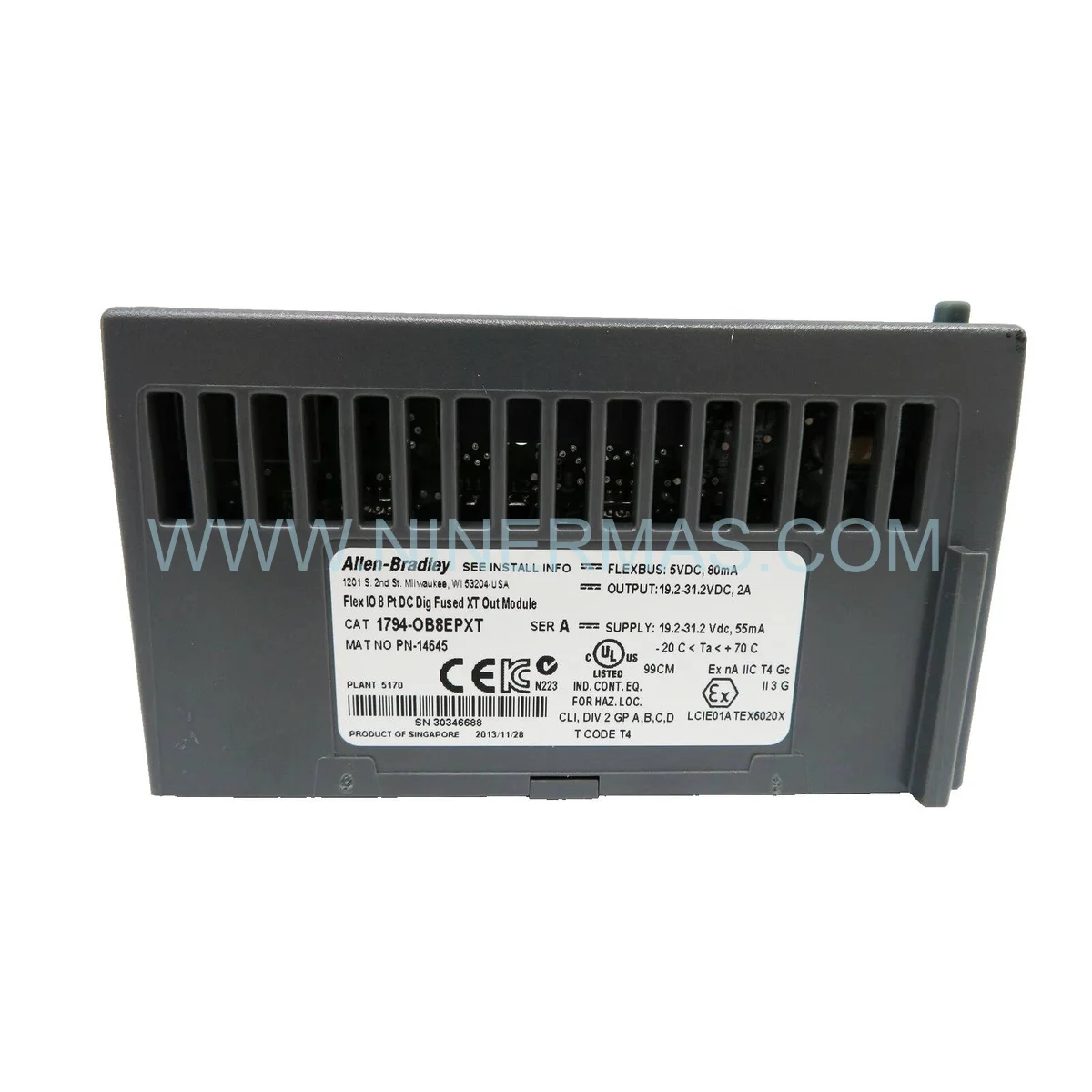

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1794-OB8EPXT represents a cornerstone asset in maintaining the operational integrity of distributed I/O architectures. As a factory-sealed, OEM-certified protected digital output module, the 1794-OB8EPXT fulfills a critical role in safeguarding control system continuity — particularly in environments where unplanned downtime carries significant safety and financial consequences. Its 8-point 24VDC output configuration, combined with integrated electronic overcurrent and short-circuit protection, ensures that field-side anomalies are isolated before propagating to the backplane, preserving system-wide coherence.

Within the framework of Industry 4.0 and smart manufacturing architectures, the 1794-OB8EPXT demonstrates long-term compatibility with Allen-Bradley’s Flex I/O ecosystem, supporting seamless integration with ControlLogix, CompactLogix, and MicroLogix platforms. Its 1500V optical isolation barrier between field and backplane circuits upholds the electrical segregation standards mandated by IEC 61131-2 and NFPA 79, ensuring sustained performance across extended operational lifecycles without degradation of signal fidelity.

As a certified Original Equipment Manufacturer (OEM) component, the 1794-OB8EPXT carries the full weight of Rockwell Automation’s quality assurance protocols — including factory burn-in testing, dimensional conformance verification, and Original Documentation traceability. This certification status is not merely a procurement advantage; it is a prerequisite for maintaining Safety Integrity Levels (SIL) in process-critical installations and for satisfying audit requirements under ISO 13849 and IEC 62061 frameworks.

Compliance & Safety Benchmarks

✅ IEC 61131-2 Conformance: Verified electrical and mechanical compliance for programmable controller I/O modules, ensuring interoperability across certified automation platforms.

✅ UL 508 Listed: Industrial control equipment listing confirms adherence to North American safety standards for electrical enclosures and control systems.

Electronic Overcurrent Protection: Each of the 8 output points incorporates independent electronic protection circuitry, eliminating reliance on external fusing and reducing mean time to repair (MTTR) in fault scenarios.

✅ 1500V Optical Isolation: Field-to-backplane isolation exceeds standard Compliance Standards thresholds, protecting upstream PLC hardware from field-side voltage transients.

Conformal Coating Option: Available factory-applied conformal coating extends operational durability in high-humidity, corrosive, or thermally cyclic environments — a critical consideration for Asset Optimization in harsh industrial zones.

✅ RoHS & CE Marking: Confirms alignment with European Union directives on hazardous substance restriction and electromagnetic compatibility, supporting Global Compliance procurement strategies.

Vertical Industry Integration & Optimization

Semiconductor Fabrication: In cleanroom automation environments, the 1794-OB8EPXT’s electronic protection and diagnostic feedback capabilities enable precise control of pneumatic actuators and process valves without introducing particulate contamination risks associated with mechanical fuse replacement. Its rapid 1ms ON/OFF response time supports the tight sequencing tolerances demanded by wafer handling and deposition processes.

Pharmaceutical Manufacturing: GMP-compliant facilities require full audit trails and component traceability. The 1794-OB8EPXT’s OEM certification and Original Documentation package — including factory test records and material certificates — satisfies FDA 21 CFR Part 11 and EU Annex 11 documentation requirements for validated production lines.

Chemical & Petrochemical Processing: In Zone 2 classified areas and SIL-rated safety loops, the module’s robust isolation architecture and fault-detection diagnostics contribute directly to Process Safety Management (PSM) objectives. Its compatibility with Safety Integrity frameworks allows integration into safety-instrumented systems (SIS) where redundancy and fail-safe output behavior are mandated by IEC 61511.

Automotive Assembly: High-throughput body-in-white and powertrain assembly lines depend on deterministic output response and minimal unplanned downtime. The 1794-OB8EPXT’s hot-swap capability — when paired with appropriate Flex I/O adapters — enables module replacement without line stoppage, directly supporting Overall Equipment Effectiveness (OEE) targets and System Performance KPIs.

Food & Beverage Processing: Washdown-compatible installations benefit from the module’s conformal coating option and sealed terminal base compatibility, ensuring Compliance Standards are met under EHEDG and 3-A Sanitary Standards for hygienic equipment design.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 1794-OB8EPXT unit dispatched from our inventory is verified to be in original factory-sealed packaging, preserving the electrostatic discharge (ESD) protection and humidity indicator integrity established at the point of manufacture. Tamper-evident seals and OEM labeling are intact, providing unambiguous provenance for incoming inspection and asset registration purposes.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, and the Americas, we support expedited delivery timelines for both planned procurement cycles and emergency replacement scenarios. Export documentation — including commercial invoices, packing lists, and certificates of origin — is prepared in full compliance with international trade regulations to minimize customs clearance delays.

12-Month Quality Guarantee for Legacy Systems: Recognizing that the 1794-OB8EPXT frequently serves as a long-term replacement component in established Flex I/O installations, we extend a 12-Month Quality Guarantee covering manufacturing defects, premature failure under rated operating conditions, and performance non-conformance relative to published specifications. This guarantee is supported by a documented return merchandise authorization (RMA) process and direct access to application engineering resources for root-cause analysis.

Technical Documentation Package: Upon request, we provide access to Original Documentation including installation instructions, wiring diagrams, firmware compatibility matrices, and declaration of conformity certificates — essential for regulated industries requiring complete equipment lifecycle records.

Expert Technical FAQ

Q1: Does the 1794-OB8EPXT meet the installation compliance requirements for SIL-rated safety loops?
A: The 1794-OB8EPXT is designed for standard control applications within the Flex I/O platform. For SIL-rated safety instrumented systems, it should be evaluated against IEC 61511 requirements in conjunction with a qualified functional safety assessment. Its electronic protection and diagnostic features contribute positively to safety architecture design, but formal SIL certification requires system-level validation by a competent safety engineer.

Q2: What are the environmental adaptability limits for the XT (conformal coated) variant?
A: The XT designation indicates factory-applied conformal coating, which enhances resistance to moisture ingress, condensation, and mild chemical exposure. The module is rated for operating temperatures of 0°C to 60°C with relative humidity up to 95% non-condensing. For installations in extreme thermal cycling environments, thermal management analysis should be conducted to ensure the module remains within its rated junction temperature envelope.

Q3: Which firmware versions of ControlLogix and CompactLogix are confirmed compatible with the 1794-OB8EPXT?
A: The 1794-OB8EPXT is compatible with all major firmware revisions of ControlLogix (v16 and above) and CompactLogix (v19 and above) when used with appropriate Flex I/O adapter modules. Rockwell Automation’s Product Compatibility and Download Center (PCDC) should be consulted for the most current firmware compatibility matrix prior to integration into existing control architectures.

Q4: How does the module’s electronic protection mechanism compare to conventional fuse-based output protection in terms of lifecycle cost?
A: Electronic protection eliminates consumable fuse replacement cycles, reducing both direct material costs and indirect labor costs associated with fault isolation and module de-energization. From a Lifecycle Management perspective, the absence of mechanical fuse components also removes a potential single-point-of-failure mode, improving mean time between failures (MTBF) and supporting Asset Optimization objectives over multi-year operational horizons.

Q5: Is the 1794-OB8EPXT backward compatible with earlier 1794 series terminal bases?
A: Yes. The 1794-OB8EPXT is mechanically and electrically compatible with the 1794-TB3, 1794-TB3S, 1794-TB3G, and 1794-TB3GS terminal bases, enabling direct replacement of earlier-generation output modules without terminal base changeout — a significant advantage for System Performance continuity in brownfield upgrade projects.

Q6: What documentation is available to support regulatory audits for the 1794-OB8EPXT in pharmaceutical or food processing installations?
A: We provide a comprehensive Original Documentation package including the OEM installation manual, declaration of conformity (CE), UL listing certificate, RoHS compliance statement, and factory test report upon request. This documentation set is structured to support IQ/OQ/PQ validation protocols and satisfies the traceability requirements of FDA 21 CFR Part 11, EU GMP Annex 11, and FSSC 22000 audit frameworks.
