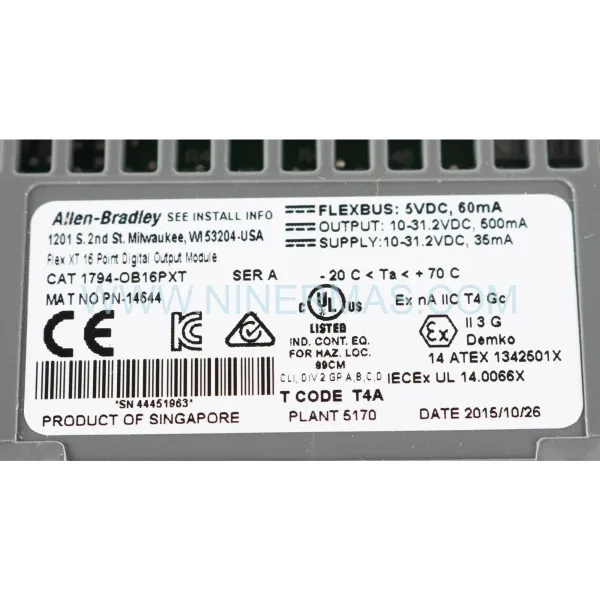

Allen-Bradley 1794-OB16PXT | FLEX I/O Retrofit & Modernization Module

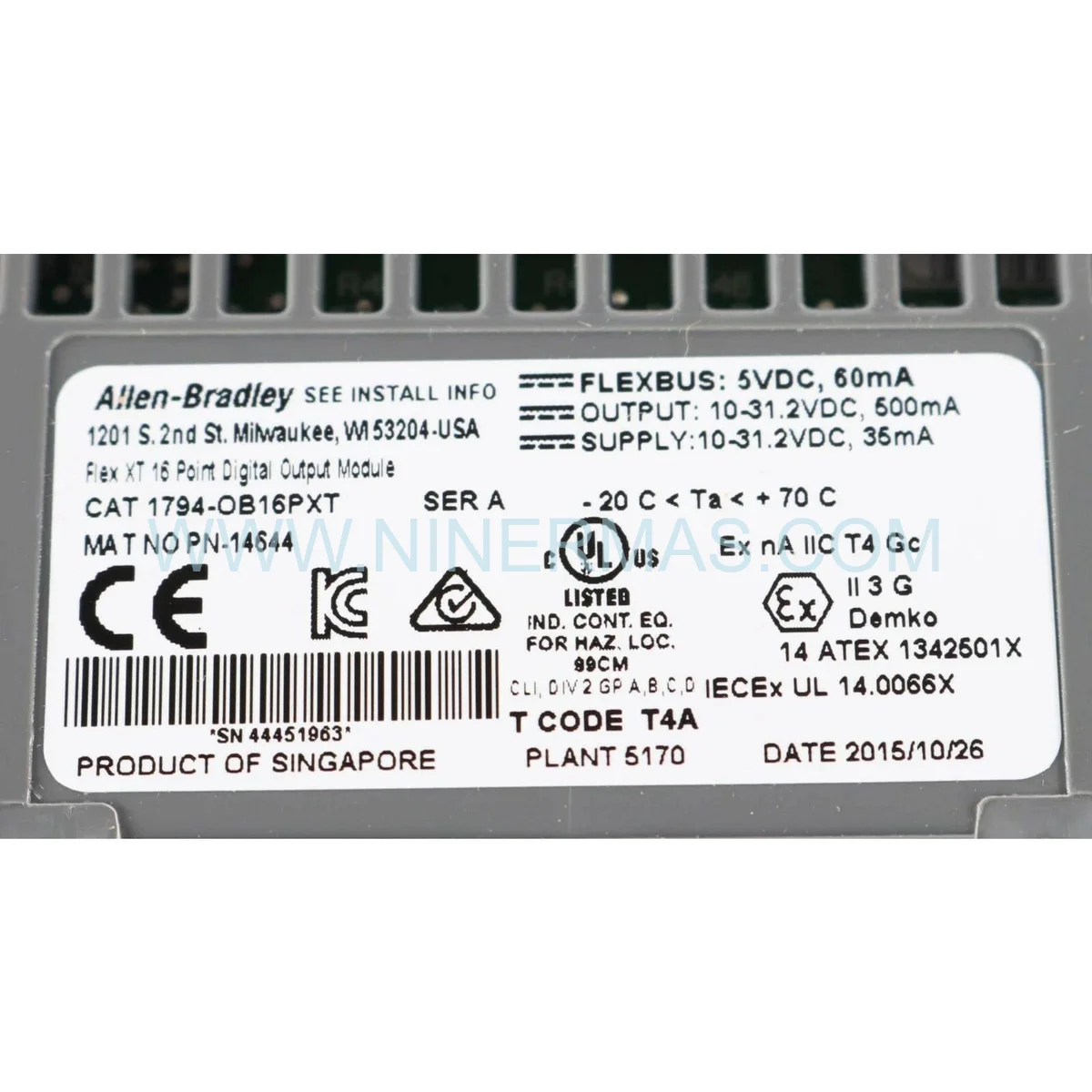

Allen-Bradley 1794-OB16PXT — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Allen-Bradley 1794-OB16PXT stands out as a cornerstone component in any FLEX I/O modernization initiative. Its 16-point electronically protected 24VDC output architecture directly addresses the performance bottlenecks found in aging discrete output systems — enabling factories, power plants, and manufacturing facilities to extend operational life while simultaneously elevating control precision. The Allen-Bradley 1794-OB16PXT eliminates the need for costly full-panel replacements by slotting seamlessly into existing FLEX I/O backplane infrastructure, making it the preferred choice for phased system upgrades.

Legacy control architectures built around older relay-based or first-generation solid-state output modules frequently suffer from limited diagnostic visibility, high maintenance overhead, and incompatibility with modern fieldbus communication layers. The 1794-OB16PXT resolves these pain points through its integrated electronic short-circuit protection and real-time fault reporting — capabilities that bridge the gap between traditional hardwired control and contemporary networked automation. Its backward compatibility with all FLEX I/O adapter modules means migration teams can introduce this component without redesigning the entire I/O rack topology.

From a total cost of ownership perspective, deploying the 1794-OB16PXT as part of a structured retrofit program significantly reduces migration risk. By preserving existing wiring infrastructure and controller logic while upgrading the output layer, project teams can achieve measurable performance gains with minimal downtime — a critical advantage in continuous-process environments where unplanned shutdowns carry substantial financial consequences.

Upgrade Highlights & Compatibility

• Drop-in Legacy Compatibility: Fully interoperable with all 1794-series FLEX I/O adapter modules — no rack redesign required for retrofit deployments.
• ✅ Performance Enhancement: 1ms ON/OFF response time and 0.5A per-point output capacity deliver measurable improvements over older relay-based output stages.
• Electronic Circuit Protection: Per-channel short-circuit detection with automatic shutdown eliminates external fusing, reducing BOM complexity in upgrade projects.
• ✅ Seamless Integration: Compatible with ControlLogix, CompactLogix, and MicroLogix controller families — supports both legacy and modern PLC platforms simultaneously.
• Future-Proofing: Hot-swap capability enables live module replacement, supporting incremental modernization strategies without full system shutdowns.
• ✅ Diagnostic Transparency: Real-time fault bits and LED indicators provide the visibility required for predictive maintenance programs in upgraded facilities.

Modernization Use Cases & Success Stories

DCS Output Layer Retrofit — Chemical Processing Plant: A regional chemical manufacturer operating a legacy Distributed Control System (DCS) faced recurring output module failures due to aging relay hardware. By integrating the 1794-OB16PXT into their FLEX I/O migration strategy, the facility replaced 12 relay output cards with electronically protected solid-state modules — reducing unplanned downtime by an estimated 40% and eliminating the need for manual fuse replacement across 192 output channels.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A gas turbine monitoring system relying on first-generation discrete output modules struggled to meet modern diagnostic reporting requirements. The 1794-OB16PXT’s per-channel fault detection and backplane-integrated diagnostics enabled the plant’s control engineers to retrofit the TSI output layer without modifying the existing ControlLogix controller program — achieving full Hardware Upgrade compliance within a single planned maintenance window.

Conveyor System Performance Upgrade — Automotive Assembly: An automotive OEM sought to improve solenoid valve response times across a high-speed assembly conveyor. Replacing legacy output modules with the 1794-OB16PXT reduced output switching latency from 5ms to 1ms, directly improving conveyor synchronization and reducing reject rates at downstream quality inspection stations.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1794-OB16PXT unit is sourced as genuine OEM hardware — factory calibrated, tested to Allen-Bradley specifications, and shipped in original sealed packaging. No refurbished or third-party substitute components.

Expedited Global Logistics: Recognizing that retrofit and migration projects operate under tight commissioning schedules, we maintain dedicated inventory for priority dispatch. Express international shipping is available to support urgent deployment timelines across Asia-Pacific, Europe, the Middle East, and the Americas.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in legacy FLEX I/O system architecture. Whether you are migrating from first-generation 1794-series hardware or integrating the 1794-OB16PXT alongside older adapter modules, we provide pre-sales compatibility consultation, installation guidance, and post-deployment troubleshooting — ensuring your retrofit project reaches commissioning on schedule.

Retrofit FAQ — Upgrade Guide

Q: Can the 1794-OB16PXT physically replace older 1794-series output modules without modifying the mounting rail or terminal base?
A: Yes. The 1794-OB16PXT is designed to the standard FLEX I/O form factor and mounts directly onto existing 1794-TB3, 1794-TB3G, and compatible terminal bases. No mechanical modifications to the panel or mounting rail are required, making it an ideal drop-in solution for space-constrained retrofit environments.

Q: How does the 1794-OB16PXT communicate with legacy controllers that predate EtherNet/IP?
A: The module communicates through the FLEX I/O backplane and relies on the adapter module for network communication. It is compatible with legacy adapter modules supporting DeviceNet, ControlNet, and PROFIBUS — meaning existing fieldbus infrastructure does not need to be replaced as part of the output layer upgrade.

Q: Is the existing RSLogix 5 or RSLogix 500 controller program compatible, or does migration require full reprogramming?
A: The 1794-OB16PXT auto-identifies to the controller and maps output data to the same I/O image table structure as predecessor modules. In most retrofit scenarios, existing ladder logic programs require only minor tag remapping rather than full reprogramming — significantly reducing engineering hours and validation effort.

Q: What are the recommended spare-part substitution options if the 1794-OB16PXT is unavailable for a critical system?
A: For systems where immediate availability is critical, the 1794-OB16 (non-XT variant) provides functional equivalence in standard temperature environments. For extended temperature applications, the XT designation is essential. Our supply chain team can advise on cross-reference options and lead times based on your specific system configuration.

Q: Does the electronic protection on the 1794-OB16PXT support automatic output recovery after a fault, or does it require manual reset?
A: Fault recovery behavior is configurable through the controller program. The module supports both automatic retry (after a programmable delay) and manual reset via controller command — giving retrofit engineers flexibility to match the fault-handling logic of the legacy system being replaced.

Q: What documentation is available to support the retrofit validation and FAT/SAT process?
A: We provide access to the official Allen-Bradley 1794-OB16PXT installation instructions, user manual, and declaration of conformity. For projects requiring Factory Acceptance Testing (FAT) or Site Acceptance Testing (SAT) support, our technical team can assist with test procedure development and compliance documentation.
