Allen-Bradley 1794-OA16 FLEX I/O AC Output Module (16-Pt) – New & Original

Allen-Bradley 1794-OA16 FLEX I/O AC Digital Output Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1794-OA16 stands as a cornerstone of system availability in distributed I/O architectures. Deployed across FLEX I/O backplanes interfacing with ControlLogix, CompactLogix, and FlexLogix controllers, the 1794-OA16 delivers 16 nonisolated AC digital output points rated at 120V AC — enabling deterministic, high-speed switching of AC-powered field devices with the operational excellence demanded by continuous-process industries. Its role in process optimization is direct: reduced wiring complexity, faster commissioning cycles, and seamless integration into existing Rockwell Automation control topologies.

Engineered for durability in harsh industrial environments, the 1794-OA16 withstands operating temperatures from 0°C to +55°C, vibration loads up to 5g across 10-500 Hz, and shock ratings of 30g in service. Triac-based solid-state outputs eliminate mechanical wear, extending service intervals significantly compared to relay-based alternatives. During installation, engineers should observe derating curves in high-ambient enclosures, verify AC supply stability within the 74-132V AC window, and apply recommended torque values per the selected terminal base — critical steps that preserve long-term output integrity and prevent nuisance faults in automation components under load.

As a strategic spare-parts asset, maintaining at least one 1794-OA16 in your critical inventory buffer is a proven reliability practice. End-of-life and legacy module availability constraints make proactive sourcing essential — particularly for facilities operating aging FLEX I/O networks where a single failed output module can cascade into unplanned downtime events measured in hours, not minutes.

Key Operational Features

16-Point High-Density AC Output — Maximizes I/O density per backplane slot, reducing hardware footprint in panel designs.
Triac Solid-State Switching — Zero mechanical wear; supports high-cycle applications with 7A surge capability for 40ms.
Seamless System Integration — Compatible with 10 terminal base variants and all major FLEX I/O adapter protocols (EtherNet/IP, DeviceNet, ControlNet).
Hot-Swap Capability — Online module replacement without system shutdown supports high-availability architectures and minimizes maintenance windows.
Real-Time Status Indication — 16 individual yellow LED indicators provide instant field-level diagnostics without software tools.
Redundancy-Ready Design — Integrates into redundant I/O configurations when paired with appropriate adapter and controller platforms.
IEC 61000 EMC Compliance — Certified for industrial electromagnetic environments; ESD immunity rated to 6kV contact / 8kV air discharge.

Maintenance & Performance Benchmarks

The 1794-OA16 is architected to perform across a broad spectrum of industrial network scales — from compact standalone machine cells to enterprise-wide distributed control systems spanning multiple production zones.

In small-to-medium automation networks, the module operates as a direct node on a FLEX I/O drop, managed by a single CompactLogix controller via EtherNet/IP. Scan times remain deterministic at standard RPI settings, and the module’s 80mA Flexbus current draw ensures compatibility with standard power budgets without supplemental supply requirements.

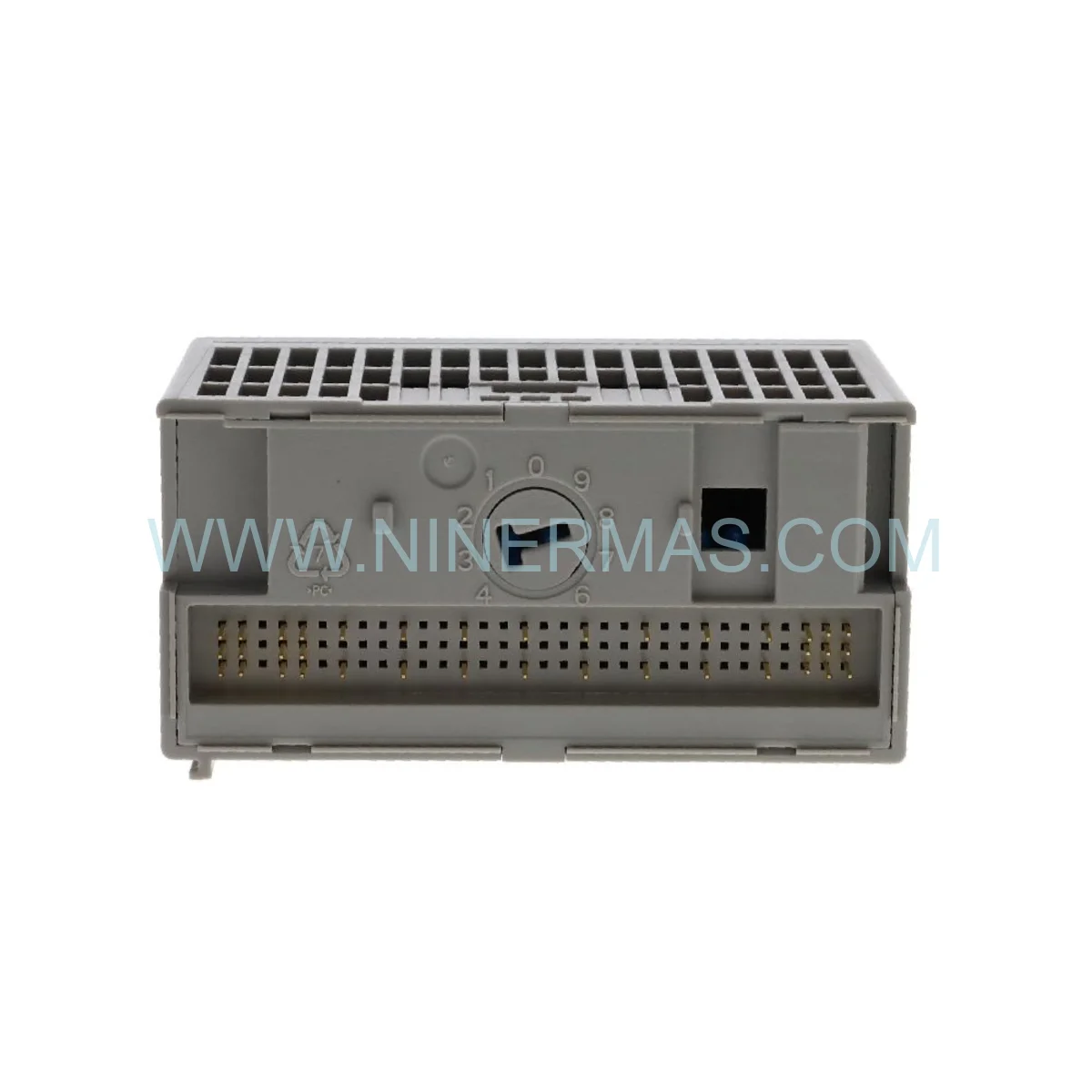

In large-scale architectures — such as refinery DCS migrations or automotive body-shop automation — the 1794-OA16 participates in multi-drop ControlNet or EtherNet/IP topologies where I/O modules are distributed across hundreds of meters of plant floor. Its keyswitch position 8 identification and consistent module profile simplify asset management in Studio 5000 Logix Designer, enabling rapid swap-and-configure procedures during planned maintenance outages. For facilities pursuing operational excellence through predictive maintenance programs, the module’s LED diagnostics and controller-level fault reporting provide the data granularity needed to trend output health before failures occur.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1794-OA16 unit dispatched from our facility ships in original factory packaging — sealed, labeled, and traceable to manufacturer lot documentation. This preserves module integrity during transit and provides the chain-of-custody records increasingly required by quality management systems in regulated industries.

Same-Day Dispatch — Orders confirmed before cut-off time are processed and handed to carrier the same business day, supporting urgent maintenance scenarios where production continuity is at stake.
Worldwide Express Logistics — DHL, FedEx, and UPS express services available to all major industrial regions; typical transit 2-5 business days internationally.
EOL & Legacy Module Sourcing — Specializing in global supply for discontinued and end-of-life automation components, ensuring facilities with aging FLEX I/O infrastructure can source critical spares without costly platform migrations.
Inventory Depth — Multi-unit stock maintained to support both single-unit emergency replacements and bulk procurement for MRO programs.
1-Year Warranty — All units covered against defects in materials and workmanship, with rapid replacement support to minimize downtime exposure.

Engineering Support & FAQ

Q1: What are the recommended installation steps for the 1794-OA16 on a FLEX I/O backplane?
A: Mount the selected terminal base onto the DIN rail first, then slide the 1794-OA16 module into the base until the locking tab engages. Verify keyswitch position 8 alignment before powering the backplane. Wire field devices per terminal base wiring diagram, observing 14-22 AWG conductor sizing. Apply recommended torque to terminal screws. Power up the system and confirm LED indicators illuminate per controller output tag states in Studio 5000.

Q2: Which firmware versions of ControlLogix and CompactLogix controllers are compatible with the 1794-OA16?
A: The 1794-OA16 is a hardware I/O module with no onboard firmware — compatibility is determined by the FLEX I/O adapter module (e.g., 1794-AENT, 1794-ACN15) and its associated EDS file. The module profile is supported across all current Studio 5000 Logix Designer versions (v20 and above). For legacy RSLogix 5000 environments, verify the adapter EDS file revision matches your software library.

Q3: Can the 1794-OA16 drive inductive loads such as motor starters and solenoid valves?
A: Yes. The triac outputs support pilot duty ratings with 7A surge for 40ms. For highly inductive loads, installing RC snubber networks across load terminals is recommended to suppress voltage transients and extend output service life. Consult the module installation instructions (publication 1794-IN006) for snubber sizing guidance.

Q4: How is the warranty claim process handled?
A: Contact our technical support team via sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. Our team will initiate a return merchandise authorization (RMA) within one business day. Confirmed defective units are replaced or credited within the 12-month warranty coverage period. Expedited replacement units can be dispatched prior to return receipt for critical production situations.

Q5: Is channel-to-channel isolation available on the 1794-OA16?
A: No — outputs share a common return path (nonisolated configuration). Applications requiring individual channel isolation should evaluate the 1794-OA8I isolated variant. For mixed isolation requirements within a single backplane, combining both module types is a standard engineering practice in process industries.

Q6: What diagnostic data does the 1794-OA16 report to the controller?
A: The module reports output status bits and module fault data through the FLEX I/O adapter to the controller’s I/O tree. In Studio 5000, the module’s input data table includes output echo bits confirming commanded state. Adapter-level diagnostics capture module communication faults, enabling alarm generation in the controller program for predictive maintenance workflows.
