Allen-Bradley 1794-IV16 Retrofit-Compatible Digital Input Module for Legacy FLEX I/O Systems

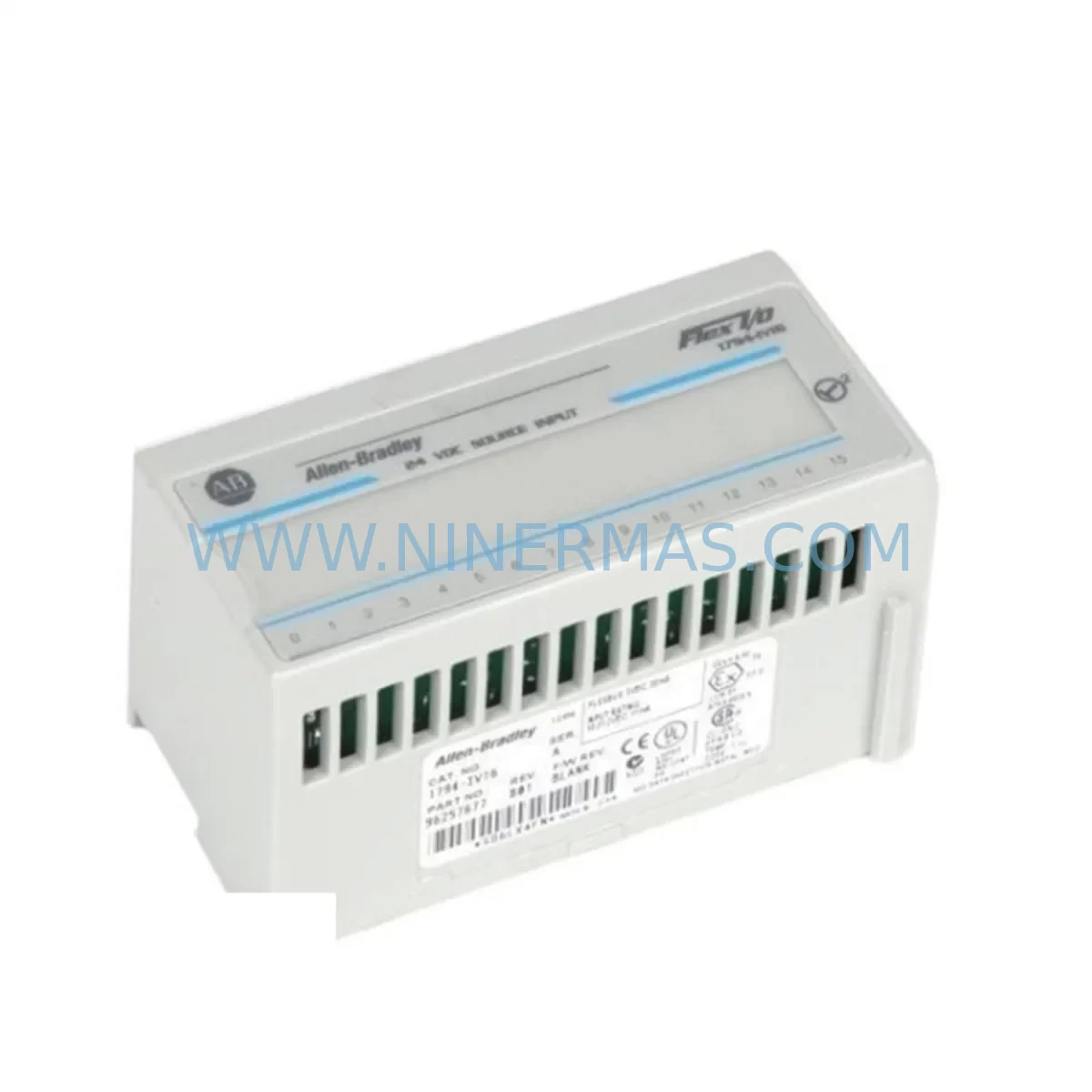

The Allen-Bradley 1794-IV16 is a 16-point 24VDC digital input module designed for the FLEX I/O platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in legacy manufacturing and process control environments. As production lines age and original equipment reaches end-of-life, the 1794-IV16 remains a critical component for engineers undertaking control cabinet upgrades, panel retrofits, and system modernization projects where full platform migration is not yet feasible or cost-effective.

At NINERMAS, we maintain verified stock of the 1794-IV16 to support customers managing aging FLEX I/O installations, replacing discontinued modules, and extending the operational life of existing automation infrastructure. Every unit ships with a 12-month warranty and undergoes pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 1794-IV16 in an active production environment requires careful pre-planning to avoid unintended disruptions. The first step is to audit the existing FLEX I/O adapter — typically a 1794-ADN (DeviceNet), 1794-AENT (EtherNet/IP), or 1794-ACN15 (ControlNet) — to confirm the communication protocol in use and verify that the adapter’s power budget can support the current module count after the replacement. If the adapter is also approaching end-of-life, it is advisable to plan its replacement concurrently.

Terminal base compatibility is another key consideration. The 1794-IV16 mounts onto a dedicated terminal base such as the 1794-TB3 or 1794-TB32. Before removing the existing module, photograph or document all field wiring connections at the terminal base. In many legacy installations, wiring labels have faded or been lost over years of operation, making physical documentation essential before any module swap.

For systems running on older ControlLogix or CompactLogix controllers communicating via a 1756-DNB DeviceNet scanner or a 1756-ENBT EtherNet/IP bridge module, the I/O tree in Studio 5000 or RSLogix 5000 must be reviewed to confirm that the 1794-IV16’s input tags are correctly mapped and that no program logic references absolute slot addresses that could shift after a module replacement. In installations where a 1794-OB16 output module or a 1794-IE8 analog input module occupies adjacent slots, the slot numbering must be verified to remain consistent post-swap.

If the control system includes a PanelView or PanelView Plus HMI, screen objects tied to digital input status bits sourced from the 1794-IV16 should be reviewed to confirm that tag paths remain valid after the module is replaced. HMI tag databases that reference I/O by controller tag name rather than direct address are more resilient to module swaps, but legacy installations often use direct address references that require manual verification.

For facilities migrating from DeviceNet to EtherNet/IP as part of a broader network modernization effort, the 1794-IV16 can be retained on the new network by replacing the 1794-ADN adapter with a 1794-AENT adapter, avoiding the need to replace the I/O modules themselves. This approach significantly reduces retrofit cost and downtime while enabling integration with modern network infrastructure and remote diagnostics platforms.

Signal isolation requirements should also be assessed during retrofit planning. In environments with high electrical noise — common in motor drive cabinets, welding lines, and heavy press applications — adding a signal isolator or surge protection device between field sensors and the 1794-IV16 input terminals can improve long-term reliability and reduce nuisance faults. This is particularly relevant when the existing installation lacks proper cable shielding or grounding.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team performing a live system retrofit. For the 1794-IV16, a structured hot-swap procedure can be executed in most FLEX I/O installations without requiring a full system shutdown, provided the adapter supports module insertion under power and the controller is placed in a safe state prior to the swap.

Before removing the existing module, export a backup of the controller program from Studio 5000 or RSLogix 5000 and save the I/O configuration. This ensures that if the replacement module triggers an unexpected fault — such as a module type mismatch or a communication error — the original configuration can be restored quickly. For systems using online editing, the controller can often remain in Run mode during the swap, with the affected input tags simply going to their configured fault state (typically 0) during the brief disconnection window.

Pre-staging the replacement 1794-IV16 before the maintenance window is strongly recommended. This includes verifying the module’s series revision, confirming the terminal base type matches the existing installation, and performing a bench-level power-on test if test equipment is available. Units supplied by NINERMAS are pre-tested prior to shipment, reducing the risk of receiving a non-functional module during a time-critical maintenance window.

After installation, the module should be confirmed online in the controller’s I/O tree before field wiring is reconnected. Once the module is recognized and communicating, field wiring can be reconnected terminal by terminal, with each input verified against the HMI or controller tag monitor before the system is returned to automatic operation. This staged reconnection approach allows faults to be isolated to specific field devices rather than requiring a full system diagnostic after a bulk reconnection.

Retrofit Support FAQ

Q: Is the 1794-IV16 a direct replacement for all series revisions of the same part number?
A: Yes. The 1794-IV16 is backward compatible across series A, B, and C revisions. No firmware update or I/O configuration change is required when replacing one series revision with another. The module will be recognized automatically by the FLEX I/O adapter upon installation.

Q: What terminal base is required for the 1794-IV16, and can I reuse the existing one?
A: The 1794-IV16 is compatible with the 1794-TB3, 1794-TB32, and 1794-TB3S terminal bases. In most retrofit scenarios, the existing terminal base can be retained, which eliminates the need to re-terminate field wiring and significantly reduces installation time. Inspect the terminal base for physical damage or corrosion before reuse.

Q: Does NINERMAS provide pre-shipment testing for the 1794-IV16?
A: Yes. All 1794-IV16 units supplied by NINERMAS undergo functional testing prior to shipment to verify input channel operation, backplane communication, and LED status indication. Each unit is covered by a 12-month warranty from the date of shipment.

Q: What is the lead time and stock availability for the 1794-IV16?
A: NINERMAS maintains inventory of the 1794-IV16 to support urgent maintenance and retrofit requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact our sales team directly to confirm availability and pricing.

—
