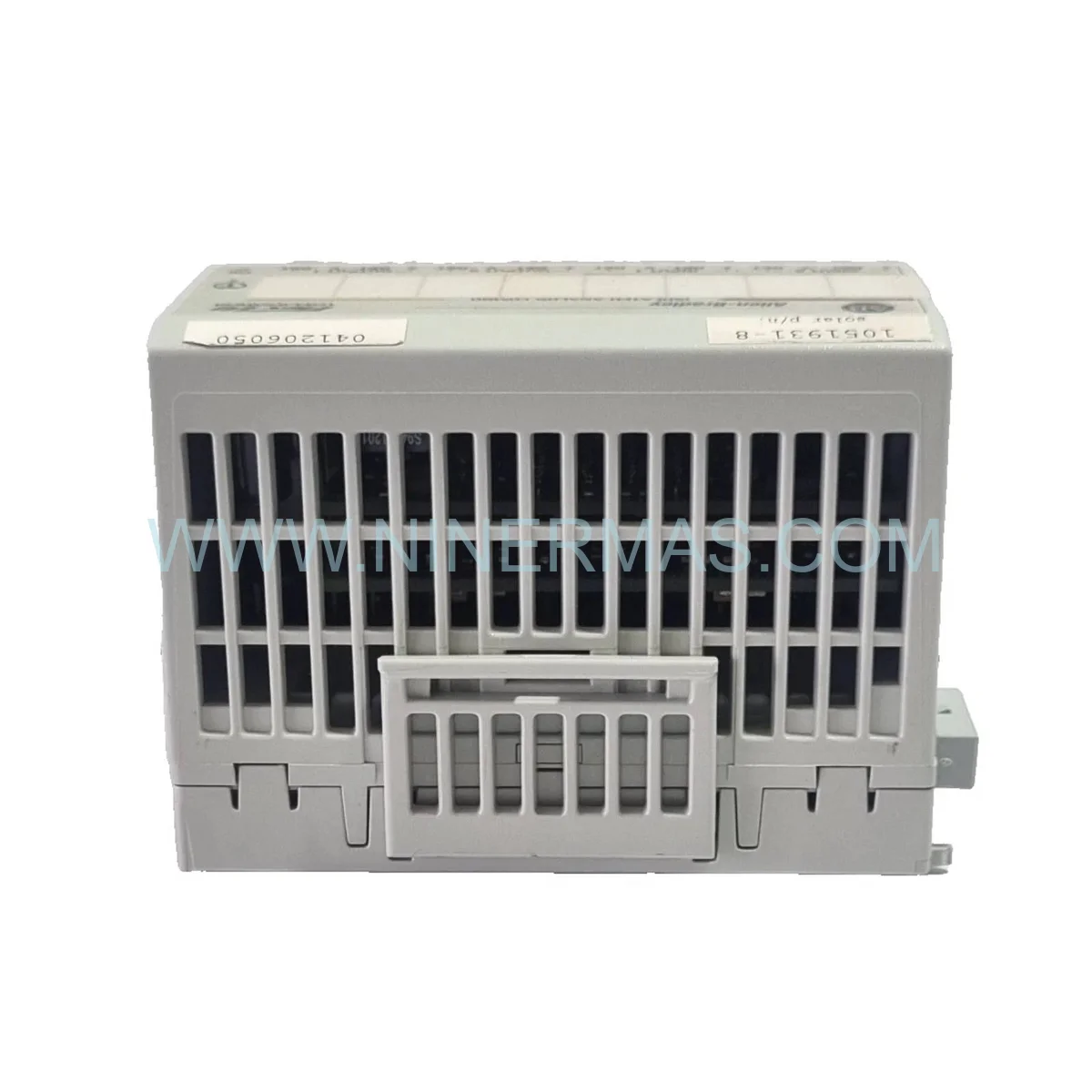

Allen-Bradley 1794-IF2XOF21 Isolated Analog I/O Module | New & Original

Allen-Bradley 1794-IF2XOF21 | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, maintaining system uptime in process-intensive environments demands components that perform without compromise. The Allen-Bradley 1794-IF2XOF21 is an isolated analog combination I/O module engineered for Flex I/O architectures, delivering deterministic signal fidelity across 2 analog input and 2 analog output channels. Its role in process optimization is direct: by providing 16-bit resolution with channel-to-channel isolation rated at 1500V AC, the 1794-IF2XOF21 eliminates ground loop interference that commonly degrades measurement accuracy in high-density control panels — a root cause of unplanned downtime in mission-critical applications.

Operational durability is a non-negotiable requirement in environments subject to thermal cycling, vibration, and electromagnetic interference. The 1794-IF2XOF21 is rated for continuous operation from 0°C to 60°C and draws only 2.5W at 5V DC, minimizing thermal load within the backplane. During installation, engineers should verify terminal base compatibility — the 1794-TB3 or 1794-TB3G is required — and confirm that channel configuration (voltage vs. current mode) is completed via Studio 5000 prior to commissioning to prevent signal range mismatches that can trigger nuisance faults.

As a strategic spare-parts asset, this module represents a critical line of defense against extended production halts. Given its EOL risk profile and the lead times associated with legacy Flex I/O components, maintaining at least one unit in reserve inventory is standard practice for facilities operating Allen-Bradley automation platforms. Operational excellence begins with proactive sourcing — not reactive procurement after a failure event.

Key Operational Features

Dual-Channel Isolation (1500V AC): Eliminates cross-channel interference for high-integrity signal acquisition in noisy industrial environments.
16-Bit Resolution: Delivers measurement precision essential for tight process control loops in chemical, energy, and manufacturing sectors.
Hot-Swap Capability: Supports module replacement without system shutdown — a cornerstone of high availability architecture.
Configurable I/O Ranges: Each channel independently supports ±10V DC, 0-10V DC, 0-20mA, and 4-20mA — maximizing system integration flexibility.
Seamless Redundancy Support: Compatible with ControlLogix and CompactLogix redundancy configurations via EtherNet/IP, ControlNet, and DeviceNet adapters.
Diagnostic LED Indicators: Real-time fault visibility at the module level accelerates MTTR and reduces reliance on software-based diagnostics during field troubleshooting.

Maintenance & Performance Benchmarks

The 1794-IF2XOF21 is architected to integrate across a broad spectrum of industrial network topologies. In small-scale installations — such as standalone machine cells or skid-mounted process units — the module operates efficiently as a direct Flex I/O node connected via a 1794-ADN DeviceNet adapter, requiring minimal configuration overhead. In mid-tier distributed control architectures, it functions as a remote I/O node on ControlNet segments, supporting deterministic scan rates suitable for closed-loop PID control.

For enterprise-scale automation networks, the module integrates into EtherNet/IP-based systems managed through Studio 5000 Logix Designer, enabling centralized diagnostics, firmware version management, and tag-based I/O mapping. Preventive maintenance intervals should include periodic calibration verification (recommended annually), inspection of terminal base locking mechanisms, and firmware compatibility audits when upgrading controller firmware to avoid I/O tree mismatches that can cause module faults during system restarts.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1794-IF2XOF21 unit dispatched from our facility is sourced in original factory packaging, preserving ESD protection, calibration integrity, and traceability documentation. For time-sensitive plant shutdowns or emergency maintenance windows, same-day dispatch is available for in-stock inventory — contact our team before 14:00 CST to confirm eligibility.

We maintain a dedicated global supply chain for EOL and legacy Flex I/O modules, ensuring availability even when standard distribution channels have exhausted stock. Our sourcing network spans authorized distributors and certified secondary market channels, with each unit subject to incoming inspection and functional verification before shipment. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to plant sites across North America, Europe, Southeast Asia, and the Middle East within 3-7 business days.

Engineering Support & FAQ

Q: What is the correct installation sequence for the 1794-IF2XOF21 on a Flex I/O rack?
A: Mount the module onto a compatible 1794-TB3 or 1794-TB3G terminal base before connecting field wiring. Power down the adapter segment if hot-swap is not required. After physical installation, configure channel I/O ranges in Studio 5000 and download the updated project to the controller. Verify module status LEDs indicate normal operation before enabling control loops.

Q: Which firmware versions are compatible with the 1794-IF2XOF21?
A: The module is compatible with RSLogix 5000 v16 and above, and Studio 5000 Logix Designer v21 and above. When upgrading controller firmware, always cross-reference the Rockwell Automation Product Compatibility and Download Center (PCDC) to confirm I/O module firmware alignment and avoid EDS file conflicts.

Q: Can the input and output channels be configured independently for different signal types?
A: Yes. Each of the two input channels and two output channels can be independently configured for voltage or current mode via software. Mixed-mode operation (e.g., Channel 1 in 4-20mA, Channel 2 in ±10V DC) is fully supported within a single module instance.

Q: How is the 1-year warranty claim process initiated?
A: Contact our technical support team at sale@ninermas.com with your order reference number, a description of the observed fault, and photographic evidence of the module condition. Our team will issue an RMA authorization within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned module.

Q: Is the 1794-IF2XOF21 suitable for use in SIL-rated safety systems?
A: The standard 1794-IF2XOF21 is not SIL-certified for use in IEC 61508 safety instrumented systems. For safety-rated analog I/O in Flex I/O architectures, consult Rockwell Automation’s GuardLogix or Safety Flex I/O product lines. Our engineering team can assist with alternative sourcing for safety-rated applications.

Q: What documentation is included with each shipment?
A: Each unit ships with the original manufacturer’s product label, a certificate of conformance, and — where available — factory test records. Installation manuals and EDS files can be provided digitally upon request. Extended documentation packages for regulated industries are available on inquiry.
