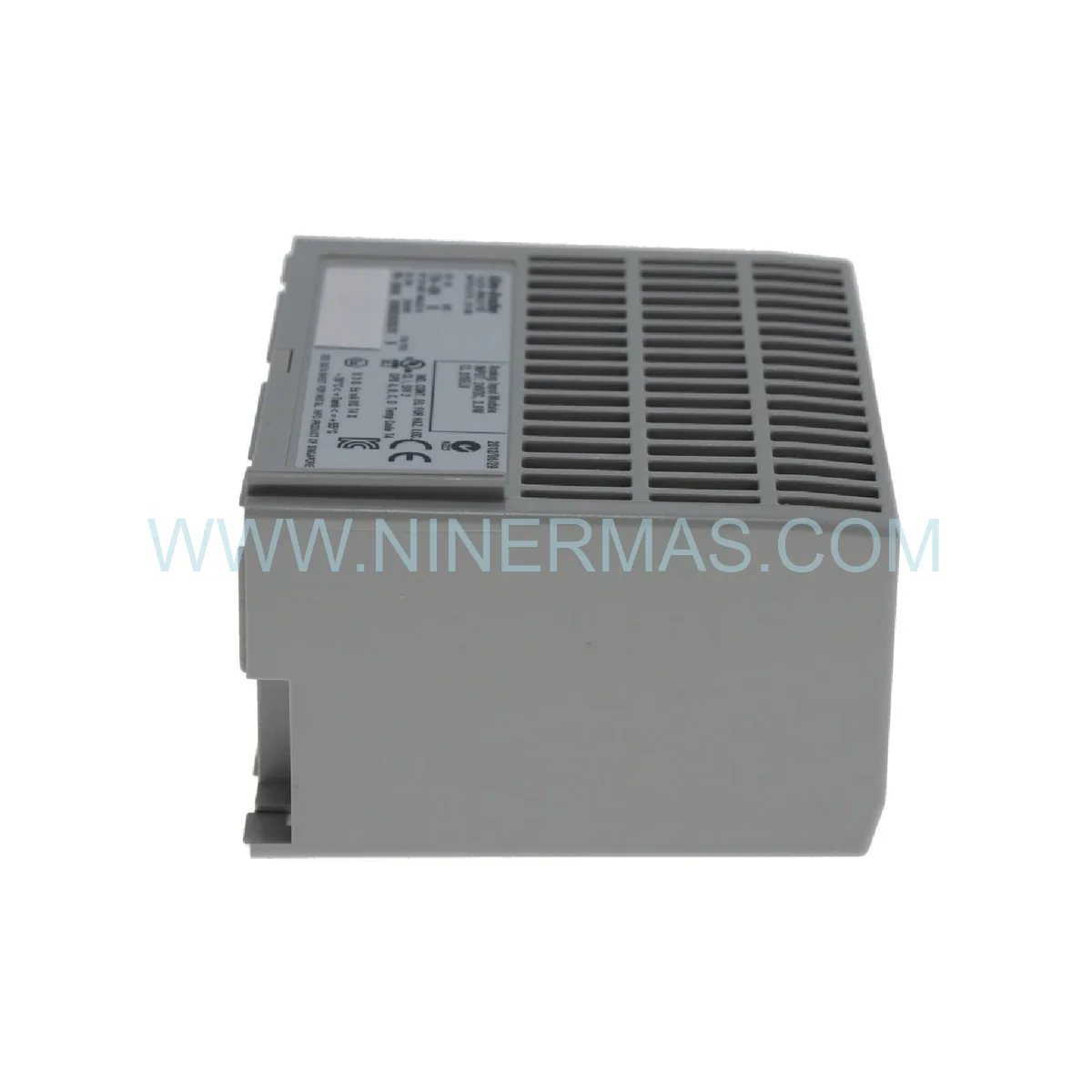

Allen-Bradley 1794-IE8H/B | HART Retrofit & Flex I/O Upgrade Module

Allen-Bradley 1794-IE8H/B – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, I consistently identify the Allen-Bradley 1794-IE8H/B as a cornerstone component in HART-enabled modernization initiatives. This 8-channel analog input module bridges the gap between aging field instrumentation and contemporary distributed control architectures — delivering measurable performance gains without requiring a full system overhaul. Its role in extending the operational lifespan of Flex I/O platforms while simultaneously unlocking HART 7.x diagnostic capabilities makes the Allen-Bradley 1794-IE8H/B an indispensable asset in any phased migration strategy.

From a legacy compatibility standpoint, this module integrates directly into existing Flex I/O backplane assemblies, preserving your current wiring infrastructure and 4-20mA loop investments. Whether you are transitioning from a first-generation DCS to a PlantPAx architecture or reinforcing a turbine supervisory system (TSI) with enhanced diagnostics, the 1794-IE8H/B serves as the upgrade pathway core — eliminating the need for costly parallel installations or full rack replacements.

The financial and operational case for deploying this module in retrofit scenarios is compelling: migration risk is substantially reduced through drop-in compatibility, commissioning timelines shrink due to HART-based remote device configuration, and total cost of ownership decreases as predictive maintenance replaces reactive repair cycles. For facilities operating under tight capital expenditure constraints, this represents a high-ROI modernization lever.

Upgrade Highlights & Compatibility

• HART 7.x Protocol Support — Backward compatible with HART 5/6 field devices; future-proofed for next-generation smart instrumentation
• ✅ Drop-In Flex I/O Compatibility — Installs into existing 1794 backplane slots with zero structural modification required
• 16-Bit A/D Resolution — Delivers ±0.1% full-scale accuracy, a significant performance enhancement over legacy 12-bit predecessors
• ✅ Conformal Coating (/B Revision) — Engineered for harsh environments: high humidity, chemical exposure, and thermal cycling — extending hardware service life
• Online Insertion & Removal (RIUP) — Hot-swap capability ensures zero-downtime module replacement during live production runs
• ✅ Studio 5000 / RSLogix 5000 Native Integration — Seamless integration with Allen-Bradley programming environments; no third-party middleware required
• Dual-Mode Operation — Simultaneous 4-20mA analog monitoring and on-demand HART digital communication without signal interruption

Modernization Use Cases & Success Stories

DCS Migration — Chemical Processing Plant: A multi-unit chemical facility operating a legacy Honeywell TDC 3000 DCS initiated a phased migration to Allen-Bradley PlantPAx. By deploying the 1794-IE8H/B across 24 Flex I/O nodes, the engineering team retained all existing HART transmitters (pressure, flow, level) while gaining full HART diagnostic visibility through Studio 5000. The result: a 40% reduction in unplanned shutdowns within the first operational year, driven by early fault detection via HART device status polling.

Turbine Supervisory System (TSI) Upgrade — Power Generation: A combined-cycle power plant required enhanced vibration and temperature monitoring for its gas turbine fleet without replacing the existing sensor arrays. The 1794-IE8H/B was integrated into the TSI retrofit architecture, enabling real-time HART-based calibration verification and remote sensor diagnostics. This eliminated the need for manual handheld communicator rounds, reducing maintenance labor by an estimated 30% annually.

Pharmaceutical Manufacturing — Compliance-Driven Retrofit: To meet updated FDA 21 CFR Part 11 data integrity requirements, a sterile manufacturing facility upgraded its analog input infrastructure. The 1794-IE8H/B’s conformal-coated /B revision provided the environmental resilience required for clean-room deployment, while HART audit trail capabilities satisfied regulatory documentation demands — all without disrupting ongoing batch production.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1794-IE8H/B unit supplied through our network is sourced from authorized distribution channels or directly from Rockwell Automation-certified inventory. Factory-sealed packaging with intact tamper-evident labels ensures authenticity and full warranty eligibility — critical for regulated industries and long-term asset management programs.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement scenarios demand rapid response, we maintain strategic inventory positions to support same-day dispatch for in-stock units. International freight coordination covers air, sea, and express courier options to manufacturing sites across Asia-Pacific, Europe, the Middle East, and the Americas.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy system integration challenges. Whether you require assistance mapping 1794-IE8H/B I/O tags into an existing RSLogix 5000 project, troubleshooting HART communication conflicts with older field devices, or identifying compatible replacement modules for discontinued hardware, our retrofit specialists are available to provide application-specific guidance throughout your project lifecycle.

Retrofit FAQ — Upgrade Guide

Q: Will the 1794-IE8H/B physically fit into my existing Flex I/O rack without mechanical modification?
A: Yes. The 1794-IE8H/B conforms to the standard 1794 Flex I/O module form factor and installs directly into any compatible backplane slot. No bracket modifications, adapter plates, or enclosure alterations are required — making it an ideal drop-in solution for space-constrained retrofit environments.

Q: How does this module handle communication between new HART 7 devices and older legacy controllers running RSLogix 5000 v16 or earlier?
A: The 1794-IE8H/B manages HART protocol translation transparently at the module level. The 4-20mA analog signal is processed independently of HART digital data, ensuring that legacy controller firmware versions continue to receive standard analog values without modification. HART diagnostic data can be accessed via pass-through messaging for controllers with compatible Add-On Instructions (AOIs).

Q: What are the recommended spare part substitutes if the 1794-IE8H/B becomes difficult to source in the future?
A: For applications not requiring conformal coating, the 1794-IE8H (non-/B variant) is a direct functional equivalent. For projects requiring expanded channel density or enhanced isolation, the 1794-IF8IH offers an isolated HART input alternative within the same Flex I/O ecosystem. Our team can provide a detailed compatibility assessment based on your specific process requirements.

Q: Can HART communication be used to recalibrate field transmitters remotely without interrupting the 4-20mA control loop?
A: Absolutely. The 1794-IE8H/B supports full HART command set execution — including remote calibration, range adjustment, and device configuration — while maintaining uninterrupted 4-20mA signal transmission to the controller. This capability is particularly valuable during live production runs where process interruption is not permissible.

Q: What is the maximum HART polling cycle time when all 8 channels are actively queried?
A: With sequential HART communication across all 8 channels at approximately 500ms per device query, a full polling cycle completes in approximately 4 seconds. For time-critical diagnostic applications, HART burst mode can be enabled on individual devices to reduce latency for priority channels.

Q: How does the /B conformal coating revision affect module replacement in a running system?
A: The /B revision is functionally identical to the base 1794-IE8H from a control system perspective — the conformal coating is an environmental protection enhancement only. RIUP (hot-swap) capability is fully retained, allowing module replacement during live system operation without controller shutdown or process interruption.
