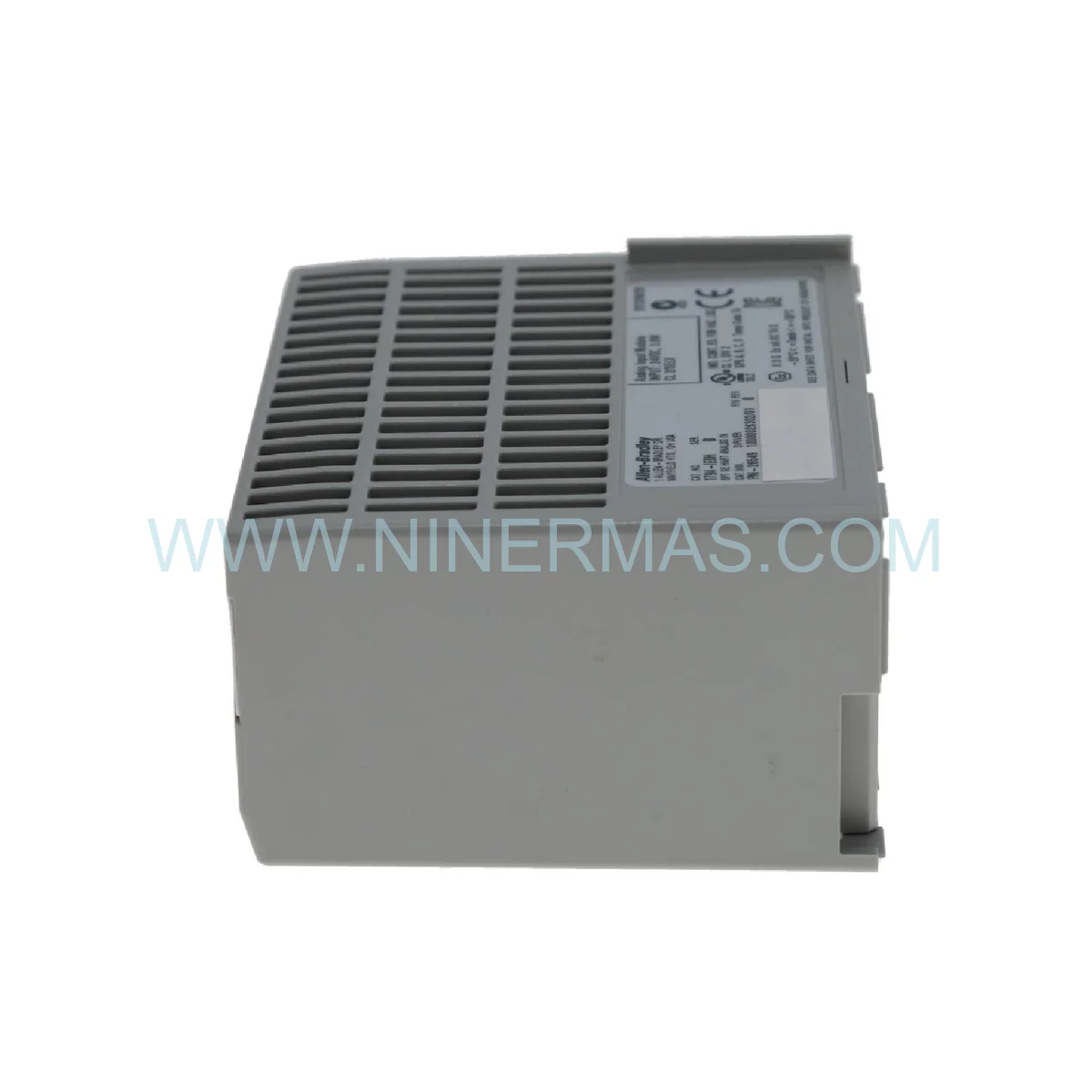

Allen-Bradley 1794-IE8H | 8-Ch HART Analog Input Module (New & Original)

Allen-Bradley 1794-IE8H | Reliable Automation Component for Mission-Critical Processes

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed control architectures, the Allen-Bradley 1794-IE8H stands as a cornerstone I/O module for sustaining system availability in process-intensive facilities. The 1794-IE8H delivers eight individually isolated differential analog input channels with full HART protocol support, enabling simultaneous acquisition of 4-20mA process values and digital diagnostic data from smart field instruments — all over a single twisted-pair cable. This dual-layer communication capability directly reduces unplanned downtime by surfacing device health indicators before a failure propagates to the process layer, a fundamental requirement in mission-critical automation environments.

Engineered for operational excellence in demanding industrial settings, the 1794-IE8H is rated for continuous service from 0°C to 60°C and carries ATEX Zone 2 certification, making it suitable for deployment in petrochemical, pharmaceutical, and power generation facilities where environmental stressors — vibration, humidity, and thermal cycling — are constant. During installation, engineers should ensure the terminal base (1794-TB2 or equivalent) is firmly seated on the DIN rail prior to module insertion, and that cable shielding is grounded at a single point to prevent HART signal interference. Conformal-coated variants (suffix /B) are recommended for high-humidity or corrosive atmospheres.

As production lines age and original equipment reaches end-of-life status, maintaining a verified stock of the 1794-IE8H as a critical spare is not optional — it is a reliability strategy. Legacy Flex I/O architectures remain operational across thousands of global facilities, and sourcing a genuine, factory-packaged replacement module on short notice is the difference between a two-hour swap and a two-week production halt. Process optimization begins with parts availability.

Key Operational Features

8 Individually Isolated Differential Inputs — Eliminates ground loop interference across multi-instrument loops, ensuring signal integrity in complex wiring environments.
Full HART 5 / 6 / 7 Protocol Compatibility — Supports primary and secondary variable access, remote configuration, and burst mode for continuous variable streaming.
16-Bit Sigma-Delta A/D Conversion — Delivers ±0.05% of span accuracy (linearity, repeatability, hysteresis combined), meeting the precision demands of process optimization workflows.
Seamless Integration with Rockwell Automation Ecosystems — Compatible with RSLogix 5000 / Studio 5000 via HART Add-On Profile (AOP), enabling system integration without custom programming overhead.
High Availability by Design — Supports hot-swap capability within the Flex I/O platform, minimizing maintenance windows and supporting redundancy strategies in critical control loops.
Software-Selectable Signal Range — Configure each channel independently for 0-20mA or 4-20mA operation, adapting to diverse field instrument specifications without hardware changes.

Maintenance & Performance Benchmarks

The 1794-IE8H is architected to scale across industrial network topologies ranging from small standalone Flex I/O drops to large distributed control systems spanning multiple plant areas. In a typical ControlLogix or CompactLogix architecture, the module communicates over EtherNet/IP or ControlNet via the Flex I/O adapter, with channel update times as low as 10ms per channel — sufficient for most process control loops requiring sub-100ms feedback cycles.

For predictive maintenance programs, the HART communication layer unlocks access to secondary variables such as sensor temperature, loop current saturation flags, and device diagnostic counters. These data points feed directly into asset management platforms (AMS Suite, PACTware, FieldCare) to establish performance baselines and trigger condition-based maintenance alerts — a proven approach to reducing mean time between failures (MTBF) in automation components across refinery, chemical, and water treatment sectors.

In multi-drop or high-density I/O configurations, the module’s 250Ω nominal input impedance per channel ensures HART signal integrity over cable runs up to 914 meters (3,000 ft) with standard instrumentation cable (<65 pF/ft capacitance). This specification supports large-scale plant layouts without requiring signal repeaters in the majority of field installations.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1794-IE8H unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging — sealed, labeled, and accompanied by manufacturer documentation. This ensures the module you receive is genuine, untampered, and ready for immediate deployment without additional incoming inspection overhead.

For time-sensitive production recovery scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff times apply — contact our team to verify current availability). We maintain dedicated inventory buffers for EOL (End-of-Life) and legacy Flex I/O modules, recognizing that global supply chain disruptions disproportionately impact older automation platforms that cannot be easily upgraded mid-production cycle.

Our worldwide express logistics network covers major industrial hubs across North America, Europe, the Middle East, Southeast Asia, and Oceania — with DHL, FedEx, and UPS priority freight options available. Customs documentation, commercial invoices, and country-of-origin certificates are prepared in-house to minimize clearance delays at destination ports.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 1794-IE8H?
A: Mount the appropriate terminal base (e.g., 1794-TB2) on the DIN rail and connect field wiring before inserting the module. Slide the 1794-IE8H into the terminal base until the locking tab engages. Apply power to the Flex I/O adapter, then configure channel parameters (signal range, HART enable/disable) via Studio 5000 using the HART Add-On Profile. Verify channel status LEDs indicate normal operation before commissioning field instruments.

Q2: Which firmware versions are compatible with the 1794-IE8H?
A: The module is compatible with RSLogix 5000 version 16.00 and later, including all Studio 5000 Logix Designer releases. The HART AOP must be installed separately and is available from the Rockwell Automation Product Compatibility and Download Center (PCDC). Always verify AOP revision compatibility with your controller firmware version prior to deployment.

Q3: Can the 1794-IE8H operate alongside non-HART analog devices on the same Flex I/O drop?
A: Yes. The module functions as a standard 4-20mA analog input for conventional transmitters while simultaneously supporting HART communication on any channel where a HART-capable device is connected. Mixed configurations are fully supported within a single Flex I/O adapter drop.

Q4: What is the warranty process for a defective unit?
A: Units exhibiting defects in materials or workmanship within the 12-month warranty period are eligible for replacement or repair at no charge. Contact our technical support team with the module serial number, purchase order reference, and a description of the fault. RMA authorization is typically issued within one business day, and replacement units are dispatched upon receipt of the defective module.

Q5: How does HART burst mode affect controller scan time?
A: HART burst mode enables a field device to continuously transmit its primary variable without waiting for a polling request, reducing HART communication latency. However, burst mode data is processed asynchronously by the module and does not directly impact the controller’s I/O scan time. The 10ms minimum channel update time remains the governing parameter for process control loop timing.

Q6: Is the 1794-IE8H suitable for SIL-rated safety applications?
A: The standard 1794-IE8H is not SIL-rated for use in IEC 61508 safety instrumented systems. For safety-critical applications requiring SIL 1 or SIL 2 compliance, consult Rockwell Automation’s GuardLogix or Safety Flex I/O product lines, which are specifically certified for functional safety architectures.
