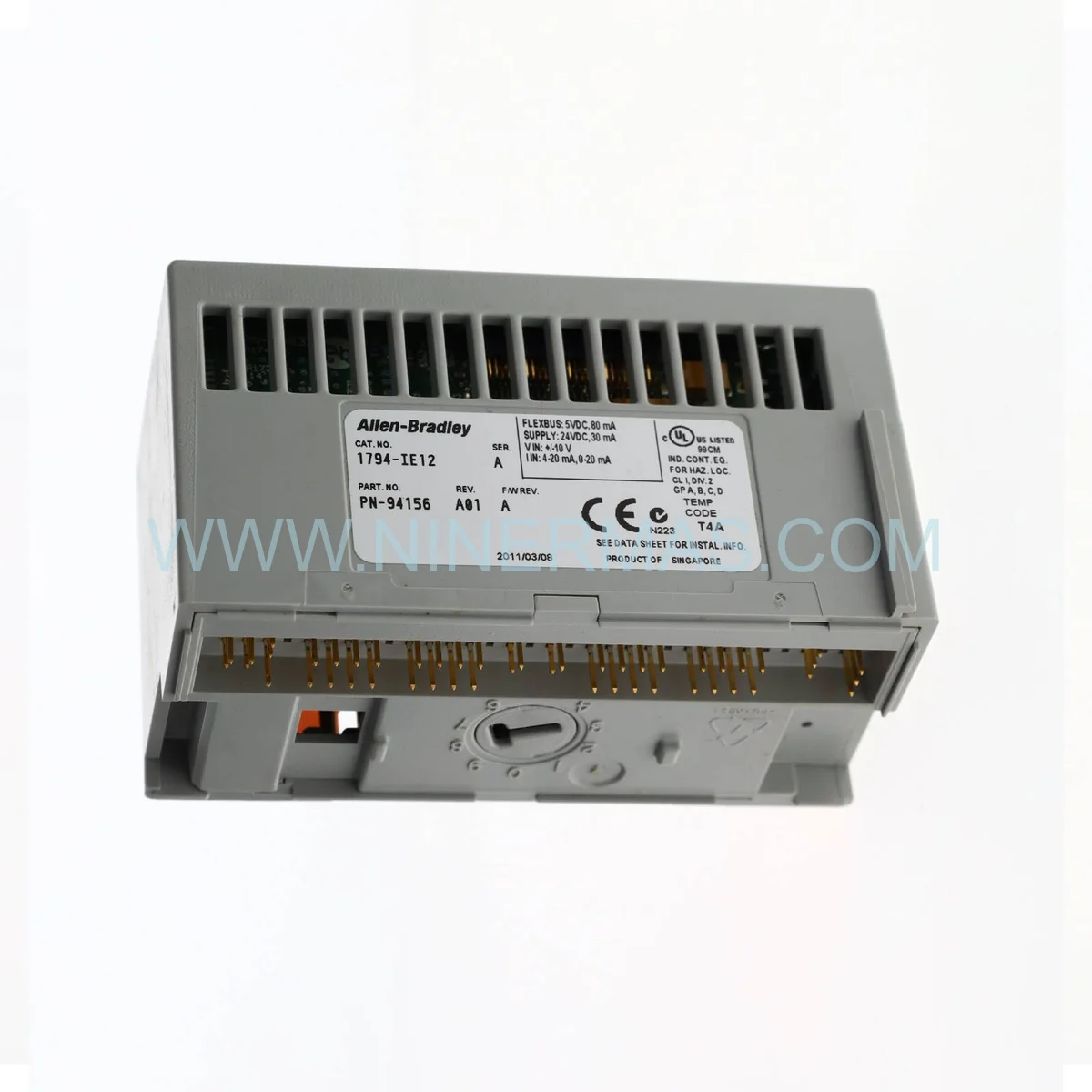

Allen-Bradley 1794-IE12/A Flex I/O Analog Input Module — New & Original

Allen-Bradley 1794-IE12/A | Flex I/O Analog Input Module — Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical process lines, the Allen-Bradley 1794-IE12/A stands as a cornerstone I/O module for sustaining system availability in high-demand automation environments. The 1794-IE12/A delivers 12 differential analog input channels at 16-bit resolution, enabling precise acquisition of voltage and current signals across distributed control architectures — a capability that directly reduces unplanned downtime and supports operational excellence in sectors ranging from chemical processing to power generation.

Engineered for durability in harsh industrial conditions, this Flex I/O module operates reliably across a 0°C to 60°C ambient range with channel-to-backplane isolation rated at 250V continuous. Installation demands attention to terminal base compatibility — the 1794-IE12/A requires a 36-pin terminal base (such as 1794-TB3 or 1794-TB3S) and must be mounted in sequence on the Flex I/O backplane. Proper shielding of analog signal cables is essential to suppress electromagnetic interference in high-noise plant environments.

As production systems age and OEM support windows close, maintaining a verified stock of the 1794-IE12/A as a critical spare part is a standard practice among reliability-focused engineering teams. Sourcing original, factory-packaged units ensures seamless integration without firmware conflicts or calibration drift — protecting both process integrity and capital investment.

Key Operational Features

12 Differential Analog Input Channels — High-density signal acquisition for complex process monitoring
16-Bit Resolution — ±0.1% full-scale accuracy at 25°C for precision process optimization
Multi-Signal Compatibility — Supports ±10V DC, 0-20mA, and 4-20mA input types
Configurable Update Rate — 10ms to 1000ms per channel for flexible system integration
Hot-Swap Capability — Supports seamless integration and live module replacement with compatible adapters
High Availability Design — Channel-to-backplane isolation and redundancy-ready architecture for mission-critical deployments

Maintenance & Performance Benchmarks

The 1794-IE12/A is architected to scale across industrial network topologies of varying complexity. In small-cell manufacturing environments, it connects via DeviceNet or ControlNet adapters to a single PLC, providing localized analog monitoring with minimal infrastructure overhead. In large-scale distributed control systems (DCS), multiple Flex I/O nodes — each housing the 1794-IE12/A — can be daisy-chained across EtherNet/IP segments, enabling centralized data aggregation without sacrificing field-level granularity.

Preventive maintenance cycles for this module should include periodic calibration verification (recommended annually or after significant ambient temperature shifts), inspection of terminal base contact integrity, and firmware version alignment with the host controller. Studio 5000 Logix Designer and RSLogix 5000 both support full configuration and diagnostic visibility for this module, including per-channel fault reporting and input scaling parameters — critical tools for sustaining process optimization targets over multi-year operational horizons.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1794-IE12/A unit dispatched by our team is sourced directly from authorized distribution channels and ships in original factory packaging — complete with manufacturer labels, protective foam inserts, and anti-static enclosures. This ensures the module arrives in pristine, deployment-ready condition with no risk of transit damage or counterfeit substitution.

For time-sensitive plant shutdowns or emergency maintenance windows, same-day dispatch is available for in-stock units (order confirmation required before 2:00 PM local time). We maintain a dedicated global supply pipeline for end-of-life (EOL) and legacy Flex I/O modules, ensuring procurement continuity even for systems that have been out of active production for years. Worldwide express logistics via DHL, FedEx, and UPS guarantees delivery to major industrial hubs across Asia, Europe, the Americas, and the Middle East within 3-7 business days.

Engineering Support & FAQ

Q1: What terminal base is compatible with the 1794-IE12/A?
A: The module requires a 36-pin Flex I/O terminal base. Compatible options include the 1794-TB3 (screw-clamp), 1794-TB32 (extended), 1794-TB3S (spring-clamp, tool-free), and 1794-TB3T (for thermocouple transmitter applications). Selection depends on wiring method preference and environmental requirements.

Q2: Which firmware versions are compatible with this module?
A: The 1794-IE12/A is compatible with a broad range of Flex I/O adapter firmware versions. For EtherNet/IP adapters (1794-AENT), firmware 4.x and above is recommended. Always verify compatibility using the Rockwell Automation Product Compatibility and Download Center (PCDC) prior to deployment.

Q3: Can the 1794-IE12/A be installed in a live system without shutting down?
A: Yes. The module supports hot-swap functionality when paired with a compatible Flex I/O adapter. The controller will automatically detect the new module and resume I/O scanning after a brief reconfiguration cycle — minimizing disruption to ongoing process operations.

Q4: How do I initiate a warranty claim if the module fails?
A: Contact our technical support team at sale@ninermas.com with your order number, module serial number, and a description of the fault symptom. Our team will initiate an RMA (Return Merchandise Authorization) process within 24 business hours. The 1-year warranty covers manufacturing defects and functional failures under normal operating conditions.

Q5: What is the recommended cable specification for analog signal wiring?
A: Use shielded twisted-pair (STP) cable with a minimum 24 AWG conductor gauge. Maximum recommended cable run is 300 meters for 4-20mA current loops and 100 meters for ±10V voltage signals. Ground the cable shield at one end only (typically at the module end) to prevent ground loop interference.

Q6: Is this module suitable for SIL-rated safety applications?
A: The standard 1794-IE12/A is not SIL-certified for use in IEC 61508 safety instrumented systems. For safety-rated analog input requirements, consult Rockwell Automation’s GuardLogix or Safety I/O product lines. The 1794-IE12/A is optimized for standard process control and monitoring applications requiring high accuracy and system integration flexibility.
